Sarmert 3-Lead Hard-Wire Kit for Micro-USB Dash Cams

1. Introducere

This manual provides detailed instructions for the installation and operation of the Sarmert 3-Lead Hard-Wire Kit. This kit is designed to provide continuous power to your Micro-USB compatible dash camera, enabling features such as 24-hour parking monitoring and low voltage protection. It converts 12V-24V vehicle power to a stable 5V/2.5A output for your device.

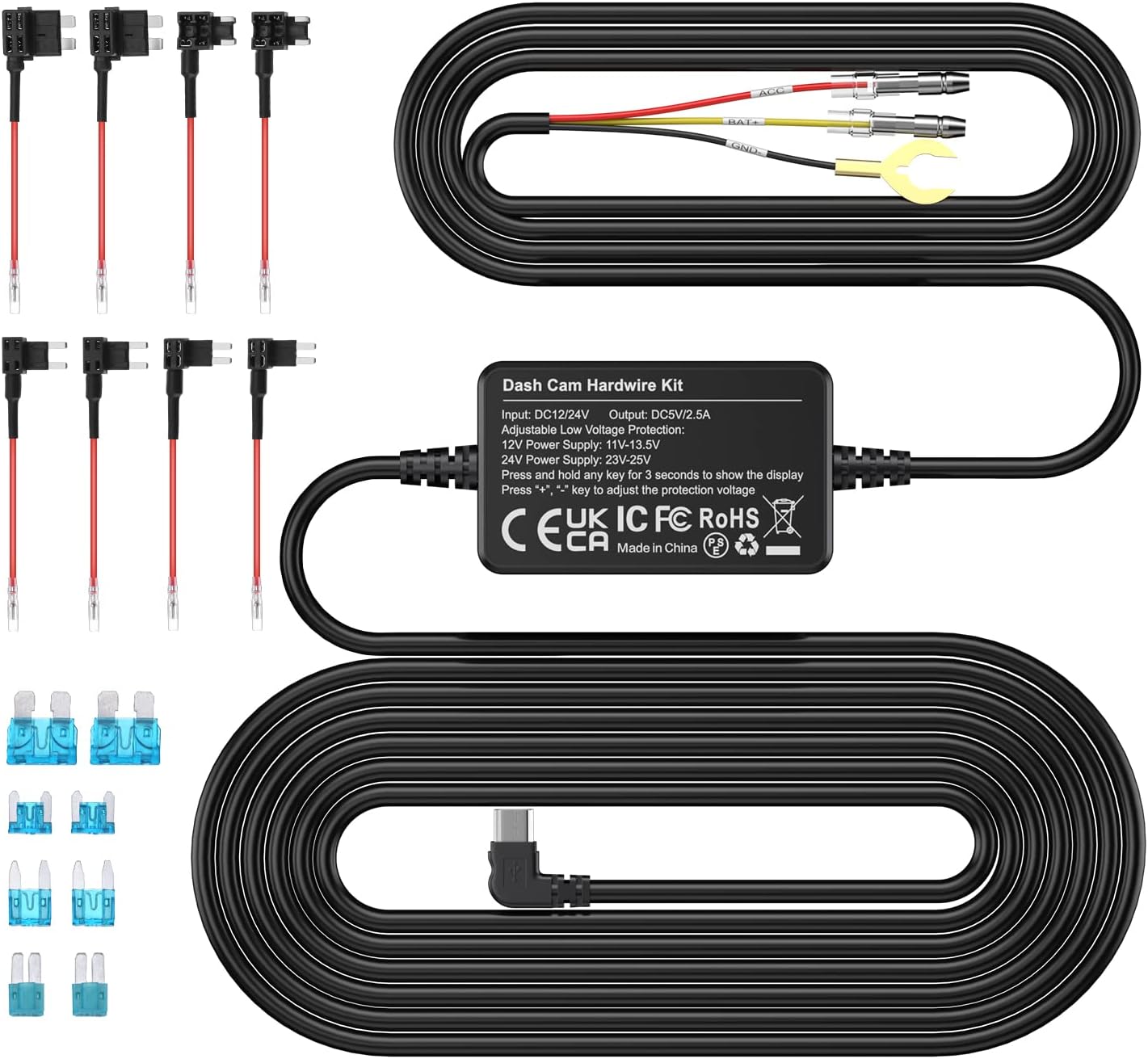

Figura 1: Pesteview of the Sarmert 3-Lead Hard-Wire Kit and included fuse taps.

2. Produs terminatview și Caracteristici

The Sarmert Hard-Wire Kit ensures your dash camera operates reliably with advanced power management features.

Caracteristici cheie:

• Automatic Parking Mode: Powers on and records automatically when the vehicle is accessed, supporting time-lapse or continuous recording.
• Vol. Largtage Compatibilitate: Compatible with 12V-24V vehicles (cars, trucks, buses). Adjustable protection voltage setări.
• Monitor de parcare 24/7: Provides constant power to the dash cam for continuous surveillance, protecting against theft.
• Vol. Scăzuttage Protecție: Intelligent system automatically cuts power to prevent vehicle battery drain when voltage drops below 11.6V (for 12V systems) or 23.2V (for 24V systems).
• Micro-USB Compatibility: Designed for Micro-USB dash cams, GPS navigators, and radar detectors, freeing up the cigarette lighter port.

Continutul pachetului:

• Sarmert 3-Lead Hard-Wire Kit with Micro-USB connector
• Assorted Fuse Taps
• Assorted Fuses
• Manualul de utilizare (acest document)

Figure 2: Contents of the Sarmert Hard-Wire Kit package.

Figure 3: The 3-lead hard-wire kit provides multiple protections including battery drain, over-current, short-circuit, reverse connection, and overheat protection.

3. Configurare și instalare

Proper installation is crucial for the hard-wire kit's functionality. If you are unfamiliar with vehicle electrical systems, it is recommended to seek professional assistance.

Diagrama de cablare:

The hard-wire kit consists of three main wires:

• Fir negru (GND): Connect to a metal bolt or screw on the vehicle chassis for ground.
• Fir roșu (ACC): Connect to a fuse in the fuse box that is only powered when the ignition is on (Accessory power).
• Yellow Wire (BAT+): Connect to a fuse in the fuse box that has constant power, even when the ignition is off (Battery power).

Figure 4: Hard-wire kit control box showing input and output cables, and connections for GND, ACC, and BAT+.

Pașii de instalare:

1. Localizați cutia de siguranțe: Refer to your vehicle's owner's manual to find the location of the fuse box. Common locations include under the dashboard, in the glove compartment, or under the hood.
2. Identificați sloturile siguranțelor: Using a circuit tester, identify a fuse slot that provides ACC power (on with ignition) for the Red wire and a fuse slot that provides constant BAT+ power (always on) for the Yellow wire.
3. Select Correct Fuse Type: Choose the appropriate fuse tap from the kit that matches the fuse type in your vehicle's fuse box.
4. Connect Wires to Fuse Taps: Insert the Red and Yellow wires into their respective fuse taps. Insert the original fuse into the lower slot of the fuse tap and a new fuse (matching the original's amperage) into the upper slot for the hard-wire kit.
5. Introduceți prizele de siguranță: Plug the fuse taps into the identified ACC and BAT+ fuse slots.
6. Locate a Ground Point: Connect the Black (GND) wire to a secure metal bolt or screw on the vehicle's chassis that is free of paint or rust.
7. Traseul cablurilor: Carefully route the Micro-USB output cable to your dash camera, ensuring it does not interfere with driving controls or airbags. Conceal the cable behind trim panels for a clean installation.
8. Conectați-vă la Dash Cam: Plug the Micro-USB connector into your dash camera.
9. Sistem de testare: Start your vehicle to ensure the dash cam powers on. Turn off the vehicle and remove the key to verify the parking monitor mode activates (if enabled on your dash cam).

Figure 5: Visual guide for the hard-wire kit installation process within a vehicle.

4. Instrucțiuni de utilizare

Parking Monitor Mode:

Once correctly installed, the hard-wire kit enables your dash camera's parking monitor function. When your vehicle is turned off, the kit continues to supply power from the vehicle battery, allowing the dash cam to record in parking mode (e.g., time-lapse or motion detection, depending on your dash cam's features).

Vol. Scăzuttage Protecție:

The hard-wire kit features an integrated low voltage protection system to prevent excessive drain on your vehicle's battery. If the vehicle battery voltage drops below a preset threshold, the kit will automatically cut power to the dash camera.

• For 12V batteries, power is cut at 11.6V, 12.0V, 12.2V, or 12.4V (user adjustable).
• For 24V batteries, power is cut at 23.6V, 24.0V, 24.4V, or 24.8V (user adjustable).

To adjust the protection voltage, press and hold the '+' or '-' buttons on the hard-wire kit box for 3 seconds to display the current setting, then use the buttons to select the desired voltage. The digital display on the hard-wire kit box will show the current voltagsetarea.

Figure 6: Low voltage protection thresholds for 12V and 24V batteries.

5. Întreținere

• Verificări regulate: Periodically inspect the wiring for any signs of wear, damage, or loose connections.
• Fuse Integrity: Ensure the fuses in the fuse taps are correctly seated and not blown. Replace blown fuses with ones of the same ampepoca.
• Curăţenie: Keep the hard-wire kit box and connections free from dust and moisture.
• Conditii de mediu: Avoid exposing the kit to extreme temperatures or direct sunlight for prolonged periods, which could affect its lifespan.

6. Depanare

Figure 7: The hard-wire kit is compatible with Micro-USB devices, not USB-C or Mini-USB.

7. Specificații

8. Garanție și asistență

For warranty information or technical support, please refer to the documentation provided with your purchase or contact Sarmert customer service directly. Keep your proof of purchase for any warranty claims.
