Manual de utilizare pentru nivelă laser verde Firecore F95T-PRO-WT 3x360 cu trepied de 60 de inci

Introducere

This manual provides detailed instructions for the safe and effective operation of your Firecore F95T-PRO-WT 3x360 Green Laser Level. This precision tool is designed for various leveling and alignment tasks in construction, renovation, and DIY projects. Please read this manual thoroughly before use and retain it for future reference.

Informații de siguranță

AVERTISMENT: RADIAȚII LASER

Do not stare directly into the laser beam. Direct exposure to the laser beam can cause eye injury. Always wear appropriate laser safety glasses when operating the device. Ensure the laser is not aimed at people or reflective surfaces.

• Evitați expunerea directă a ochilor la raza laser.
• Do not disassemble the laser level. Repairs should only be performed by authorized service personnel.
• Nu lăsați dispozitivul la îndemâna copiilor.
• Folosiți doar bateriile și accesoriile de încărcare specificate.
• Operate the device in a stable environment to prevent accidental movement.

Conținutul pachetului

Verificați dacă toate articolele enumerate mai jos sunt incluse în pachetul dumneavoastră:

• 1x Firecore F95T-XG Laser Level with Integrated Magnetic Bracket
• 1x 60-Inch Tripod
• 2x 4000mAh Rechargeable Li-ion Batteries
• 1x telecomandă
• 1x Type-C Power Cord
• 1x adaptor de alimentare
• 1x Laser Target Plate
• 1x Manual de utilizare (acest document)
• 1x Husă de transport

Figure 1: Complete package contents of the Firecore F95T-PRO-WT Laser Level system.

Caracteristicile produsului

• Laser verde strălucitor: Up to 4X brighter than standard red beams, offering a working range of up to 98 ft with ±1/13" accuracy at 33 ft.
• 3 x 360° Line Laser: Projects one 360° horizontal and two 360° vertical planes for comprehensive room layout.
• Modul de autonivelare: Automatically levels within ±4°. The laser blinks as an alarm when out of range.
• Modul manual: Allows the laser tool to be placed at any angle when the pendulum is locked.
• Outdoor Pulse Mode: Extends the working range up to 197 ft with a Firecore Line Laser Receiver (sold separately).
• Baterii reîncărcabile duble: Two 4000mAh Li-ion batteries provide up to 16 hours of continuous runtime.
• Telecomanda: Adjust laser lines, brightness, and modes without direct interaction with the unit.
• Design robust: IP54 dust/water resistance with over-molded construction.
• Montare versatilă: Integrated magnetic bracket, 360° rotating base with micro-adjustment, and 1/4-20 & 5/8-11 threads for tripod mounting.
• 60-Inch Tripod: Lightweight aluminum construction, adjustable from 26 to 60 inches, with a quick-release plate and built-in bullseye level.

Înființat

1. Instalare baterie:

   Insert one of the provided 4000mAh Li-ion batteries into the battery compartment of the laser level. Ensure it clicks securely into place. The device can also be powered by the second battery or charged via the Type-C port.



   Figure 2: Battery installation and Type-C charging port.

2. Mounting the Laser Level:

   The laser level offers multiple mounting options:

   • On the Tripod: Attach the laser level to the 60-inch tripod using the 1/4-20 or 5/8-11 mounting threads. Extend the tripod legs and adjust the height as needed. Use the built-in bullseye level on the tripod to ensure a stable and level base.


   Figure 3: Laser level mounted on the tripod.

   • Suport magnetic: Utilize the integrated magnetic bracket to attach the laser level to metal surfaces, such as steel studs.
   • Baza rotativa: The 360° rotating base allows for fine adjustment of horizontal lines.

Moduri de operare

The Firecore F95T-PRO-WT laser level features several operating modes to suit different applications.

1. Self-Leveling Mode

This mode is ideal for applications requiring precise horizontal and vertical alignment. The device automatically levels itself within a range of ±4°.

1. Unlock the pendulum by sliding the lock switch to the unlocked position.
2. Place the laser level on a stable surface or tripod.
3. The laser will automatically self-level. If the device is outside its ±4° self-leveling range, the laser lines will blink as an alarm. Adjust the device's position until the lines become steady.

Figure 4: Self-Leveling Mode in operation.

2. Manual Mode (Locked Mode)

Manual mode allows you to project laser lines at any desired angle, useful for tasks like installing handrails or decorative patterns.

1. Lock the pendulum by sliding the lock switch to the locked position.
2. Press and hold the Manual button for 3 seconds to activate manual mode.
3. The laser lines will be projected at the angle the device is positioned, without self-leveling.

Figure 5: Manual Mode for angled projections.

3. Pulse Mode (Outdoor Mode)

Pulse mode extends the working range of the laser level, especially useful for outdoor applications or in bright conditions when paired with a compatible Firecore Line Laser Receiver.

1. Activate the pulse mode by pressing the Receiver Button on the laser level or the remote control.
2. The laser lines will emit a pulsed signal, allowing detection by a Firecore Line Laser Receiver up to 197 ft away.

Figure 6: Pulse Mode for extended range with a receiver.

4. Switching Line Modes and Brightness

The laser level can project various combinations of horizontal and vertical lines, and the brightness can be adjusted.

• Use the H/V buttons on the device or the remote control to cycle through different line combinations (e.g., one horizontal, two vertical, all three 360° planes).
• The remote control also allows adjustment of laser brightness.

Figure 7: Using the remote control to switch line modes.

Informații despre baterie

The Firecore F95T-PRO-WT laser level is powered by two 4000mAh Li-ion batteries, providing extended operation.

• Încărcare: Connect the Type-C power cord to the laser level and the power adapter. Plug the adapter into a standard electrical outlet. The battery indicator will show charging status.
• Timp de rulare: A fully charged battery provides up to 16 hours of continuous runtime.
• Înlocuire baterie: The two included batteries allow for easy hot-swapping to minimize downtime.

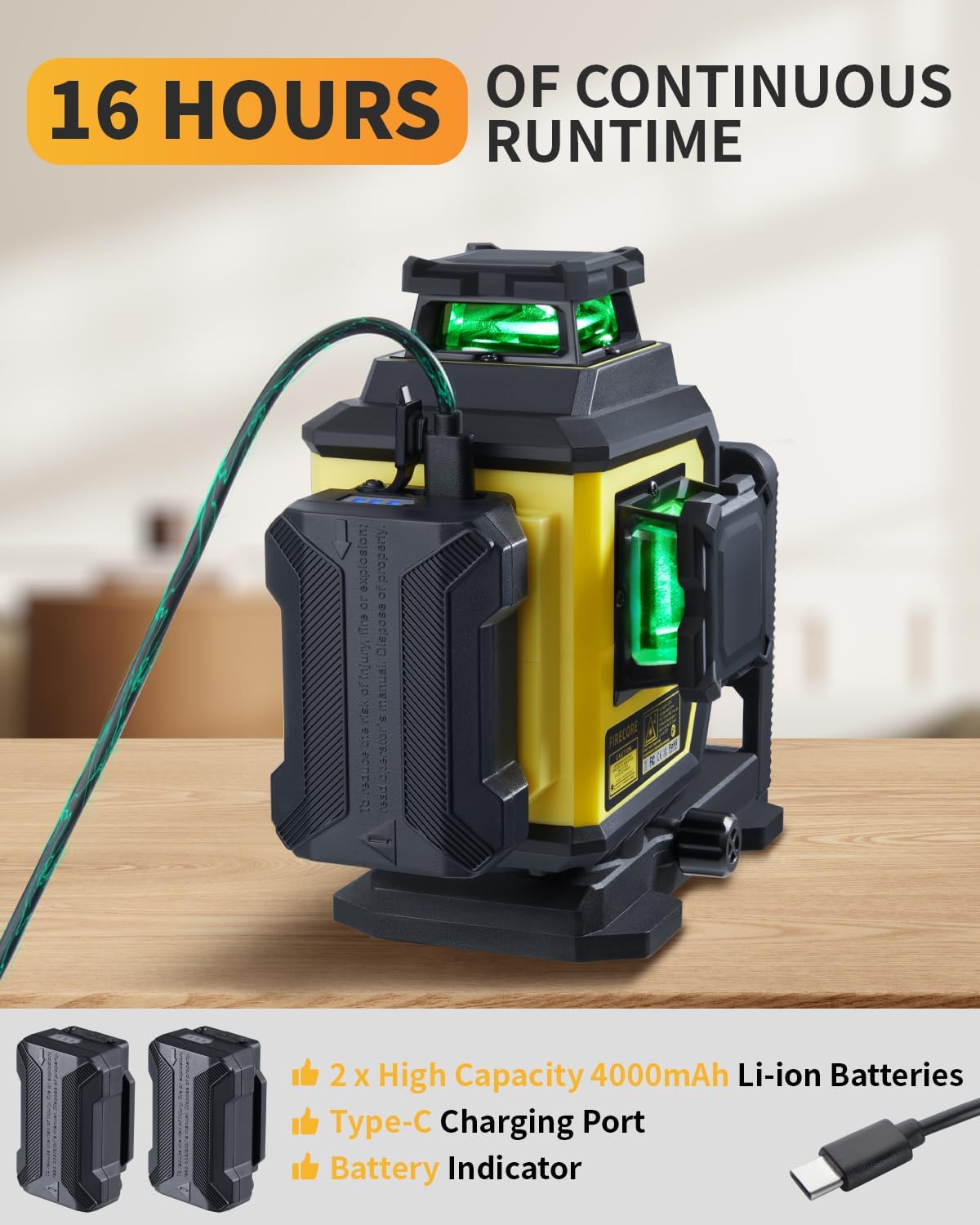

Figure 8: Charging the laser level and spare batteries.

Tripod Usage

The included 60-inch tripod provides a stable and adjustable platform for the laser level.

• Reglarea înălțimii: The tripod can be adjusted from 26 inches (61 cm) to 60 inches (152 cm) to suit various working heights.
• Placa de eliberare rapida: Use the quick-release plate for fast attachment and detachment of the laser level.
• Nivelare: Ensure the tripod is on a level plane using its built-in bullseye level before mounting the laser level.
• Stabilitate: Always ensure the tripod legs are fully extended and locked for maximum stability.

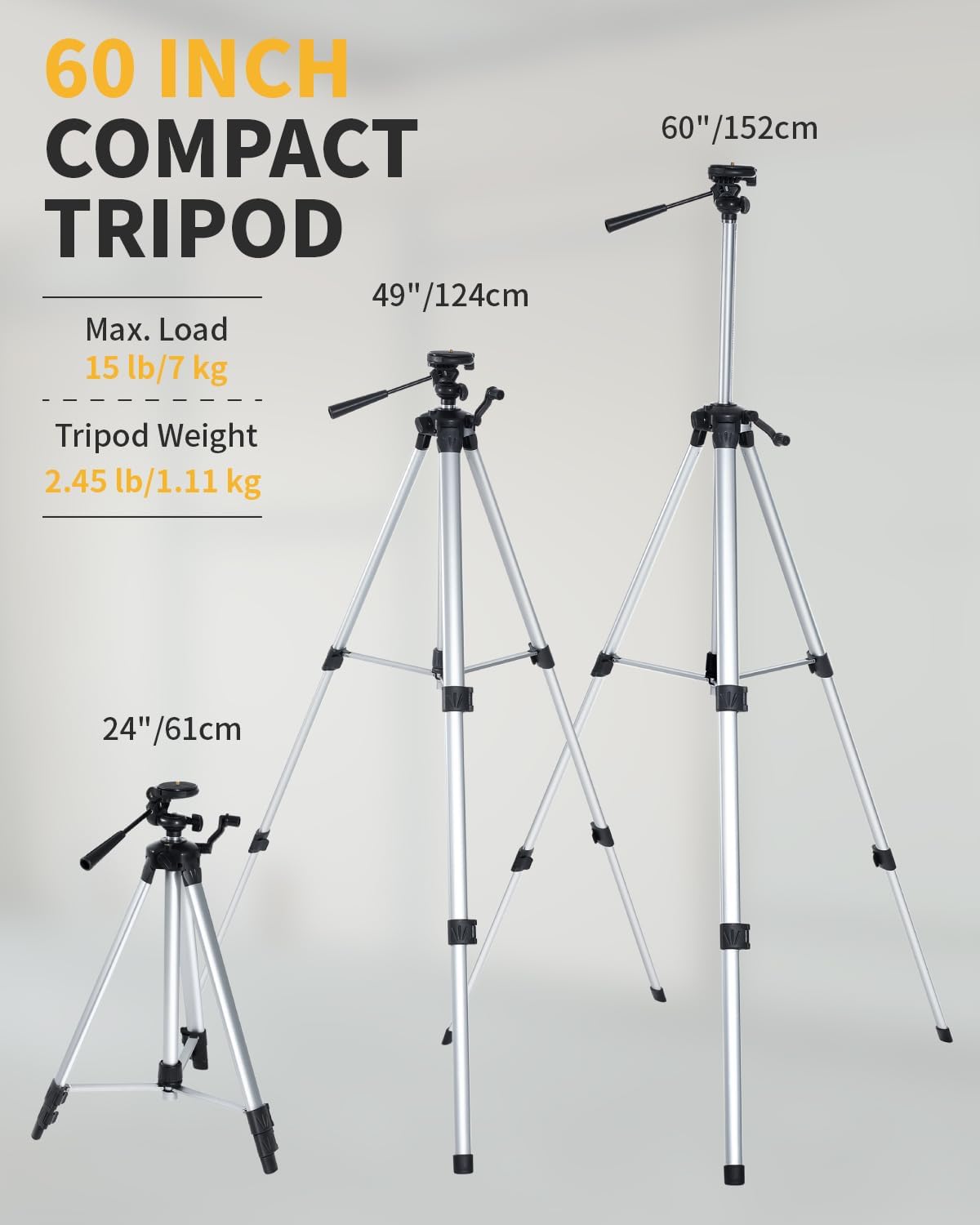

Figure 9: Tripod height adjustments and features.

Întreţinere

• curatenie: Ștergeți dispozitivul cu un material moale, damp pânză. Nu utilizați substanțe chimice dure sau produse de curățare abrazive.
• Depozitare: Store the laser level and accessories in the provided carry pouch in a dry, cool place when not in use.
• Îngrijirea bateriei: Charge batteries regularly, even if not in use, to maintain their lifespan.
• Inspecţie: Inspectați periodic dispozitivul pentru orice semne de deteriorare sau uzură.

Figure 10: Store the laser level and accessories in the provided carry pouch.

Depanare

Specificații

Garanție și suport

Firecore provides a Serviciu post-vânzare de 24 luni şi suport tehnic pe viață for the F95T-PRO-WT laser level.

For any concerns, questions, or technical assistance, please contact Firecore customer support through the official channels or refer to the contact information provided with your purchase documentation.
