1. Introducere și Pesteview
This manual provides essential instructions for the safe and effective use of your Nilfisk Premium 200-15 High-Pressure Washer. This electric pressure washer is designed for outdoor cleaning tasks, offering a maximum pressure of 200 bar and a flow rate of 650 liters per hour. It features a durable metal pump with an induction motor and an aluminum cylinder head, ensuring reliable performance for various cleaning applications, including patios, vehicles, and garden equipment.
Un pesteview of the Nilfisk Premium 200-15 high-pressure washer, showcasing the main unit, high-pressure hose, spray gun, various nozzles, detergent bottle, and the Power Patio cleaner attachment.
2. Informații de siguranță
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. Read all instructions carefully before operating the pressure washer.
- Protecția ochilor: Always wear safety glasses or goggles to protect against spray and debris.
- Încălţăminte: Wear appropriate footwear to prevent slipping on wet surfaces.
- Siguranta electrica: Ensure the power cord and plug are in good condition. Do not operate the unit with a damaged cord. Connect to a properly grounded outlet.
- Conexiune la apă: Ensure the water supply is clean and free of debris. Do not use the pressure washer with hot water.
- Siguranța duzei: Never direct the high-pressure jet at people, animals, or electrical equipment. The high pressure can cause serious injury.
- Copii și animale de companie: Țineți copiii și animalele de companie departe de zona de operare.
- Produse chimice: Use only detergents approved for pressure washers. Follow detergent manufacturer's instructions for safe handling and disposal.
3. Conținutul pachetului
Your Nilfisk Premium 200-15 High-Pressure Washer package includes the following components:
- Nilfisk Premium 200-15 Main Unit with integrated hose reel
- High-Pressure Hose (15 meters, steel reinforced)
- Pistol de pulverizare
- Soft Flat Jet Nozzle
- Rough Nozzle
- Power Patio Cleaner Attachment
- Detergent Bottle for integrated dosing system
- Instrument de curățare a duzelor
4. Configurare
Urmați acești pași pentru a configura mașina de spălat cu presiune pentru prima utilizare:
- Despacheta: Scoateți cu grijă toate componentele din ambalaj.
- Asamblați mânerul: Attach the handle to the main unit if it is not already assembled.
- Conectați furtunul de înaltă presiune: Connect one end of the 15-meter high-pressure hose to the outlet on the pressure washer unit and the other end to the spray gun. Ensure connections are secure.
- Conectați alimentarea cu apă: Attach a garden hose (not included) to the water inlet on the pressure washer. Ensure the garden hose is connected to a reliable water source.
- Selectați duza: Choose the appropriate nozzle (Soft Flat Jet or Rough) or attachment (Power Patio Cleaner) for your task and securely attach it to the spray gun lance.
- Conexiune de alimentare: Conectați cablul de alimentare la o priză cu împământare.

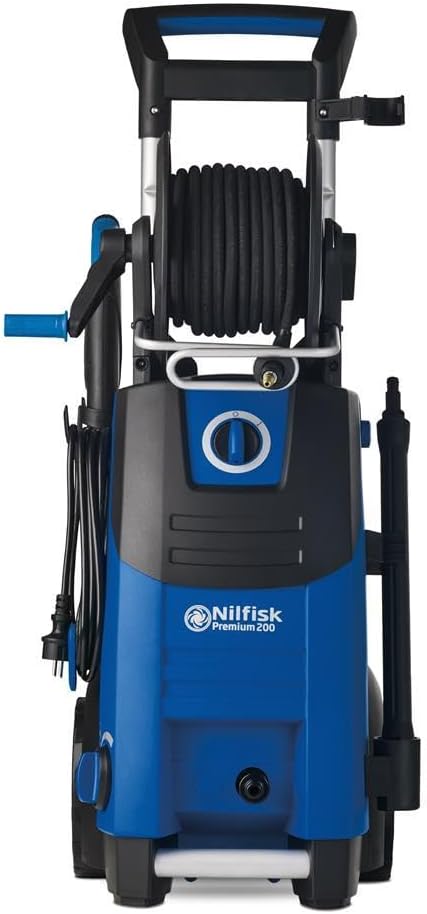

Un front direct view of the Nilfisk Premium 200-15 high-pressure washer, highlighting its compact design and integrated hose reel.
O latură view of the Nilfisk Premium 200-15 high-pressure washer, showing the integrated detergent bottle holder and large wheels for mobility.
5. Funcționare
Operating your Nilfisk Premium 200-15 High-Pressure Washer involves several key steps to ensure effective cleaning:
- Porniți alimentarea cu apă: Deschideți complet robinetul de apă pentru a asigura un debit constant către aparatul de spălat cu presiune.
- Aer de purjare: Squeeze the trigger on the spray gun until a steady stream of water emerges, indicating that air has been purged from the system.
- Porniți unitatea: Turn the pressure washer's power switch to the 'ON' position. The motor will start when the trigger is squeezed and stop when released.
- Reglați presiunea: The unit offers fully flexible pressure regulation. Adjust the pressure as needed for the cleaning task.
- Aplicare detergent: For tasks requiring detergent, fill the integrated detergent bottle with appropriate pressure washer detergent. The unit features integrated detergent dosing and regulation.
- Utilizarea duzei:
- Soft Flat Jet Nozzle: Provides a wide, gentle spray suitable for delicate surfaces or rinsing.
- Rough Nozzle: Delivers a powerful, concentrated jet for stubborn dirt and tough cleaning tasks.
- Power Patio Cleaner: Use this attachment for efficient cleaning of large flat surfaces like patios and driveways.
- Tehnica de curățare: Hold the spray gun at an appropriate distance from the surface. Start with a wider spray pattern and adjust as needed. Work in sections, overlapping slightly.
- Închidere: Când ați terminat, opriți aparatul de spălat cu presiune, închideți alimentarea cu apă și apăsați trăgaciul pentru a elibera orice presiune rămasă în sistem.
A user demonstrating the Nilfisk Premium 200-15 high-pressure washer to clean an all-terrain vehicle (ATV), highlighting its effectiveness for outdoor equipment.
A user cleaning a riding lawnmower with the Nilfisk Premium 200-15 high-pressure washer, showcasing its utility for garden machinery maintenance.

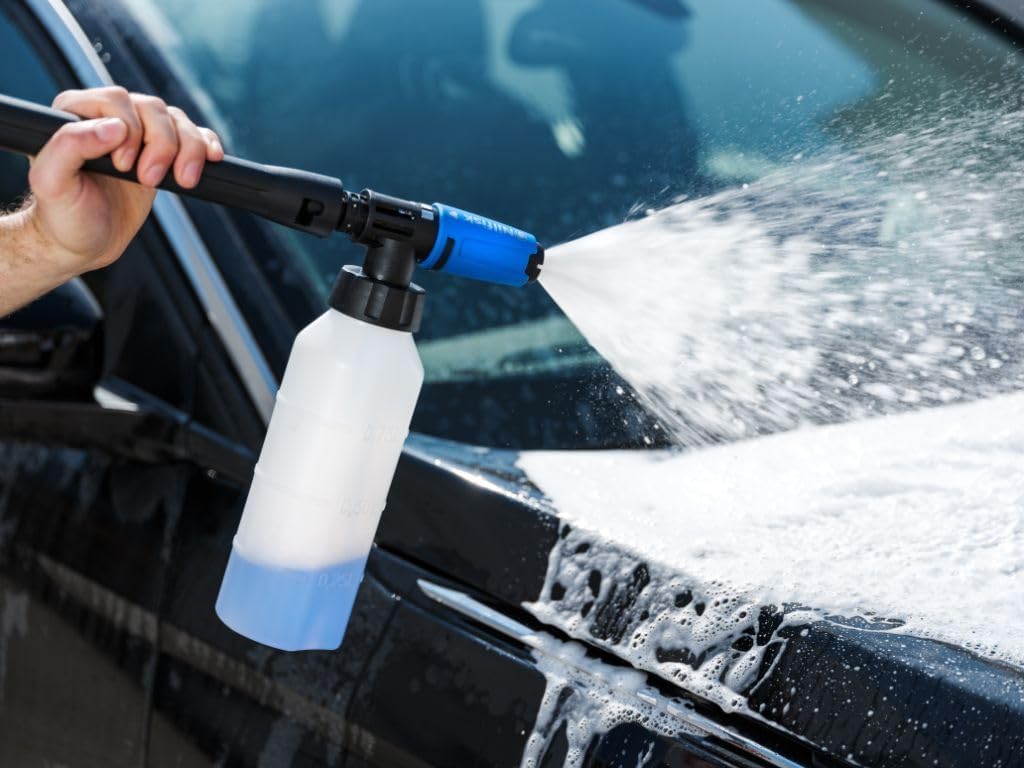

A close-up of the spray gun with the detergent bottle attached, applying foam to a car, demonstrating the integrated detergent dosing feature.
Un detaliat view of the Nilfisk 'Gentle' nozzle producing a wide, soft spray, suitable for delicate surfaces.
Un detaliat view of the Nilfisk 'Rough' nozzle delivering a powerful, concentrated jet, ideal for stubborn dirt.
6. Întreținere
Întreținerea regulată asigură longevitatea și performanța optimă a aparatului dumneavoastră de spălat cu presiune:
- Depozitare: After each use, drain all water from the pump and hoses to prevent freezing in cold weather. Utilize the convenient accessory storage and integrated hose reel for tidy storage of the high-pressure hose and power cable.
- Curățarea duzei: Use the provided nozzle cleaning tool to clear any blockages from the nozzles.
- Filtrul de intrare a apei: Verificați și curățați periodic filtrul de admisie a apei pentru a preveni pătrunderea reziduurilor în pompă.
- Curatenie generala: Ștergeți exteriorul unității cu reclamăamp pânză. Nu utilizați substanțe chimice dure.
7. Depanare
If you encounter issues with your pressure washer, refer to the following common troubleshooting tips:
- Fără presiune: Ensure the water supply is fully open and the garden hose is not kinked. Check the water inlet filter for blockages.
- Motorul nu pornește: Verify the power cord is securely plugged into a functional outlet. Check for tripped circuit breakers. Ensure the power switch is in the 'ON' position.
- Presiune pulsatorie: This can indicate air in the system. Purge air by squeezing the trigger with the water supply on and the unit off until a steady stream of water flows.
- Scurgeri de apă: Check all hose connections for tightness. Replace any worn O-rings or seals if necessary.
For persistent issues, contact Nilfisk customer support.
8. Specificații
| Marca | Nilfisk |
| Numărul de model | 128471368 |
| Dimensiuni produs (L x l x H) | 25.4 x 5.08 x 6.86 cm |
| Greutatea articolului | 29.7 kilograme |
| Sursa de alimentare | Electric cu fir |
| Debit maxim | 650 litri pe oră |
| Presiune maximă | 200 bari |
| Lungimea furtunului | 15 metri |
| Culoare | Albastru/Negru |
| Specificații conforme | CE |
| Producător | NILFISK |
| Data Primei Disponibilități pe Amazon.com.be | 1 martie 2024 |
9. Garanție și asistență
Your Nilfisk Premium 200-15 High-Pressure Washer is covered by a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or visit the official Nilfisk website-ul.
For technical support, spare parts, or service inquiries, please contact Nilfisk customer service through their official channels. Keep your product model number (128471368) and purchase receipt handy when contacting support.
