Introducere
Thank you for choosing the VECELO Full Bed Frame with Upholstered Headboard. This manual provides detailed instructions for assembly, safe use, and maintenance of your new bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Informații importante privind siguranța
- Do not tighten screws until fully assembled. Ensure all legs are in contact with the ground for stability.
- Do not exceed the maximum weight capacity of 600 lbs (Full) to prevent damage or injury.
- Follow all assembly instructions carefully to avoid potential noise and instability.
- Verificați periodic toate șuruburile și bolțurile pentru a vă asigura că sunt strânse.
- Mattress is not included with the bed frame.
Conținutul pachetului
Before assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer service.
- 1 x Bed Frame
- 1 x Upholstered Headboard
- 1 x Manual de instrucțiuni (acest document)
- 1 x Assembly Kit (includes screws, bolts, and tools)
Notă: Salteaua nu este inclusă.
Instructiuni de asamblare
Please follow these steps carefully for proper assembly. It is recommended to have two people for assembly.
Ghid video de asamblare
Official VECELO Platform Bed Frame assembly video. This video demonstrates the step-by-step process for assembling the bed frame, including attaching the headboard, side rails, support legs, and slats.
Step-by-Step Written Instructions
- Attach Headboard Legs: Secure the headboard legs to the upholstered headboard using the provided bolts and Allen wrench. Ensure they are firmly attached but do not overtighten initially.

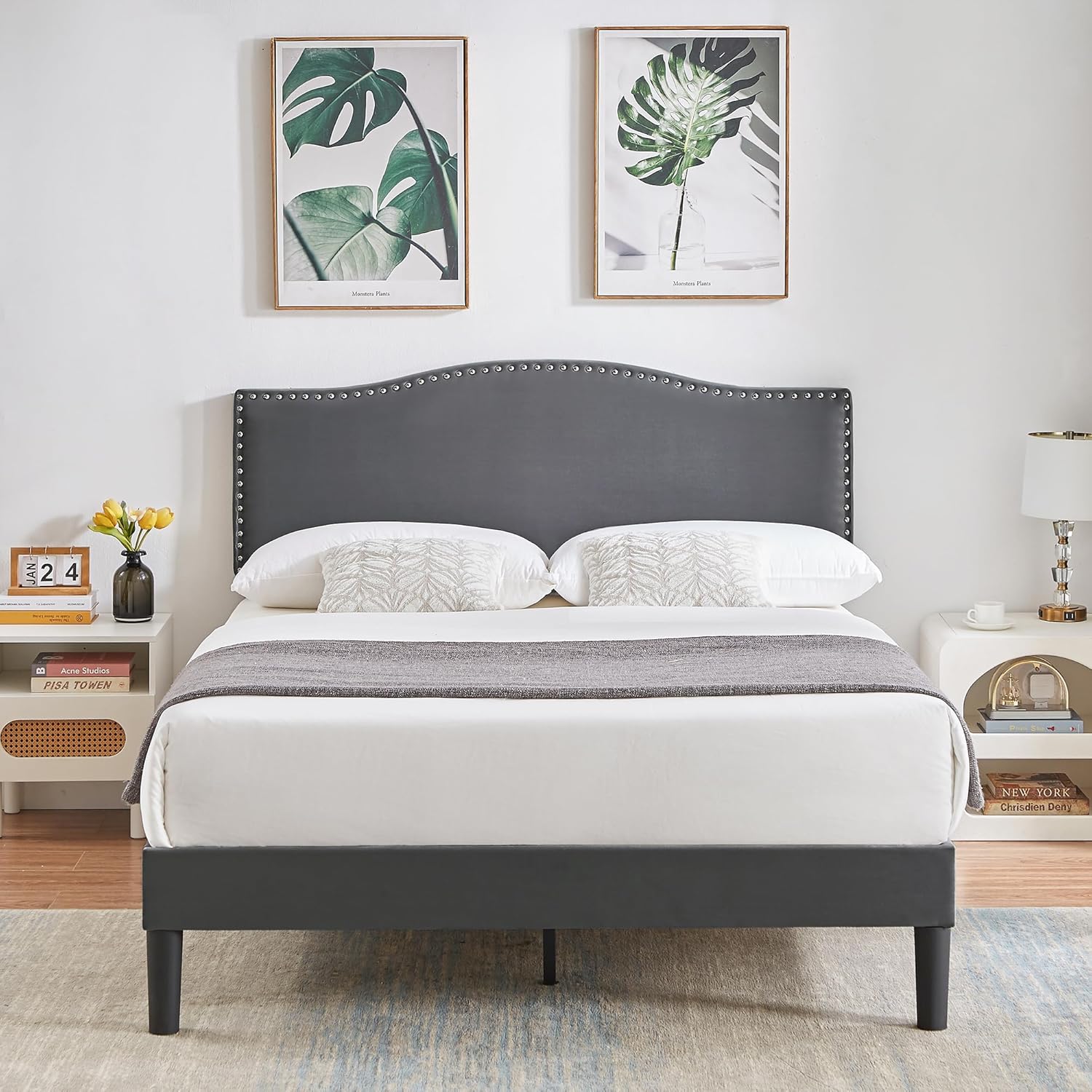

Imagine: față view of the VECELO Full Bed Frame with upholstered headboard, showing the overall design and leg attachment points.
- Asamblați balustradele laterale: Connect the side rails to the headboard and footboard (if applicable) using the designated hardware. Ensure the brackets are facing inward and lay towards the ground as indicated in the instructions.
- Instalați grinda de susținere centrală: Attach the center support beam(s) to the bed frame. These beams provide crucial support for the slats and mattress.
- Atașați picioarele de susținere: Screw the support legs into the designated points on the center support beam and corners of the bed frame. For corner legs, ensure the preinstalled screws are loosened for installation, then tighten them again.

Image: Detail showing the sturdy frame construction, approximately 7.9 inches of under-bed clearance, and the Velcro design for securing slats.
- Așezați șipcile de lemn: Lay the wooden slats across the bed frame. The slats are designed with Velcro to prevent movement and reduce noise. Ensure they are evenly spaced and securely attached.

Image: Illustration of the VELCRO Design on the wooden slats, facilitating easy assembly and preventing slats from shifting or falling out.
- Strângere finală: După ce toate componentele sunt la locul lor și aliniate, strângeți complet toate șuruburile și bolțurile. Nu strângeți excesiv.
Adjustable Headboard Feature
The VECELO bed frame features a height-adjustable upholstered headboard, allowing you to customize its height to best suit your mattress thickness and aesthetic preference.
- The headboard height can be adjusted from 41.7 inches to 47.7 inches.
- This feature accommodates mattresses with a recommended thickness of 6 to 12 inches.
- To adjust, loosen the bolts connecting the headboard to its support legs, slide the headboard to the desired height, and then re-tighten the bolts securely.

Image: Visual representation of the headboard's adjustable height, illustrating settings from 41.7 inches to 47.7 inches to fit various mattress sizes.
Îngrijire și întreținere
- curatenie: For the upholstered headboard, gently spot clean with a damp o cârpă și un detergent blând, dacă este necesar. Evitați substanțele chimice dure. Pentru cadrul metalic, ștergeți cu o lavetă uscată sau ușor umedă.amp pânză.
- Verificări regulate: Verificați periodic toate șuruburile și șuruburile pentru a vă asigura că rămân strânse. Strângeți-le din nou după cum este necesar pentru a menține stabilitatea și a preveni zgomotul.
- Evitați supraîncărcarea: Do not place excessive weight on the bed frame beyond its specified capacity to prevent structural damage.
- Circulaţie: When moving the bed frame, lift it rather than dragging to prevent damage to the legs and frame structure.
Depanare
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Cadrul patului este instabil sau instabil. | Loose bolts or uneven legs. | Ensure all bolts are securely tightened. Check that all support legs are in full contact with the floor. Adjust if necessary. |
| Zgomote de scârțâit din cadrul patului. | Loose connections or slats rubbing. | Re-tighten all assembly bolts. Verify that the wooden slats are properly seated and secured by the Velcro strips. |
| Slats are shifting or falling. | Slats not properly aligned or Velcro not engaged. | Ensure each slat is correctly positioned and the Velcro strips on the slats and frame are aligned and pressed together. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact VECELO customer service for assistance.
Specificații
| Caracteristică | Detaliu |
|---|---|
| Numărul de model | KHD-CY-FB03-DGRY-BC11 |
| Dimensiune | Deplin |
| Culoare | Gri închis |
| Dimensiuni produs (L x l x H) | 76.57 cm x 56.89 cm x 47.65 cm |
| Material | Metal frame, Upholstered headboard (velvet surface) |
| Weight Capacity (Full) | 600 lbs |
| Lichidare de depozitare sub pat | Aproximativ 14 inci |
| Grosimea recomandată a saltelei | 6" - 12" |
| Asamblare necesară | Da |

Image: Detailed dimensions of the VECELO Full Bed Frame, including overall length, width, headboard height, and under-bed clearance.
Garanție și asistență pentru clienți
VECELO products are designed for durability and customer satisfaction. Your VECELO Full Bed Frame is backed by a Garanție de 2 ani fără griji.
If you have any questions, concerns, or require assistance with assembly or parts, please do not hesitate to contact our friendly customer service team. We are committed to ensuring 100% satisfaction and will respond to your inquiries within 24 hours.
For support, please refer to the contact information provided with your purchase or visit the official VECELO website-ul.
