Manual de utilizare pentru camera de securitate WiFi pentru exterior YESKAMO QB320 2K

1. Produs terminatview

The YESKAMO QB320 is a 2K outdoor wireless security camera designed for comprehensive surveillance. It features a pan-tilt mechanism for wide coverage, advanced human motion detection, color night vision, and two-way audio communication. This manual provides instructions for setup, operation, and maintenance.

Imaginea 1.1: YESKAMO QB320 Camera Components. This image displays the camera with labels pointing to its key parts: Wi-Fi Antennas, Working Status Indicator, Floodlights, PIR Sensor, Lens, Microphone, Reset Button, SD Card Slot, Speaker, and Power Cable (3m, USB 2.0).

• Antene Wi-Fi: For stable wireless connection.
• Indicator de stare de lucru: Shows the camera's current operational status.
• Proiectoare: Provide illumination for color night vision and alerts.
• Senzor PIR: Detects passive infrared radiation for human motion detection.
• Obiectiv: Captures 2K/3MP video footage.
• Microfon: Pentru intrare audio în timpul comunicării bidirecționale.
• Buton de resetare: Folosit pentru a reseta camera la setările din fabrică.
• Slot pentru card SD: Pentru stocare video locală (acceptă până la 128 GB, cardul nu este inclus).
• Vorbitor: For audio output during two-way communication and alarms.
• Cablu de alimentare: 3-meter USB 2.0 cable for power supply.

2. Caracteristici cheie

• 2K/3MP Ultra HD Video: Oferă imagini clare și detaliate.
• 360° Pan & Tilt Coverage: Horizontal 336° and vertical 108° rotation for wide area monitoring.
• PIR Human Detection & AI Algorithms: Reduces false alerts by accurately identifying human shapes.
• Urmărire automată: Urmărește mișcarea umană detectată.
• Vedere de noapte color: Full-color video recording at night with integrated spotlights, effective up to 20 meters.
• Audio bidirecțional: Microfon și difuzor încorporate pentru comunicare în timp real.
• Stocare locală și în cloud: Supports continuous 24/7 recording to an SD card or cloud service.
• Rezistență la intemperii IP66: Durable design suitable for outdoor use in various weather conditions (-20°C to 60°C).
• Alerte instantanee: Sends notifications to your smartphone upon motion detection.
• Protecția confidențialității: Option to physically close the lens via the app.
• 2.4 GHz Wi-Fi Connectivity: Stable wireless connection with dual 4dBi antennas.

3. Ghid de instalare

3.1 Conținutul pachetului

• YESKAMO QB320 Camera
• Adaptor de alimentare
• Șuruburi și ancore de montare
• Manual de utilizare

3.2 Descărcare și instalare a aplicației

The YESKAMO QB320 camera operates with the CloudEdge app. Please download and install the app on your smartphone (Android or iOS) from your device's app store.

1. Caută 'CloudEdge' in the Google Play Store or Apple App Store.
2. Descărcați și instalați aplicația.
3. Înregistrează un cont nou sau autentifică-te dacă ai deja unul.

3.3 Conexiunea camerei

1. Power on the camera using the provided power adapter. Wait for the status indicator light to flash, indicating it's ready for pairing.
2. Open the CloudEdge app and tap the '+' icon to add a new device.
3. Select your camera model or scan the QR code located on the camera or in the manual.
4. Urmați instrucțiunile de pe ecran pentru a conecta camera la rețeaua Wi-Fi de 2.4 GHz. Asigurați-vă că telefonul este conectat la aceeași rețea de 2.4 GHz în timpul configurării.
5. Once connected, the camera's status indicator will turn solid, and you will see the camera feed in the app.

Imaginea 3.1: Initial setup showing the camera and a smartphone displaying its live feed.

4. Instrucțiuni de utilizare

4.1 În direct View și control panoramic/înclinat

From the CloudEdge app, select your camera to access the live view. Use the on-screen controls to pan (horizontal 336°) and tilt (vertical 108°) the camera lens to adjust the viewing angle. This allows for comprehensive coverage without blind spots.

Imaginea 4.1: The camera's pan and tilt capabilities, illustrating its 360-degree view.

4.2 Înregistrare și stocare

The camera supports 24/7 continuous recording. You can choose to save recordings to a local Micro SD card (up to 128GB, not included) or to the optional cloud storage service. All recorded videos are automatically backed up.

Imaginea 4.2: Illustration of 24/7 monitoring and the camera's SD card slot for local storage.

4.3 Detectarea mișcării și alertele

The integrated PIR sensor and AI algorithms enhance human shape recognition, minimizing false alarms. When motion is detected, the camera sends instant notifications to your phone. You can adjust detection sensitivity (10 adjustable speeds) within the app.

Imaginea 4.3: The camera's PIR human detection feature, showing a person being detected while a car is ignored.

4.4 Sunet bidirecțional

Utilize the built-in microphone and speaker for two-way communication. This allows you to speak to visitors, deter intruders, or interact with family members or pets remotely through the app.

Imaginea 4.4: A smartphone displaying the two-way audio function within the CloudEdge app.

Viziune nocturnă color 4.5

The camera features color night vision, activated by its integrated spotlights when motion is detected in low-light conditions. It can detect objects up to 20 meters away at night, providing clear, full-color footage.

Imaginea 4.5: The camera's 3MP color night vision capability, showing how spotlights illuminate the area and the option for siren or double alarms.

4.6 Protecția confidențialității

For enhanced privacy, the camera allows you to physically close the lens via the CloudEdge app when recording is not desired.

5. Întreținere

5.1 Rezistența la intemperii

The YESKAMO QB320 camera is IP66 weatherproof, making it suitable for outdoor installation in various weather conditions, including sun, rain, snow, and dust. It operates effectively in temperatures ranging from -20°C to 60°C.

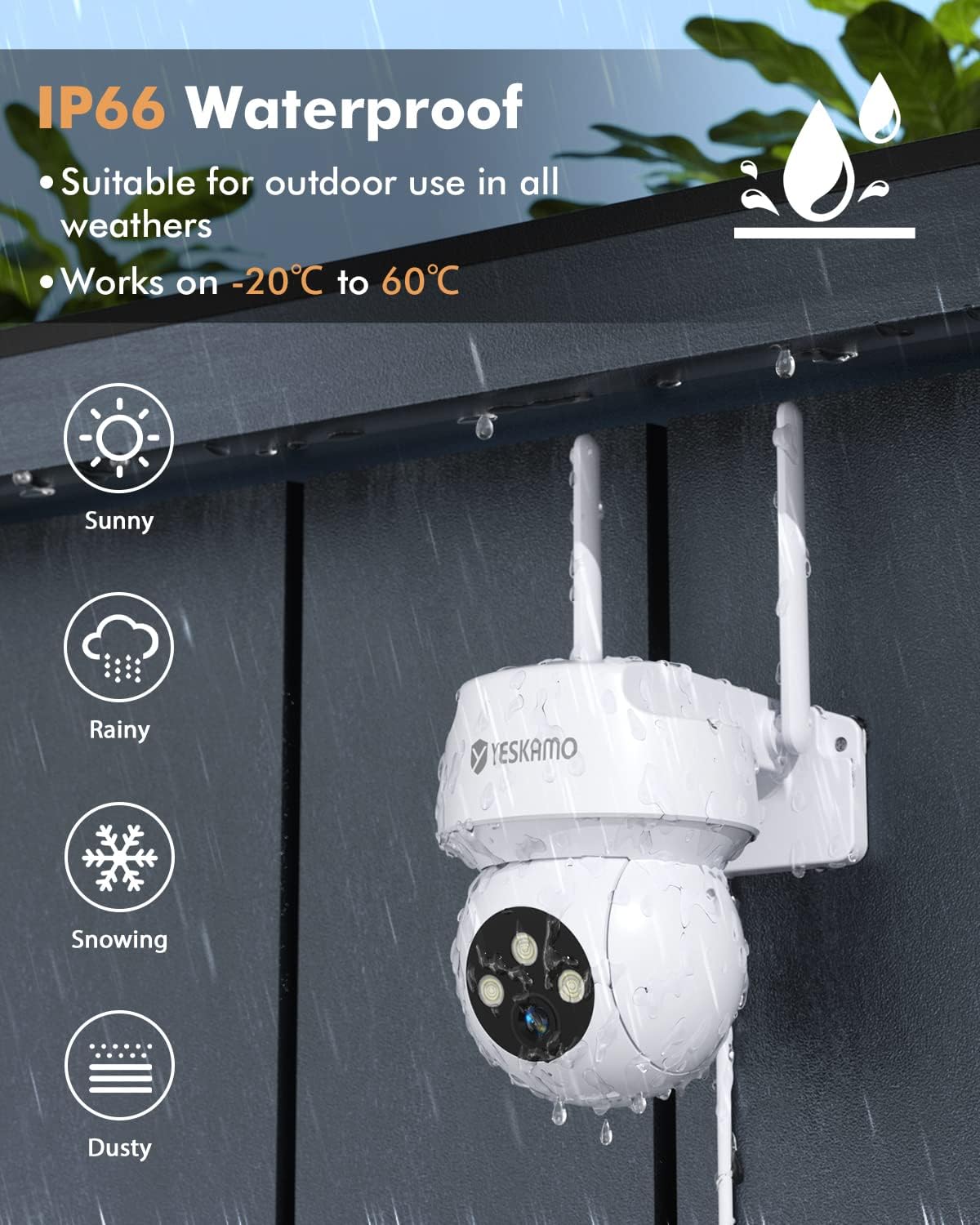

Imaginea 5.1: The camera's IP66 waterproof rating, indicating its resilience to sunny, rainy, snowy, and dusty environments.

5.2 Curățare

To maintain optimal performance, periodically clean the camera lens and housing with a soft, damp cloth. Avoid using harsh chemicals or abrasive materials that could damage the camera.

6. Depanare

• Camera nu se conectează la Wi-Fi: Ensure your Wi-Fi network is 2.4 GHz. Verify the Wi-Fi password. Move the camera closer to the router during setup.
• Deconectări frecvente: Check Wi-Fi signal strength in the camera's location. Consider repositioning the camera or router.
• Alerte false de mișcare: Adjust the PIR detection sensitivity settings in the CloudEdge app. Ensure the camera is not pointing at areas with constant movement (e.g., busy roads, swaying trees).
• Fără înregistrare pe card SD: Ensure the SD card is correctly inserted, formatted within the app, and not full.
• Calitate slabă a imaginii: Ensure the lens is clean. Check your internet connection speed for live streaming.

7. Specificații

8. Garanție și asistență

The YESKAMO QB320 camera comes with a one-year warranty from the date of purchase. For technical support, troubleshooting assistance, or warranty claims, please refer to the contact information provided with your product packaging or visit the official YESKAMO website-ul.
