Introducere
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Cecotec DrumFit WayHome 1200 Runner Sprint treadmill. Please read this manual thoroughly before initial use and retain it for future reference.
The DrumFit WayHome 1200 Runner Sprint is a foldable treadmill designed for home use, featuring an 1100 W motor, adjustable speed from 1 to 12 km/h, 12 predefined programs, an LED control panel, and a 110 x 40 cm running surface. It includes transport wheels for easy mobility, a magnetic safety system, a heart rate monitor, and manual incline adjustment.
Instrucțiuni importante de siguranță
AVERTIZARE: To reduce the risk of burns, fire, electric shock, or injury to persons, read all instructions before operating the treadmill.
- Always keep children and pets away from the treadmill when it is in use.
- Place the treadmill on a flat, stable surface with at least 2 meters of clear space behind it and 0.6 meters on each side.
- Ensure the safety key is properly attached to both the treadmill and your clothing before starting any exercise.
- Nu utilizați banda de alergare dacă are un cablu sau un ștecher deteriorat, dacă nu funcționează corect sau dacă a fost scăpată sau deteriorată.
- Wear appropriate athletic footwear and clothing during exercise.
- Nu depășiți greutatea maximă a utilizatorului de 110 kg.
- Deconectați banda de alergare de la priză atunci când nu o utilizați, înainte de curățare și înainte de a efectua orice operațiune de întreținere.
Componentele produsului
Familiarize yourself with the main parts of your DrumFit WayHome 1200 Runner Sprint treadmill.
Figura 1: Pesteview of the Cecotec DrumFit WayHome 1200 Runner Sprint treadmill, showing its compact design and running surface.
- Curea de alergare
- Panou de control cu display LED
- Handrails with Heart Rate Sensors
- Slot pentru cheie de siguranță
- Manual Incline Adjustment Points
- Roti de transport
- Mecanism de pliere
Înființat
1. Despachetarea
Carefully remove the treadmill from its packaging. Inspect all components for any damage. Retain packaging materials for future storage or transport if needed.
2. Plasare
Choose a suitable location for your treadmill. Ensure the surface is flat and stable. Maintain adequate clearance around the treadmill for safe operation and access.
Figure 2: The running surface measures 110 cm in length and 40 cm in width, providing ampspatiu pentru mers sau alergat.
3. Assembly (Minor Assembly Required)
- Carefully lift the console mast into the upright position.
- Secure the console mast using the provided bolts and tools.
- Ensure all connections are tight and secure before plugging in the unit.
4. Manual Incline Adjustment
The treadmill features 3 levels of manual incline. To adjust the incline, lift the rear of the treadmill and reposition the support bars into the desired slots. Always adjust incline before starting your workout and ensure both sides are set to the same level.
Figure 3: Detail of the manual incline adjustment points, allowing users to select from 3 different levels of elevation.
Instrucțiuni de operare
1. Pornire
Plug the power cord into a grounded electrical outlet. Insert the safety key into its designated slot on the control panel. The LED display will illuminate.

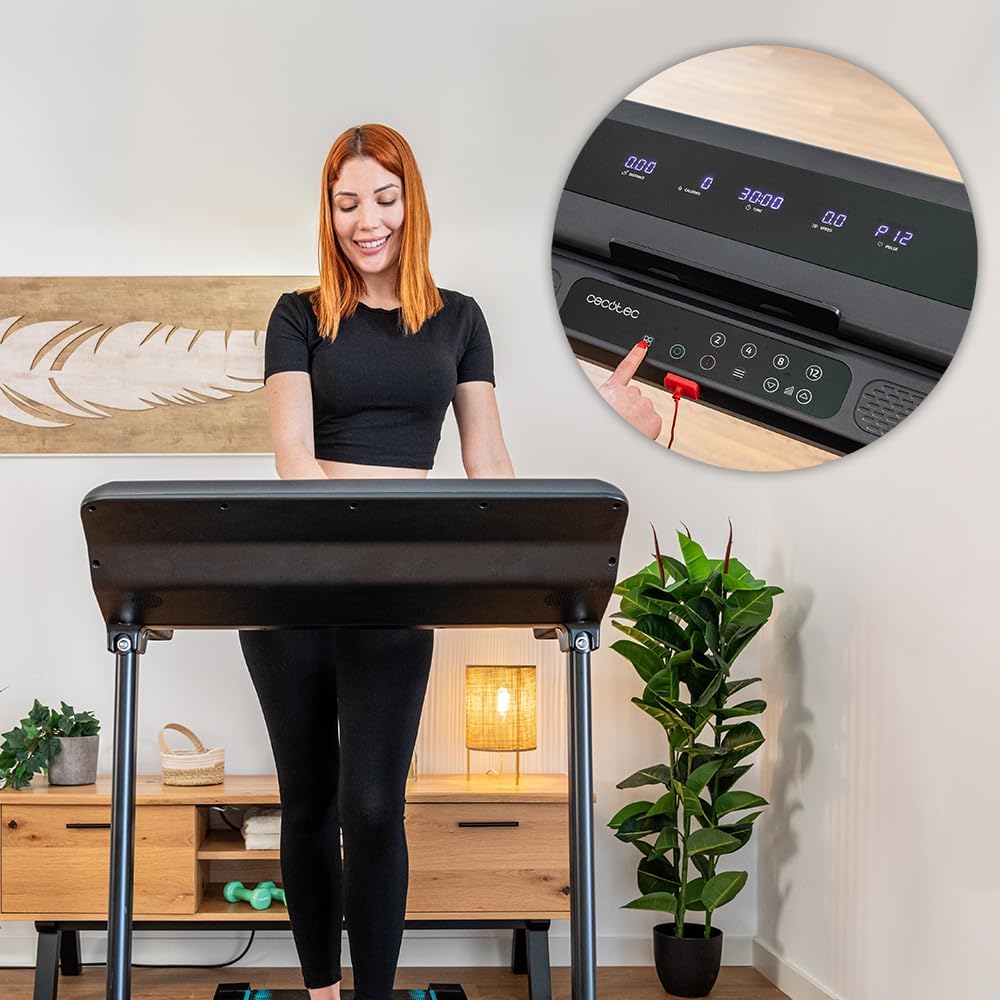

Figure 4: User engaging with the treadmill's control panel, highlighting the safety key insertion point and main controls.
2. Utilizarea panoului de control
The LED display shows real-time data including speed, time, distance, and calories burned. The control panel features buttons for starting/stopping, adjusting speed, and selecting programs.
Figura 5: Detaliat view of the LED display showing workout metrics and the intuitive control buttons for speed and program selection.
3. Începerea unui antrenament
- Stați pe șinele laterale ale benzii de alergat.
- Atașați clema cheii de siguranță la îmbrăcăminte.
- Press the "START" button. The belt will begin to move at a low speed.
- Urcați cu grijă pe banda mobilă.
- Adjust speed using the "+" and "-" buttons or quick speed buttons.
4. Pre-defined Programs
The treadmill offers 12 pre-defined programs. Press the "PROGRAM" button to cycle through the available programs. Each program has varying speed and incline profiles to provide diverse workouts.
5. Monitorizarea frecvenței cardiace
Grasp the heart rate sensors on the handrails with both hands. Your heart rate will be displayed on the LED screen after a few seconds.
6. Stopping a Workout
Press the "STOP" button to gradually slow down and stop the treadmill belt. Alternatively, pulling the safety key will immediately stop the treadmill for emergency situations.
Figure 6: A user actively running on the treadmill, demonstrating its use during a workout session.
Întreţinere
1. Curatenie
Curățați în mod regulat banda de alergare cu adamp cloth and mild detergent. Do not use abrasive cleaners or solvents. Wipe down the console and handrails after each use to remove sweat.
2. Ungere
The running belt requires periodic lubrication to ensure smooth operation and prolong its lifespan. Refer to the specific lubrication instructions provided with your treadmill's lubricant kit. Typically, this is done every few months depending on usage.
3. Depozitare
The DrumFit WayHome 1200 Runner Sprint is foldable for convenient storage. To fold, ensure the treadmill is off and unplugged. Lift the running deck until it locks into the upright position. Use the transport wheels to move the treadmill to a suitable storage location.
Figure 7: The treadmill in its folded position, demonstrating its space-saving design and ease of storage.
Depanare
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Banda de alergare nu pornește. | Cablul de alimentare nu este conectat la priză; Cheia de siguranță nu este introdusă; Întrerupătorul de circuit s-a declanșat. | Ensure power cord is securely plugged in; Insert safety key fully; Check household circuit breaker. |
| Banda de alergare alunecă sau ezită. | Belt needs lubrication; Belt tension is incorrect. | Lubricate the running belt as per maintenance instructions; Adjust belt tension (refer to specific instructions in full manual). |
| Zgomot neobișnuit în timpul funcționării. | Loose components; Motor issues; Belt friction. | Verificați strângerea tuturor șuruburilor și șuruburilor; Dacă zgomotul persistă, contactați serviciul de asistență pentru clienți. |
| Monitorul de ritm cardiac nu citește. | Hands not firmly on sensors; Dry hands. | Ensure firm, consistent contact with both sensors; Lightly moisten hands if too dry. |
For issues not listed here, or if solutions do not resolve the problem, please contact Cecotec customer support.
Specificații
- Model: DrumFit WayHome 1200 Runner Sprint
- Număr de model: 07187
- Putere: 1100 W
- Interval de viteză: 1 - 12 km/h
- Suprafata de rulare: 110 x 40 cm
- Programe: 12 pre-defined
- Înclinaţie: Manual, 3 levels
- Afişa: LED (Speed, Time, Distance, Calories)
- Greutatea maximă a utilizatorului: 110 kg
- Dimensiuni (L x l x H): 116 x 73.5 x 136 cm (desfășurat)
- Greutate: Aproximativ 32.96 kg
- Caracteristici speciale: Foldable, Transport Wheels, Magnetic Safety System, Heart Rate Monitor, Device Holder
Garanție și suport
Informații despre garanție
Cecotec offers a 10-year availability for spare parts for this product. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Cecotec website-ul.
Asistență pentru clienți
If you have any questions, require technical assistance, or need to report an issue with your Cecotec DrumFit WayHome 1200 Runner Sprint treadmill, please contact Cecotec customer support through their official website-ul sau informațiile de contact furnizate în documentația de achiziție.
Pentru mai multe informații, vizitați: www.cecotec.com
