1. Introducere
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Cecotec Conga 2299 Ultra Home X-Treme T Robot Vacuum Cleaner. Please read it thoroughly before using the product and retain it for future reference.
2. Instrucțiuni de siguranță
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. This robot vacuum cleaner is designed for indoor household use only.
- Asigurați-vă că sursa de alimentare voltage matches the rating label on the charging base.
- Nu utilizați robotul în medii umede sau în apropierea apei.
- Țineți părul, hainele largi, degetele și toate părțile corpului departe de deschideri și părți în mișcare.
- Nu ridicați obiecte mari sau ascuțite, lichide sau materiale care ard/fumegă.
- Supravegheați copiii și asigurați-vă că nu se joacă cu aparatul.
- Only use manufacturer-recommended attachments and accessories.
- If the power cord or plug is damaged, do not use the appliance. Contact customer support.
3. Conținutul pachetului
Verificați dacă toate componentele sunt prezente în pachet:
- Cecotec Conga 2299 Ultra Home X-Treme T Robot Vacuum Cleaner
- Auto-emptying Base
- 3L Hygienic Dust Bag (pre-installed or spare)
- Rezervor mixt (pentru apă și praf)
- Multifunction Brush (bristles and rubber silicone)
- 2 perii laterale
- 2 de mopuri
- Filtru de înaltă eficiență
- Perie autocurățătoare
- Manual de instructiuni
4. Produs terminatview și Caracteristici
The Cecotec Conga 2299 Ultra Home X-Treme T is a versatile robot vacuum cleaner designed for comprehensive floor cleaning. It integrates multiple cleaning functions and smart navigation for efficient operation.
Caracteristici cheie:
- Sistem de curățare 4 în 1: Mătură, aspiră, șterge cu mopul și freacă simultan.

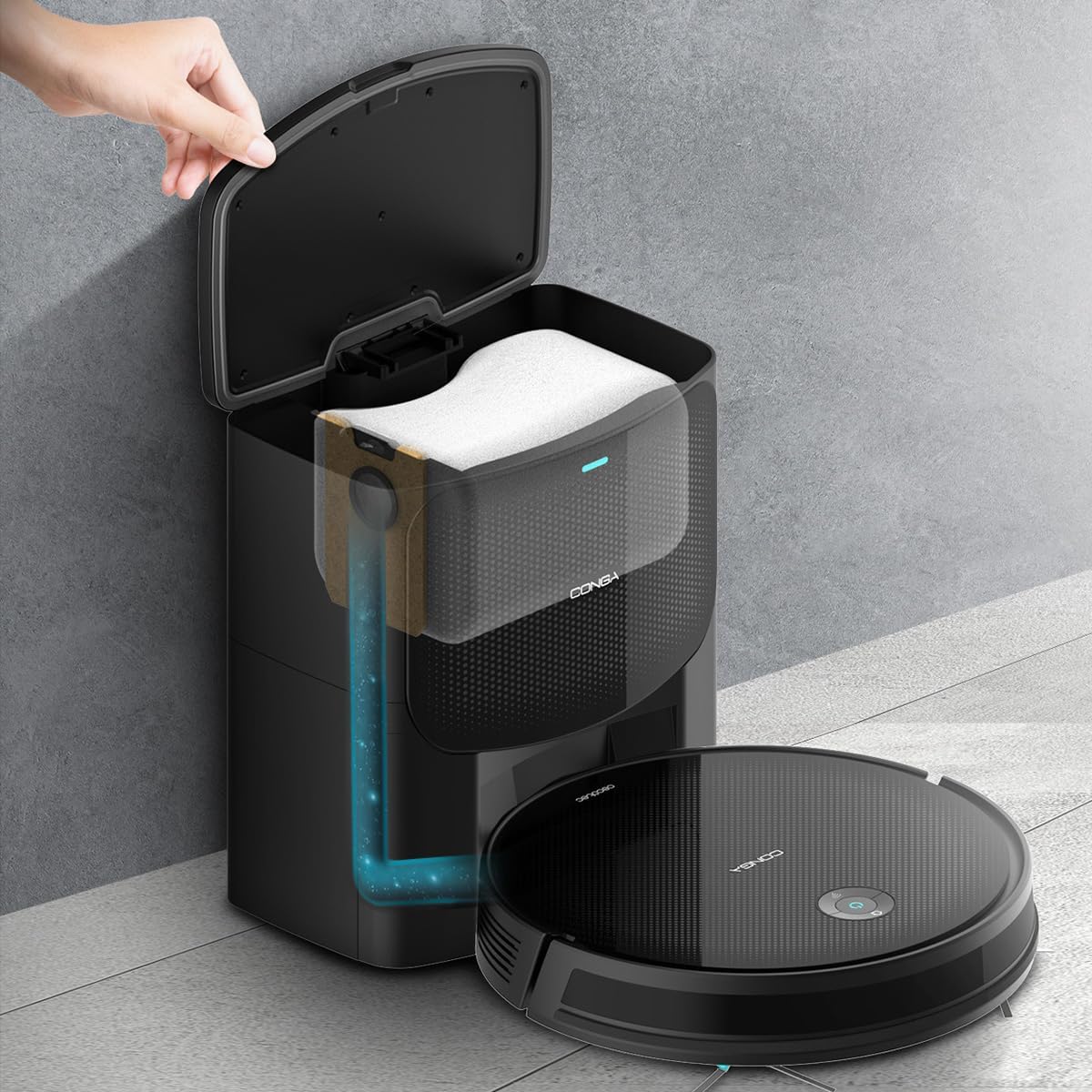

- Automatic Emptying Base: The robot automatically empties its dustbin into a 3-liter hygienic bag in the base, reducing manual intervention for weeks. Features BagDetect technology to alert if a bag is missing.
- Putere mare de aspirare: Delivers 2100 Pa suction power with an automatic Turbo mode for effective carpet cleaning.
- Autonomie extinsă: Up to 160 minutes of continuous cleaning. Total Surface technology ensures the robot returns to its base to recharge and resumes cleaning from where it left off.
- Navigație iTech SmartGyro 4.0: Provides ordered and efficient cleaning paths using gyroscopic, proximity, anti-shock, and anti-fall sensors.
- Controlul APP: Manage cleaning modes, schedule tasks, adjust suction and mopping levels, and review curățarea istoricului prin intermediul unei aplicații pentru smartphone.
- Multifunction Brush: Equipped with a combination of bristles and rubber silicone for effective cleaning on various surfaces.
- Adjustable Mopping: Offers 3 levels of water flow to tackle different types of dirt.
- Perii laterale duble: Enhances sweeping and suction coverage for thorough cleaning.
5. Configurare
5.1 Despachetarea și plasarea
- Scoateți cu grijă toate componentele din ambalaj.
- Choose a suitable location for the auto-emptying base. Ensure it is against a wall, on a hard, level surface, with at least 1 meter of clear space in front and 0.5 meters on either side. Avoid direct sunlight or areas with strong Wi-Fi interference.
- Plug the auto-emptying base into a power outlet. Ensure the power cord is neatly arranged to prevent the robot from tangling.
5.2 Încărcare inițială
Place the robot vacuum cleaner onto the charging contacts of the auto-emptying base. Ensure the robot is correctly aligned. The indicator light on the robot will show charging status. For first use, fully charge the robot (approximately 4-5 hours).
5.3 Installing Side Brushes and Mop
- Attach the two side brushes by pressing them into their designated slots on the underside of the robot until they click into place.
- If using the mopping function, fill the mixed tank with water (and a small amount of neutral cleaning solution if desired, following manufacturer guidelines). Attach a clean mop cloth to the mixed tank and slide the tank into the robot until it locks.
5.4 Conexiune la aplicație
- Descărcați aplicația oficială Cecotec Conga din magazinul de aplicații al smartphone-ului dvs.
- Follow the in-app instructions to register an account and add your Conga 2299 Ultra Home X-Treme T robot. This typically involves connecting the robot to your home Wi-Fi network.
6. Operare
6.1 Pornirea unui ciclu de curățare
- Pornire manuală: Apăsați butonul de pornire de pe robot o dată pentru a porni un ciclu automat de curățare.
- Pornire aplicație: Open the Conga app, select your robot, and choose a cleaning mode (Auto, Random, Wash, Spiral, Edges, Manual) to begin.
6.2 Funcția de ștergere
Ensure the mixed tank is filled with water and the mop cloth is attached before activating the mopping function. You can adjust the water flow level via the app for different floor types and cleaning needs.
6.3 Returning to Charging Base
- The robot will automatically return to its auto-emptying base when its battery is low or when a cleaning cycle is complete.
- You can also send the robot back to the base manually via the app or by pressing the home button on the robot.
7. Întreținere
Întreținerea regulată asigură performanțe optime și prelungește durata de viață a aspiratorului robot.
7.1 Auto-Emptying Base Dust Bag
The 3L hygienic dust bag in the auto-emptying base should be replaced when full. The app or an indicator on the base will notify you. The BagDetect technology ensures the system recognizes if a bag is present.
7.2 Cleaning the Mixed Tank and Filter
- After each mopping cycle, empty any remaining water from the mixed tank.
- Rinse the mixed tank and mop cloth with clean water. Allow them to air dry completely before reassembling.
- Tap out the high-efficiency filter to remove dust. Replace the filter every 3-6 months, depending on usage.
7.3 Curățarea periilor și a senzorilor
- Regularly remove hair and debris from the multifunction brush and side brushes using the provided self-cleaning tool.
- Wipe the charging contacts on both the robot and the base with a dry cloth.
- Clean the anti-drop sensors and proximity sensors on the robot's underside and front bumper with a soft, dry cloth.
8. Depanare
If you encounter issues with your robot vacuum cleaner, refer to the following common solutions:
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Robotul nu pornește și nu se încarcă. | Battery depleted, charging contacts dirty, power adapter not connected. | Ensure the robot is correctly docked. Clean charging contacts. Check power connection to the base. |
| Putere de aspirare redusă. | Dust bag full, filter clogged, brushes tangled. | Replace the dust bag. Clean or replace the HEPA filter. Clean the main and side brushes. |
| Robotul se blochează frecvent. | Obstacles, tangled cables, dirty sensors. | Clear obstacles from the cleaning path. Tidy up cables. Clean anti-fall and proximity sensors. |
| Cleaning map in app is frozen or incorrect. | Software glitch, temporary sensor error. | Perform a reset on the robot. The reset button is typically located on the side of the robot. Refer to the physical manual for exact location. |
| Robot does not return to base. | Base is obstructed, robot is too far, low battery. | Ensure the base has clear space around it. Manually place the robot near the base. |
Dacă problema persistă după încercarea acestor soluții, vă rugăm să contactați serviciul de asistență pentru clienți Cecotec.
9. Specificații
| Caracteristică | Caietul de sarcini |
|---|---|
| Marca | Cecotec |
| Numele modelului | Conga 2299 Ultra Home X-Treme T |
| Numărul de model | 08607 |
| Culoare | Negru |
| Dimensiuni produs (robot) | 32.3L x 32.5W x 7.5H cm |
| Greutatea articolului | 6.5 kg |
| Puterea de aspirare | 2100 Pa |
| Tip baterie | Litiu-ion |
| Autonomie | Până la 160 de minute (2 ore și 40 de minute) |
| Capacitate sac de praf (bază) | 3 litri |
| Tip filtru | HEPA |
| Tip controler | Controlul aplicației |
| Caracteristici speciale | Turbo Mode, Automatic Emptying Base, Mopping Function |
| Recomandare de suprafață | Covor, Podele dure |
| Disponibilitatea pieselor de schimb | 10 ani |
10. Garanție și asistență
Your Cecotec Conga 2299 Ultra Home X-Treme T Robot Vacuum Cleaner comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including warranty period and coverage details.
Pentru asistență tehnică, piese de schimb sau reclamații în garanție, vă rugăm să contactați serviciul clienți Cecotec prin intermediul serviciului oficial website or the contact information provided in your product documentation. Ensure you have your model number (08607) and proof of purchase available when contacting support.
