1. Introducere
Thank you for choosing the Cecotec Ready Warm 2000 Now Mica Heater. This manual provides essential information for the safe and efficient use of your new heater. Please read it thoroughly before operation and retain it for future reference.
The Cecotec Ready Warm 2000 Now is a 2000W mica heater designed to provide rapid and efficient heating for areas up to 25 m². It features an adjustable thermostat and two power levels (1000W and 2000W) for customized comfort. Its lightweight design and integrated wheels ensure easy portability between rooms.
2. Instrucțiuni de siguranță
To prevent personal injury or property damage, always observe basic safety precautions when using electrical appliances. This heater is equipped with a triple safety system, including automatic shutdown in case of tipping or overheating, and a protective grille.
- Citiți toate instrucțiunile înainte de a utiliza încălzitorul.
- Nu utilizați încălzitorul lângă apă sau în damp medii.
- Asigurați-vă că voltagVolumul indicat pe eticheta cu valori nominale corespunde cu cel al rețelei de alimentare.tage.
- Do not cover the heater or obstruct its air inlets/outlets.
- Păstrați materialele inflamabile la cel puțin 1 metru distanță de încălzitor.
- Deconectați întotdeauna încălzitorul atunci când nu îl utilizați sau înainte de curățare.
- Do not insert objects into the grilles.
- Supervise children and individuals with reduced physical, sensory, or mental capabilities when the heater is in use.
- Do not use the heater if the cord or plug is damaged. Contact authorized service personnel for repairs.
3. Componentele produsului
Familiarize yourself with the main parts of your Cecotec Ready Warm 2000 Now Mica Heater.
Figura 1: Înclinat view of the Cecotec Ready Warm 2000 Now Mica Heater, showing the mica heating elements behind the protective grille, control knobs on the side, and wheels for portability.
- Mica Heating Elements
- Grila de protectie
- Control Panel (Thermostat and Power Selector)
- Indicator luminos de alimentare
- Baza cu roti
- Cablu de alimentare și ștecher
Figura 2: Faţă view of the heater, highlighting the mica heating elements glowing red when active, visible through the mesh grille.
Figura 3: Latura view of the heater, showing the compact profile and the control panel on the right side.
4. Configurare
4.1 Despachetarea
Carefully remove the heater from its packaging. Retain the packaging for storage or future transport. Check for any signs of damage. If the product is damaged, do not use it and contact customer support.
4.2 Assembly (if required)
The Cecotec Ready Warm 2000 Now Mica Heater typically comes pre-assembled with its base and wheels. If the wheels or base require attachment, follow these steps:
- Place the heater upside down on a soft, flat surface to avoid scratching.
- Align the wheel assemblies with the designated slots on the heater's base.
- Secure the wheel assemblies using the provided screws. Ensure they are firmly attached.
- Return the heater to an upright position.

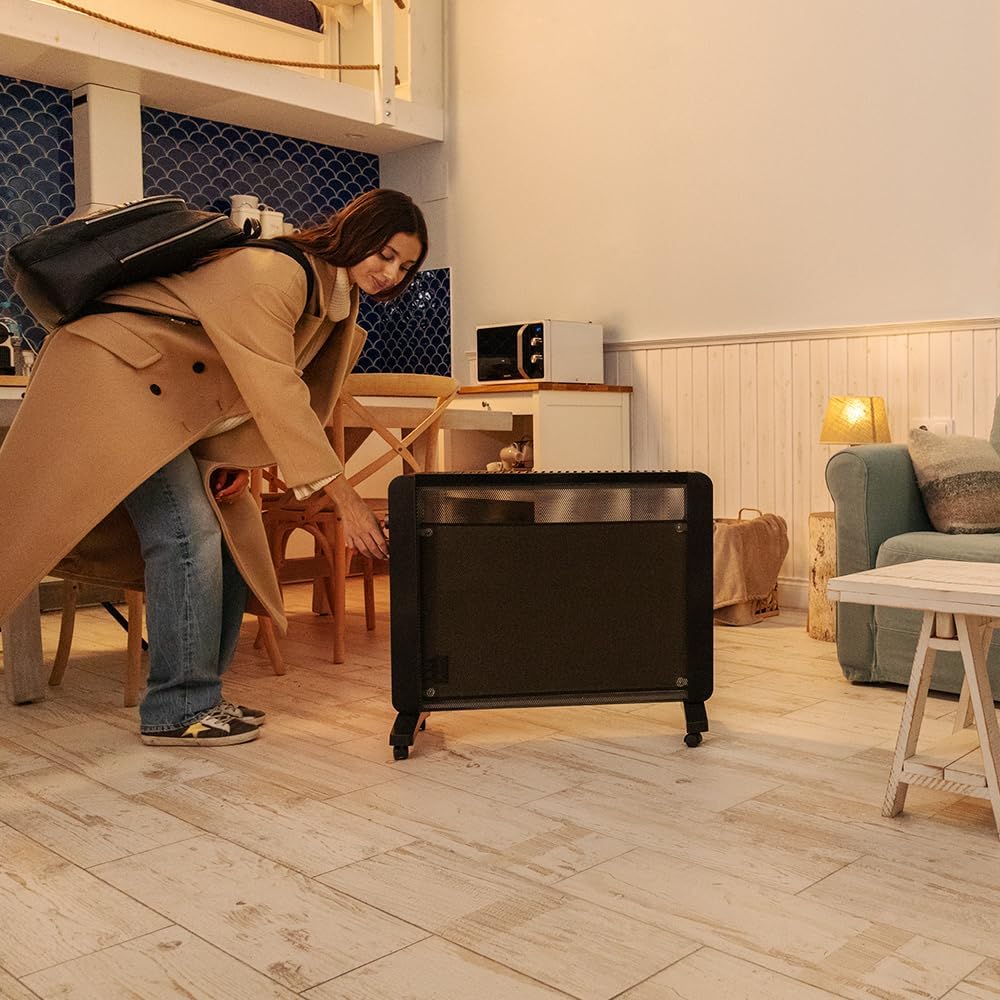

Figura 4: The heater's lightweight design and integrated wheels allow for easy movement between rooms.
4.3 Plasarea
Place the heater on a firm, level surface. Ensure there is adequate clearance around the heater (at least 1 meter from walls, furniture, curtains, and other flammable materials) to allow for proper air circulation and prevent fire hazards. Do not place the heater directly below a power outlet.
5. Instrucțiuni de utilizare
The Cecotec Ready Warm 2000 Now Mica Heater offers simple and intuitive controls for optimal heating.
Figura 5: Close-up of a hand adjusting one of the two control knobs on the side panel of the heater.
5.1 Pornirea și oprirea
- Plug the power cord into a suitable electrical outlet. The power indicator light may illuminate.
- To turn on the heater, rotate the lower control knob (Power Selector) to your desired power level:
- I: 1000W (Low Power)
- II: 2000W (High Power)
- To turn off the heater, rotate the Power Selector knob to the "0" (Off) position and unplug the unit from the wall outlet.
5.2 Reglarea termostatului
The upper control knob functions as the adjustable thermostat. This allows you to set your desired room temperature.
- Once the heater is powered on (Power Selector set to I or II), rotate the upper control knob (Thermostat) clockwise to increase the desired temperature setting, or counter-clockwise to decrease it.
- The heater will cycle on and off to maintain the set temperature. When the room temperature reaches the set level, the heater will temporarily stop heating. It will resume heating when the temperature drops below the set point.

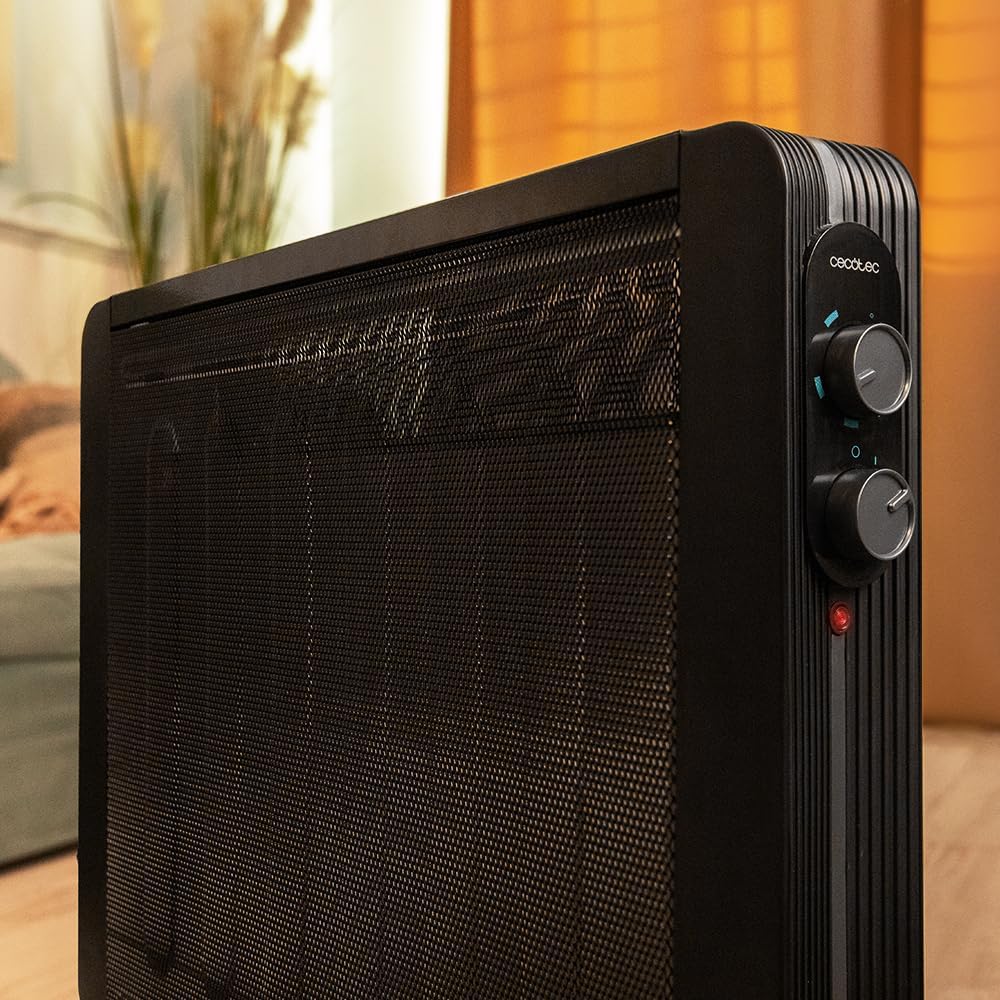

Figura 6: Detaliat view of the control panel, showing the upper thermostat knob and the lower power selector knob.
6. Întreținere
Întreținerea regulată asigură longevitatea și funcționarea eficientă a încălzitorului dumneavoastră.
6.1 Curățare
- Deconectați întotdeauna încălzitorul și lăsați-l să se răcească complet înainte de curățare.
- Ștergeți suprafețele exterioare cu un material moale, damp pânză. Nu utilizați agenți de curățare abrazivi sau solvenți.
- Nu scufundați încălzitorul în apă sau în orice alt lichid.
- Use a vacuum cleaner with a brush attachment to remove dust from the grilles.
- Ensure the heater is completely dry before plugging it back in.
6.2 Depozitare
When not in use, store the heater in a cool, dry place, preferably in its original packaging, to protect it from dust and damage. The heater features a foldable system for minimal space storage.
7. Depanare
If you encounter issues with your heater, refer to the following troubleshooting guide. If the problem persists, contact customer support.
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Încălzitorul nu pornește. |
|
|
| Încălzitorul produce insuficientă căldură. |
|
|
| Unusual odor during initial use. | New appliance burning off manufacturing residues. | This is normal for the first few uses. Ensure good ventilation. The odor should dissipate quickly. |
8. Specificații
Technical details for the Cecotec Ready Warm 2000 Now Mica Heater.
| Caracteristică | Detaliu |
|---|---|
| Marca | Cecotec |
| Numărul de model | 08266 |
| Putere | 2000 W (2 levels: 1000W / 2000W) |
| Metoda de încălzire | Radiant and Convection |
| Zona de acoperire | Până la 25 m² |
| Termostat | Reglabil |
| Sistem de siguranță | Triple (Auto-off for tip-over/overheat, protective grille) |
| Dimensiuni (L x l x H) | 78 x 13.5 x 62.5 cm |
| Greutate | 4.3 kg |
| Culoare | Negru |
| Sursa de alimentare | Electric cu fir |
Figura 7: Spate view of the heater, showing the power cord exit point and the overall construction.
Figura 8: The heater positioned in a living room, demonstrating its compact size and suitability for various indoor spaces.
9. Garanție și asistență
Cecotec products are manufactured to high-quality standards. This product comes with a manufacturer's warranty. Please refer to the warranty card included in the packaging for specific terms and conditions.
Spare parts availability for this model is indicated as 10 years from the date of purchase. For technical assistance, repairs, or questions regarding your product, please contact Cecotec customer support through their official website-ul sau informațiile de contact furnizate în documentația produsului.
Pentru mai multe informații, vizitați site-ul oficial Cecotec. website: www.cecotec.com
