1. Introducere
This manual provides essential instructions for the safe and effective use of your Xiaomi Mi Portable Photo Printer. Please read this manual thoroughly before operating the device and retain it for future reference. This portable printer allows you to print 2x3 inch photos instantly from your iOS or Android device using ZINK inkless printing technology, featuring AR photos and dynamic video capabilities.
2. Conținutul pachetului
Verificați dacă toate articolele enumerate mai jos sunt incluse în pachetul dumneavoastră:
- Mi Portable Photo Printer x 1
- Photo paper pack (5-sheet) x 1
- Cablu USB x 1
- Manual de utilizare x 1
Figure 2.1: Package Contents Diagram. This image illustrates the printer, USB cable, instruction manual, and a 5-sheet photo paper pack included in the box.
3. Produs terminatview
The Xiaomi Mi Portable Photo Printer is a compact and lightweight device designed for on-the-go photo printing. It utilizes ZINK (Zero Ink) technology, eliminating the need for ink cartridges.
3.1 Caracteristici cheie
- Design compact: Small and portable, easily fits into a pocket or bag.
- ZINK Inkless Printing: Prints vibrant 2x3 inch photos without ink.
- AR Photos & Dynamic Videos: Scan printed photos with the Mi Home/Xiaomi Home app to view augmented reality effects or dynamic videos.
- Conectivitate Bluetooth: Connects wirelessly to iOS and Android devices.
- Conexiune cu mai multe dispozitive: Supports simultaneous Bluetooth connections for shared printing.
- Integrarea aplicațiilor: Offers various templates, collages, and filters via the Mi Home/Xiaomi Home app.
3.2 Componentele dispozitivului
Figura 3.1: Față view of the Xiaomi Mi Portable Photo Printer with a photo being ejected. This image highlights the printer's compact size and its primary function.

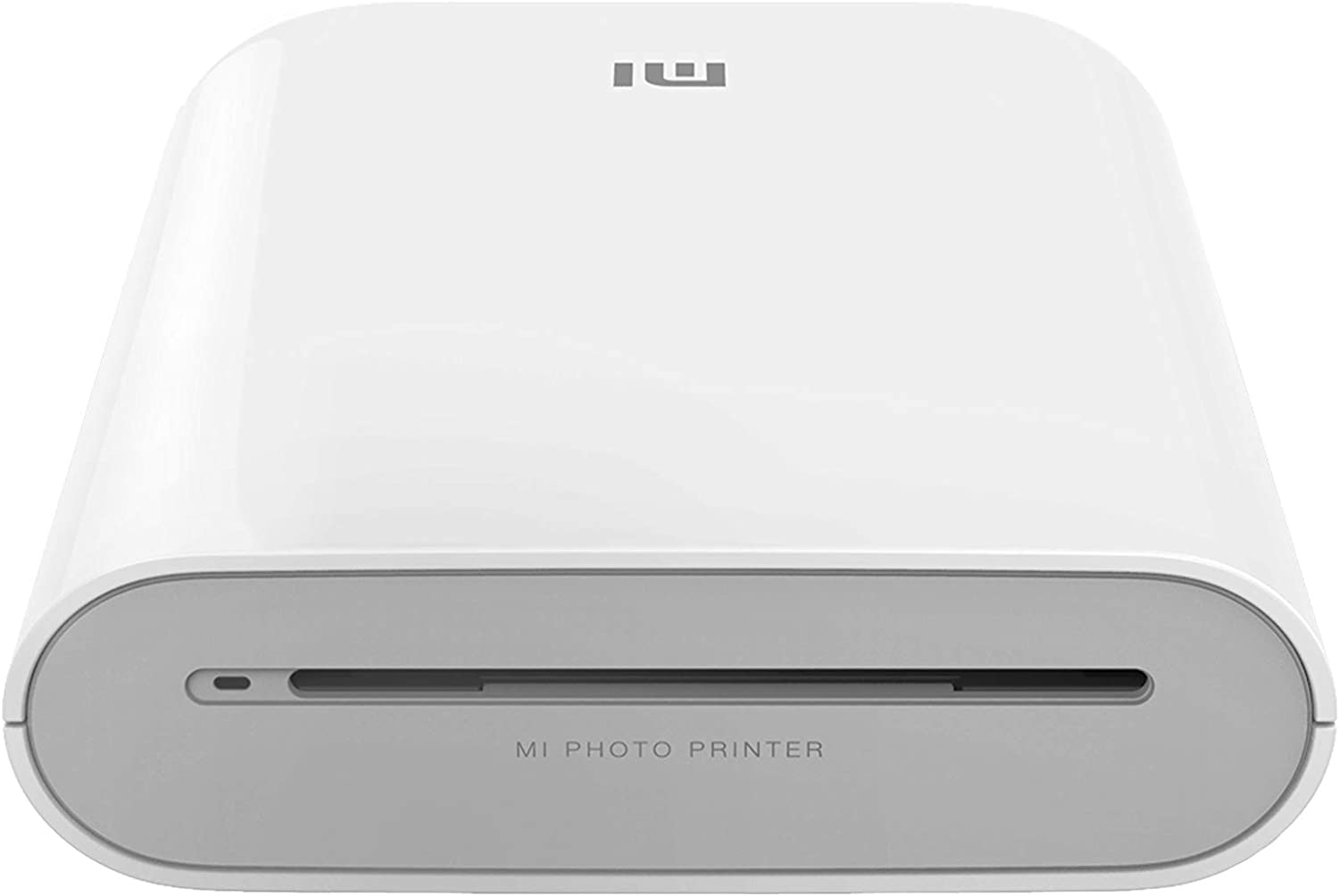

Figura 3.2: Frontală view of the printer, displaying the photo output slot and branding.

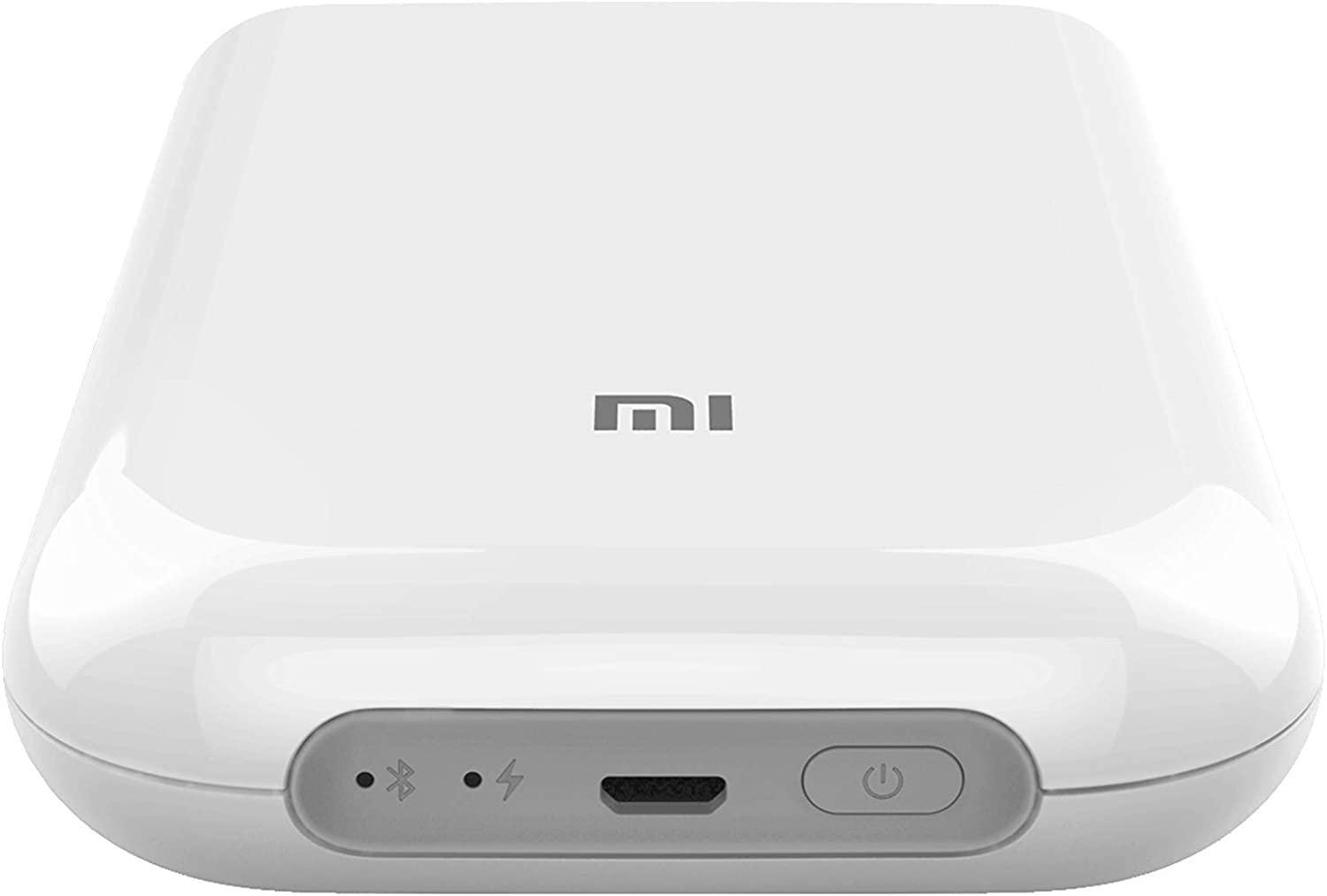

Figura 3.3: Sus view of the printer, illustrating the control panel with the power button, charging port, and status indicators.
Figure 3.4: The printer held in a hand, emphasizing its compact and portable design.
4. Configurare
4.1 Încărcarea imprimantei
Before first use, fully charge the printer. Connect the provided USB cable to the printer's charging port and a suitable USB power adapter (not included). The indicator light will show charging status.
4.2 Încărcarea hârtiei fotografice
- Deschideți capacul tăvii de hârtie de pe imprimantă.
- Insert the ZINK photo paper pack into the tray with the blue calibration card facing down, followed by the photo paper with the glossy side facing up.
- Închideți bine capacul tăvii de hârtie.
4.3 Installing the Mi Home/Xiaomi Home App
Download and install the 'Mi Home' or 'Xiaomi Home' app from your device's app store (Google Play Store for Android, Apple App Store for iOS). Follow the on-screen instructions to create an account or log in.
Notă importantă: Some users have reported regional restrictions with the app, limiting device usability to specific regions. Please ensure the app and device are compatible with your geographical location before use.
4.4 Pairing via Bluetooth
- Ensure your printer is charged and powered on.
- Activați Bluetooth pe dispozitivul dvs. iOS sau Android.
- Open the Mi Home/Xiaomi Home app and tap the '+' icon to add a new device.
- Select the Xiaomi Mi Portable Photo Printer from the list of available devices.
- Urmați instrucțiunile aplicației pentru a finaliza procesul de asociere.
5. Instrucțiuni de utilizare
5.1 Pornire/Oprire
- Pornire: Press and hold the power button on the printer until the indicator light illuminates.
- Oprire: Apăsați și țineți apăsat din nou butonul de pornire până când indicatorul luminos se stinge.
5.2 Imprimarea fotografiilor
- Ensure the printer is connected to your device via Bluetooth and has sufficient paper loaded.
- Deschideți aplicația Mi Home/Xiaomi Home.
- Select the photo you wish to print from your device's gallery or take a new photo within the app.
- Utilize the app's editing features, such as filters, collages, or templates, if desired.
- Tap the print icon in the app to send the image to the printer. The photo will emerge from the output slot.
Figure 5.1: Printer in use with the companion app, showcasing printed photos and creative possibilities.
5.3 AR Photos and Dynamic Videos
The printer supports AR (Augmented Reality) photos and dynamic videos. When printing a photo, you can record or upload a video within the Mi Home/Xiaomi Home app. After printing, scan the physical photo using the app's AR feature to experience the embedded virtual effects or play the dynamic video.
5.4 Multi-User Connection
The printer supports multiple simultaneous Bluetooth connections. Up to three devices can connect to the printer at once. Print jobs from different devices will be added to a queue and printed sequentially.
6. Întreținere
6.1 Curăţarea imprimantei
To maintain optimal print quality, periodically clean the exterior of the printer with a soft, dry cloth. Do not use liquid cleaners or abrasive materials. The ZINK printing technology does not require print head cleaning as there are no ink cartridges.
6.2 Replacing Photo Paper
When the paper supply is depleted, follow the instructions in Section 4.2 to load a new pack of ZINK 2x3 inch photo paper. Always use genuine Xiaomi ZINK photo paper for best results.
6.3 Îngrijirea bateriei
To prolong battery life, avoid exposing the printer to extreme temperatures. If the printer will not be used for an extended period, charge it to approximately 50% before storage and recharge it every few months.
7. Depanare
If you encounter issues with your Xiaomi Mi Portable Photo Printer, refer to the following common problems and solutions:
| Problemă | Soluție posibilă |
|---|---|
| Imprimanta nu pornește | Asigurați-vă că imprimanta este complet încărcată. Conectați-o la o sursă de alimentare și încercați din nou. |
| Nu se poate conecta prin Bluetooth | Verify Bluetooth is enabled on your device and the printer. Restart both devices. Ensure the printer is not already connected to another device. Check app permissions. |
| Poor print quality / Blank prints | Ensure genuine ZINK photo paper is loaded correctly with the glossy side up. Check if the blue calibration card was used with the paper pack. The paper may be expired or damaged. |
| Blocaj de hârtie | Power off the printer. Carefully open the paper tray and remove any jammed paper. Do not force the paper out. Reload paper correctly. |
| App not functioning correctly / Regional restrictions | Ensure the Mi Home/Xiaomi Home app is updated to the latest version. Check your device's region settings. Some app features or device functionality may be restricted based on geographical location. |
If the problem persists, consult the official Xiaomi support website-ul sau contactați serviciul pentru clienți.
8. Specificații
| Caracteristică | Caietul de sarcini |
|---|---|
| Model | Imprimantă foto portabilă Mi |
| Marca | XIAOMI |
| Tehnologia de imprimare | Tehnologia Zinc |
| Tehnologia de conectivitate | Bluetooth |
| Sisteme de operare compatibile | Android, iOS |
| Dimensiune maximă a suportului media | 2 x 3 inci |
| Dimensiunea foii | 2 x 3 inci |
| Rezoluție maximă de imprimare | 313 x 400 dpi |
| Ieșire imprimantă | Culoare |
| Imprimare față-verso | Nu (Simplex) |
| Capacitate maximă de intrare a foii | 1 |
| Metoda de control | App |
| Tip baterie | Litiu-ion (inclus) |
| Dimensiunile produsului (Lxlxh) | 12.42 x 2.46 x 8.51 cm (124 x 25 x 85 mm) |
| Greutatea articolului | 281 g |
| Culoare | Alb |
9. Informații de siguranță
- Nu dezasamblați, reparați și modificați dispozitivul singur.
- Keep the printer away from water, moisture, and high temperatures.
- Evitați să scăpați imprimanta sau să o supuneți la impacturi puternice.
- Use only the specified charging cable and genuine ZINK photo paper.
- A nu se lăsa la îndemâna copiilor.
10. Garanție și asistență
Pentru informații despre garanție, asistență tehnică sau solicitări de service, vă rugăm să consultați cardul de garanție inclus împreună cu produsul sau să vizitați pagina oficială de asistență Xiaomi. website. Ensure you have your product model and purchase details available when contacting support.
