BRPOM 4000A Car Battery Jump Starter (Model BM501) User Manual

1. Informații importante privind siguranța

Please read this manual carefully before using the BRPOM 4000A Car Battery Jump Starter. Failure to follow these instructions may result in electric shock, fire, or serious injury. Keep this manual for future reference.

Safety Features and Protections:

• Protecție la scurtcircuit: Previne deteriorarea cauzată de scurtcircuite accidentale.
• Protecție la suprasarcină: Safeguards the battery from being overcharged.
• Protecție la descărcare profundă: Protects the internal battery from excessive discharge.
• Protecția conexiunii inverse: Alertează și previne funcționarea dacă este clampsunt conectate incorect.
• Protecție polaritate inversă: Ensures correct polarity connection.
• Protecție la supracurent: Previne deteriorarea cauzată de fluxul excesiv de curent.
• Protecție la temperaturi înalte: Oprește dispozitivul dacă se supraîncălzește.
• Protecție împotriva taxării inverse: Prevents current from flowing back into the jump starter from the vehicle battery.

The specially designed indicator on the smart jump cable will alert you to improper use with an audible buzzer and flashing lights.

Avertismente generale de siguranță:

• Do not operate the jump starter if it is damaged.
• A nu se lăsa la îndemâna copiilor.
• Do not immerse the unit in water or expose it to rain.
• Nu scurtcircuitați cl-ulamps.
• Use only the provided smart jump cables.
• Asigurați o ventilație adecvată în timpul utilizării.

2. Produs terminatview

Continutul pachetului:

• 1 x BRPOM 4000A Car Battery Jump Starter Unit
• 1 x Smart Jump Cable with Clamps
• 1 x cablu de încărcare USB de tip C
• 1 x Manual de utilizare
• 1 x cutie de depozitare

Caracteristici cheie:

• Aprindere puternică: 4000A peak current, capable of starting 12V vehicles with up to 10L diesel or all gas engines.
• Baterie externă de mare capacitate: 26800mAh battery capacity with QC3.0 port for fast charging of phones, tablets, and other devices.
• Multi-Mode LED Light: Features 4 modes: Illumination, Strobe, SOS, and Warning, for various emergency and outdoor situations.
• Siguranță avansată: Equipped with 8 intelligent protection systems for safe operation.

Componentele produsului:

The following image illustrates the main components of your BRPOM 4000A Car Battery Jump Starter.

This image displays the BRPOM 4000A Car Battery Jump Starter unit, its smart jump starter clamps, a USB-C charging cable, and a compact storage case. The jump starter features a power button, indicator lights, and a compass.

The jump starter unit typically includes:

• Buton de alimentare
• Indicator de nivel al bateriei
• Port de pornire
• USB Output Ports (including QC3.0)
• USB Type-C Input Port (for charging the unit)
• Lanterna LED
• Compass (integrated)

3. Configurare

Initial Charging of the Jump Starter:

Before first use, fully charge the BRPOM jump starter. It is recommended to charge the unit every 3-6 months to maintain optimal battery health, especially if not used regularly.

1. Conectați cablul de încărcare USB Type-C furnizat la portul de intrare Type-C de pe starter.
2. Connect the other end of the USB Type-C cable to a USB wall adapter (not included) or a car charger. For faster charging, use a QC3.0 compatible adapter.
3. The battery indicator lights on the jump starter will illuminate to show the charging progress. All lights will be solid when fully charged.

This image illustrates the jump starter's function as a power bank, showing it simultaneously charging a tablet and a smartphone via its USB ports. It also mentions 18W USB-C fast charging capability, which applies to charging the unit itself as well.

4. Instrucțiuni de utilizare

Pornirea asistată a vehiculului:

Ensure the jump starter is at least 50% charged before attempting to jump start a vehicle. The device is designed to start 12V vehicles.

This image provides a visual step-by-step guide for jump starting a vehicle: 1. Insert the jump cable into the jump starter. 2. Connect the clamps to the vehicle battery. 3. Start the vehicle engine. 4. Remove the clamps to complete the operation.

1. Connect Smart Cable: Insert the blue plug of the smart jump cable into the jump start port on the BRPOM unit. Ensure it is fully inserted.
2. Conectați la bateria vehiculului: Atașați cl-ul roșu pozitiv (+)amp to the positive (+) terminal of the vehicle battery. Attach the black negative (-) clamp to the negative (-) terminal of the vehicle battery. The smart cable indicator will show a solid green light if the connection is correct and safe to proceed. If it shows a red light or beeps, check the connections for reverse polarity or other issues.
3. Pornirea vehiculului: Return to your vehicle and start the engine. If the vehicle does not start on the first attempt, wait 30 seconds before trying again. Do not crank the engine for more than 3 seconds per attempt.
4. Îndepărtați Clamps: Once the vehicle has started, immediately remove the smart clamps from the vehicle battery terminals, then disconnect the smart cable from the jump starter unit.

The BRPOM 4000A jump starter is designed for high-performance vehicles, capable of starting engines up to 10L diesel or all gas types, even in challenging conditions like cold weather.

This infographic highlights the jump starter's capacity (26800mAh) and peak current (4000A), demonstrating its ability to start vehicles with up to 10L diesel or all gas engines, including cars, trucks, and SUVs.

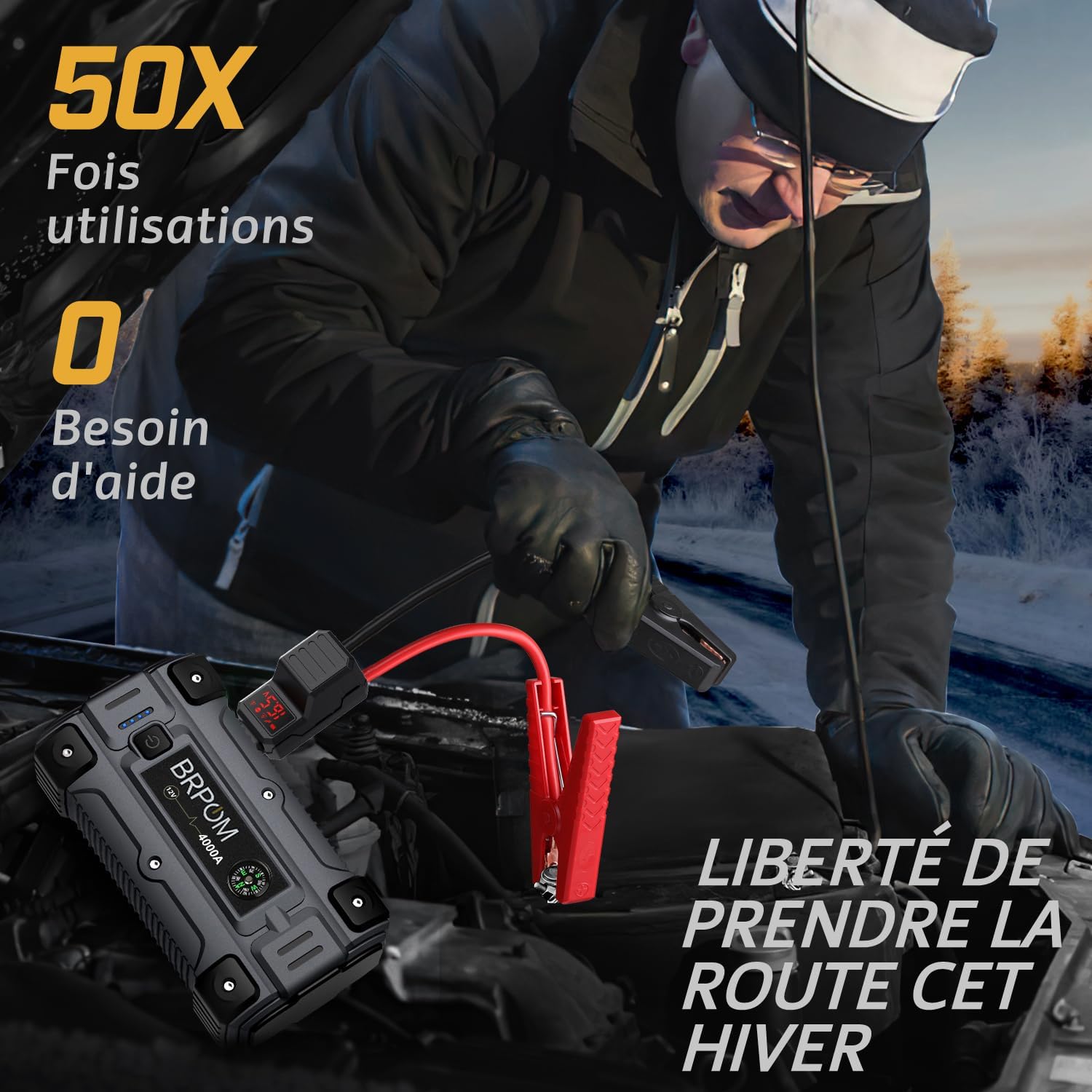

This image depicts a person jump starting a car in a cold, snowy environment, suggesting the device's reliability and multiple-use capability (up to 50 times on a single charge) for winter conditions.

Utilizarea ca Power Bank portabil:

The BRPOM jump starter can also serve as a portable power bank to charge your electronic devices.

• Conectați cablul de încărcare USB al dispozitivului la unul dintre porturile de ieșire USB ale demarorului.
• The jump starter will automatically begin charging your device. The QC3.0 port offers faster charging for compatible devices.

Utilizarea luminii LED:

The integrated LED flashlight provides illumination and emergency signaling functions.

This image shows a person using the jump starter's integrated LED flashlight to illuminate an engine bay. The device features four LED modes: illumination, strobe, SOS, and warning, suitable for various emergency and outdoor scenarios.

1. Modul de iluminare: Press and hold the LED light button for 3 seconds to turn on the steady illumination light.
2. Modul stroboscopic: Short press the LED light button once to switch to strobe mode.
3. Modul SOS: Short press the LED light button again to switch to SOS mode.
4. Modul de avertizare: Short press the LED light button a third time to activate the red/blue warning light.
5. Opriți: Press and hold the LED light button for 3 seconds to turn off the light.

5. Întreținere

Depozitare:

• Store the jump starter in its provided storage box in a cool, dry place.
• Avoid direct sunlight, high temperatures, and high humidity.
• Păstrați unitatea departe de materialele inflamabile.

curatenie:

• Ștergeți unitatea cu o cârpă moale și uscată.
• Nu utilizați substanțe chimice dure sau produse de curățare abrazive.

Îngrijirea bateriei:

• To prolong battery life, fully charge the unit every 3-6 months, even if not in use.
• Do not store the unit with a completely depleted battery.

6. Depanare

Probleme comune și soluții:

If you encounter issues not listed here, please refer to the Warranty and Support section for assistance.

This image presents a comparison table detailing the intelligent protection systems of the BRPOM smart jump cables, including short-circuit, overcharge, deep discharge, reverse connection, reverse polarity, overcurrent, and high-temperature protection, contrasted with ordinary cables.

7. Specificații

Specificatii tehnice:

8. Garanție și asistență

Informații despre garanție:

BRPOM offers a two-year free exchange warranty for this product from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use.

Asistență clienți:

For any questions, concerns, or technical assistance, please contact BRPOM customer support. We are committed to providing 24/7 five-star service to ensure your satisfaction.

Please refer to your purchase platform or the BRPOM official website pentru date de contact specifice.
