MICRO-AIR EasyTouch Digital RV Thermostat User Manual

Introducere

The MICRO-AIR EasyTouch Digital Thermostat is designed to provide advanced climate control for your Recreational Vehicle (RV). This programmable thermostat offers wireless communication via WiFi and Bluetooth, allowing for convenient temperature management and monitoring. It automatically detects system sources such as furnaces, heat strips, and cooling units, ensuring seamless operation and enhanced comfort during your travels.

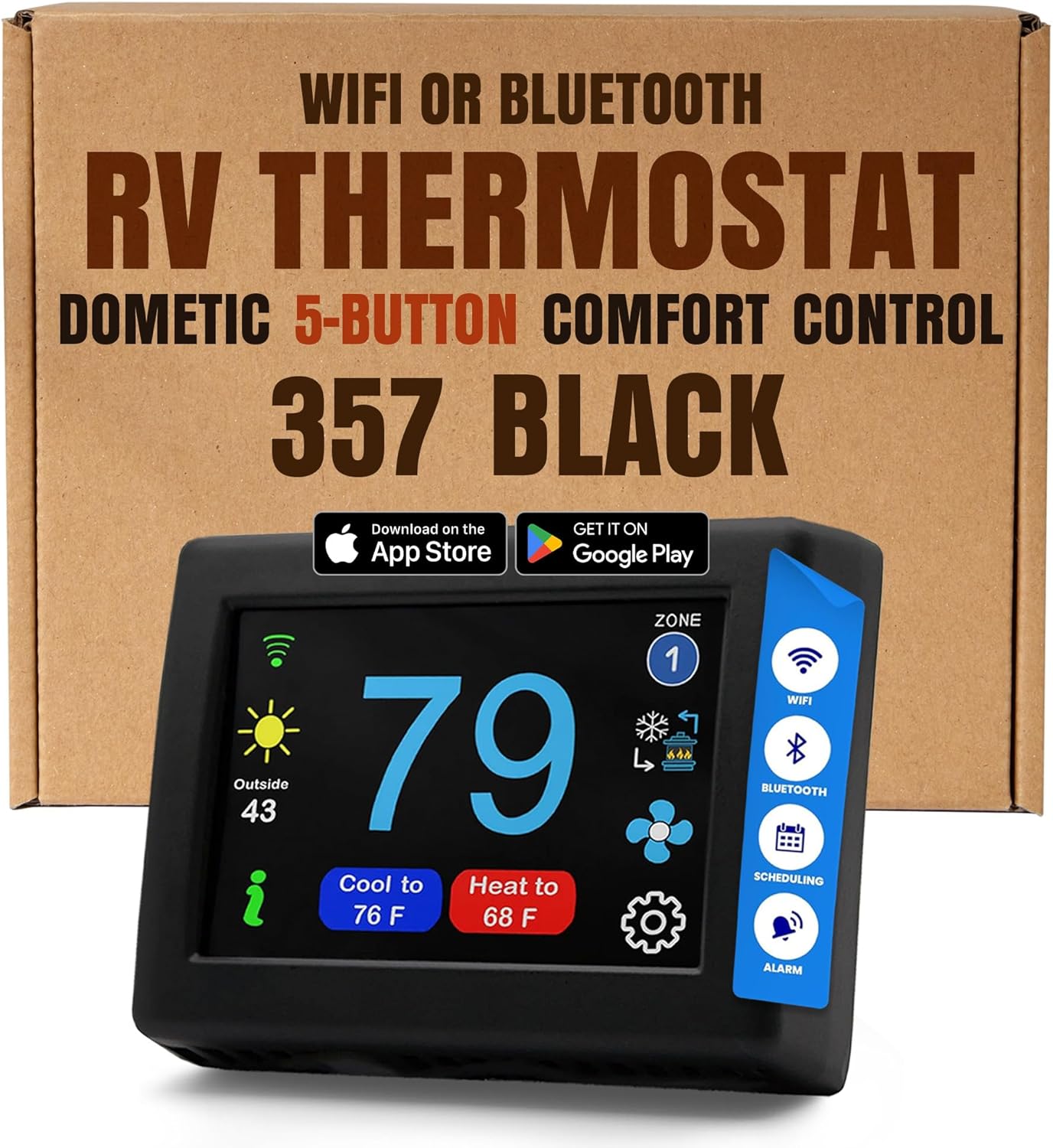

Image: The MICRO-AIR EasyTouch 357 Black Thermostat, a digital WiFi and Bluetooth enabled device for RV climate control.

Caracteristici cheie

• Touch Screen Digital Display: Features a large color touch screen (3" x 3.9" x 1.06") for intuitive and effortless temperature adjustments.
• Programmable Functionality: Allows for setting custom heating and cooling schedules to optimize comfort and energy efficiency.
• Conectivitate wireless: Equipped with WiFi and Bluetooth for remote monitoring and control via a smartphone application.
• Detectarea automată a sistemului: Intelligently identifies and integrates with various RV system sources, including furnaces, heat strips, and cooling units.
• Compatibilitate largă: Designed to replace specific Dometic 5-button thermostats (e.g., 3109228.001, 3109228.019, 3313189.000).
• Free Feature Updates: Receive ongoing software enhancements via WiFi, ensuring your thermostat is always up-to-date.

Conținutul pachetului

Upon opening your MICRO-AIR EasyTouch Thermostat package, you should find the following components:

• MICRO-AIR EasyTouch Thermostat Unit
• Manual de utilizare (acest document)
• Hardware de montare
• Wall Plate (if applicable)

Compatibilitate

The MICRO-AIR EasyTouch 357 Black thermostat is specifically designed as a replacement for 5-button Dometic thermostats with OEM model numbers such as 3109228.001, 3109228.019, and 3313189.000. It is crucial to verify your existing thermostat's button configuration to ensure proper compatibility.

Notă importantă: Acest model este nu compatible with 4-button Dometic Multi-zone thermostats. Please count the buttons on your current thermostat carefully before installation.

Image: Visual guide illustrating the difference between compatible 5-button and incompatible 4-button Dometic thermostats.

Instalare

The installation process for the MICRO-AIR EasyTouch Thermostat is designed to be straightforward. Follow these general steps:

1. Removing the Old Thermostat: Carefully depress the rectangular locking tab at the bottom of your existing thermostat using a small screwdriver. Gently pull the thermostat away from the wall from the bottom. Unplug the connector by depressing the locking tab. Remove the back plate mounting screws and detach the back plate.
2. Wiring the New Thermostat: The EasyTouch thermostat features a simple telephone-style modular jack. This is a six-pin version of a common Ethernet connector with a press tab for removal. Press the tab to remove the connector from your old thermostat and insert it into the new EasyTouch thermostat.
3. Mounting the New Thermostat:
   • Localizați butoanele de montare orizontal peste orificiu cu diametrul mai mic pe perete.
   • Înșurubați un șurub și nivelați butoanele astfel încât afișajul să fie drept când este instalat.
   • Screw in the second screw, ensuring both buttons remain level.
   • Remove the mounting tab before mounting the unit on the wall.
   • Align and press the display against the wall, then gently slide the display down to lock it in place.

Image: Step-by-step diagram for removing the old thermostat, wiring, and mounting the new MICRO-AIR EasyTouch thermostat.

Operațiunea

The EasyTouch thermostat features a user-friendly interface for controlling your RV's climate. The large color touch screen allows for quick adjustments and mode selections.

• Reglarea temperaturii: Tap the temperature display or use the up/down arrows on the screen to set your desired temperature.
• Selectarea modului: Easily switch between heating, cooling, and fan-only modes using the dedicated icons on the display. The thermostat automatically detects available system sources.
• Controlul zonei: If your RV supports multiple zones, you can switch between zones to manage temperatures independently.
• Programare: Utilize the scheduling feature to program temperature changes throughout the day or week for optimal comfort and energy savings.

Image: A user interacting with the large colored touch screen of the EasyTouch thermostat, demonstrating its ease of use.

Acces la aplicația mobilă

Control your RV's climate from anywhere with the EasyTouch RV App, available for both iOS and Android devices. The app provides comprehensive control over your air conditioner, furnace, and heat pump, allowing you to monitor and adjust settings remotely via WiFi or Bluetooth.

• Monitorizare de la distanță: Check the current indoor and outdoor temperatures of your RV from your smartphone.
• Controlul temperaturii: Adjust setpoints for heating and cooling, and switch between operational modes.
• Scheduling Management: Create, modify, or activate temperature schedules directly from the app.
• Actualizări prin aer: Benefit from free feature updates delivered directly to your thermostat via WiFi, ensuring continuous improvement without monthly service fees.

Image: A smartphone showing the EasyTouch RV App interface, highlighting remote control capabilities for the thermostat.

Specificații

Depanare

If you encounter any issues with your MICRO-AIR EasyTouch Thermostat, please consider the following general advice:

• Probleme de conectivitate: Ensure your RV's WiFi network is active and the thermostat is within range. For Bluetooth, ensure your mobile device is close to the thermostat.
• Temperature Discrepancies: Verify that the thermostat's internal sensor is not obstructed and that the unit is properly calibrated if an option is available in the settings.
• System Response: Confirm that the wiring connections are secure and that your RV's heating and cooling systems are receiving power.
• Actualizări firmware: Check the mobile app for any available firmware updates, as these often resolve known issues and improve performance.

For detailed troubleshooting steps or persistent problems, please refer to the comprehensive user manual included with your product or contact MICRO-AIR customer support.

Garanție și suport

MICRO-AIR stands by the reliability of its products. The EasyTouch Digital RV Thermostat comes with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase.

Should you have any questions, require technical assistance, or need support with your thermostat, please do not hesitate to contact Hutch Mountain, the dedicated support team for MICRO-AIR products. Their commitment is to ensure your satisfaction and provide the power you need when you need it most.
