1. Introducere
The SCANGRIP SUNMATCH 4 is a powerful and versatile handheld LED work light specifically engineered for professional detailing and accurate color matching. Its advanced features, including the unique CCT SCAN function and robust design, make it an indispensable tool for automotive professionals and enthusiasts alike. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your SUNMATCH 4.
2. Informații de siguranță
Please read all safety warnings and instructions carefully before using the SCANGRIP SUNMATCH 4. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Nu priviți direct în fasciculul de lumină.
- Keep the device away from extreme heat, direct sunlight, and flammable materials.
- Nu încercați să dezasamblați sau să modificați lampa. Reparațiile trebuie efectuate numai de către personal calificat.
- Ensure the charging cable and adapter are in good condition before charging.
- This product is designed for professional use. Handle with care.
3. Conținutul pachetului
Verificați dacă toate articolele sunt prezente în colet:
- SCANGRIP SUNMATCH 4 LED Work Light
- Charging Cable (AC power source)
- Small Diffuser
- Manual de utilizare (acest document)
4. Configurare
4.1 Încărcare inițială
Before first use, fully charge the SCANGRIP SUNMATCH 4. Connect the charging cable to the light and plug it into a standard 110V AC outlet. The charging indicator will show the charging status. A full charge typically takes approximately 4 hours.
Figure 4.1: The SCANGRIP SUNMATCH 4 placed in its charging dock.
4.2 Attaching the Diffuser (Optional)
The included small diffuser can be attached to the light to provide a softer, more diffused light output, which is ideal for certain inspection tasks, such as checking for high spots during coating application.
Figure 4.2: Attaching the small diffuser to the light head for softer illumination.
5. Instrucțiuni de utilizare
5.1 Powering On/Off and Brightness Adjustment
Press the power button to turn the light on. Press again to cycle through brightness levels. The SUNMATCH 4 offers multiple brightness settings to suit various inspection needs.
5.2 CCT SCAN Function for Color Matching
The unique CCT SCAN function allows you to automatically scan the surface with color temperatures ranging from 2500K (warm light) to 6500K (cool light). This stepless adjustment helps in identifying the exact color match and detecting imperfections under different lighting conditions.
Figure 5.1: Inspecting car paint with the SCANGRIP SUNMATCH 4 to reveal imperfections.
Figure 5.2: Visual representation of the CCT SCAN stepless color temperature range from warm to cool light.
5.3 Integrated Magnet and Pocket Clip
The SUNMATCH 4 features a powerful built-in magnet at its base, allowing for flexible positioning on metallic surfaces, freeing up your hands for other tasks. The integrated pocket clip provides convenient portability, enabling you to securely carry the light on your person.
Figure 5.3: The strong magnet allows for hands-free operation by attaching the light to metal surfaces.

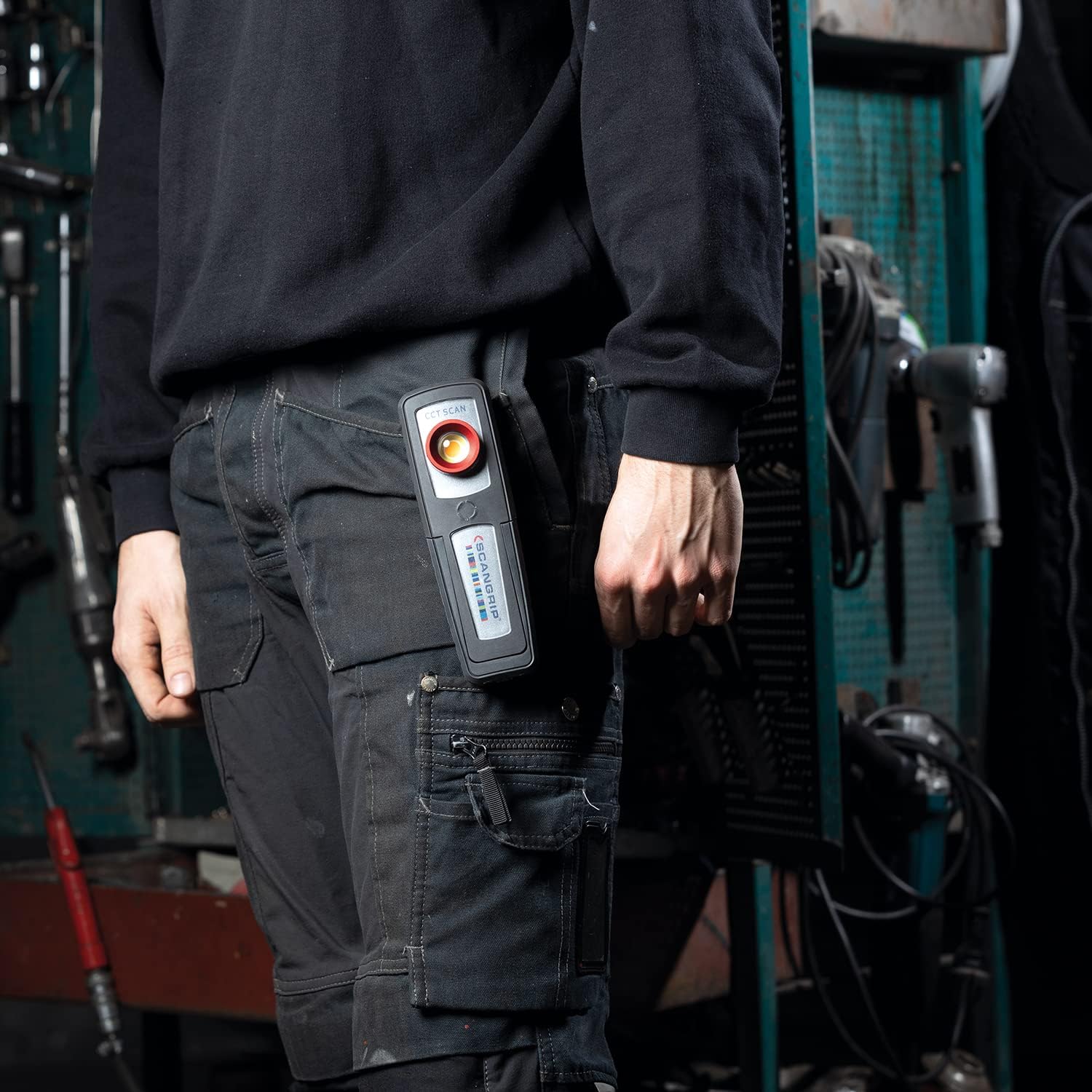

Figure 5.4: The integrated pocket clip provides convenient and secure carrying during work.
5.4 Videoclip oficial al produsului
Video 5.1: An official video demonstrating the High CRI+ LED work light with CCT SCAN functionality, showcasing its use in automotive detailing for color temperature adjustment and surface inspection.
6. Întreținere
6.1 Curățare
To maintain optimal performance and appearance, clean the light regularly. Use a soft, damp cloth to wipe down the exterior. Avoid abrasive cleaners or solvents that could damage the surface or lens.
6.2 Îngrijirea bateriei
The SUNMATCH 4 uses a Lithium Ion battery. For best battery life, avoid fully discharging the battery frequently. Recharge the light when the battery indicator shows low power. If storing the light for an extended period, ensure it is charged to approximately 50% and recharge every few months.
6.3 Clasă de protecție la apă (IP65)
The SCANGRIP SUNMATCH 4 is rated IP65, meaning it is protected against dust ingress and low-pressure water jets from any direction. While durable, avoid submerging the light in water or exposing it to high-pressure water streams.
7. Depanare
If you encounter issues with your SCANGRIP SUNMATCH 4, refer to the following common problems and solutions:
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Lumina nu se aprinde | Low battery; Power button malfunction | Charge the light fully. If issue persists, contact support. |
| Ieșirea luminii este slabă | Low battery; Dirty lens | Recharge the light. Clean the lens with a soft cloth. |
| CCT SCAN not functioning | Software glitch; Sensor obstruction | Turn the light off and on again. Ensure the sensor area is clean. Contact support if the problem continues. |
| Lumina nu se încarcă | Cablu/adaptor defect; Problemă cu portul de încărcare | Try a different compatible charging cable and adapter. Ensure the charging port is free of debris. Contact support. |
8. Specificații
Key technical specifications for the SCANGRIP SUNMATCH 4:
| Caracteristică | Detaliu |
|---|---|
| Producător | Scangrip |
| Numărul piesei | 03.5657 |
| Greutatea articolului | 9.2 uncii |
| Dimensiuni pachet | 8.19 x 3.62 x 3.27 inci |
| Țara de origine | China |
| Numărul de model al articolului | 03.5657 |
| baterii | Sunt necesare 1 baterii litiu-ion (incluse) |
| Sursa de alimentare | AC |
| Voltage | 110 volți |
| Wattage | 2600 de miliamp_ore |
| Cantitate Pachet Articol | 1 |
| Componente incluse | Item (Light, Charger, Diffuser) |
| Evaluare rezistentă la apă | IP65 |
| Ieșire lumen | Până la 500 de lumeni |
| CCT Scan Range | 2500K până la 6500K |
9. Garanție și asistență
9.1 Informații despre garanție
The SCANGRIP SUNMATCH 4 comes with a 2-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
9.2 Asistență pentru clienți
For technical assistance, warranty claims, or any other inquiries, please contact SCANGRIP customer support through their official website or the retailer where you purchased the product. Provide your model number (03.5657) and a detailed description of the issue for faster service.
