Introducere
This manual provides essential instructions for the safe and efficient use of your Scangrip WORK LITE M rechargeable LED work lamp. Please read this manual thoroughly before operating the device and retain it for future reference.
The Scangrip WORK LITE M is a lightweight, ergonomic, and rechargeable LED work flashlight designed for various inspection and work tasks. It features adjustable light output, flexible positioning options, and a durable design.
Configurare și utilizare inițială
1. Încărcarea dispozitivului
The WORK LITE M comes with a built-in rechargeable Lithium-Ion battery. Before first use, fully charge the device.
- Localizați portul de încărcare USB de pe dispozitiv.
- Connect the included USB charging cable to the lamp and to a compatible USB power source (e.g., computer, USB wall adapter).
- The charging indicator light will show the charging status. Refer to the device for specific indicator behavior (e.g., red for charging, green for fully charged).
- O încărcare completă durează de obicei câteva ore.
Nota: Only use the provided charging cable or a compatible USB cable. Do not attempt to charge with damaged cables or chargers.
Figura 1: Față view of the Scangrip WORK LITE M work lamp, showing the main LED light panel.
Instrucțiuni de operare
1. Power On/Off and Dimming Function
- Pentru a întoarce lamp on, press the power button located on the side of the device.
- To adjust the light output (dimming function), press and hold the power button. The light intensity will cycle between 10% and 100%. Release the button at your desired brightness level.
- Pentru a întoarce lamp oprit, apăsați din nou butonul de alimentare.
Figure 2: The WORK LITE M being held in hand, demonstrating its use as a handheld flashlight.
2. Flexible Positioning with SMART CLIP 4-in-1 System
The WORK LITE M is equipped with a versatile SMART CLIP system for hands-free operation and flexible positioning.
- Integrated Magnet: Lamp features a powerful built-in magnet on its base. This allows you to securely attach the lamp to metallic surfaces for hands-free illumination.
- Retractable Swivel Hook: A retractable swivel hook is integrated into the SMART CLIP. Pull out the hook to hang the lamp from various objects or structures. The hook can swivel for optimal light direction.
- Suport integrat: The SMART CLIP can also function as a stand. Fold out the clip to create a stable base, allowing the lamp to stand upright on any flat surface.
- Prinzătoare de curea: The SMART CLIP is designed to fit onto a work belt, allowing you to carry the lamp conveniently and have it readily accessible for inspection tasks.

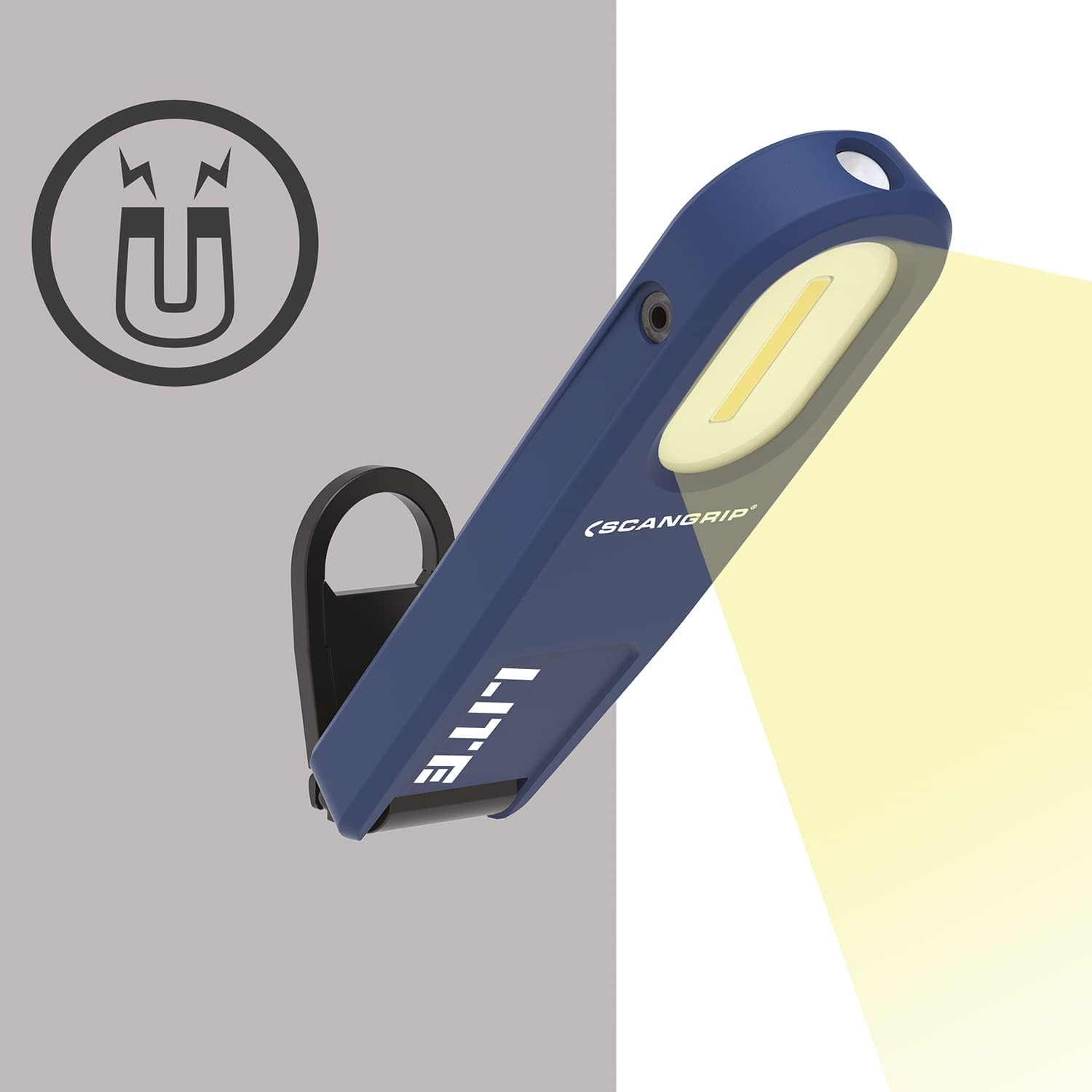

Figure 3: Illustration of the lamp's magnetic attachment feature, showing it secured to a metal surface.
Figure 4: The WORK LITE M with its swivel hook extended, ready for hanging.
Figura 5: lateral view of the WORK LITE M demonstrating the Smart Clip deployed as a stand.
Figure 6: The WORK LITE M attached to a work belt using its integrated Smart Clip.
Întreţinere
- curatenie: Curățați lamp în mod regulat cu un moale, damp Nu utilizați substanțe chimice dure sau produse de curățare abrazive, deoarece acestea pot deteriora suprafața sau componentele interne.
- Depozitare: Când nu este utilizat pentru perioade lungi de timp, depozitați l-ulamp in a cool, dry place. It is recommended to charge the battery periodically (e.g., every 3-6 months) to maintain battery health.
- Îngrijirea bateriei: The integrated Lithium-Ion battery is not user-replaceable. Do not attempt to open the device or replace the battery yourself.
Depanare
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Lamp nu pornește. | Bateria este epuizată. | Încarcă lamp folosind cablul USB furnizat. |
| Ieșirea luminii este slabă. | Bateria este descărcată sau funcția de diminuare a luminozității este activă. | Încarcă lamp. Press and hold the power button to adjust brightness to 100%. |
| Lamp nu încarcă. | Cablu sau sursă de alimentare defectă. | Încercați un alt cablu USB sau adaptor de alimentare. Asigurați-vă că conexiunile sunt sigure. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact Scangrip customer support.
Specificații
| Caracteristică | Detaliu |
|---|---|
| Numărul de model | 35668 |
| Ieșire de lumină | Până la 350 de lumeni |
| Funcția de diminuare | Reglabil între 10% și 100% |
| Tip baterie | Litiu-ion (inclus) |
| Sursa de alimentare | Alimentat cu baterie |
| Încărcare | Cablu de incarcare USB inclus |
| Greutate | 5.6 uncii |
| Componente incluse | Mâna lamp, charging cable |
| Producător | Scangrip |
Informații despre garanție
For detailed warranty information regarding your Scangrip WORK LITE M, please refer to the warranty card included with your product or visit the official Scangrip webPăstrați dovada achiziției pentru reclamații în garanție.
Asistență pentru clienți
If you have any questions, require technical assistance, or need to report a problem with your Scangrip WORK LITE M, please contact Scangrip customer support through their official website-ul sau informațiile de contact furnizate pe ambalajul produsului.
