1. Produs terminatview
The KEiiD KD-C01 Bluetooth Computer Speakers offer a compact stereo audio solution with versatile connectivity options. Featuring aluminum housing and a built-in DSP sound optimization chip, these speakers are designed to deliver rich, clear sound with enhanced bass for various applications including computers, music players, and smartphones.
Image 1: KEiiD KD-C01 Bluetooth Computer Speakers (Front View)
2. Configurare
2.1 Despachetarea și conținutul pachetului
Carefully unpack all components from the box. Ensure all items listed below are present:
- Stereo Speaker L+R (Left and Right Speakers)
- 12V2A DC Power adapter
- DC to DC Speaker cord (59 inch)
- 3.5mm Audio Cable (59 inch)
- Manual de utilizare (acest document)
Image 2: Package Contents including speakers, power adapter, speaker cord, and audio cable.
2.2 Plasarea difuzoarelor
Place the left and right speakers on a stable, flat surface, ensuring they are positioned for optimal stereo sound. The main speaker (with controls) typically serves as the right channel.
2.3 Conexiune la alimentare
- Connect the DC to DC Speaker cord between the Left and Right speakers.
- Plug the 12V2A DC Power adapter into the main speaker's power input.
- Conectați adaptorul de alimentare la o priză de perete.
2.4 Pornirea inițială
Press and hold the power button on the main speaker for 3 seconds to power on the device. An audible prompt will indicate the current input mode.
Videoclipul 1: Terminatview of KEiiD Bluetooth Computer Speakers KD-C02 Gray Aluminum, demonstrating physical features and basic operation.
3. Instrucțiuni de utilizare
3.1 Butoane de control
The main speaker features three control buttons for easy operation:
- Pornire/Oprire: Țineți apăsat timp de 3 secunde.
- Mode Switch (BT/AUX): Double-click the main control button.
- Volum +/-: Folosește butoanele de volum dedicate.
- Mute (AUX mode) / Pause/Play (BT mode): Single-click the main control button.
- Switch EQ (Music, Movie, Game): Hold the main control button for 1 second.
Image 3: Close-up of the control buttons on the main speaker, showing power, volume, and mode/EQ controls.
3.2 Moduri de conectivitate
The speakers support both wired (AUX) and wireless (Bluetooth) connections.
3.2.1 Mod Bluetooth
- Double-click the main control button to switch to Bluetooth mode. The LED indicator will flash blue.
- On your device (computer, phone, tablet), enable Bluetooth and search for 'KEiiD KD-C01'.
- Selectați difuzorul pentru asociere. Se va auzi un ton de confirmare după conectarea reușită.
- După asociere, puteți transmite audio fără fir.

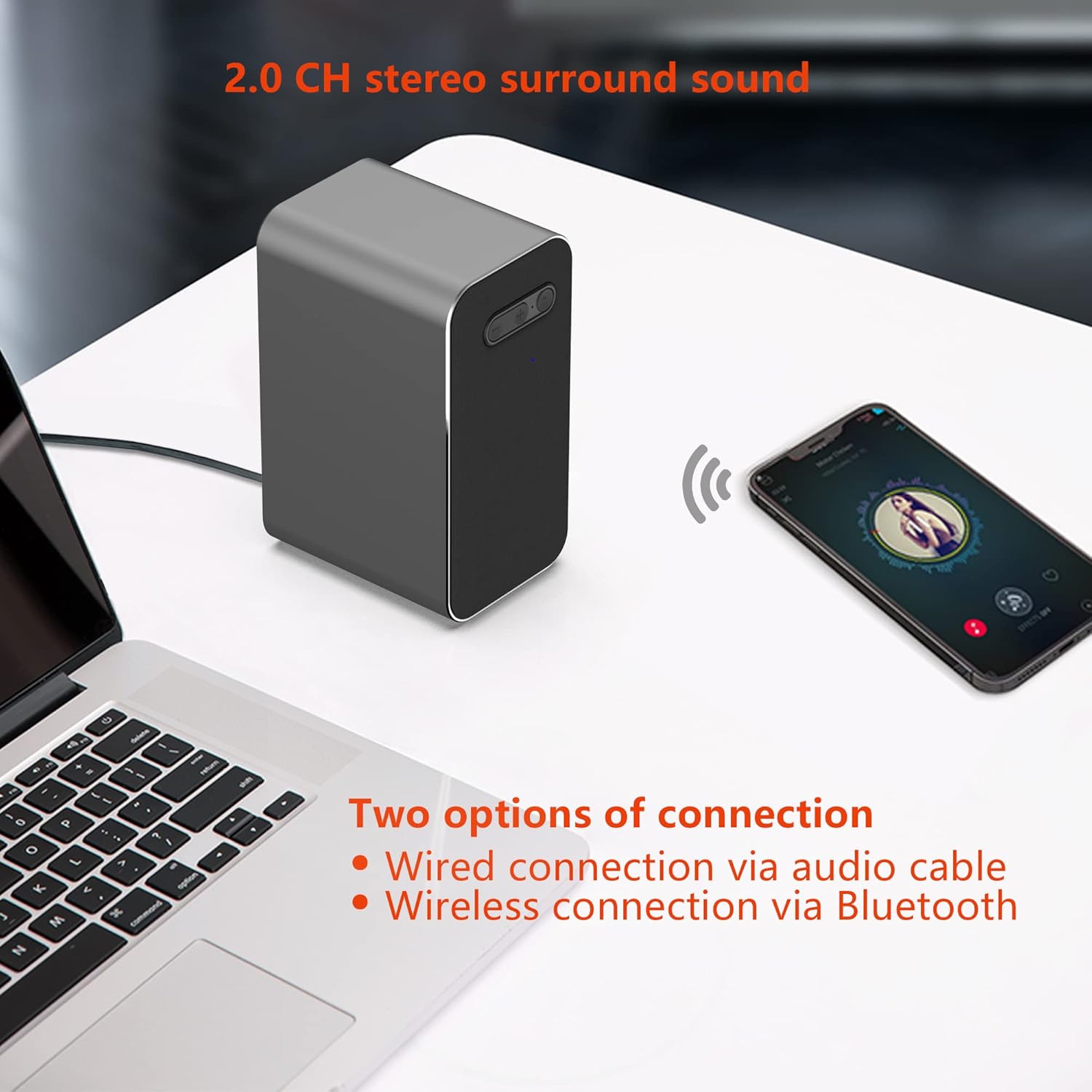

Image 4: KEiiD KD-C01 speakers wirelessly connected to a smartphone via Bluetooth.
3.2.2 Modul AUX
- Double-click the main control button to switch to AUX mode. The LED indicator will turn green.
- Connect one end of the provided 3.5mm Audio Cable to the AUX input on the main speaker.
- Connect the other end of the 3.5mm Audio Cable to the audio output jack of your device (e.g., computer, MP3 player).
- Audio will now play through the speakers via the wired connection.
3.3 EQ Options
The speakers offer three equalizer (EQ) modes to optimize audio for different content:
- Modul muzical: Balanced audio for general music listening.
- Mod film: Enhanced dialogue and sound effects for films.
- Mod joc: Features 3D surround sound for an immersive gaming experience.
To switch between EQ modes, hold the main control button for 1 second. The speaker will announce the selected mode.
Image 5: Visual representation of the three EQ modes: Music, Movie, and Game.
4. Întreținere
4.1 Curățare
To maintain the appearance and performance of your speakers, wipe them with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the aluminum housing and fabric covers.
4.2 Depozitare
When not in use for extended periods, store the speakers in a cool, dry place away from direct sunlight and extreme temperatures. Disconnect the power adapter to conserve energy.
5. Depanare
If you encounter issues with your KEiiD KD-C01 speakers, please refer to the following common problems and solutions:
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Nici un sunet | Speakers not powered on, incorrect input mode, volume too low, loose cable connection. | Ensure speakers are powered on. Double-click to cycle through input modes (Bluetooth/AUX). Increase volume. Check all cable connections. |
| Bluetooth se deconectează frecvent | Device out of range, interference, previous pairing issues. | Ensure your device is within 10 meters (33 feet) of the speakers. Reduce interference from other wireless devices. Forget the device in your Bluetooth settings and re-pair. |
| Static or Hissing sound (AUX mode) | Poor quality audio cable, electrical interference, faulty audio source. | Try using a different 3.5mm audio cable. Ensure the cable is securely connected. Test with a different audio source to rule out source issues. |
| Speakers do not turn on | Fără curent, adaptor de alimentare defect. | Check if the power adapter is securely plugged into both the speaker and the wall outlet. Try a different power outlet. |
6. Specificații
| Caracteristică | Detaliu |
|---|---|
| Numele modelului | KD-C01 |
| Tip de montare | Suport de masă |
| Material | Acrilonitril butadien stiren (ABS), aluminiu |
| Tip difuzor | Stereo |
| Caracteristici speciale | 3 EQ options, Aluminum housing, DSP sound optimization, Wireless connection via Bluetooth |
| Utilizări recomandate | For Computers, For Music Players, For Smartphones or Tablets |
| Dispozitive compatibile | Computers, Music Players |
| Configurare canal de sunet surround | 2.0 |
| Culoare | Gri |
| Dimensiunile produsului | 3.5" D x 2.5" L x 5.1" H |
| Greutatea articolului | 1000 grame (2.2 lire sterline) |
| Metoda de control | Atingere |
| Tehnologia comunicațiilor fără fir | Bluetooth |
| Dimensiunea difuzorului | 3.5 inchi |
| Sursa de alimentare | Corded Electric via DC 12V power adapter |
| Tip de driver audio | Driver dinamic |
| Putere maximă de ieșire difuzor | 25 wați |
| Tehnologia de conectivitate | Auxiliar, Bluetooth |
| Mod ieșire audio | Stereo |
| Vol. De intraretage | 240 volți |
7. Garanție și asistență
The KEiiD KD-C01 Bluetooth Computer Speakers come with a 1-year limited warranty. For any product inquiries, technical assistance, or after-sales support, please contact KEiiD customer service. We offer 24-hour support to ensure your satisfaction.
For further assistance, please visit the official KEiiD website-ul sau contactați canalele lor de asistență pentru clienți.
