1. Informații de siguranță
Please read and understand all safety warnings and instructions before installing or operating this product. Failure to follow these instructions may result in serious injury or property damage.
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, during installation and operation.
- Ensure the tractor is turned off, in neutral, and the parking brake is engaged before attaching or detaching the hitch.
- Verify that all pins and bolts are securely fastened before operating.
- Do not exceed the maximum weight capacity of the hitch or your tractor's 3-point lift system.
- Țineți mâinile și picioarele departe de piesele în mișcare.
- Refer to your tractor's owner's manual for specific 3-point hitch operation guidelines.
For additional safety details, please consult the official Informații de siguranță în format PDF.
2. Produs terminatview
The YITAMOTOR 3 Point Trailer Hitch is designed to convert your tractor's Category 1 three-point hitch into a standard 2-inch receiver, allowing for easy attachment of various implements such as trailers, tow hooks, and other compatible accessories.
Caracteristici cheie:
- Construcție grea: Made from alloy steel for durability and strength.
- Rezistenta la coroziune: Features a black powder-coated finish to prevent rust and corrosion, suitable for outdoor use.
- Category 1 Compatibility: Designed for Category 1 tractors, including models from Kubota, John Deere, Mahindra, Ford, Yanmar, Massey Ferguson, and New Holland.
- 2-Inch Receiver: Standard 2-inch x 2-inch receiver for versatile attachment options.
- 7/8-Inch CAT 1 Lifting Pin: Equipped with a 7/8-inch diameter CAT 1 lifting pin for secure attachment.
- Instalare ușoară: Designed for quick and straightforward attachment and removal.
Image: The YITAMOTOR 3 Point Trailer Hitch, showcasing its robust black powder-coated steel frame and pin connections.
Ce este în cutie:
- 1 x 3 Point Trailer Hitch 2" Receiver Assembly
- Necessary Pins and Clips for Attachment
Image: Diagram showing the main hitch assembly and included pins, clips, and bushings for installation.
3. Configurare și instalare
Follow these steps to properly install the 3 Point Trailer Hitch onto your Category 1 tractor.
- Pregătiți tractorul: Park the tractor on a level surface, engage the parking brake, and turn off the engine. Ensure the 3-point hitch arms are lowered.
- Attach Lower Lift Pins: Align the lower arms of your tractor's 3-point hitch with the lower pins on the YITAMOTOR hitch. Insert the pins through the tractor's lift arm holes and secure them with the provided clips.
- Attach Top Link Pin: Raise the tractor's 3-point hitch arms slightly to align the top link of the tractor with the upper mounting point of the YITAMOTOR hitch. Insert the top link pin and secure it with its clip.
- Verificați conexiunile: Double-check that all three connection points (two lower lift arms, one top link) are securely pinned and clipped. Ensure there is no excessive play.
- Funcționare de testare: Slowly raise and lower the 3-point hitch to confirm proper movement and stability of the attached YITAMOTOR hitch.
Image: A YITAMOTOR 3 Point Trailer Hitch attached to the rear of a tractor, ready for use.

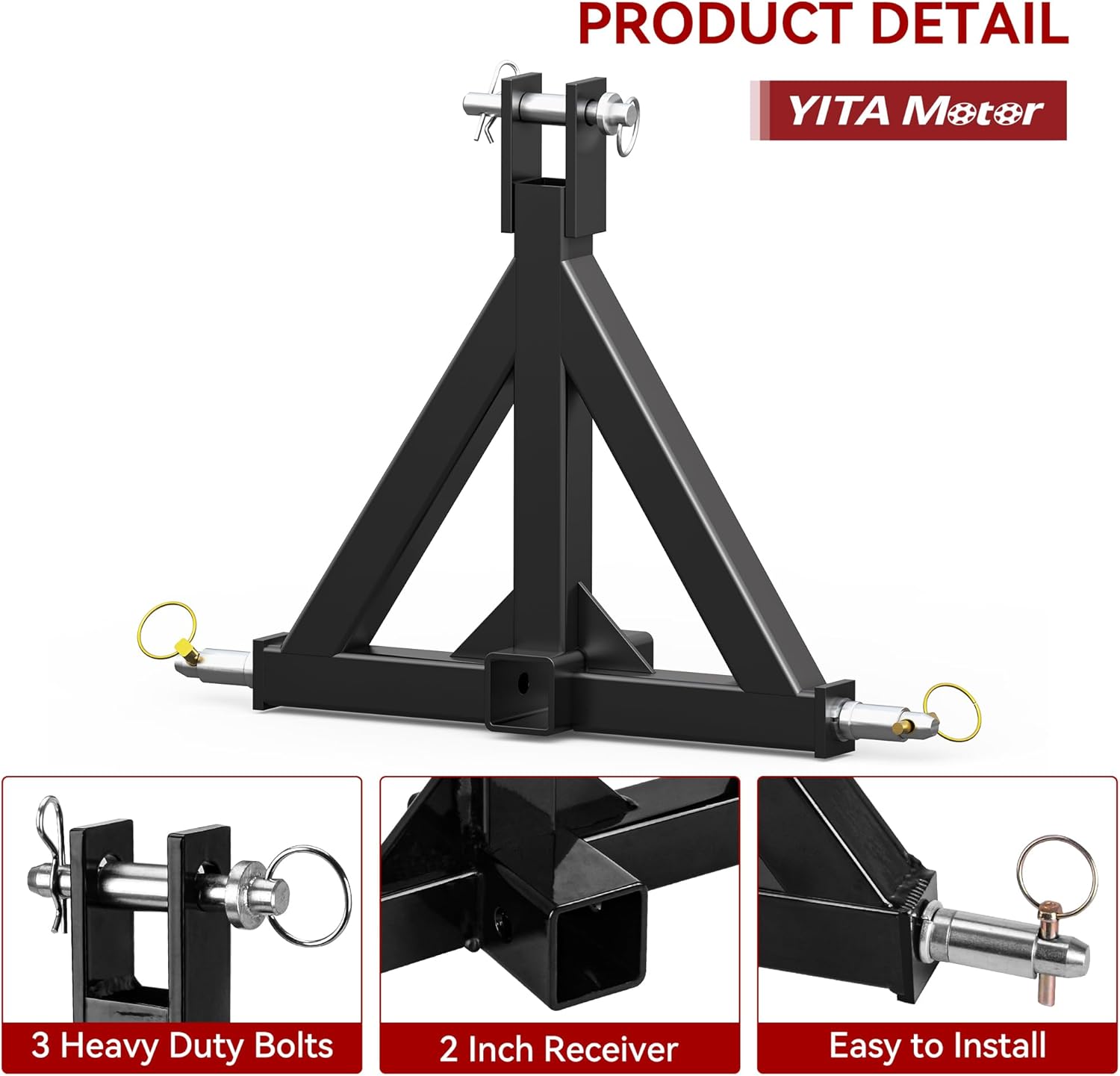

Imagine: Prim-plan views highlighting the heavy-duty bolts, the 2-inch receiver, and the easy-to-install pin mechanism.
4. Instrucțiuni de utilizare
Once the YITAMOTOR 3 Point Trailer Hitch is securely installed, you can attach various implements to its 2-inch receiver.
- Attaching Implements: Insert the shank of your desired implement (e.g., trailer ball mount, tow hook) into the 2-inch receiver tube.
- Secure Implement: Align the pinholes and insert a hitch pin or locking pin (not included with this product) through the receiver and implement shank. Secure with a clip or lock.
- Reglarea înălțimii: Use your tractor's 3-point hitch controls to raise or lower the implement to the desired working height.
- Operare: Operate your tractor and implement according to their respective instruction manuals. Always maintain a safe speed and be aware of your surroundings.
- Detaching Implements: Park the tractor, engage the parking brake, and turn off the engine. Lower the 3-point hitch to relieve tension. Remove the hitch pin securing the implement, then slide the implement out of the receiver.
Imagine: Un prim-plan view of the 2-inch receiver integrated into the hitch, with an inset showing the 2"x2" dimension.
Image: A green tractor utilizing the 3 Point Trailer Hitch to pull a small utility trailer.
5. Întreținere
Regular maintenance will ensure the longevity and safe operation of your YITAMOTOR 3 Point Trailer Hitch.
- curatenie: After each use, clean the hitch to remove dirt, mud, and debris. A pressure washer can be used, but avoid directing high-pressure spray directly at pivot points or pins.
- Inspecţie: Periodically inspect the hitch for any signs of wear, damage, cracks, or corrosion. Pay close attention to welds, pinholes, and the receiver tube.
- Lubrifiere: Apply a light coat of grease or lubricant to all pivot points and pins to ensure smooth operation and prevent rust.
- Depozitare: When not in use, store the hitch in a dry, protected area to prevent exposure to elements that could cause rust or damage.
- Verificare hardware: Ensure all bolts and pins are tight and secure. Replace any worn or damaged hardware immediately.
6. Depanare
This section addresses common issues you might encounter with your 3 Point Trailer Hitch.
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Hitch is difficult to attach/detach. | Misalignment with tractor arms; rust/debris on pins. | Ensure tractor is on level ground. Clean and lubricate pins. Adjust tractor's 3-point arms for proper alignment. |
| Implement wobbles in receiver. | Incorrectly sized implement shank; worn receiver or shank. | Ensure implement shank is a standard 2-inch size. Inspect receiver and shank for wear; replace if necessary. Use a hitch tightener if minor play is acceptable. |
| Hitch pins are stuck. | Rust or dirt buildup; bent pin. | Clean pins thoroughly. Apply penetrating oil. If bent, replace the pin. |
| Visible damage or cracks on hitch. | Supraîncărcare; deteriorare prin impact; oboseală a materialului. | Întrerupeți imediat utilizarea. Do not attempt to repair structural damage. Replace the hitch. |
7. Specificații
| Caracteristică | Caietul de sarcini |
|---|---|
| Marca | YITAMOTOR |
| Model | Cârlig de remorcă în 3 puncte |
| Material | Oțel aliat |
| Tip de finisare | Vopsit cu pulbere (negru) |
| Dimensiunea receptorului | 2 inchi x 2 inchi |
| Categoria tractor | Categoria 1 |
| Lower Lift Pin Diameter | 7/8 inch |
| Greutatea articolului | Aproximativ 27 lire sterline |
| Dimensiuni pachet | Aproximativ 23.4 x 23 x 7.5 inci |
| Trage Forța | 2500 Pounds Per Inch (Note: Actual towing capacity is limited by tractor and implement ratings) |
Image: A diagram illustrating the key dimensions of the YITAMOTOR 3 Point Trailer Hitch, including height, width, and receiver size.
8. Garanție și asistență
For warranty information, product support, or to purchase replacement parts, please contact YITAMOTOR customer service directly. Refer to your purchase documentation for specific warranty terms and contact details.
You can often find support information on the official YITAMOTOR website-ul sau prin intermediul comerciantului de unde a fost achiziționat produsul.
