elemage Solar Security Camera User Manual

1. Produs terminatview

The elemage Solar Security Camera (Model ZS-GX1S) is a wireless outdoor surveillance solution designed for comprehensive home security. It features 2K resolution, 360-degree pan-tilt-zoom (PTZ) capabilities, motion detection with siren and spotlight alarms, color night vision, and two-way audio communication. Powered by a solar panel and a rechargeable battery, it offers continuous operation with IP65 weatherproof rating for outdoor durability.

Figure 1.1: The elemage Solar Security Camera (Model ZS-GX1S) with its accompanying solar panel and a smartphone displaying the camera's live feed. This image illustrates the complete product setup, highlighting its wireless nature and solar charging capability.

2. Conținutul pachetului

• elemage Solar Security Camera (Model ZS-GX1S)
• Solar Panel with 3m charging cable
• Suport de fixare
• Șuruburi de montare și ancore de perete
• Cablu de încărcare USB
• Manual de utilizare (acest document)

Figure 2.1: A visual representation of all items included in the elemage Solar Security Camera package, including the camera unit, solar panel, mounting hardware, and cables.

3. Ghid de instalare

3.1 Încărcare inițială

Before initial use, fully charge the camera's built-in rechargeable battery using the provided USB cable. The charging LED indicator on the camera will turn red while charging and blue when fully charged. This ensures optimal performance and battery life.

3.2 Instalarea aplicației și crearea contului

1. Download and install the "CloudEdge" app from your smartphone's app store (iOS or Android).
2. Deschide aplicația și urmează instrucțiunile de pe ecran pentru a crea un cont nou sau pentru a te conecta dacă ai deja unul.

Figure 3.1: Visual guide for downloading and installing the "CloudEdge" application, which is essential for operating the camera.

3.3 Împerecherea camerei cu aplicația

1. Asigurați-vă că smartphone-ul este conectat la o Rețea Wi-Fi de 2.4 GHz. The camera does not support 5 GHz Wi-Fi during the initial pairing process.
2. Deschideți aplicația CloudEdge și atingeți pictograma „+” pentru a adăuga un dispozitiv nou.
3. Select the appropriate camera type (e.g., "Solar Camera" or "Outdoor PTZ Camera").
4. Follow the app's instructions to reset the camera (usually by pressing a reset button until an audible prompt is heard).
5. The app will display a QR code. Position your camera's lens approximately 15-20 cm (6-8 inches) in front of your phone's screen until you hear a confirmation sound from the camera.
6. Once connected, the camera's LED indicator will change, and you can name your camera and complete the setup.

Figure 3.2: Illustrates the camera pairing process, showing a smartphone displaying a QR code for the camera to scan, facilitating quick and easy connection.

3.4 Montarea camerei și a panoului solar

Choose a location with optimal sunlight exposure for the solar panel and a clear view for the camera. Use the provided mounting bracket, screws, and wall anchors to securely install the camera and solar panel. Ensure the solar panel is positioned to receive direct sunlight throughout the day for continuous charging. The 3-meter cable allows for flexible placement of the solar panel relative to the camera.

Figure 3.3: Depicts the outdoor installation of the elemage solar security camera, showcasing its pan-tilt capabilities and the separate solar panel for continuous power.

Figure 3.4: Shows the solar panel connected to the camera, illustrating how it provides continuous power to the device, ensuring 365-day non-stop protection.

4. Instrucțiuni de utilizare

4.1 În direct View și control PTZ

Deschideți aplicația CloudEdge și selectați camera pentru a accesa transmisiunea în direct. view. Use the on-screen controls to pan (355° horizontally) and tilt (120° vertically) the camera, allowing you to monitor a wide area. Digital zoom is also available by pinching the screen.

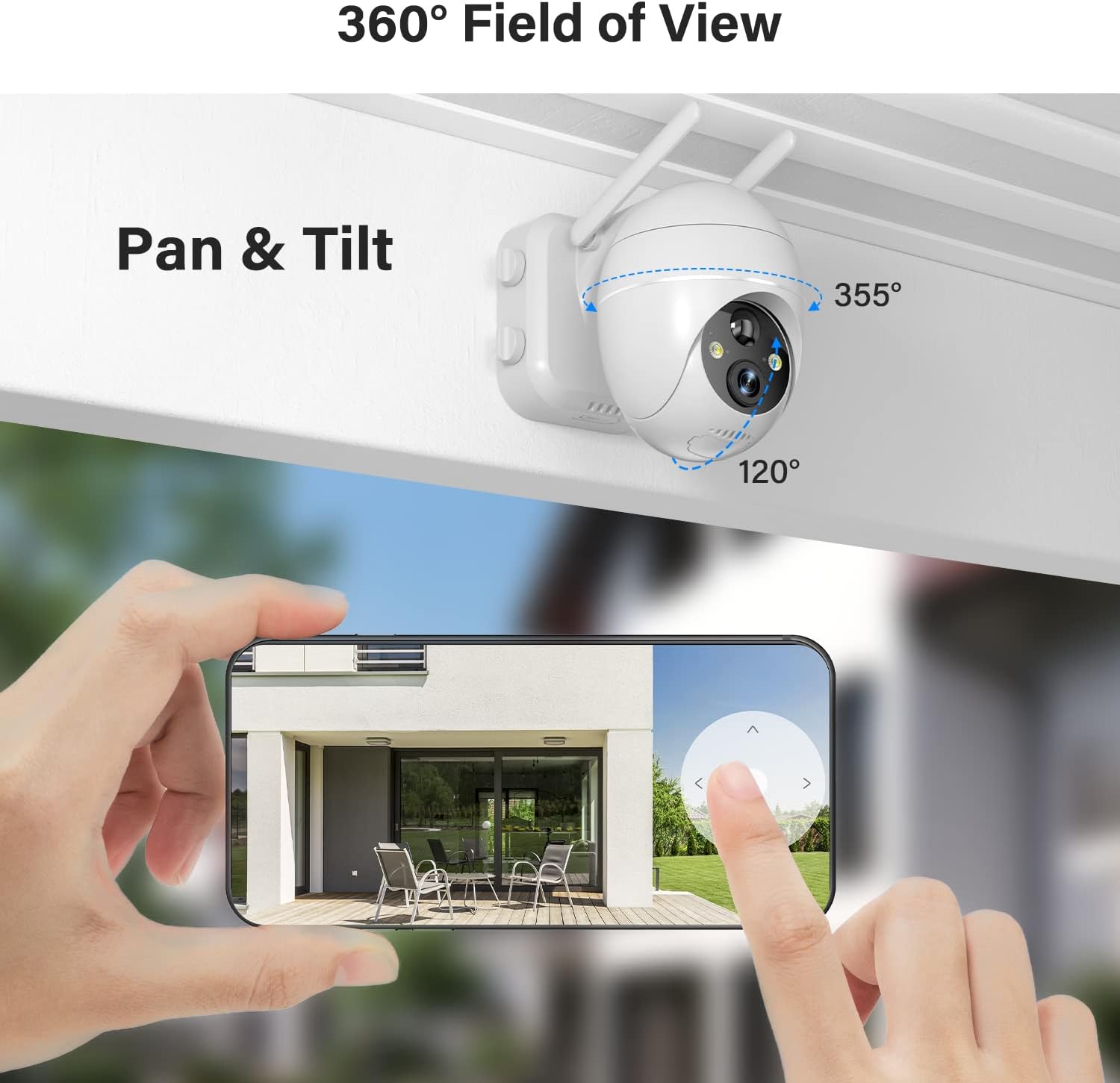

Figure 4.1: Demonstrates the 360-degree field of view and pan-tilt functionality of the camera, controlled remotely via the smartphone application.

4.2 Detectarea mișcării și alarme

The camera features advanced smart AI motion detection. When motion is detected, a notification will be pushed to your phone via the app. You can configure sound and light alarms to activate simultaneously or separately. The spotlight and siren can deter intruders.

Figure 4.2: Illustrates the motion-activated spotlight and siren features, which provide visual and audible warnings upon detection of activity.

Figure 4.3: Displays a smartphone screen with alert notifications and options for screenshot and playback, triggered by the smart PIR motion sensor.

4.3 Sunet bidirecțional

Utilize the two-way audio function to communicate directly with individuals near the camera. This feature is accessible through the live view interface in the CloudEdge app.

Figure 4.4: Highlights the two-way audio capability, showing a person interacting with a delivery driver through the camera's built-in microphone and speaker.

4.4 Vedere nocturnă

The camera provides 2K FHD color night vision, ensuring clear images and videos even in low-light conditions. The intelligent night vision automatically adjusts based on ambient light.

4.5 Opțiuni de stocare

Recordings can be saved to a local Micro SD card (not included, up to 128GB supported) or to the optional cloud storage service (subscription may be required). Ensure the Micro SD card is inserted correctly into the designated slot, typically located under a weatherproof cover on the camera body.

5. Întreținere

• curatenie: Ștergeți regulat lentila camerei și panoul solar cu o lavetă moale și drăguță.amp o lavetă pentru a asigura o vedere clară și o încărcare solară eficientă. Evitați produsele de curățare abrazive.
• Verificare baterie: Monitor the battery level via the CloudEdge app. While the solar panel provides continuous power, occasional manual charging via USB may be necessary during prolonged periods of low sunlight.
• Actualizări firmware: Check the CloudEdge app periodically for firmware updates to ensure your camera has the latest features and security enhancements.
• Protecție împotriva intemperiilor: Although IP65 weatherproof, ensure the micro USB port cover is securely closed to prevent water ingress, especially after manual charging.

6. Depanare

7. Specificații

• Model: ZS-GX1S
• Rezoluţie: 2K FHD (3 MP effective still/webcam resolution)
• Pan/Tilt: 355° orizontală, 120° verticală
• Sursa de alimentare: Solar Powered, Rechargeable Battery (1 Lithium Ion battery included)
• Conectivitate: 2.4 GHz Wi-Fi (IEEE 802.11b/g/n)
• Vedere de noapte: Color Night Vision, Low light technology: Night Color
• Detectarea mișcării: PIR Motion Detection with Sound and Light Alarms
• Audio: Two-Way Talk (Built-in Microphone and Speaker)
• Rezistență la intemperii: IP65
• Depozitare: Supports Micro SD Card (up to 128GB, not included), Cloud Storage (optional)
• Dimensiuni: 5.91 x 3.74 x 5.12 inci
• Greutate: 2.16 lire sterline (980 grame)
• Culoare: Alb
• Material: Metal

8. Garanție și asistență

elemage provides customer support for their products. For warranty information, technical assistance, or further inquiries, please refer to the contact details provided on the product packaging or visit the official elemage website-ul. Păstrați chitanța de achiziție pentru cererile de garanție.

Pentru resurse suplimentare și întrebări frecvente, puteți vizita elemage Brand Store on Amazon.
