Manual de utilizare pentru camera IP wireless ESCAM WNK710 3MP WiFi

1. Introducere

This user manual provides detailed instructions for the installation, operation, and maintenance of your ESCAM WNK710 3MP Wireless WiFi IP Camera. This smart home indoor camera is designed for monitoring various indoor environments such as nurseries, pet areas, garages, or yards, offering features like 3MP high-definition video, two-way audio, motion detection, and night vision capabilities. Please read this manual thoroughly before using the product to ensure proper and safe operation.

Figure 1: ESCAM WNK710 3MP Wireless WiFi IP Camera, front view.

2. Informații de siguranță

• Use only the power adapter provided with the camera. Using unauthorized power sources may damage the device and void the warranty.
• Do not expose the camera to extreme temperatures, humidity, or direct sunlight. This product is designed for indoor use.
• Evitați amplasarea camerei în apropierea câmpurilor magnetice puternice sau a surselor de interferență.
• Nu încercați să dezasamblați sau să modificați camera. Apelați la personal calificat pentru orice service.
• Keep the camera and its accessories out of reach of children and pets.
• Ensure the camera is securely mounted to prevent accidental falls.

3. Ce se află în cutie

Verificați dacă toate componentele sunt prezente în pachet înainte de a continua instalarea.

• ESCAM WNK710 WiFi IP Camera (x1)
• 12V 2A Power Adapter (x1)
• Screw Pack (x1)
• Ghid de pornire rapidă (x1)

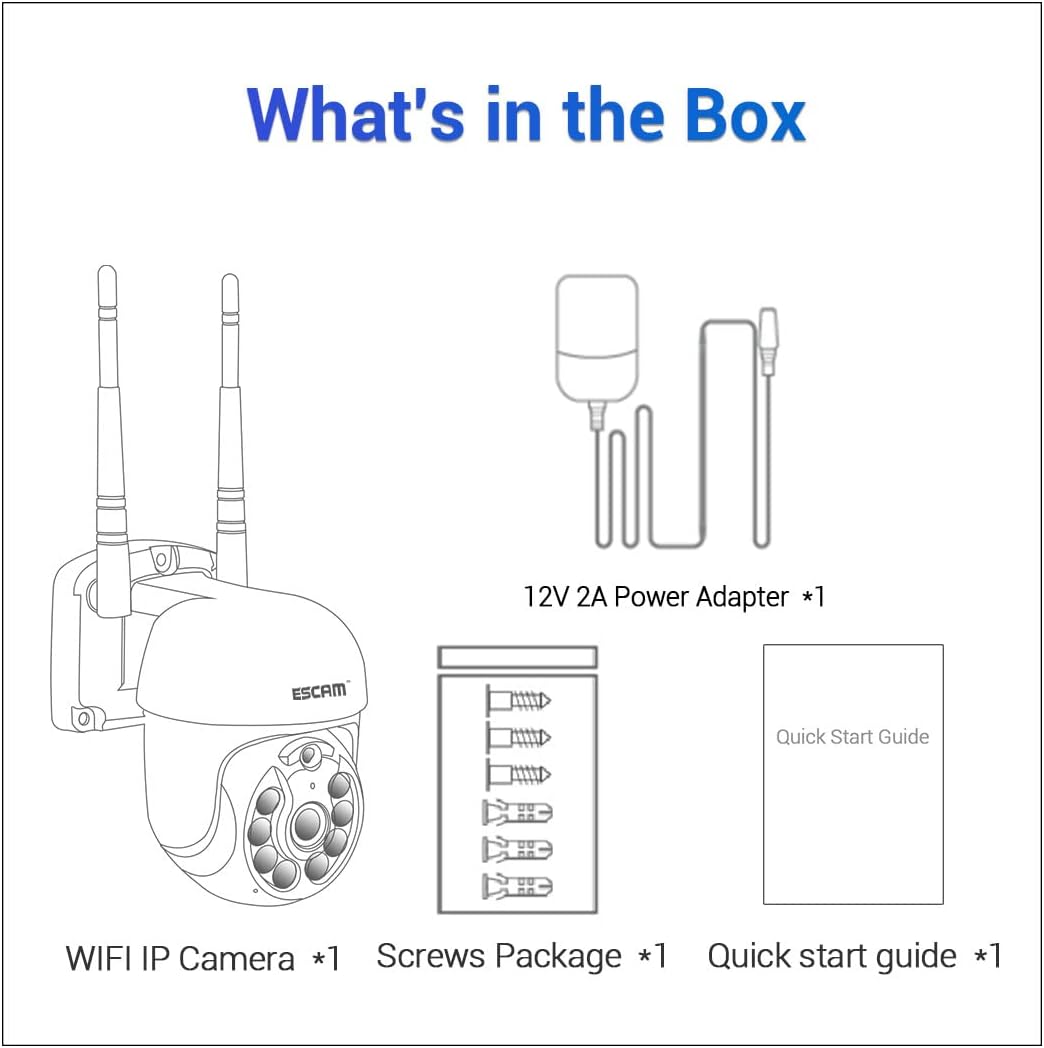

Figure 2: Package contents including the camera, power adapter, screws, and quick start guide.

4. Produs terminatview

Familiarize yourself with the various parts and interfaces of the ESCAM WNK710 camera.

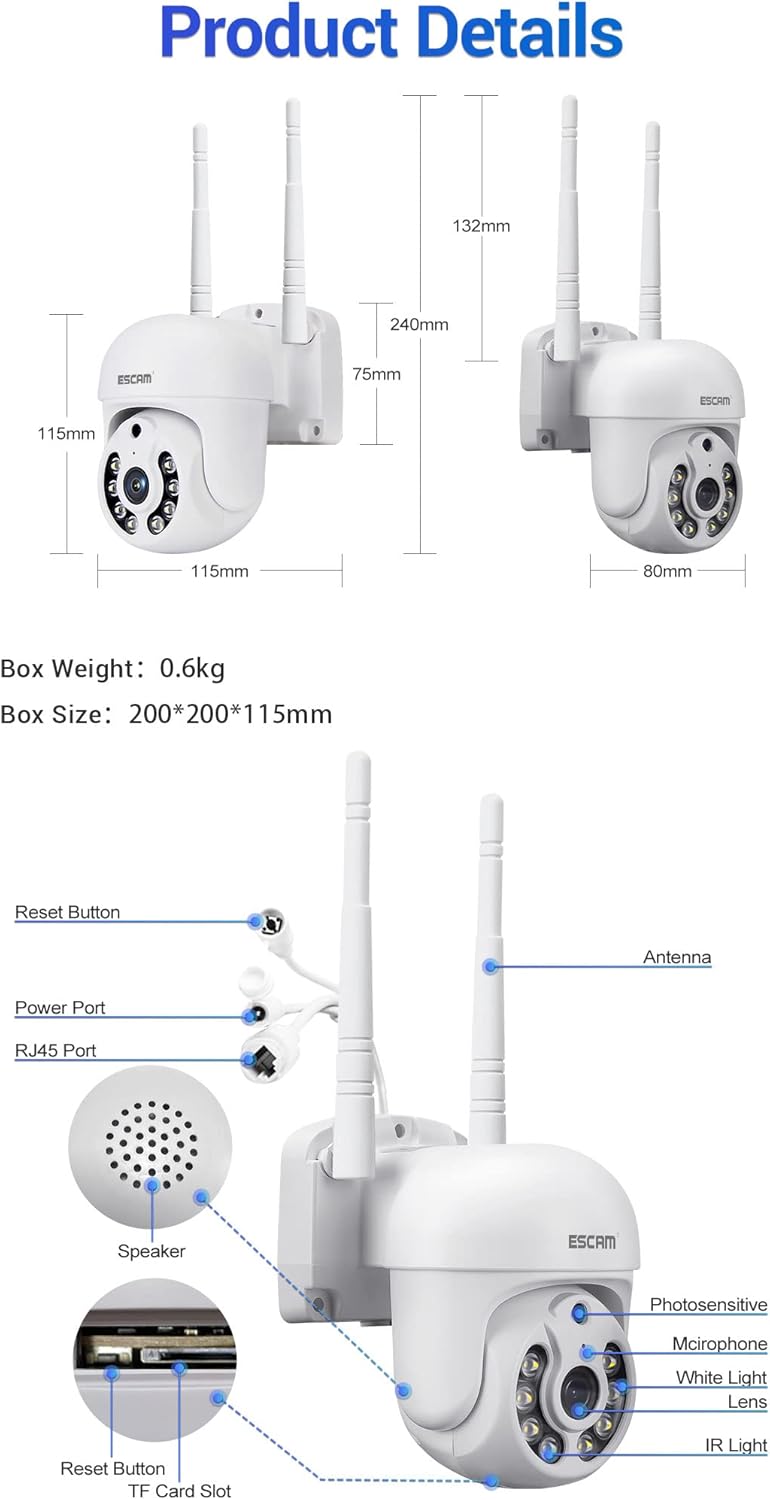

Figura 3: Detaliat view of the camera showing dimensions, reset button, power port, RJ45 port, speaker, photosensitive sensor, microphone, white light LEDs, lens, IR light LEDs, and TF card slot.

• Obiectiv: Captează video footage.
• IR Light LEDs: Oferă iluminare în infraroșu pentru vedere nocturnă.
• LED-uri cu lumină albă: Provide white light illumination for full-color night vision and deterrence.
• Senzor fotosensibil: Detects ambient light levels to switch between day and night modes.
• Microfon: Captures audio for two-way communication and recording.
• Vorbitor: Outputs audio for two-way communication.
• Antenă: For wireless (WiFi) connectivity.
• Port de alimentare: Connects to the 12V 2A power adapter.
• Port RJ45: Pentru conexiune Ethernet prin cablu.
• Buton de resetare: Folosit pentru a reseta camera la setările din fabrică.
• Slot pentru carduri TF: Supports up to 128GB Micro SD card for local storage.

5. Configurare

5.1 Instalare fizică

The camera can be wall-mounted or placed on a flat surface. For wall mounting, use the provided screw pack.

1. Alegeți o locație potrivită pentru cameră, asigurându-vă că are un spațiu clar view of the area you wish to monitor and is within range of your WiFi network (if using wireless).
2. Marcați punctele de găurire pe perete folosind baza camerei ca șablon.
3. Drill holes and insert wall anchors (if necessary).
4. Secure the camera to the wall using the provided screws.

5.2 Conexiune la alimentare

Connect the provided 12V 2A power adapter to the camera's power port and then plug it into a power outlet. The camera will power on and initiate its self-test sequence.

5.3 Conexiune de rețea

The ESCAM WNK710 supports both WiFi and wired Ethernet connections.

Figure 4: Connection methods for the camera, including direct AP connection to a phone and WiFi connection via a router.

5.3.1 Conexiune WiFi

1. Descărcați EseeCloud app from your mobile device's app store (iOS App Store or Google Play Store).
2. Înregistrați un cont și conectați-vă.
3. Atingeți pictograma „+” din aplicație pentru a adăuga un dispozitiv nou.
4. Select "WiFi Camera" and follow the on-screen instructions to connect the camera to your home WiFi network. This typically involves scanning a QR code on the camera or entering your WiFi credentials.
5. Once connected, the camera's status indicator will change, and you will see the camera added to your device list in the app.

5.3.2 Wired Ethernet Connection

For a stable connection, you can use the RJ45 Ethernet port.

1. Connect one end of an Ethernet cable to the camera's RJ45 port.
2. Conectați celălalt capăt al cablului Ethernet la un port LAN disponibil de pe routerul sau comutatorul de rețea.
3. The camera will automatically obtain an IP address via DHCP.
4. Deschideți EseeCloud app, tap "+" to add a device, and select "Wired Camera" or "Caută devices on LAN" to discover and add the camera.

6. Instrucțiuni de utilizare

6.1 În direct View

After successfully adding the camera to the EseeCloud app, tap on the camera's name in the device list to access the live video feed. You can view mâncarea în timp realtagde pe camera ta oricând, oriunde.

Controlul Pan/Tilt 6.2

The ESCAM WNK710 features pan and tilt functionality, allowing you to remotely adjust the camera's viewunghiul de ing.

• În live view interface of the EseeCloud app, use the directional controls (usually an on-screen joystick or arrows) to pan the camera horizontally (350°) and tilt it vertically (90°).

6.3 Sunet bidirecțional

The camera is equipped with a built-in microphone and speaker for two-way audio communication.

• To speak through the camera, tap the microphone icon in the live view interface of the app. Hold the button to speak, and release to listen.
• Ensure your phone's microphone is enabled for the EseeCloud app.

6.4 Detectarea mișcării și alertele

Camera poate detecta mișcarea și trimite alerte către dispozitivul tău mobil.

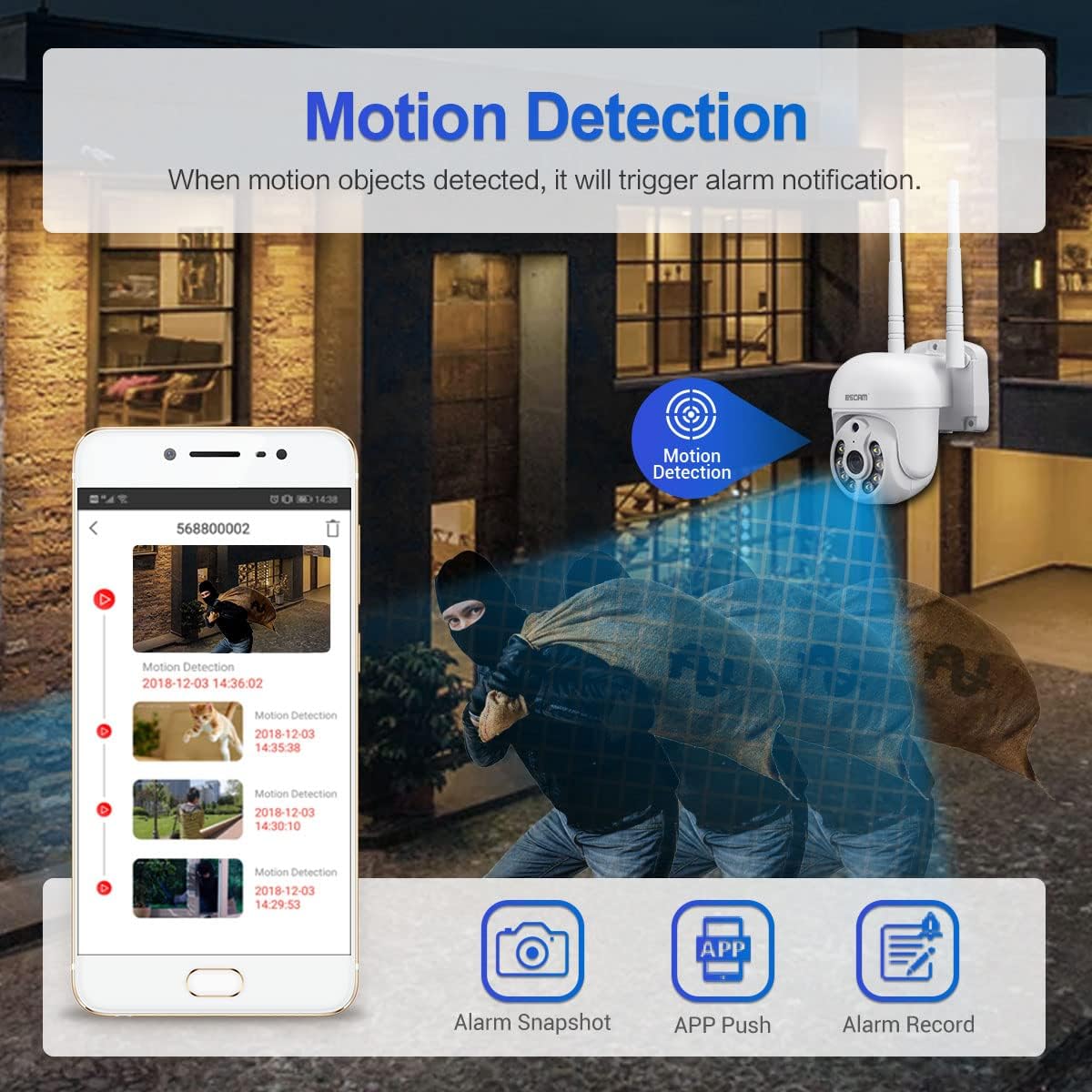

Figure 5: Illustration of motion detection triggering an alarm notification on a mobile phone, with options for alarm snapshot, app push, and alarm record.

• Navigate to the camera settings in the EseeCloud app.
• Enable "Motion Detection" and adjust sensitivity levels as needed.
• You can also set up specific detection zones and schedules.
• When motion is detected, the camera will trigger an alarm notification, send a push alert to your phone, and can record video clips.
• The camera features intelligent humanoid detection to reduce false positives.

6.5 Moduri de vedere nocturnă

The ESCAM WNK710 offers three intelligent night vision modes for clear monitoring in low-light conditions.

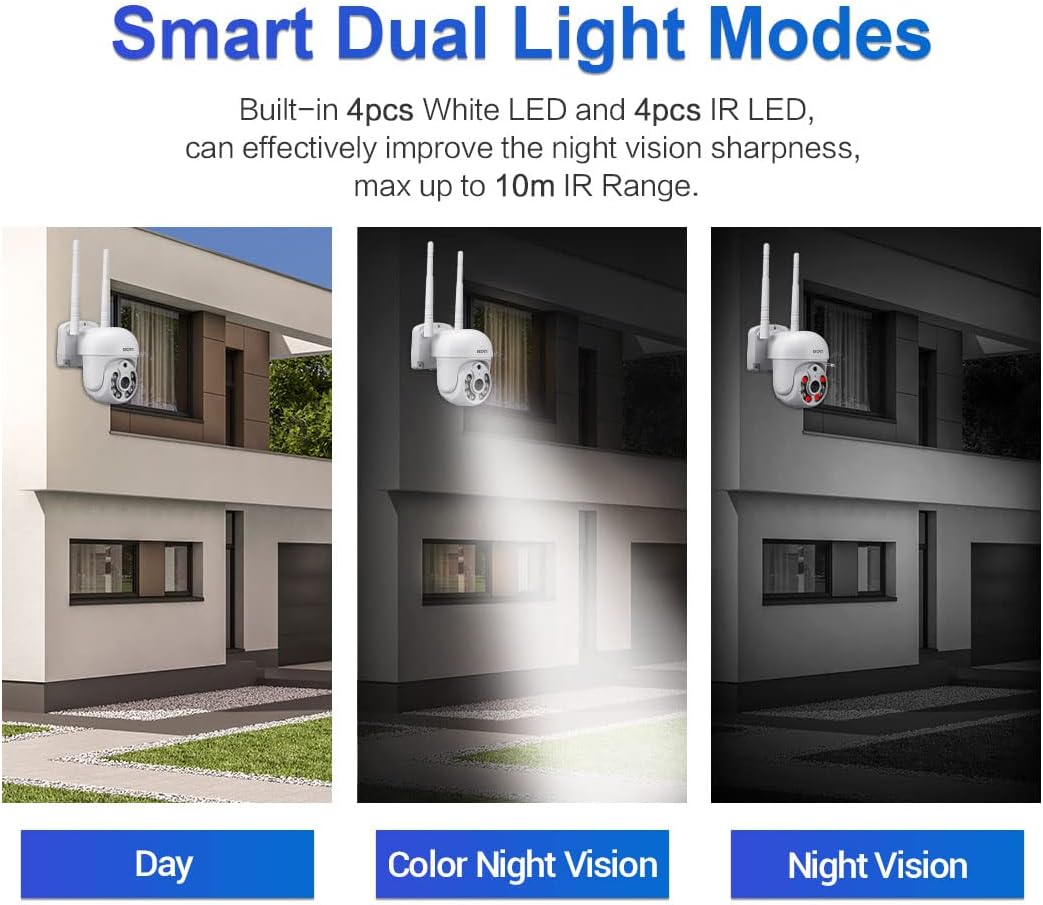

Figure 6: Comparison of Day mode, Color Night Vision mode (using white LEDs), and Night Vision mode (using IR LEDs).

• Infrared Mode (Black/White Night Vision): Uses IR LEDs for clear black and white images in complete darkness, up to 10m range.
• Full-Color Mode (Color Night Vision): Activates the built-in white light LEDs to provide full-color video even in low light. This mode can also act as a deterrent.
• Mod inteligent: The camera automatically switches between IR and white light based on detected motion or specific settings, providing full-color video when activity is detected.
• You can select your preferred night vision mode in the EseeCloud app settings.

6.6 Înregistrare și redare

The camera supports continuous recording, motion-triggered recording, and scheduled recording to a Micro SD card (up to 128GB, not included) or cloud storage (subscription may be required).

• Instalare card micro SD: Insert a Micro SD card into the TF card slot on the camera. Ensure the camera is powered off before inserting or removing the card.
• Redare: In the EseeCloud app, navigate to the playback section to view inregistrat footage. You can filter by date and time.

7. Întreținere

• curatenie: Use a soft, dry cloth to clean the camera lens and body. Do not use liquid cleaners or abrasive materials.
• Actualizări firmware: Regularly check for firmware updates through the EseeCloud app. Updates can improve performance, add new features, and enhance security. Follow the app's instructions carefully during updates.
• Managementul cardului SD: If using an SD card, periodically check its status in the app. Format the card occasionally to maintain optimal recording performance.

8. Depanare

9. Specificații

10. Garanție și asistență

For technical support, troubleshooting assistance, or warranty inquiries, please contact visiPower customer service. Refer to the contact information provided in the Quick Start Guide or on the official visiPower website-ul.

Please note that protection plans are available for purchase separately to extend coverage beyond the standard manufacturer's warranty. These plans are offered by third-party providers and details can be found where the product was purchased.
