Surfola SD510 Dash Cam User Manual

1. Introducere

The Surfola SD510 Dash Cam is a dual-camera system designed to provide comprehensive video recording for your vehicle. It captures Full HD 1080P footage from the front and 720P from the rear, offering a wide 170° angle view. Key features include Wi-Fi connectivity for app control, seamless loop recording, advanced emergency recording via a built-in G-sensor, and 24-hour parking monitoring. This manual provides detailed instructions to help you set up, operate, and maintain your dash cam for optimal performance and safety.

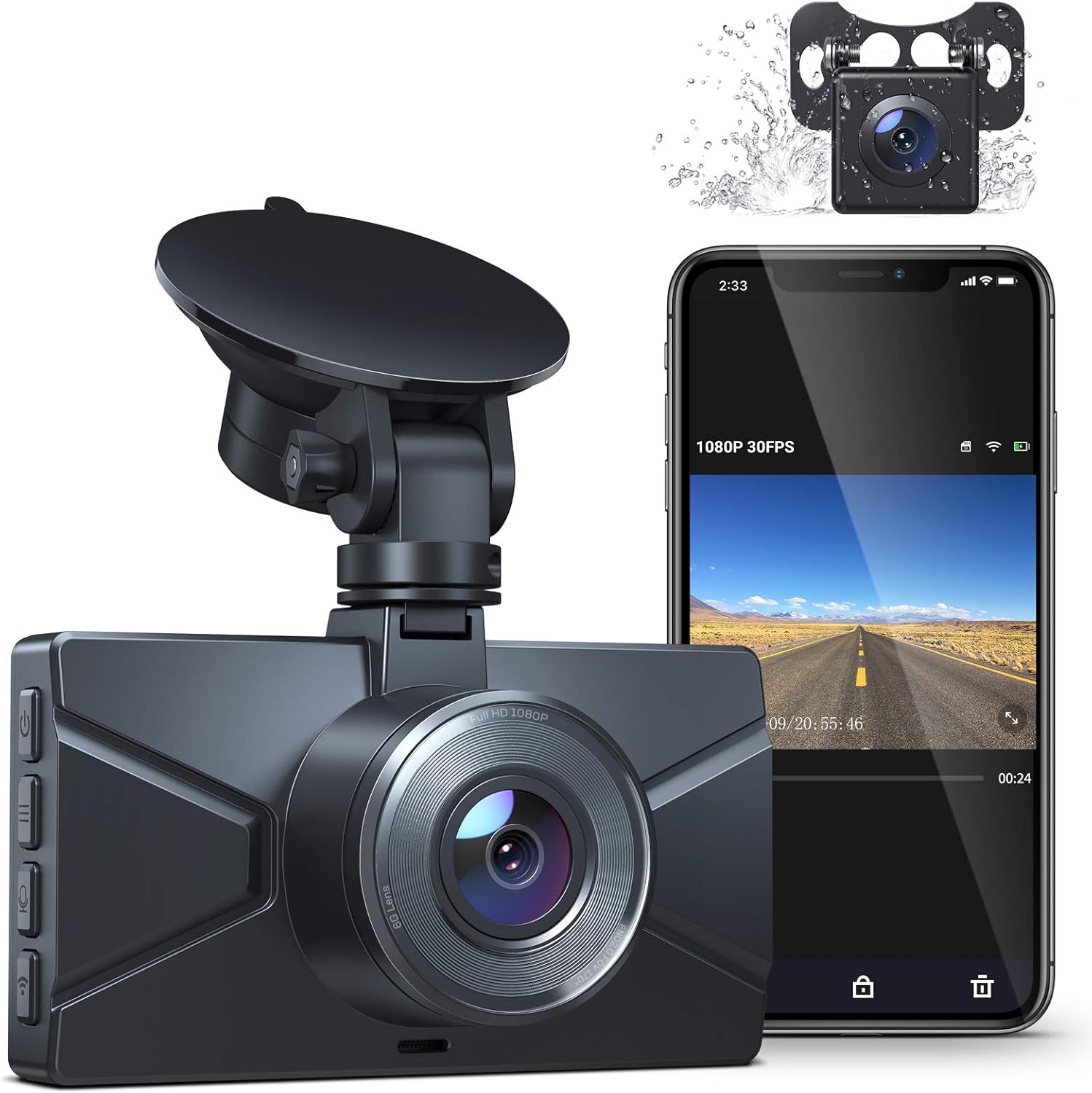

Image: The Surfola SD510 Dash Cam, featuring its main unit with a suction mount, a smartphone displaying the live feed from the dash cam app, and a small inset image of the rear camera, highlighting its dual recording and app control capabilities.

2. Ce se află în cutie

• Surfola SD510 Dash Cam Unit
• Camera spate
• Încărcător auto
• Crowbar (for cable installation)
• Manual de utilizare
• Suport de aspirație

3. Produs terminatview

The Surfola SD510 is equipped with advanced features to ensure reliable recording and ease of use:

• Full HD 1080P Front + 720P Rear Recording: Captures clear video evidence day and night.
• Wi-Fi și control prin aplicație: Connects to your smartphone via the "RoadCam" App for easy viewdescărcarea și partajarea de mâncaretage. Settings can also be adjusted directly from the app.
• Ecran IPS de 3 inci: Oferă un afișaj clar pentru live view și redare.
• Înregistrare în buclă fără sudură: Asigură înregistrarea continuă prin suprascrierea celor mai vechi files când cardul de memorie este plin.
• Advanced Emergency Recording (G-sensor): Blochează și salvează automat videoclipuriletage upon detecting a collision or sudden impact, protecting critical evidence.
• Monitorizare parcare 24 de ore: Activates and records a 1-minute video if an impact is detected while the vehicle is parked. Requires a hardwire kit (not included) for continuous power.
• Instalare ușoară: Features a flexible suction mount and includes a crowbar tool to assist with cable management.

Image: An infographic illustrating the key functions of the Surfola SD510 Dash Cam, such as Wi-Fi, app control, IPS screen, dual cameras, loop recording, G-sensor, and parking guard, alongside a visual of the dash cam being installed in a car.

Image: A visual summary of the Surfola SD510's capabilities, including its dual 1080P and 720P recording, Wi-Fi and app control, super night vision, WDR (Wide Dynamic Range), parking mode, loop recording, emergency lock, and support for up to 128GB memory cards.

4. Configurare

4.1 Instalare fizică

1. Curățați zona parbrizului unde intenționați să montați camera de bord.
2. Attach the suction mount to the dash cam and then firmly press it onto the cleaned windshield. Ensure it does not obstruct your view.
3. Connect the power cable from the car charger to the dash cam's USB Type-C port.
4. Route the power cable neatly along the edge of the windshield and dashboard, using the included crowbar tool to tuck it into crevices for a clean installation. Plug the car charger into your vehicle's cigarette lighter socket.
5. Connect the rear camera cable to the main dash cam unit and route it to the rear of your vehicle, ensuring it is securely mounted and does not interfere with vehicle operation.
6. Insert a compatible Micro SD card (up to 128GB, not included) into the dash cam's card slot.

4.2 App Connection (RoadCam App)

The Surfola SD510 features built-in Wi-Fi for seamless connection to your smartphone via the "RoadCam" app. This allows for easy video access, download, and sharing.

1. Download the "RoadCam" app from your smartphone's app store (iOS or Android).
2. Turn on Wi-Fi on your dash cam. The screen will display the Wi-Fi SSID (e.g., Surfola_SD510_XXXX) and password.
3. On your smartphone, go to Wi-Fi settings and connect to the dash cam's Wi-Fi network using the provided password.
4. Open the "RoadCam" app. Once connected, you can view trăi footage, access recorded videos, and adjust settings directly from your phone.

Image: A step-by-step guide demonstrating how to establish a wireless connection between the Surfola SD510 Dash Cam and a smartphone using the RoadCam app, showing the Wi-Fi activation on the dash cam, connecting via phone settings, and accessing the app interface.

5. Instrucțiuni de utilizare

5.1 Pornire/Oprire

• The dash cam will automatically power on and begin recording when connected to your car's power supply and the engine starts.
• Se va opri automat când motorul este oprit.
• Pentru a porni/opri manual alimentarea, apăsați și mențineți apăsat butonul de pornire/oprire.

5.2 Moduri de înregistrare

• Înregistrare în buclă: The dash cam continuously records video in short segments (e.g., 1, 3, or 5 minutes). When the memory card is full, the oldest unlocked fileÎnregistrările sunt suprascrise automat de noile înregistrări.
• Înregistrare de urgență (senzor G): In the event of a sudden impact or collision, the built-in G-sensor will automatically detect the event and lock the current video segment, preventing it from being overwritten by loop recording.
• Monitorizarea parcării: When enabled and powered (preferably via a hardwire kit for 24-hour monitoring), the dash cam will automatically turn on and record a short video if it detects a vibration or impact while the vehicle is parked.

Image: A visual representation of the seamless loop recording feature, showing the dash cam continuously capturing and cycling through video footage, ensuring no moments are missed.

Image: An illustration highlighting the dash cam's ability to monitor the car for 24 hours, featuring icons for 24H Parking Guard and Motion Detection with a 170° Ultra-Wide Angle, all within a protective digital dome around a car.

5.3 Redare și File management

• Redare pe dispozitiv: Use the dash cam's 3-inch IPS screen and navigation buttons to browse and play back recorded videos.
• App Playback: Connect to the "RoadCam" app via Wi-Fi to view trăi footage, răsfoiți înregistrările files, download them to your phone, or share them.
• Redare pe computer: Remove the Micro SD card from the dash cam and insert it into a card reader connected to your computer to access and manage files.

6. Întreținere

• Curățați lentila: Regularly wipe the front and rear camera lenses with a soft, lint-free cloth to ensure clear video quality.
• Check SD Card: Periodically format the Micro SD card (at least once a month) within the dash cam's settings to prevent data corruption and ensure optimal recording performance. Back up any important files înainte de formatare.
• Actualizări firmware: Check the Surfola official website or app for any available firmware updates to improve performance and add new features.
• Temperatură: Evitați expunerea camerei de bord la temperaturi extreme pentru perioade lungi de timp, deoarece acest lucru poate afecta durata de viață a bateriei și longevitatea componentelor.

7. Depanare

8. Specificații

9. Garanție și asistență

Surfola is committed to providing high-quality products and excellent customer service. If you encounter any problems during the use of your SD510 Dash Cam, please do not hesitate to contact our support team. We are dedicated to providing you with the best possible solution without delay.

For more detailed operation instructions and video tutorials, please follow the official Surfola YouTube channel, where operation videos of related products are uploaded periodically.

You can also visit the official Surfola store on Amazon for additional information and support: Surfola Amazon Store
