Livpure LIV-PLATINO-PLUS-COPPER2000 Water Purifier User Manual

1. Produs terminatview

The Livpure LIV-PLATINO-PLUS-COPPER2000 is an advanced water purification system designed to provide clean and safe drinking water. It incorporates multiple stages of purification, including Reverse Osmosis (RO), Ultraviolet (UV), Ultrafiltration (UF), and a Mineraliser, along with a copper enrichment feature. This system is engineered for wall-mount installation and features an interactive feather touch interface for ease of use.

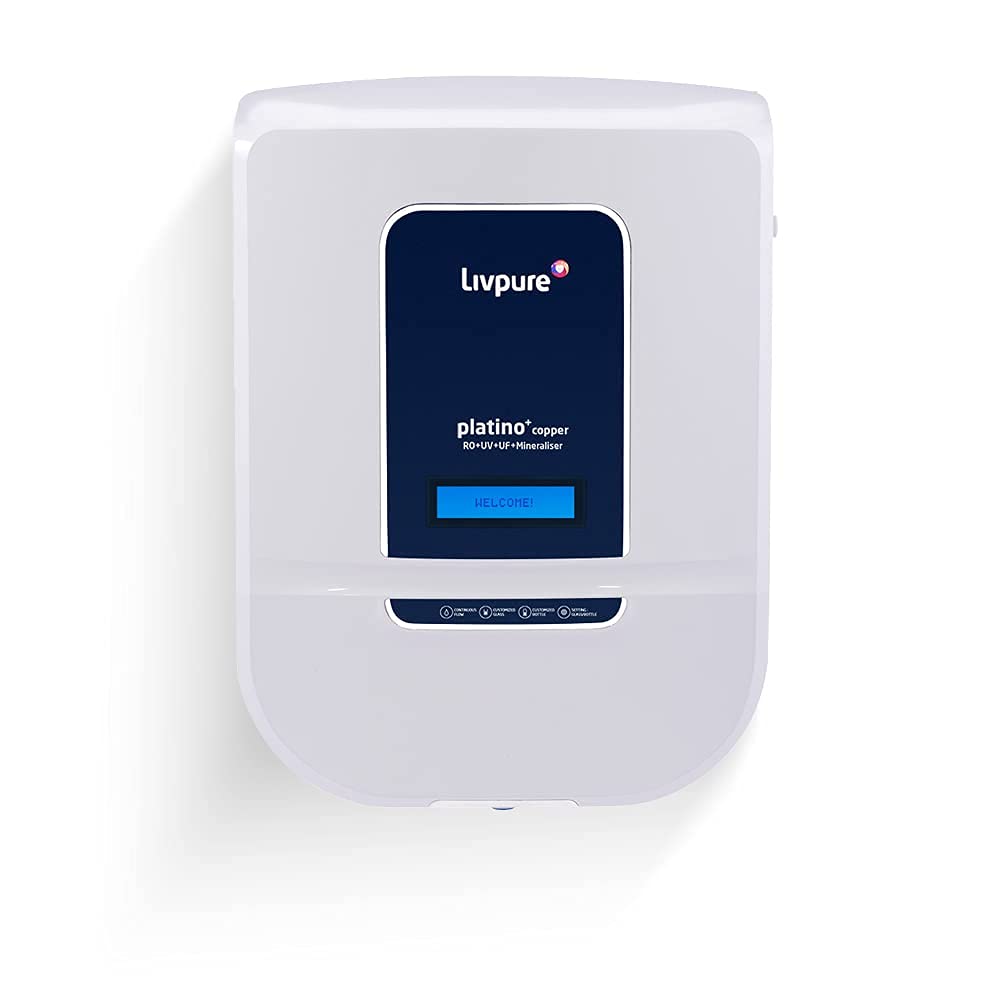

Imaginea 1.1: Față view of the Livpure LIV-PLATINO-PLUS-COPPER2000 Water Purifier. The unit is white with a dark blue display panel showing 'Livpure platino copper RO+UV+UF+Mineraliser' and 'WELCOME!'.

2. Instrucțiuni importante de siguranță

• Citiți cu atenție toate instrucțiunile înainte de a utiliza aparatul.
• Ensure the power supply matches the specifications indicated on the product label.
• Nu scufundați aparatul, cablul sau ștecherul în apă sau alte lichide.
• Nu expuneți aparatul la lumina directă a soarelui, la surse de căldură și la materiale inflamabile.
• Only use genuine Livpure replacement filters and parts.
• Do not attempt to repair or modify the appliance yourself. Contact qualified service personnel for assistance.
• Asigurați o împământare adecvată pentru a preveni pericolele electrice.
• Nu lăsați copiii să se apropie de aparat în timpul funcționării și întreținerii.

3. Componente incluse

The Livpure LIV-PLATINO-PLUS-COPPER2000 Water Purifier package typically includes the following items:

• Unitate de purificare a apei
• Installation Kit (includes necessary fittings, pipes, and mounting hardware)

Please verify all components are present upon unboxing. If any items are missing or damaged, contact customer support immediately.

4. Ghid de instalare

The Livpure LIV-PLATINO-PLUS-COPPER2000 is designed for wall-mount installation. Professional installation is highly recommended to ensure proper functioning and to validate the warranty.

4.1 Selectarea site-ului

• Choose a clean, dry, and well-ventilated location near a water source and an electrical outlet.
• Ensure the wall is strong enough to support the weight of the purifier when full of water (approximately 11 kg + water weight).
• Avoid locations exposed to direct sunlight or extreme temperatures.
• Allow sufficient space around the unit for maintenance and filter replacement.

4.2 Pași de instalare (recomandat de profesioniști)

1. Montarea unității: Securely mount the purifier on the selected wall using the provided mounting hardware from the installation kit. Ensure it is level.
2. Conexiune la intrarea apei: Connect the raw water supply to the purifier's inlet port. Ensure all connections are tight to prevent leaks.
3. Conectarea conductei de scurgere: Connect the waste water drain line to a suitable drainage point.
4. Conexiune de alimentare: Conectați cablul de alimentare la o priză cu împământare.
5. Spălare inițială: Before first use, allow the purifier to run for a few minutes to flush out any manufacturing residues. Refer to the operation section for details on dispensing water.

Image 4.1: The Livpure water purifier installed on a kitchen wall, demonstrating a typical setup location.

5. Instrucțiuni de utilizare

The Livpure LIV-PLATINO-PLUS-COPPER2000 features an interactive feather touch interface for easy operation.

5.1 Pornire

Once installed and connected to power, the unit will display a 'WELCOME!' message on its LED screen. The purification process will begin automatically to fill the internal storage tank.

Image 5.1: Close-up of the interactive feather touch interface with options for 'CONTINUOUS FLOW', 'CUSTOMIZED GLASS', and 'CUSTOMIZED BOTTLE'.

5.2 Distribuirea apei

The purifier offers custom dispensing options:

• Flux continuu: Touch the 'CONTINUOUS FLOW' option to dispense water continuously. Touch again to stop.
• Customized Glass: Touch 'CUSTOMIZED GLASS' to dispense a pre-set amount of water suitable for a glass.
• Customized Bottle: Touch 'CUSTOMIZED BOTTLE' to dispense a pre-set amount of water suitable for a bottle.

Place your container under the dispenser nozzle before selecting a dispensing option.

5.3 Cronometru cu numărătoare inversă

The unit is equipped with a countdown timer feature. Refer to the display for information related to filter life or service reminders.

6. Întreținere

Regular maintenance ensures the longevity and optimal performance of your water purifier. Always disconnect the power supply before performing any maintenance.

6.1 Curăţarea exteriorului

Ștergeți exteriorul purificatorului cu o lavetă moale șiamp Nu folosiți substanțe chimice dure sau produse de curățare abrazive, deoarece acestea pot deteriora suprafața.

6.2 Înlocuirea filtrului

The Livpure LIV-PLATINO-PLUS-COPPER2000 utilizes a multi-stage purification system. Filters have a limited lifespan and require periodic replacement. The unit's countdown timer or service indicator will alert you when filter replacement is due.

• Super Sediment Filter: Removes larger suspended particles.
• Pre-Activated Carbon Filter: Absorbs chlorine, organic impurities, and improves taste.
• UF Cartridge + Carbon Block Filter: Further filtration for fine particles and improved water quality.
• RO Membrane-HR: Removes dissolved solids, heavy metals, and microorganisms.
• Mineraliser: Adds essential minerals back into the purified water.
• Copper Cartridge: Enriches water with copper.

Contact authorized Livpure service personnel for filter replacement to ensure proper installation and use of genuine parts.

Image 6.1: Illustration showing the copper cartridge component, which enriches the purified water.

6.3 Auto Flush & Leakage Sensor

The purifier is equipped with an auto-flush function to clean the RO membrane and a leakage sensor for safety. If a leak is detected, the unit may automatically shut off the water supply. Contact service if a leak persists.

7. Depanare

Această secțiune abordează problemele frecvente pe care le puteți întâmpina. Pentru problemele care nu sunt enumerate aici sau dacă soluțiile nu rezolvă problema, contactați serviciul de asistență pentru clienți.

8. Specificațiile produsului

Below are the technical specifications for the Livpure LIV-PLATINO-PLUS-COPPER2000 Water Purifier:

Image 8.1: Visual summary of key features including Water Saving Purification (HR70), Interactive LED Display, 8.5 Litres Storage Capacity, Custom Dispensing Options, Auto Flush & Leakage Sensor, Mineraliser, 7 Stage Advanced Purification, In-tank UV Sterilization, and 15 litres per hour filtration capacity.

9. Garanție și asistență

9.1 Informații despre garanție

According to product information, this item is listed with "No Warranty". It is advisable to confirm the current warranty policy with Livpure or your retailer at the time of purchase, as policies can change.

9.2 Asistență pentru clienți

For any service requests, technical assistance, or inquiries regarding your Livpure LIV-PLATINO-PLUS-COPPER2000 Water Purifier, please contact Livpure customer support. Refer to the contact details provided in your purchase documentation or visit the official Livpure website pentru cele mai recente informații de asistență.
