Revotech Mini Fisheye POE IP Camera User Manual

1. Introducere

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Revotech Mini Fisheye POE IP Camera (Model I706-3-P). Please read this manual carefully before using the product to ensure proper setup and functionality. This camera is designed for indoor security surveillance, offering high-definition video with a wide-angle view.

Imaginea 1.1: Față view of the Revotech Mini Fisheye POE IP Camera.

2. Conținutul pachetului

Verificați dacă toate articolele enumerate mai jos sunt incluse în pachetul dumneavoastră:

• 1 x Revotech Mini Fisheye POE IP Camera
• 1 x Manual de utilizare (engleză)
• 1 x Download Card
• 1 x set de șuruburi

Note: A power unit is not included with this product. For POE functionality, a standard 802.3af 48V POE Switch is required. For non-POE use, a 12V 2A power supply is needed.

Image 2.1: Illustration of the items included in the product package.

3. Caracteristicile produsului

The Revotech Mini Fisheye POE IP Camera offers advanced features for effective surveillance:

• Rezoluție înaltă: 3.0 Megapixel (2304 x 1296P) 1/3 inch CMOS Sensor for clear images at 20 frames per second.
• Lentile cu unghi larg: 1.7mm fisheye lens provides a 170° viewing angle, covering a broad area.
• Alimentare prin Ethernet (POE): Supports 48V 802.3af POE, simplifying cable management.
• Opțiune de alimentare dublă: Includes an auxiliary connector for use with a conventional 12V 2A power supply as a non-POE IP camera.
• Compresie eficientă: Supports H.265/H.264 encoding, reducing bandwidth and storage requirements while maintaining image quality.
• Construcție durabilă: Prezintă un c metalicasing pentru durabilitate sporită.
• P2P Cloud Function: Enables remote viewing and playback via the "NVSEE Int 'I" app.
• Alarmă inteligentă: Motion detection with email alarm functionality.

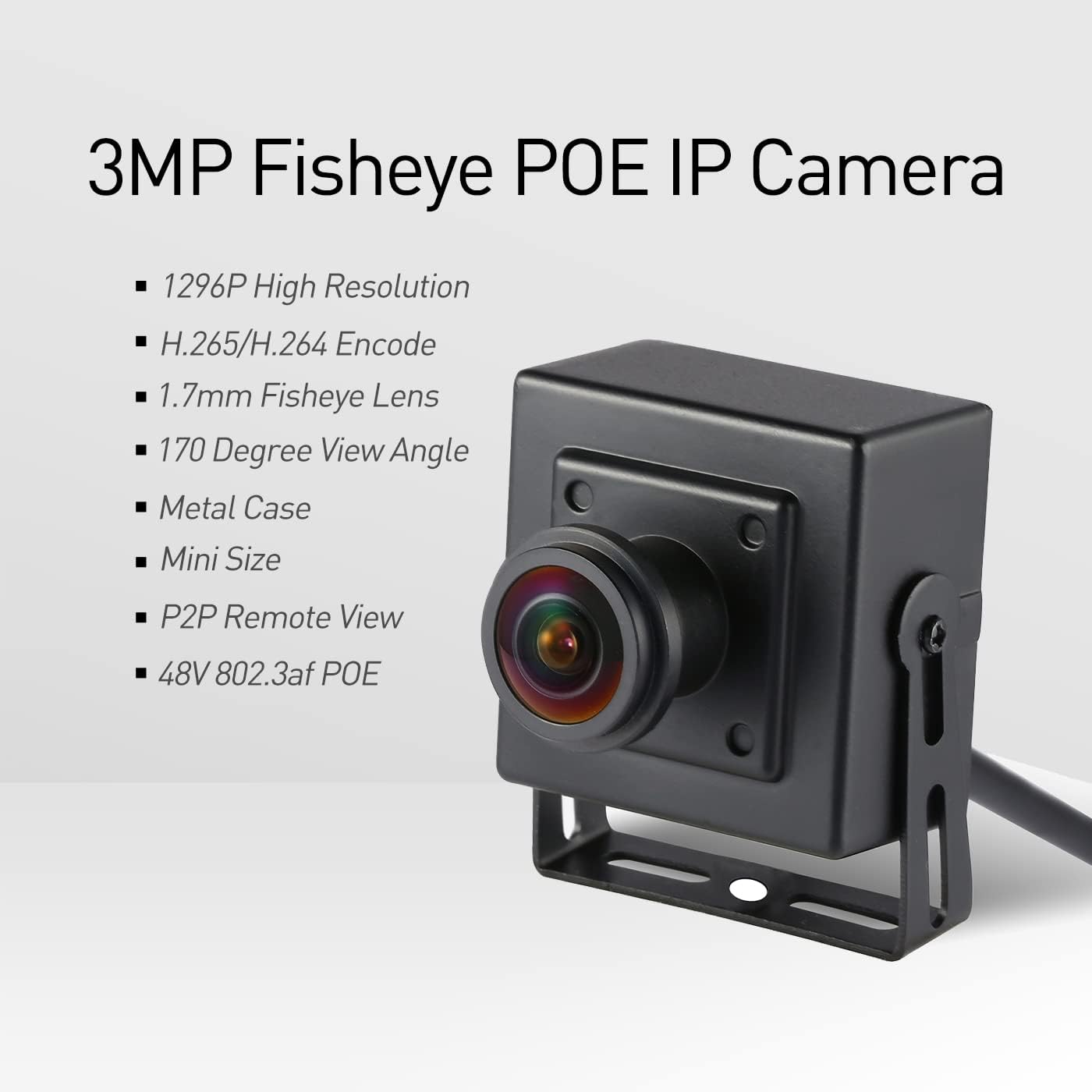

Imaginea 3.1: Pesteview of the camera's main features including resolution, lens type, and connectivity.

Image 3.2: Demonstrates the wide 170-degree field of view provided by the 1.7mm fisheye lens.

Image 3.3: Highlights the compact size of the camera, suitable for discreet installation.

4. Configurare și instalare

4.1 Instalare fizică

The camera is designed for indoor use and can be mounted on a ceiling or wall. Use the included screws to secure the camera in your desired location. The mounting bracket is adjustable to achieve the optimal viewunghiul de ing.

Imaginea 4.1: Detaliată view of camera dimensions, mounting bracket, camera cable, and connection ports (RJ45 and Auxiliary Power).

4.2 Alimentarea camerei

The camera supports two power methods:

• Alimentare prin Ethernet (POE): Connect the camera's RJ45 port to a standard 802.3af 48V POE switch using an Ethernet cable. This provides both power and data connectivity.
• Putere auxiliara: If POE is not available, connect a 12V 2A DC power adapter (not included) to the auxiliary power port. Then, connect the RJ45 port to your network router or switch for data.

Important: Ensure your POE switch provides 48V 802.3af standard power. Using an incorrect power source may damage the camera.

4.3 Configurarea rețelei

Upon initial connection to your network, the camera will typically obtain an IP address dynamically via DHCP. For advanced configurations or if using an NVR, you may need to access the camera's web interface or use dedicated software.

• Integrare NVR: For NVR systems, the camera supports ONVIF. The default ONVIF port is 6688. If your NVR requires a different port, you may need to adjust settings within your NVR software.
• Flux RTSP: The camera provides an RTSP stream for integration with various video management systems (VMS). The default RTSP port is 8554.

4.4 App and Software Installation

A gestiona si view your camera remotely, install the recommended software:

• Aplicație mobilă: Download the "NVSEE Int 'I" app from your smartphone's app store (available for iOS and Android).
• Software pentru PC: For Windows computers, use the CMS software. A download card is included in the package, or you may need to contact customer support for the latest download link. Note: This software is not compatible with MAC OS or Linux.

Image 4.2: Screenshot of the "NVSEE Int 'I" mobile application interface for remote camera viewing.

Image 4.3: Screenshot of the CMS software interface for managing and viewing multiple cameras on a Windows PC.

5. Instrucțiuni de utilizare

5.1 Telecomandă Viewing și Redare

Once the camera is connected to the internet and configured with the "NVSEE Int 'I" app or CMS software, you can access live footage and recorded videos remotely. The P2P Cloud Function simplifies this process, allowing access from anywhere with an internet connection.

• Open the "NVSEE Int 'I" app or CMS software.
• Select your camera from the device list.
• View live feed or access recorded footage pentru redare.

5.2 Detectarea mișcării și alarme

The camera features motion detection capabilities. You can configure alert settings through the app or software to receive email notifications when motion is detected. This helps in monitoring specific areas for activity.

• Access the camera settings in the app or CMS software.
• Navigate to the motion detection or alarm settings.
• Activați detectarea mișcării și configurați nivelurile de sensibilitate.
• Set up email alerts by entering your email address and server details.

5.3 Înregistrare video

Video footage can be stored on a Network Video Recorder (NVR) or a connected computer running compatible software. The camera supports H.265 and H.264 compression formats.

• Ensure your NVR or computer has sufficient storage capacity.
• Configure recording schedules and methods (continuous, motion-triggered) through your NVR or VMS software.

6. Întreținere

• curatenie: Ștergeți ușor obiectivul și corpul camerei cu o cârpă moale și uscată. Evitați utilizarea substanțelor chimice dure sau a materialelor abrazive.
• Actualizări firmware: Verificați periodic producătorul website or contact support for available firmware updates to ensure optimal performance and security.
• Temperatură: The camera operates within a temperature range of -25°C to 60°C. Avoid exposing the camera to extreme temperatures outside this range.
• Disiparea căldurii: It is normal for the camera to feel warm during operation, especially due to its compact size and metal casing. This is a normal characteristic and does not indicate a malfunction.

7. Depanare

• Camera nu pornește:
  • Ensure the POE switch is 802.3af standard and provides 48V.
  • If using auxiliary power, verify the 12V 2A DC adapter is correctly connected and functional.
• Fără flux video:
  • Verificați conexiunile cablului de rețea.
  • Verify the camera has an IP address and is reachable on the network.
  • Ensure your NVR or software is configured with the correct ONVIF (6688) or RTSP (8554) ports.
  • If using an NVR, confirm it supports 3MP resolution and H.265 encoding. If not, you may need to configure the camera to 1080P (2MP) and H.264.
• Probleme de conectare la aplicație/software:
  • Confirm your smartphone or PC is connected to the internet.
  • Ensure the camera is properly connected to your network and has internet access for P2P functions.
  • If the download link for CMS software is not working, contact Revotech customer support.
• Probleme de calitate a imaginii:
  • Curățați obiectivul camerei.
  • Adjust the focus by gently rotating the mini-objective lens.
• Probleme cu parola:
  • If you forget your password, there is no visible reset button. You may need to consult the manufacturer's support for a factory reset procedure.

8. Specificații

9. Garanție și asistență

For warranty information, technical support, or service inquiries, please refer to the contact information provided on the download card included in your package or visit the official Revotech website-ul. Păstrați chitanța de achiziție pentru cererile de garanție.

Durata disponibilității pieselor de schimb în UE: 3 ani.
