TELESIN AllinBox USB Battery Charger for GoPro Hero 12/11/10/9 Black Instruction Manual

1. Produs terminatview

The TELESIN AllinBox is a versatile accessory designed for GoPro Hero 12, 11, 10, and 9 Black cameras. It functions as a multi-battery charger, a high-speed USB 3.0 SD card reader, and a protective storage case for batteries and SD cards. Its compact and durable design makes it suitable for various environments.

Image: TELESIN AllinBox Charger for GoPro Hero 9 Black, highlighting its compact design and multi-functionality.

2. Caracteristici cheie

• Funcționalitate Trei-în-Unu: Serves as a charger for up to three batteries simultaneously, a high-speed USB 3.0 SD card reader, and a storage box for three batteries and three SD cards.
• Încărcare rapidă: Capable of fully charging three batteries within approximately 2.5 hours. Individual battery charging times are 50 minutes for one, 100 minutes for two, and 150 minutes for three.
• Transfer de date de mare viteză: Integrated USB 3.0 SD card reader offers data transfer speeds of up to 90 MB/s.
• Durable and Protective Design: Features IP54 waterproof rating, protecting contents from water drops, dust, and debris. Constructed from environmentally friendly materials.
• Compatibilitate largă: Fully compatible with original GoPro Hero 12, 11, 10, and 9 Black batteries.
• Protecții de siguranță: Built-in safeguards against overcharging, short circuits, electronic shock, over-discharge, over-temperature, over-current, and over-voltage.

3. Conținutul pachetului

• 1 x TELESIN AllinBox Charger
• 1 x Type-C Data/Charger Cable

Note: Batteries, SD cards, and camera shown in product images are NOT included in the package content unless specified in a bundle.

4. Specificații

5. Configurare

5.1 Introducerea bateriilor

1. Open the top lid of the AllinBox Charger.
2. Align up to three compatible GoPro Hero 12/11/10/9 Black batteries with the charging slots.
3. Gently push each battery into its slot until it is securely seated.

5.2 Introducerea cardurilor SD

1. Locate the SD card slots on the underside of the top lid.
2. Insert up to three Micro SD cards into the designated storage slots for safekeeping.

Image: AllinBox with three batteries and three Micro SD cards correctly inserted into their respective slots.

6. Instrucțiuni de utilizare

6.1 Încărcarea bateriilor

1. Ensure batteries are correctly inserted into the charging slots.
2. Connect the provided Type-C data/charger cable to the AllinBox and a compatible USB power source (e.g., wall adapter, power bank, laptop).
3. The indicator lights on the front of the AllinBox will illuminate red to indicate charging.
4. Once a battery is fully charged, its corresponding indicator light will turn green.
5. Disconnect the cable and remove the charged batteries.

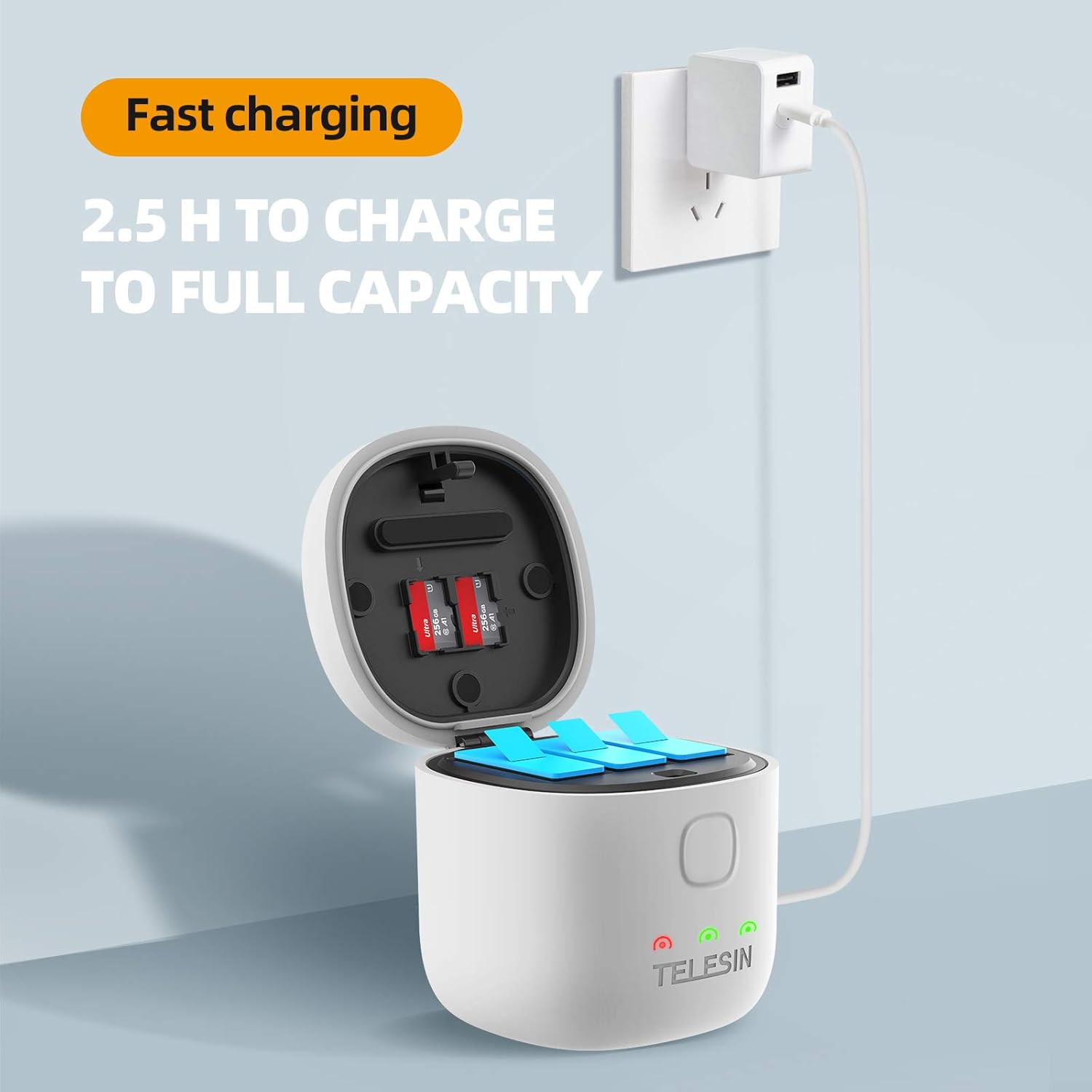

Image: AllinBox connected to a power source, displaying red and green indicator lights for charging status.

6.2 Using the SD Card Reader Function

1. Insert your Micro SD card(s) into the designated slots under the lid.
2. Connect the AllinBox to your computer using the Type-C data/charger cable.
3. Your computer should recognize the AllinBox as an external drive, allowing you to access and transfer files from the inserted SD card(s).
4. După transfer files, safely eject the device from your computer before disconnecting the cable.

Image: AllinBox connected to a laptop, demonstrating its function as a high-speed SD card reader for file transfer

6.3 Depozitare și portabilitate

The AllinBox is designed to securely store your batteries and SD cards. Close the lid firmly to ensure the IP54 waterproof and dustproof seal is engaged. The compact size and integrated lanyard allow for easy carrying in a backpack or camera bag.

Image: AllinBox attached to a backpack, illustrating its portability and secure storage for outdoor activities.

6.4 Videoclip oficial al produsului

6.5 Battery Performance Video

7. Întreținere

• curatenie: Use a soft, dry cloth to clean the exterior of the AllinBox. Avoid abrasive cleaners or solvents.
• Depozitare: When not in use, store the AllinBox in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the lid is securely closed to maintain its waterproof and dustproof properties.
• Îngrijirea cablului: Handle the Type-C cable gently. Avoid bending or twisting it excessively to prevent damage.

8. Depanare

• Bateriile nu se încarcă:
  • Ensure the Type-C cable is securely connected to both the AllinBox and the power source.
  • Verify that the power source is active and providing sufficient power (5V 2A recommended).
  • Check if batteries are correctly inserted into their slots.
  • Ensure the batteries are compatible with the charger (GoPro Hero 12/11/10/9 Black original batteries).
• SD Card Reader Not Recognized:
  • Ensure the AllinBox is properly connected to your computer via the Type-C cable.
  • Check if the SD card is correctly inserted into its slot.
  • Try connecting to a different USB port on your computer or a different computer.
  • Ensure your computer's operating system drivers for USB devices are up to date.
• Indicator Lights Malfunctioning:
  • Deconectați și reconectați cablul de alimentare.
  • Dacă problema persistă, contactați asistența pentru clienți.

9. Garanție și asistență

TELESIN provides a warranty for its products. If you encounter any issues or are unsatisfied with your TELESIN product for any reason, please contact their online customer support for assistance. They are committed to resolving problems quickly and efficiently.

For specific warranty terms and conditions, please refer to the official TELESIN website-ul lor sau contactați direct serviciul lor de asistență pentru clienți.
