Manual de utilizare pentru termostatul digital programabil FLOMASTA TD230W

1. Introducere

Thank you for choosing the FLOMASTA TD230W Programmable Digital Thermostat. This modern, wall-mounted thermostat is designed to provide precise and efficient control over your HVAC system. Featuring a touch control interface, LCD display with backlight, and BACnet MS/TP connectivity, it offers advanced functionality for optimal climate management in your space.

This manual provides detailed instructions for installation, operation, and maintenance of your TD230W thermostat. Please read it thoroughly before beginning installation or operation to ensure safe and correct usage.

2. Informații de siguranță

AVERTISMENT: Risc de electrocutare!

• Always disconnect power to the heating/cooling system at the main fuse or circuit breaker before installing or servicing the thermostat.
• Installation should only be performed by a qualified electrician or HVAC professional.
• Asigurați-vă că toate conexiunile cablurilor sunt sigure și respectă codurile electrice locale.
• Do not operate the thermostat with wet hands or in damp conditii.
• This device operates on 230 Volts. Exercise extreme caution.

Păstrați acest manual pentru referințe viitoare.

3. Caracteristicile produsului

• Control programabil: Allows for setting custom temperature schedules.
• Interfață de control tactil: Intuitive and easy-to-use touch buttons.
• Ecran LCD cu iluminare de fundal: Clear temperature and setting visibility, even in low light.
• Design montare pe perete: Sleek and modern aesthetic for seamless integration.
• Conectivitate BACnet MS/TP: For integration into building management systems.
• Electric Cable Power Source: Reliable wired power supply.
• Voltage: 230 volți.

4. Conținutul pachetului

Vă rugăm să bifați căsuța pentru următoarele elemente:

• FLOMASTA TD230W Digital Thermostat Unit
• Șuruburi de montare și ancore de perete
• Manual de utilizare (acest document)

5. Configurare și instalare

The FLOMASTA TD230W thermostat is designed for wall mounting and requires a wired electrical connection. Professional installation is highly recommended to ensure proper functionality and safety.

5.1 Alegerea unei locații

Select a location on an interior wall, approximately 1.5 meters (5 feet) above the floor. Avoid locations near heat sources (e.g., direct sunlight, lamps, fireplaces), drafts (e.g., windows, doors), or areas with poor air circulation.

5.2 Instrucțiuni de cablare

Before proceeding, ensure power to the HVAC system is OFF at the circuit breaker.

1. Carefully remove the front cover of the thermostat to expose the wiring terminals.
2. Connect the electrical cables from your HVAC system to the corresponding terminals on the thermostat. Refer to the wiring diagram provided with your HVAC system or consult a professional for specific connections. The thermostat operates on 230V.
3. Asigurați-vă că toate conexiunile sunt strânse și sigure.

5.3 Montarea termostatului

1. Once wired, secure the thermostat base to the wall using the provided mounting screws and wall anchors.
2. Carefully reattach the front cover of the thermostat, ensuring it clicks securely into place.
3. Restore power to the HVAC system at the circuit breaker.

Figura 1: Față view of the FLOMASTA TD230W Thermostat. The display is dark, and two touch buttons are visible: one for day mode (sun icon) and one for night mode (crescent moon icon).

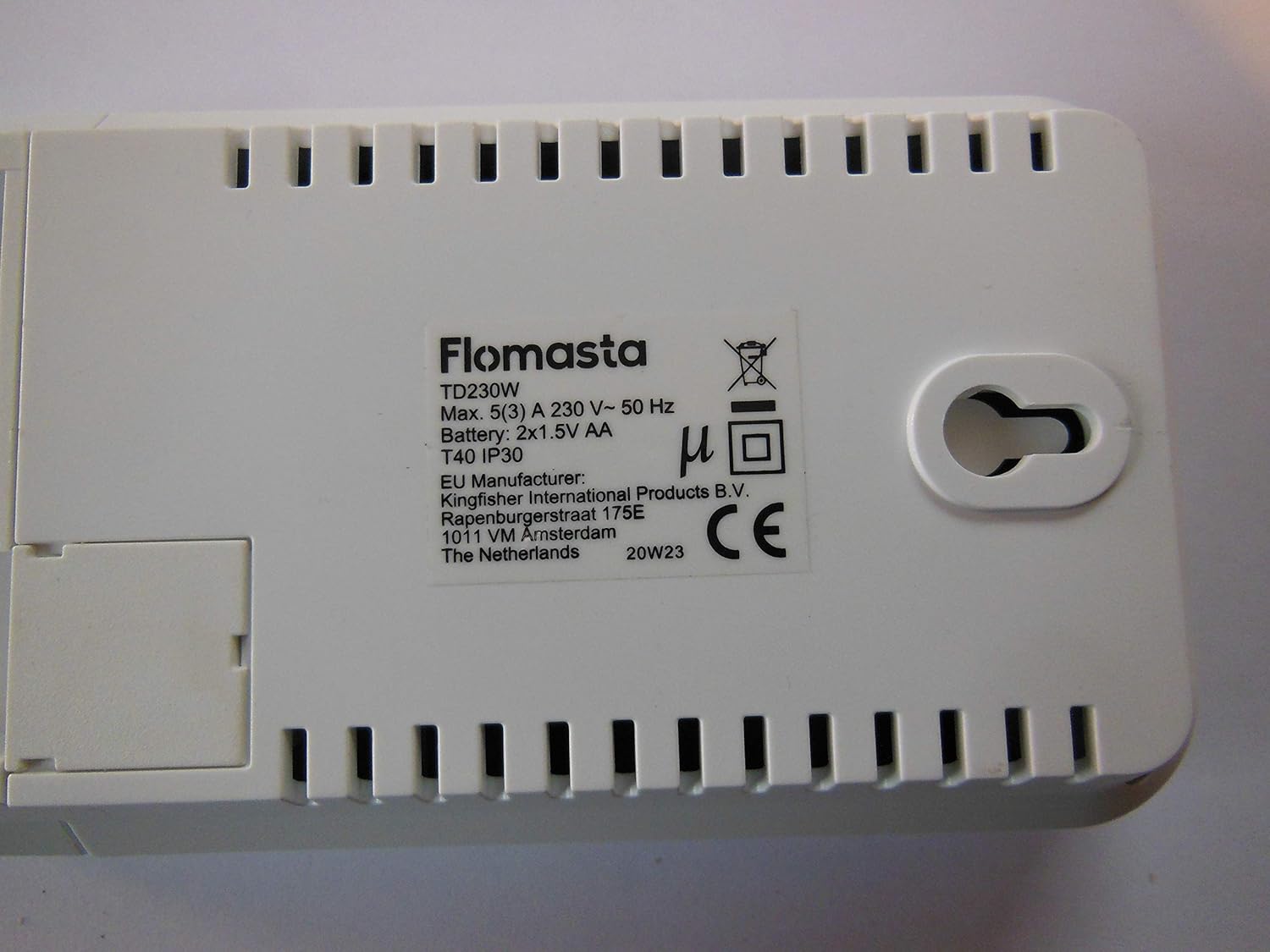

Figura 2: Spate view of the FLOMASTA TD230W Thermostat. The label clearly shows the model TD230W, electrical ratings, and indicates a battery compartment for 2x1.5V AA batteries, which are likely for memory backup or low-power functions.

6. Instrucțiuni de utilizare

The TD230W thermostat features a user-friendly touch control interface and an LCD display for easy operation.

6.1 Pornirea inițială

Upon first power-on, the thermostat may prompt you to set the current time and day. Follow the on-screen instructions using the touch controls.

6.2 Controlul de bază al temperaturii

• Reglarea temperaturii: Utilizați + şi - touch buttons (if present, or implied by "Touch Control") on the display to increase or decrease the desired temperature.
• Selectarea modului: The thermostat typically supports heating, cooling, and auto modes. Use the mode button (if present) to cycle through these options.
• Iluminare de fundal: The LCD display features a backlight for improved visibility. It may activate automatically upon touch or have a dedicated button.

6.3 Programări

The TD230W is a programmable thermostat, allowing you to set different temperatures for various times of the day and days of the week. Refer to the on-screen menu for detailed programming steps. Common programming options include:

• Weekday/Weekend Schedules: Set different programs for weekdays and weekends.
• Multiple Periods: Typically allows for 4-6 temperature periods per day (e.g., Wake, Leave, Return, Sleep).
• Anulare temporară: Temporarily adjust the temperature without changing the programmed schedule.
• Reținere permanentă: Maintain a set temperature indefinitely until manually changed.

6.4 BACnet MS/TP Integration

For advanced users and building management systems, the TD230W supports BACnet MS/TP protocol. Consult your building management system administrator or a qualified technician for integration details and configuration. This feature allows for remote monitoring and control of the thermostat within a larger network.

7. Întreținere

Întreținerea regulată asigură performanța optimă și durata de viață a termostatului.

• curatenie: Ștergeți ușor exteriorul termostatului cu o lavetă moale șiamp cloth. Do not use abrasive cleaners, solvents, or spray cleaners directly onto the unit.
• Înlocuire baterie: The back of the unit indicates it uses 2x1.5V AA batteries. These are likely for memory backup or to power the display during power outages. Replace batteries annually or when a low battery indicator appears on the display. To replace, carefully remove the thermostat from its wall mount (refer to installation steps in reverse), access the battery compartment on the back, replace the batteries, and re-mount.
• Orificii de aerisire: Ensure that any small vents on the thermostat casing are free from dust and debris to allow for accurate temperature sensing.

8. Depanare

If you experience issues with your FLOMASTA TD230W thermostat, try the following solutions:

If the problem persists after attempting these solutions, please contact a qualified HVAC technician or the manufacturer's support.

9. Specificații

10. Garanție și asistență

Warranty information for the FLOMASTA TD230W thermostat is typically provided at the point of purchase or included with the product packaging. Please retain your proof of purchase for warranty claims.

For technical support, troubleshooting assistance beyond this manual, or inquiries regarding spare parts, please contact the manufacturer or your retailer. Information regarding spare parts availability is currently unavailable.

You may find further information on the manufacturer's official website: www.flomasta.com (Notă: Acesta este un substituent) URL. Please refer to your product packaging for the correct manufacturer website.)
