1. Produs terminatview
The CECOTEC Conga PopStar 12200 is a high-power ash vacuum cleaner designed for efficient removal of extreme dirt and debris. Its robust construction and powerful 1200W motor make it suitable for various cleaning tasks, including ash from fireplaces and pellet stoves, barbecue residues, soil, broken glass, and construction debris. The vacuum features an XXL nozzle and a durable 20-liter stainless steel tank, mounted on a wheeled base for enhanced maneuverability.
Faţă view of the CECOTEC Conga PopStar 12200 Ash Vacuum Cleaner, highlighting its stainless steel tank and powerful 1200W motor.
2. Instrucțiuni de siguranță
- Always ensure the vacuum cleaner is unplugged before assembly, cleaning, or maintenance.
- This appliance is designed for vacuuming cold ash only. Do not vacuum hot embers, burning materials, or any hot substances, as this can cause fire or damage to the unit.
- Do not vacuum liquids or wet materials. This is a dry vacuum cleaner.
- Keep the vacuum cleaner away from water and moisture.
- Nu folosiți aspiratorul dacă cablul de alimentare sau ștecherul sunt deteriorate.
- Ensure the filter is correctly installed before use to prevent motor damage and maintain suction efficiency.
- Țineți copiii și animalele de companie departe de aparat în timpul funcționării.
3. Componente și asamblare
Before first use, ensure all components are present and assemble the unit as follows:
- Despacheta: Scoateți cu grijă toate componentele din ambalaj.
- Atașați roți: Securely attach the four wheels to the base of the vacuum cleaner.
- Place Tank: Position the stainless steel tank onto the wheeled base.
- Instalați filtrul: Insert the fabric filter into the motor head. Ensure it is seated correctly to prevent ash from entering the motor.
- Fixarea capului motorului: Place the motor head onto the tank and secure it with the side clips.
- Conectați furtunul și duza: Attach the reinforced suction hose to the inlet on the tank. Then, connect the aluminum XXL nozzle to the other end of the hose.
A user demonstrating the removal of the motor head and filter for cleaning or assembly, showing the internal components of the ash vacuum.
4. Instrucțiuni de utilizare
Follow these steps for effective operation of your ash vacuum cleaner:
- Preparare: Ensure the tank is empty and the filter is clean and properly installed. Verify that the ash to be vacuumed is completely cold.
- Conexiune de alimentare: Conectați cablul de alimentare la o priză electrică adecvată.
- Începeți să aspirați: Turn on the vacuum cleaner using the power switch located on the motor head.
- Tehnică: Guide the XXL nozzle over the ash or debris. The powerful suction will collect even larger particles.
- Termina: Once cleaning is complete, turn off the vacuum cleaner and unplug it from the power outlet.
The CECOTEC Conga PopStar 12200 Ash Vacuum Cleaner positioned next to a fireplace, demonstrating its intended use for ash removal.

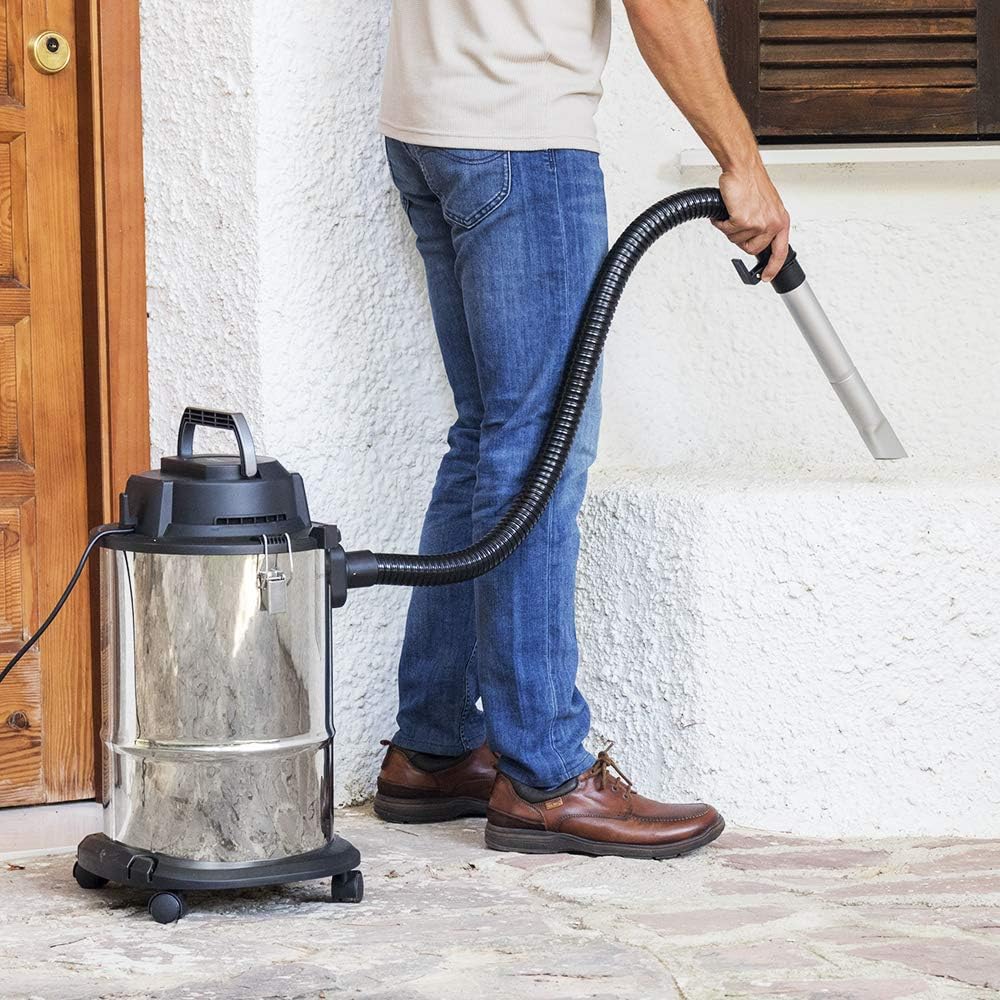

A user operating the ash vacuum cleaner outdoors, illustrating its versatility for various debris types beyond just ash.
A închide view of the vacuum's nozzle effectively collecting wood shavings and small debris from a floor surface.
Detaliat view of the vacuum's nozzle collecting cold ash from inside a fireplace, showcasing its specialized function.
5. Întreținere și curățare
Întreținerea regulată asigură performanțe optime și prelungește durata de viață a aspiratorului dumneavoastră.
- Golirea rezervorului: After each use, or when the tank is full, unclip the motor head and carefully lift it off. Empty the contents of the stainless steel tank into an appropriate waste receptacle.
- Curățarea filtrului: The fabric filter should be cleaned regularly. Remove the filter from the motor head and gently tap it to dislodge accumulated ash. For a more thorough cleaning, you may rinse the filter with cold water, ensuring it is completely dry before reinstallation.
- Furtun și duză: Check the hose and nozzle for any blockages. Clear any obstructions to maintain strong suction.
- Curatenie exterioara: Ștergeți exteriorul aspiratorului cu adamp pânză. Nu utilizați agenți de curățare abrazivi sau solvenți.
- Depozitare: Store the vacuum cleaner in a dry, cool place, away from direct sunlight and moisture.
6. Depanare
Dacă întâmpinați probleme, consultați următoarele probleme și soluții comune:
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Aspiratorul nu pornește | Fără alimentare; Întrerupător oprit; Cablu/ștecher deteriorat | Check power outlet; Ensure switch is ON; Inspect cord/plug for damage (contact support if damaged) |
| Putere de aspirare redusă | Clogged filter; Full tank; Blocked hose/nozzle | Clean or replace filter; Empty tank; Clear blockages from hose/nozzle |
| Zgomot neobișnuit în timpul funcționării | Foreign object in hose/tank; Motor head not properly secured | Check and remove any foreign objects; Ensure motor head is securely clipped onto the tank |
| Ash escaping from unit | Filter not installed correctly; Damaged filter; Tank not sealed | Reinstall filter correctly; Replace damaged filter; Ensure tank clips are fully engaged |
7. Specificatii tehnice
- Marca: Cecotec
- Model: Conga PopStar 12200 (05545)
- Putere: 1200 wați
- Capacitate: 20 litri
- Dimensiuni (L x l x H): 33.5 x 33.5 x 56 cm
- Greutate: 5.3 kilograme
- Nivel de zgomot: 75 dB
- Tip filtru: Țesătură
- Sursa de alimentare: Electric cu fir
8. Garanție și asistență
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
If you require further assistance or have questions not covered in this manual, please contact Cecotec customer support through their official website-ul sau datele de contact furnizate împreună cu produsul dumneavoastră.
