Manual de utilizare a reflectorului LED COB reîncărcabil SCANGRIP NOVA R

1. Produs terminatview

The SCANGRIP NOVA R is a versatile, rechargeable COB LED floodlight designed for professional use. It offers powerful illumination, a compact design, and practical features for various work environments.

Figura 1: Față view of the SCANGRIP NOVA R floodlight, showcasindatorită designului său compact și robust.

Caracteristici cheie:

• Rechargeable COB LED work light, providing up to 2000 lumens.
• Slim and compact design for portability and ergonomic handling.
• 5-step dimming function to adjust light output.
• Integrated magnetic bracket for flexible positioning.
• Built-in power bank with USB outlet for charging mobile devices.
• Waterproof (IP67) for use in challenging conditions.

Figure 2: The floodlight stored compactly within a tool bag, highlighting its portability.

Figure 3: The floodlight positioned on a workbench in a garage setting, ready for use.

2. Informații de siguranță

Please read these safety instructions carefully before using the SCANGRIP NOVA R floodlight. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Do not look directly into the light source when it is active. The intense light can cause eye damage.
• Țineți aparatul departe de copii.
• Do not attempt to open, modify, or repair the device. Refer all servicing to qualified personnel.
• Use only the provided charging cable and charger, or a compatible certified charger.
• Do not expose the device to extreme temperatures, direct sunlight for prolonged periods, or open flames.
• Ensure the charging port cover is securely closed when not charging to maintain IP67 waterproof rating.
• Dispose of the battery responsibly according to local regulations. Do not incinerate.

3. Componente și controale ale produsului

Familiarize yourself with the different parts and controls of your NOVA R floodlight.

Figure 4: Annotated diagram highlighting key features such as the COB LED, battery indicator, dimming controls, built-in power bank, powerful magnets, and flexible stand.

Control Panel (Refer to Figure 4 and Figure 5):

• Buton de alimentare: Aprinde/oprește lumina.
• Dimming Buttons (+/-): Adjusts light intensity through 5 steps.
• Indicator baterie: Afișează nivelul actual de încărcare a bateriei.
• Port de ieșire USB: Pentru încărcarea dispozitivelor externe.
• Port de intrare pentru încărcare: For recharging the floodlight.

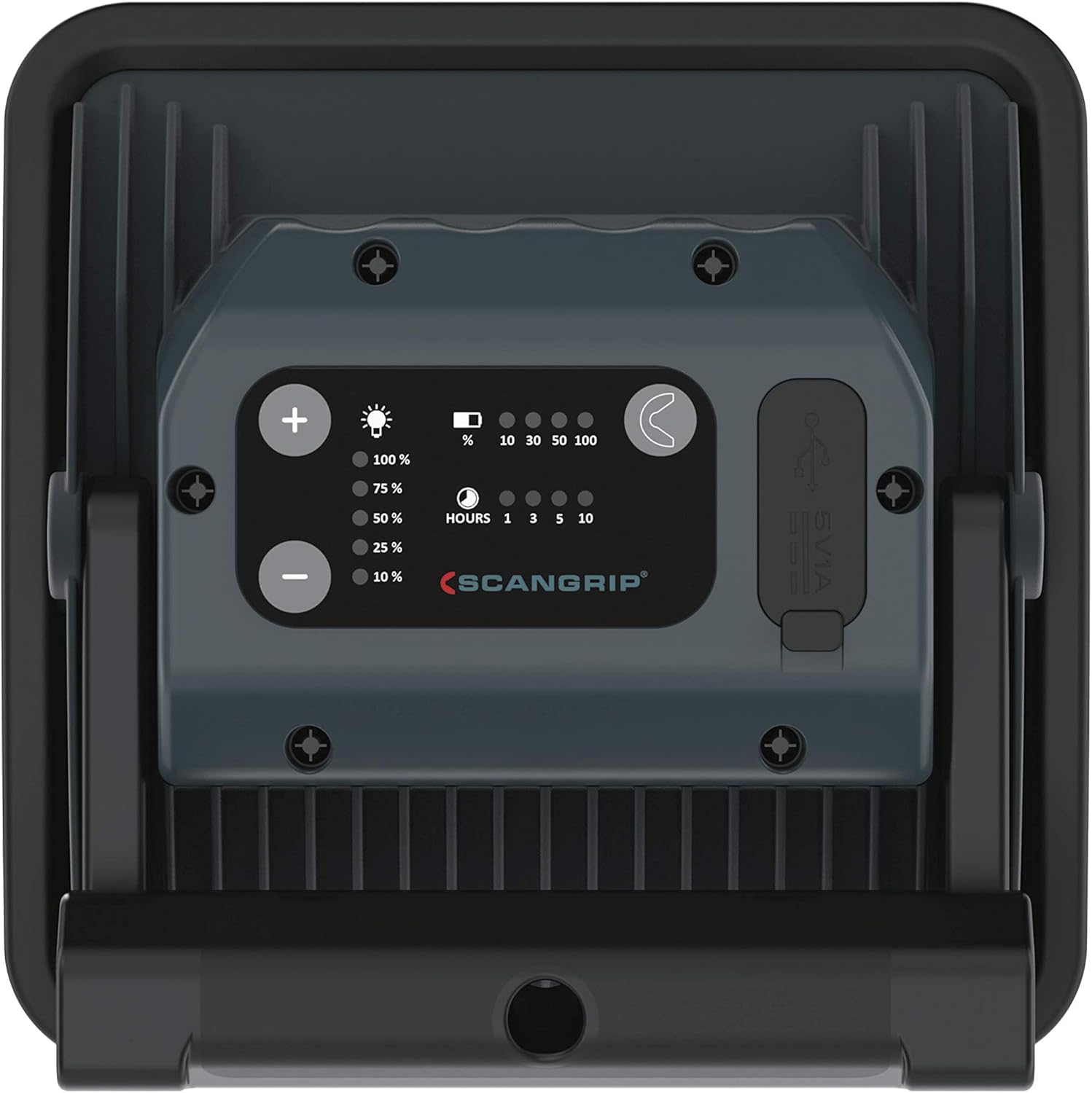

Figure 5: Close-up of the rear control panel, showing the power, dimming buttons, battery indicators, and USB ports.

4. Configurare

4.1 Încărcare inițială

Before first use, fully charge the NOVA R floodlight. This ensures optimal battery performance and longevity.

1. Locate the charging input port on the rear of the floodlight.
2. Connect the provided charging cable to the floodlight and a suitable power source (e.g., wall adapter, USB port).
3. The battery indicator lights will illuminate, showing the charging progress. All lights will be solid when fully charged.
4. După ce este complet încărcat, deconectați cablul de încărcare și asigurați-vă că capacul portului este etanș.

4.2 Positioning the Floodlight

The NOVA R features a flexible stand and powerful built-in magnets for versatile positioning.

• Suport flexibil: Adjust the stand to tilt the light up to 160 degrees, directing illumination precisely where needed.
• Magneți încorporați: Attach the floodlight to any magnetic surface for hands-free operation. Ensure the surface is stable enough to support the light's weight.

Figure 6: The floodlight magnetically attached to a metal workbench, demonstrating its flexible positioning capabilities.

5. Instrucțiuni de utilizare

5.1 Turning On/Off and Dimming

1. Press the power button once to turn the floodlight on.
2. Use the '+' and '-' buttons to cycle through the 5 dimming steps to achieve the desired light intensity.
3. Press the power button again to turn the floodlight off.

Figure 7: A hand holding the floodlight, illustrating its ergonomic design for handheld use.

Figure 8: A user holding the floodlight to inspect a wall, demonstrating its handheld use and illumination capabilities.

5.2 Using the Power Bank Function

The NOVA R can be used as a power bank to charge your mobile devices.

1. Open the cover of the USB output port on the rear of the floodlight.
2. Connect your device's USB charging cable to the floodlight's USB output port.
3. Charging will begin automatically. Monitor your device's charging status.
4. Once charging is complete, disconnect the cable and securely close the USB port cover.

Figure 9: The floodlight actively charging a smartphone via its built-in USB power bank function.

6. Întreținere

6.1 Curățare

• Asigurați-vă că dispozitivul este oprit și deconectat de la orice sursă de alimentare înainte de curățare.
• Wipe the exterior of the floodlight with a soft, damp pânză.
• Nu folosiți produse de curățare abrazive, solvenți sau substanțe chimice dure, deoarece acestea pot deteriora suprafața.
• Ensure all port covers are closed after cleaning to maintain water resistance.

6.2 Îngrijirea și depozitarea bateriei

• Pentru a prelungi durata de viață a bateriei, evitați descărcarea completă frecventă a acesteia.
• If storing the floodlight for an extended period, charge it to approximately 50-70% every few months.
• Depozitați dispozitivul într-un loc răcoros și uscat, ferit de lumina directă a soarelui și de temperaturi extreme.

7. Depanare

8. Specificații

9. Garanție și asistență

For warranty information, technical support, or service inquiries, please refer to the official SCANGRIP website-ul sau contactați distribuitorul autorizat.

Păstrați bonul fiscal ca dovadă a achiziției pentru reclamațiile în garanție.

Producător: ScanGrip

Website: www.scangrip.com
