WORX WX394.6 20V Cordless Rotary Hammer

1. Introducere

The WORX WX394.6 Cordless Rotary Hammer is a 3-in-1 multifunction tool designed for drilling, hammer drilling, and screwdriving. It features a compact and ergonomic design, measuring 7.6 x 25.9 x 22.2 cm and weighing 1.6 kg. The tool is powered by two 20V lithium-ion batteries, providing a consistent 40W electrical power. It delivers 1.5 J of impact energy, 30 Newton-meters of torque, and a speed of 1100 RPM, enabling it to handle various tasks efficiently. Key features include an integrated LED light for enhanced visibility in low-light conditions and a lightweight construction to reduce user fatigue during prolonged operation.

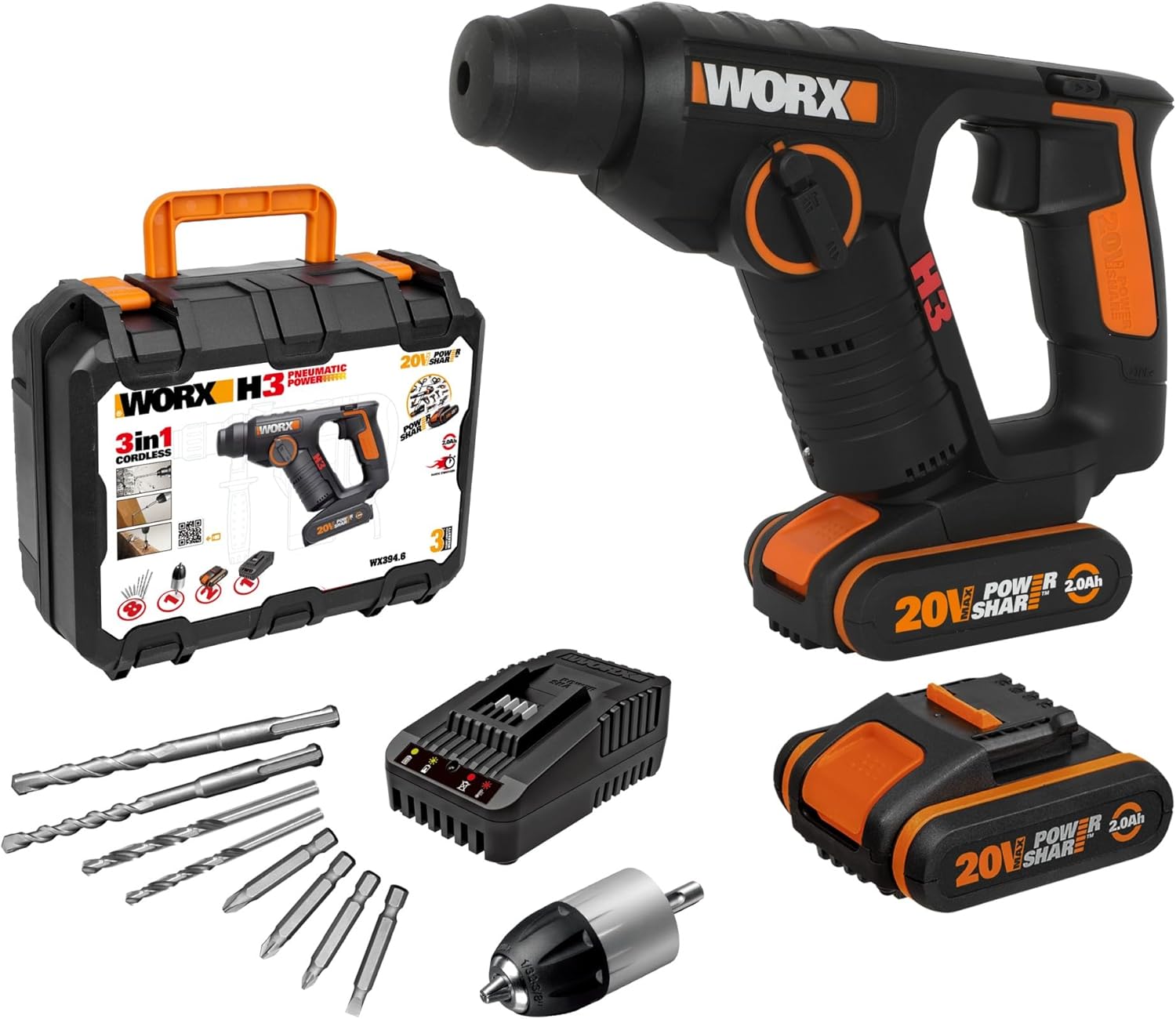

Figure 1: WORX WX394.6 Cordless Rotary Hammer with included accessories.

2. Caracteristici cheie

• Performanță excelentă: With a powerful 1.5 J impact energy, this rotary hammer can easily drill into concrete up to 18 mm, wood up to 20 mm, and steel up to 13 mm.
• Funcționalitate 3 în 1: The WORX cordless rotary hammer combines three functions in one convenient tool: drilling, hammer drilling, and screwdriving.
• Variable Speed with Reverse: Variable speed control allows for optimal speed selection across different applications, providing flexibility for various tasks.
• PowerShare Battery System: The WORX PowerShare battery is compatible with all WORX 20V, 40V, and 80V tools, outdoor power equipment, and lifestyle products.
• Lumină LED integrată: Îmbunătățește vizibilitatea în zonele de lucru slab iluminate.
• Design ușor: Reduce oboseala utilizatorului în timpul funcționării prelungite.

Figure 2: The WORX PowerShare battery system, highlighting cross-compatibility.

3. Conținutul pachetului

The complete kit includes the following components:

• 1 x WORX WX394.6 Cordless Rotary Hammer
• 2 x WORX 2.0 Ah Lithium-ion Batteries
• 1 x 1-Hour Charger
• 1 x Husă de transport
• 2 x SDS Drill Bits (specific sizes may vary)
• 4 x Screwdriver Bits (various types)
• 2 x HSS Drill Bits (5 mm and 6 mm)
• 1 x Chuck

Figure 3: All components included in the WORX WX394.6 kit.

4. Configurare

4.1 Instalarea și încărcarea bateriei

1. Încărcarea bateriei: Connect the charger to a power outlet. Insert the battery into the charger. The indicator light on the charger will show the charging status. A full charge typically takes 1 hour for the included 2.0 Ah batteries.
2. Instalarea bateriei: Align the battery with the base of the rotary hammer. Slide the battery into place until it clicks securely.
3. Scoaterea bateriei: Press the battery release button (if present) and slide the battery out.

4.2 Instalarea accesoriilor

1. Installing SDS Bits: Pull back the chuck collar, insert the SDS bit into the chuck until it locks, then release the collar. Tug on the bit to ensure it is securely seated.
2. Installing Standard Drill Bits/Screwdriver Bits with Chuck: Attach the provided chuck to the SDS chuck mechanism. Insert the desired standard drill bit or screwdriver bit into the chuck and tighten it securely.

Figure 4: Detail of the tool's chuck and mode selector.

5. Instrucțiuni de utilizare

5.1 Selectarea modului

The WX394.6 offers three operating modes:

• Modul de forare: Pentru găurire în lemn, metal și materiale plastice.
• Mod de găurire cu percuție: For drilling into masonry, concrete, and stone.
• Mod de înșurubare: Pentru înșurubarea și deșurubarea șuruburilor.

To select a mode, rotate the mode selector switch located on the side of the tool to the desired icon.

5.2 Controlul vitezei variabile

The tool features a variable speed trigger. Pressing the trigger lightly will result in lower speed, while pressing it fully will achieve maximum speed. This allows for precise control depending on the material and application.

5.3 Liniile directoare de siguranță

• Purtați întotdeauna echipament de protecție personală (EIP) adecvat, cum ar fi ochelari de protecție, protecție pentru auz și mănuși.
• Asigurați-vă că piesa de prelucrat este bine clampînainte de operație.
• Țineți mâinile și hainele largi departe de piesele rotative.
• Nu utilizați unealta în damp sau condiții umede.
• Disconnect the battery before changing accessories or performing maintenance.

6. Întreținere

6.1 Curățare

• Curățați periodic fantele de ventilație ale uneltei pentru a preveni supraîncălzirea.
• Ștergeți carcasa uneltei cu o lavetă moale șiamp pânză. Nu utilizați substanțe chimice dure sau produse de curățare abrazive.
• Keep the chuck free from dust and debris.

6.2 Depozitare

• Store the tool and accessories in the provided carrying case in a dry, secure location.
• A nu se lăsa la îndemâna copiilor.
• Depozitați bateriile într-un loc răcoros și uscat, ferit de lumina directă a soarelui și de temperaturi extreme.

7. Depanare

This section provides solutions to common issues. For problems not listed here, contact WORX customer support.

• Instrumentul nu pornește: Ensure the battery is fully charged and correctly installed. Check if the mode selector is set to an active position.
• Performanță redusă: The battery may be low on charge. Recharge the battery. Ensure the correct accessory is used for the material.
• Vibrații sau zgomot excesiv: Check if the accessory is properly installed and not damaged. Ensure all fasteners on the tool are tight.

8. Specificații

Figure 5: Dimensions of the WORX WX394.6 rotary hammer.

9. Garanție și asistență

WORX products are designed for durability and performance. This product comes with a standard warranty, and an extended warranty may be available upon product registration.

• Garantie standard: 3 years for tools and batteries.
• Garantie extinsa: An additional 2 years of warranty is available upon registering the product on the official WORX website-ul.

Figure 6: Standard 3-year warranty.

Figure 7: Extended 2-year warranty upon registration.

Pentru asistență suplimentară, asistență tehnică sau reclamații în garanție, vă rugăm să vizitați site-ul oficial WORX website-ul sau contactați departamentul de servicii pentru clienți.
