AXIS Q1615-LE Mk III Network Camera User Manual

Introducere

The AXIS Q1615-LE Mk III is a high-performance 2-megapixel outdoor network camera, engineered to deliver exceptional imaging and video quality. This model integrates advanced hardware and processing capabilities, making it an ideal platform for analytics powered by artificial intelligence (AI) and deep learning. Its robust design ensures reliable operation in diverse outdoor environments.

Caracteristici cheie

• Powerful AI with Deep Learning: Equipped with a dual chipset (Axis ARTPEC and DLPU) for advanced AI-based object classification.
• Granular Object Classification: Distinguishes between various vehicle types (bikes, cars, buses, trucks) and humans, reducing false alarms.
• Support for 3rd-Party AI Applications: Open Axis platform allows integration of tailor-made AI applications.
• Edge-Based Processing for Scalability: Analytics run directly on the camera, reducing server load, improving speed, and lowering costs.
• Premium Axis Q-line Camera Features: Includes high-quality imaging, OptimizedIR (up to 60m/196ft) for clear night vision, and robust outdoor ratings (IP66, IP67, NEMA 4X).

Informații de siguranță

Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in injury, damage to the product, or voiding of the warranty.

• Siguranta electrica: Installation must be performed by qualified personnel in accordance with all local and national electrical codes. Ensure power is disconnected before any installation or maintenance.
• Montare: The camera must be securely mounted to a surface capable of supporting its weight. Use appropriate fasteners for the mounting surface.
• Conditii de mediu: While designed for outdoor use, avoid exposing the camera to extreme conditions beyond its specified operating temperature and humidity ranges.
• curatenie: Folosiți numai un moale, damp cloth for cleaning. Avoid abrasive cleaners or solvents that could damage the camera's finish or lens.

Conținutul pachetului

Verificați dacă toate articolele sunt prezente în pachet înainte de a continua instalarea:

• AXIS Q1615-LE Mk III Network Camera
• AXIS T94Q01A Wall Mount
• Ghid de instalare
• Resistorx T20 Tool
• Sunshield Connector Kit
• Windows Decoder 1-user License

Figure 1: AXIS Q1615-LE Mk III Network Camera with included wall mount.

Înființat

Montarea camerei

1. Alegeți o locație: Select a suitable outdoor location that provides the desired field of view and is within reach of power and network connections. Ensure the mounting surface is sturdy.
2. Atașarea suportului de perete: Use the included AXIS T94Q01A Wall Mount. Securely fasten the mount to the chosen surface using appropriate screws (not included, typically).
3. Attach Camera to Mount: Align the camera with the wall mount and secure it using the provided hardware. Adjust the camera's angle for optimal viewing.
4. Install Sunshield: Attach the sunshield using the Sunshield Connector Kit to protect the lens from direct sunlight and reduce glare.

Pornirea

The AXIS Q1615-LE Mk III camera can be powered via Power over Ethernet (PoE) or a DC power supply.

• Conexiune PoE: Connect an Ethernet cable from a PoE-enabled switch or injector to the camera's Ethernet port. This provides both power and network connectivity.
• Putere DC: If not using PoE, connect a compatible DC power adapter (not included) to the camera's DC input port.

Conexiune la rețea

Connect the camera to your network using a standard Ethernet cable. For initial setup, it is recommended to connect the camera directly to a computer or a local network segment where you can easily discover its IP address.

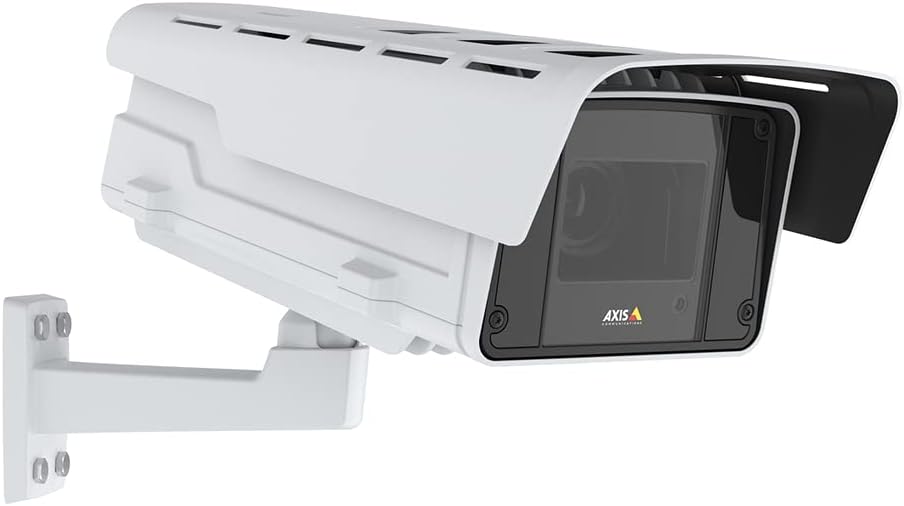

Figura 2: lateral view of the camera illustrating potential mounting and connection points.

Instrucțiuni de operare

Accessing the Camera Interface

1. Descoperiți camera: Use the AXIS IP Utility or AXIS Device Manager software to discover the camera on your network and find its IP address.
2. Log in: Deschide a web browser and enter the camera's IP address. Log in using the default credentials (typically username 'root' and password 'pass' for first-time setup, which you will be prompted to change).

Configuring Video Settings

Once logged in, navigate to the 'Video' or 'Stream' settings to adjust parameters such as resolution, frame rate, compression, and image quality. The camera supports 1080p video capture resolution.

Using Object Analytics

The AXIS Q1615-LE Mk III features powerful AI-based object analytics. Access the 'Analytics' section in the camera's web interface to configure detection zones, set up rules for different object types (e.g., cars, bikes, humans), and define actions to be triggered upon detection (e.g., send notifications, record video).

Întreţinere

Curatenie

Regular cleaning helps maintain optimal image quality and extends the camera's lifespan.

• Obiectiv: Gently wipe the lens with a soft, lint-free cloth. For stubborn dirt, use a lens cleaning solution designed for optical surfaces.
• Locuinta: Clean the camera housing with a soft, damp pânză. Evitați utilizarea substanțelor chimice dure sau a materialelor abrazive.

Actualizări de firmware

Verificați periodic sistemul de comunicații Axis website for firmware updates. Keeping your camera's firmware up-to-date ensures access to the latest features, performance improvements, and security patches. Follow the instructions provided by Axis for the update process.

Depanare

Această secțiune oferă soluții pentru problemele comune pe care le-ați putea întâmpina.

• Fără putere:
  • Verify that the PoE switch/injector is powered on and functioning correctly.
  • If using a DC adapter, ensure it is properly connected and providing the correct voltage.
  • Check the Ethernet cable for damage or loose connections.
• Fără conexiune la rețea:
  • Ensure the Ethernet cable is securely connected at both ends.
  • Verificați starea switch-ului/routerului de rețea.
  • Verify the camera's IP address and network settings are correct and not conflicting with other devices.
  • Temporarily disable any firewall on your computer during initial setup.
• Calitate slabă a imaginii:
  • Curățați obiectivul camerei.
  • Adjust focus settings in the camera's web interface (Auto Focus is available).
  • Check lighting conditions. Ensure OptimizedIR is enabled for low-light environments.
  • Adjust video resolution and compression settings.
• False Alarms from Analytics:
  • Refine detection zones and sensitivity settings in the analytics configuration.
  • Asigurați-vă că aparatul foto view is clear of obstructions that might trigger false detections.
  • Update camera firmware to the latest version for improved analytics performance.

For more detailed troubleshooting or issues not covered here, please refer to the comprehensive support documentation on the Axis Communications website-ul sau contactați asistența lor tehnică.

Specificații

Garanție și suport

Informații despre garanție

The AXIS Q1615-LE Mk III Network Camera comes with a Garanție de 5 an de la producătorVă rugăm să păstrați dovada achiziției pentru reclamațiile în garanție. Garanția acoperă defectele de materiale și de fabricație în condiții normale de utilizare.

Suport tehnic

For technical assistance, product registration, or to download the latest software and documentation, please visit the official Axis Communications website. Their support resources include FAQs, troubleshooting guides, and contact information for direct technical support.

Website: www.axis.com
