1. Introducere
This manual provides detailed instructions for the safe and efficient operation of your KODAK Dock ERA Plus Instant Photo Printer. Please read this manual thoroughly before using the product and retain it for future reference. The KODAK Dock ERA Plus allows you to print high-quality 4x6 inch photos directly from your compatible devices using dye sublimation technology.

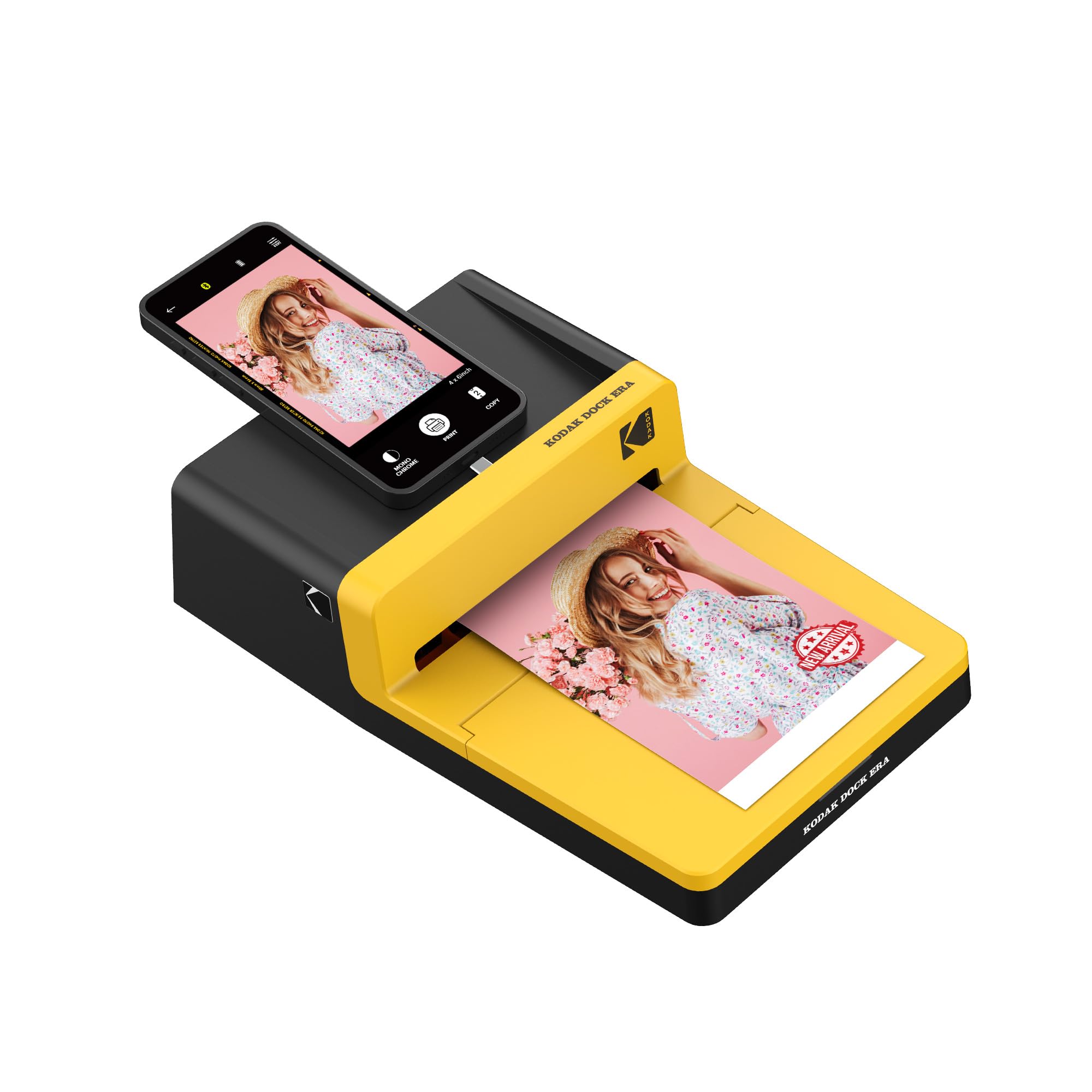

Figure 1: KODAK Dock ERA Plus Instant Photo Printer in use.
2. Configurare
2.1 Despachetare și componente
Înainte de configurare, asigurați-vă că toate componentele sunt prezente:
- KODAK Dock ERA Plus Photo Printer (Model: PHC-120)
- 4x6 Photo Paper Cartridge (initial 10 sheets)
- Additional 80 sheets of 4x6 photo paper
- Cablu USB
- Docking Pin with Lightning Connector
2.2 Conexiune la alimentare
- Connect the provided USB cable to the printer's power port.
- Plug the other end of the USB cable into a compatible power adapter (not included) and then into a wall outlet.
- Press the power button on the side of the printer to turn it on. The indicator light will illuminate.
2.3 Loading Paper and Cartridge
- Open the paper tray cover on the printer.
- Insert the photo paper cartridge into its designated slot until it clicks into place.
- Load the 4x6 photo paper into the paper tray with the glossy side facing up and the KODAK logo (if present) facing down. Ensure the paper stack is aligned correctly.
- Închideți capacul tăvii de hârtie.
2.4 Conexiune dispozitiv
The printer supports both direct docking and Bluetooth connectivity.
- Andocare directă: For compatible iOS devices, connect your smartphone directly to the docking pin on the printer.
- Bluetooth: For other devices (Android, Laptops, PC), ensure Bluetooth is enabled on your device. Open the KODAK Photo Printer app, navigate to settings, and pair with 'Kodak Era'.
3. Instrucțiuni de utilizare
3.1 KODAK Photo Printer App
Download the 'KODAK Photo Printer' app from your device's app store. This app is essential for selecting, editing, and printing your photos.
3.2 Selecting and Editing Photos
- Open the KODAK Photo Printer app.
- Browse your device's photo gallery within the app.
- Select the photo you wish to print.
- Use the app's editing tools to adjust the image, apply filters, or choose between bordered or borderless prints.
3.3 Printing Process (4PASS Technology)
The KODAK Dock ERA Plus utilizes 4PASS (Dye Sublimation) technology for vibrant, long-lasting prints. The printing process involves four passes:
- The paper passes through the printer to apply the galben strat.
- The paper passes again to apply the magenta strat.
- A third pass applies the cyan strat.
- The final pass applies a protective laminare layer, making the print fingerprint and water-resistant.
To initiate printing, tap the 'Print' button in the app. The printer will automatically handle the 4-pass process.
Video 1: Demonstration of the KODAK Photo Printer App and the 4-pass printing process.
4. Întreținere
4.1 Replacing the Cartridge
When the ink cartridge is empty or the print quality degrades, replace it with a new KODAK 4x6 Photo Paper Cartridge.
- Asigurați-vă că imprimanta este oprită.
- Deschideți capacul cartușului de pe partea laterală a imprimantei.
- Gently remove the used cartridge.
- Insert the new cartridge, ensuring it is correctly oriented, until it clicks into place.
- Închideți capacul cartușului.
4.2 Curăţarea imprimantei
Regularly clean the exterior of the printer with a soft, dry cloth. Avoid using liquid cleaners or abrasive materials.
5. Depanare
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Imprimanta nu pornește | No power, loose cable | Check power connection, ensure cable is secure. |
| Nu se poate conecta prin Bluetooth | Bluetooth off, printer not in pairing mode | Ensure printer is on and Bluetooth is enabled on your device. Restart both devices. |
| Calitate slabă a imprimării | Low ink, incorrect paper loading, low image resolution | Replace cartridge, ensure paper is loaded glossy side up, use high-resolution images. |
| Blocaj de hârtie | Improper paper loading | Carefully remove jammed paper. Ensure paper is loaded correctly. |
6. Specificații
- Marca: KODAK
- Nume model: PHC-120 (Dock ERA Plus)
- Tehnologia de imprimare: Sublimarea vopselei
- Tehnologie de conectivitate: Bluetooth, USB
- Media tipărită: Hârtie fotografică lucioasă
- Dimensiunea foii: 4 x 6 inci
- Rezoluție maximă de imprimare color: 1200 dpi or higher
- Rezoluție maximă de imprimare alb-negru: 1200 dpi or higher
- Adâncimea culorii: 24 bpp
- Culoare cerneală: Negru, Cyan, Magenta, Galben
- Metoda de control: App
- Dimensiuni produs: 2.7" D x 6.53" L x 2.7" H
- Capacitate maximă de intrare a foii: 120
- Capacitate hârtie de ieșire: 120
- Componente incluse: 4x6 Photo Paper Cartridge, USB Cable, Docking Pin with Lightning Connector
7. Garanție și asistență
This KODAK product is covered by a Garantia producatorului. For specific warranty terms, duration, and to register your product, please refer to the warranty card included in your product packaging or visit the official KODAK support website. For technical assistance, troubleshooting, or service inquiries, please contact KODAK customer support.
