M-Wave SP110-ADJ Adjustable Seatpost User Manual

Introducere

Thank you for choosing the M-Wave SP110-ADJ Adjustable Seatpost. This product is designed to provide quick and convenient saddle height adjustments on your bicycle, enhancing your riding experience across various terrains and conditions. Made from durable aluminum, it offers reliable performance and ease of use. Please read this manual thoroughly before installation and operation to ensure proper use and longevity of your seatpost.

Figure 1: M-Wave SP110-ADJ Adjustable Seatpost, showing the main body and saddle clamp mecanism.

Caracteristicile produsului

• Diametru: 31.6 mm, Lungime: 445 mm.
• Quick Height Adjustment: Features a remote lever for on-the-fly saddle height changes.
• Multiple Height Levels: Offers 3 distinct height positions: 0mm (fully extended), 45mm (mid-position), and 110mm (fully dropped) from the top of the travel.
• Material: Constructed from high-quality aluminum for durability and lightweight performance.
• Scală integrată: Includes a printed scale on the lower tube for precise insertion depth measurement.

Conținutul pachetului

Please verify that all components are present in the package before proceeding with installation.

• 1 x M-Wave SP110-ADJ Adjustable Seatpost (with integrated cable and remote lever)

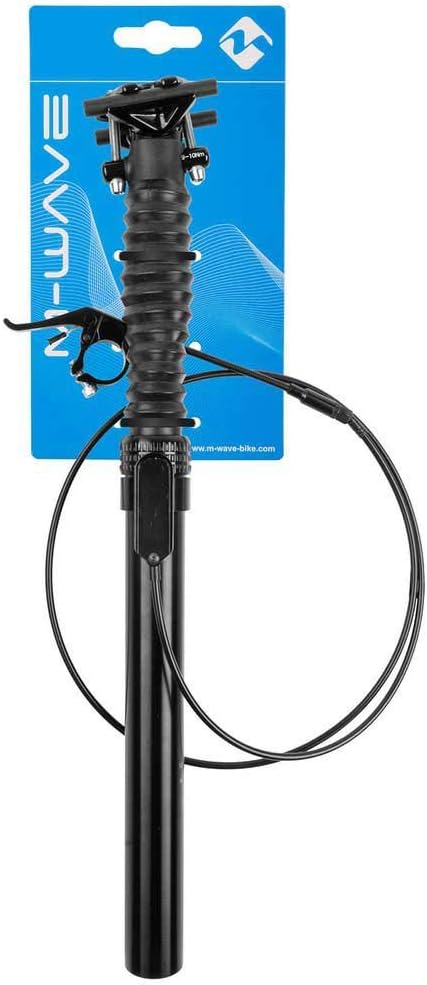

Figure 2: The M-Wave SP110-ADJ Adjustable Seatpost as it appears in its retail packaging.

Configurare și instalare

1. Pregătiți-vă bicicleta: Ensure your bicycle frame's seat tube is clean and free of debris. Apply a thin layer of grease to the inside of the seat tube if recommended by your bicycle manufacturer.
2. Insert Seatpost: Carefully slide the M-Wave SP110-ADJ seatpost into the bicycle's seat tube. Ensure the minimum insertion mark (MIN INSERT) on the seatpost is always inside the frame. Failure to do so can result in damage to the frame or seatpost, and potential injury.
3. Secure Seatpost: Tighten your bicycle's seatpost clamp to the manufacturer's recommended torque specifications. Do not overtighten.
4. Instalați șa: Attach your bicycle saddle to the seatpost's clamp mechanism. Adjust the saddle angle and fore-aft position as desired, then tighten the saddle clamp șuruburi în siguranță.
5. Route Remote Cable: Route the remote cable from the seatpost along your bicycle frame to your handlebars. Use cable ties or frame guides to secure the cable neatly and prevent interference with moving parts.
6. Mount Remote Lever: Mount the remote lever on your handlebar in a comfortable and accessible position. Tighten the lever clamp bolt securely, but do not overtighten.
7. Connect Cable to Lever: Follow the instructions provided with the remote lever to properly connect and tension the cable. Ensure there is no slack in the cable when the lever is not actuated.

Figure 3: The seatpost showing the remote cable and lever assembly, ready for installation and routing.

Figure 4: Close-up of the seatpost's lower tube, highlighting the "MIN INSERT" mark and measurement scale for proper installation depth.

Instrucțiuni de operare

The M-Wave SP110-ADJ seatpost features a remote lever for convenient height adjustment while riding.

1. To Lower the Saddle: While seated on the saddle, press and hold the remote lever on your handlebar. The seatpost will compress under your weight to the next available height level (110mm or 45mm drop). Release the lever once the desired height is reached.
2. To Raise the Saddle: With the remote lever pressed, unweight the saddle (stand up slightly). The seatpost will extend upwards. Release the lever when the saddle reaches the desired height (45mm or 0mm drop).
3. Height Levels: The seatpost has three distinct height levels:
   • 0mm Drop: Fully extended position, ideal for climbing or flat terrain.
   • 45mm Drop: Mid-position, suitable for technical riding or light descents.
   • 110mm Drop: Fully dropped position, best for steep descents or aggressive trail riding.

Figura 5: Detaliat view of the handlebar-mounted remote lever used to control the seatpost's height.

Întreţinere

Regular maintenance will ensure the longevity and optimal performance of your M-Wave SP110-ADJ seatpost.

• curatenie: After each ride, especially in wet or muddy conditions, wipe down the exposed parts of the seatpost with a clean, damp cloth. Avoid using high-pressure washers directly on the seatpost seals.
• Lubrifiere: Periodically check the cable and housing for smooth operation. If the lever action feels stiff, consider lubricating the cable or replacing the housing. Do not apply grease or oil directly to the exposed stanchion of the seatpost, as this can attract dirt and damage seals.
• Verificarea șuruburilor: Regularly inspect all bolts (saddle clamp, seatpost clamp, remote lever clamp) for proper tightness. Refer to your bicycle and component manufacturer's torque specifications.
• Verificarea cablului: Check the remote cable for fraying, kinks, or corrosion. Replace the cable and housing if any damage is observed to ensure smooth operation.
• Inspecția sigiliului: Periodically inspect the dust seal at the top of the lower tube for cracks or damage. While user-serviceable parts are limited, a damaged seal can lead to internal contamination.

Depanare

Specificații

Garanție și suport

For warranty information or technical support regarding your M-Wave SP110-ADJ Adjustable Seatpost, please contact the retailer where you purchased the product or visit the official M-Wave webPăstrați dovada achiziției pentru reclamații în garanție.

M-Wave Store: Visit the M-Wave Store on Amazon
