POPOMAN MTM320B Green Cross Line Laser Level User Manual

Introducere

This manual provides detailed instructions for the safe and effective operation, maintenance, and troubleshooting of your POPOMAN MTM320B Green Cross Line Laser Level. Please read this manual thoroughly before using the device and retain it for future reference.

Figure 1: POPOMAN MTM320B Laser Level and Accessories. The image displays the green laser level unit, a USB-C charging cable, a rechargeable battery pack, a magnetic L-bracket, a rotary base, and a protective carry bag.

Instrucțiuni de siguranță

Respectați întotdeauna următoarele instrucțiuni de siguranță pentru a preveni vătămările corporale și deteriorarea dispozitivului:

• Siguranța laserului: This product emits a Class II laser beam. Do not stare directly into the laser beam. Avoid direct eye exposure.
• Mediu de operare: Use the device in a stable and well-lit environment. Avoid extreme temperatures and high humidity.
• Siguranța bateriei: Use only the specified battery and charging cable. Do not disassemble, short-circuit, or expose the battery to high temperatures. Ensure the protective film is removed from the battery before first use.
• Întreţinere: Nu încercați să reparați singur dispozitivul. Apelați la personal calificat pentru toate lucrările de service.
• Evaluare IP54: The device is rated IP54 for dust and splash resistance. While it can withstand light splashes, do not immerse it in water.

Figure 2: IP54 Protection. The image shows the laser level being splashed with water and covered in dust, illustrating its water and dust resistance.

Produs terminatview

The POPOMAN MTM320B is a versatile green cross line laser level designed for various leveling and alignment tasks. It features a self-leveling pendulum system and can project both cross lines and two plumb dots.

Caracteristici cheie:

• Tehnologie laser verde: Provides a brighter and more visible laser line compared to red lasers, especially indoors.
• 2-Point and Cross Line Projection: Projects one horizontal line, one vertical line, and two plumb dots (up and down).
• Modul de autonivelare: Automatically levels within a 4° inclination. If the tilt exceeds 4°, the laser will blink to indicate an out-of-level condition.
• Modul manual: Allows locking the pendulum to project lines at any desired angle for non-level applications.
• Modul puls: Enables use with a laser detector (not included) for extended working distances up to 60 meters or in bright light conditions.
• Baterie reîncărcabilă USB: Equipped with a 4500mAh Lithium-Ion battery, providing up to 20 hours of continuous operation on a single charge.
• Opțiuni de montare versatile: Includes a magnetic L-bracket and a rotary base for flexible positioning. Features 1/4"-20 and 5/8"-11 threaded mounts.

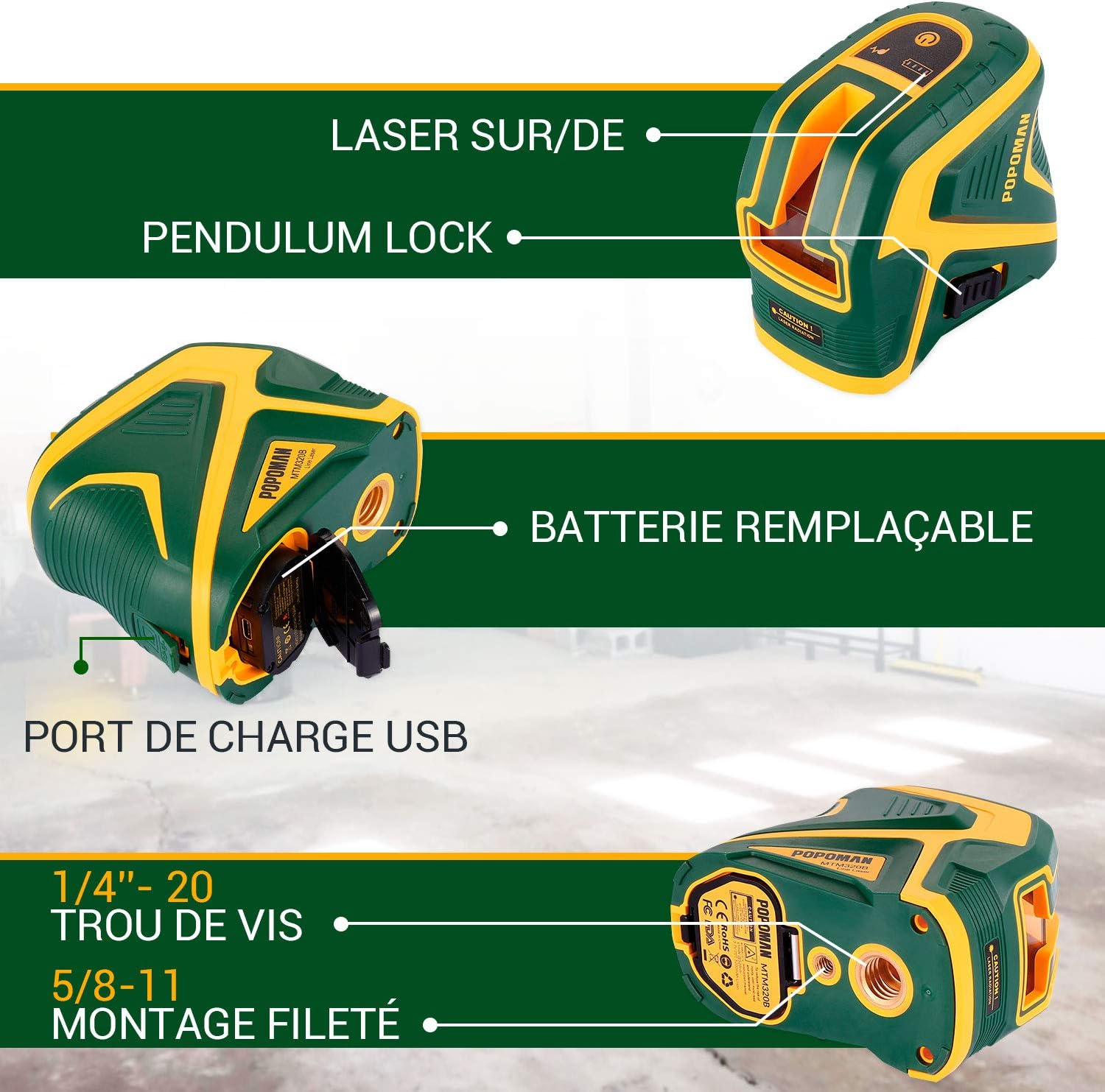

Figure 3: Product Features. This image highlights the laser's pendulum lock for secure transport and manual mode, the replaceable battery compartment, and the USB charging port.

Figure 4: Multifunctional Support. The image illustrates the magnetic L-bracket and the 360-degree rotary base, demonstrating various mounting possibilities for the laser level.

Înființat

1. Încărcarea bateriei:

Before first use, ensure the battery is fully charged. The 4500mAh Lithium-Ion battery provides extended operation time.

1. Locate the USB-C charging port on the device or the battery pack.
2. Connect the provided USB-C cable to the device/battery and a suitable USB power source (e.g., wall adapter, power bank, computer USB port, car charger).
3. The charging indicator light will show the charging status. A full charge typically takes several hours.
4. Important: Remove the protective film from the battery inside the battery compartment before initial use.

Figure 5: Charging Options. This image demonstrates various methods to charge the laser level's battery, including power bank, AC adapter, laptop, and car charger, highlighting its versatility.

2. Montarea dispozitivului:

The MTM320B offers flexible mounting options:

• On the Rotary Base: Place the laser level directly onto the included rotary base for 360-degree rotation and fine adjustment.
• With Magnetic L-Bracket: Attach the laser level to the magnetic L-bracket using the threaded mount. The bracket can then be affixed to metal surfaces or hung from screws.
• Pe un trepied: The device features 1/4"-20 and 5/8"-11 threaded mounts on its base, allowing it to be mounted on standard tripods (not included).

Instrucțiuni de operare

1. Pornire/Oprire:

To power on the device, slide the pendulum lock switch to the unlocked position. To power off, slide the switch back to the locked position. The pendulum lock also serves as a transport lock, protecting the internal mechanism.

2. Mod de autonivelare:

When the pendulum lock is in the unlocked position, the device automatically enters self-leveling mode. It will self-level within a 4° inclination. If the surface is too steep, the laser lines will blink rapidly to indicate that it is out of range. Adjust the position of the laser level until the lines stop blinking and become steady.

Figure 6: Self-Leveling and Manual Modes. The top image shows the laser in self-leveling mode, projecting a level line. The bottom image illustrates manual mode, where the laser can project lines at an angle.

3. Modul manual:

To use the device in manual mode (for projecting lines at an angle), keep the pendulum lock switch in the locked position. Press the power button to activate the laser lines. The lines will not self-level and can be projected at any angle. This is useful for tasks like installing handrails or decorative patterns.

4. Switching Laser Lines/Dots:

Press the mode button (often indicated by a laser icon or 'M') to cycle through different laser projection modes:

• Horizontal line only
• Vertical line only
• Cross lines (horizontal and vertical)
• Plumb dots only
• Cross lines + Plumb dots

5. Pulse Mode:

Activate pulse mode by pressing the dedicated pulse mode button (often indicated by a pulse icon). In pulse mode, the laser beam is modulated, allowing it to be detected by a compatible laser receiver (not included) over longer distances (up to 60m) or in brighter outdoor conditions. The indicator light for pulse mode will illuminate when active.

Figure 7: Pulse Mode Button. This image provides a close-up of the laser level's control panel, highlighting the button used to activate the pulse mode for use with a laser detector.

Întreţinere

• curatenie: Folosiți un moale, damp cloth to clean the device. Do not use abrasive cleaners or solvents. Keep the laser output windows clean for optimal performance.
• Depozitare: When not in use, store the laser level in its protective carry bag in a cool, dry place. Ensure the pendulum lock is engaged before storage or transport.
• Îngrijirea bateriei: For long-term storage, charge the battery to approximately 50% every three months to prolong its lifespan.
• Verificare calibrare: Periodically check the accuracy of the laser level. Refer to the troubleshooting section for basic calibration checks.

Depanare

Basic Calibration Check:

To check the accuracy of the horizontal line:

1. Place the laser level on a flat surface approximately 5 meters from a wall.
2. Turn on the horizontal line in self-leveling mode and mark the center of the line on the wall (Point A).
3. Rotate the laser level 180 degrees without moving its base and mark the center of the line again on the wall (Point B).
4. The difference between Point A and Point B should be within ±3mm at 10 meters. For 5 meters, the tolerance is ±1.5mm. If the deviation is greater, the device may require professional calibration.

Specificații

Garanție și suport

POPOMAN products are designed and manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the contact information provided on the product packaging or visit the official POPOMAN website. Please have your model number (MTM320B) and purchase details ready when contacting support.

Producător: POPOMAN

Model: MTM320B

Primele disponibile: 29 aprilie 2021
