Spartan 61-inch Deck Belt (Part Number 461-0002-00) Instruction Manual

1. Introducere

This instruction manual provides essential information for the proper installation, operation, and maintenance of your Spartan 61-inch Deck Belt, part number 461-0002-00. Adhering to these guidelines will help ensure the longevity and optimal performance of your lawn mower's cutting deck system. Please read this manual thoroughly before attempting any installation or maintenance procedures.

2. Produs terminatview

The Spartan 61-inch Deck Belt (Part Number 461-0002-00) is a genuine replacement component designed specifically for Spartan lawn mowers equipped with a 61-inch cutting deck. This belt is crucial for transferring power from the engine to the mower blades, enabling efficient cutting. It is compatible with Spartan RZ, RT, and SRT series models.

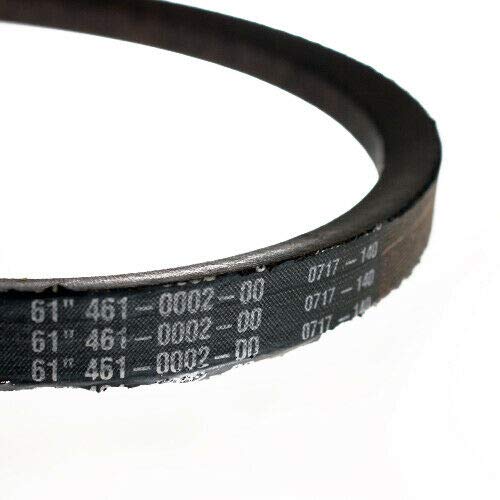

Imaginea 1: Un prim plan view of the Spartan 61-inch Deck Belt. The belt is black with white text clearly visible, indicating '61" 461-0002-00', confirming its size and part number. The texture of the belt material is also visible, suggesting durability.

3. Informații de siguranță

Always prioritize safety when working with machinery. Failure to follow safety instructions can result in serious injury or damage to equipment.

• Deconectați alimentarea: Before performing any installation, inspection, or maintenance, ensure the mower's engine is turned off, the spark plug wire is disconnected, and the key is removed to prevent accidental starting.
• Purtați echipament de protecție: Always wear appropriate personal protective equipment, including gloves and eye protection.
• Consult Mower Manual: Refer to your specific Spartan lawn mower's owner's manual for detailed safety procedures and deck removal instructions.
• Echipament securizat: Ensure the mower is on a stable, level surface and properly supported if lifting is required.
• Suprafețe fierbinți: Allow the engine and exhaust system to cool down before handling to avoid burns.

4. Configurare și instalare

Replacing the deck belt requires careful attention. These are general steps; always consult your specific Spartan mower's service manual for precise instructions and diagrams.

1. Pregătiți mașina de tuns iarba: Park the mower on a flat, level surface. Turn off the engine, remove the key, and disconnect the spark plug wire. Allow the engine to cool.
2. Accesați puntea: Depending on your model, you may need to remove the mower deck from the tractor or lift the mower to gain access to the underside of the deck.
3. Eliberați tensiunea: Locate the belt tensioning mechanism (usually a spring-loaded idler pulley) and relieve the tension on the old belt.
4. Scoateți cureaua veche: Carefully remove the old belt from all pulleys. Note the routing path of the belt before removal, or take a photograph for reference.
5. Inspectați scripeții: While the belt is off, inspect all pulleys for wear, damage, or excessive play. Replace any worn components.
6. Instalați o curea nouă: Route the new Spartan 61-inch Deck Belt (461-0002-00) around the pulleys, following the exact path of the old belt. Ensure the belt is seated correctly in all pulley grooves.
7. Aplicați tensiunea: Re-engage the belt tensioning mechanism. Verify that the belt is taut and properly aligned.
8. Reasamblare și testare: Reattach the mower deck (if removed) and reconnect the spark plug wire. Start the engine and engage the blades briefly in a safe, open area to ensure the belt operates smoothly without slipping or unusual noise.

5. Considerații operaționale

Once the new deck belt is installed, proper operation helps maintain its condition.

• Implicare lină: Engage the mower blades smoothly to avoid sudden shock loads on the belt.
• Evitați obstacolele: Be mindful of obstacles that could jam the blades or deck, as this can cause the belt to slip or break.
• Proper Deck Height: Operate the mower with the deck set at an appropriate cutting height for the terrain and grass conditions.

6. Întreținere

Regular inspection and maintenance will extend the life of your deck belt.

• Inspecție vizuală: Periodically inspect the belt for signs of wear, cracking, fraying, glazing, or stretching. Check for any foreign objects lodged in the pulleys or around the belt.
• Verificarea tensiunii: Ensure the belt maintains proper tension. A loose belt can slip, causing inefficient cutting and premature wear. An overly tight belt can strain pulleys and bearings.
• curatenie: Keep the deck and pulleys free of grass clippings, dirt, and debris, which can interfere with belt operation and cause wear.
• Înlocuire: Replace the belt if any significant signs of wear or damage are observed, or if it begins to slip consistently. A worn belt can lead to poor cutting performance and potential damage to other components.

7. Depanare

If you experience issues with your mower deck, consider the following common problems related to the deck belt:

• Blades Not Engaging or Slipping:
  • Verificați tensiunea curelei.
  • Inspect belt for wear, stretching, or breakage.
  • Ensure belt is correctly routed on all pulleys.
• Excessive Noise or Squealing:
  • Inspect belt for glazing or damage.
  • Check pulleys for proper alignment and condition.
  • Ensure no debris is caught in the belt path.
• Belt Breaking Frequently:
  • Inspect pulleys for sharp edges, damage, or seizing.
  • Verify correct belt tension (over-tightening can cause premature failure).
  • Ensure the correct belt part number is being used.

If troubleshooting steps do not resolve the issue, consult a qualified service technician or refer to your mower's comprehensive service manual.

8. Specificații

9. Garanție și asistență

For information regarding warranty coverage for your Spartan 61-inch Deck Belt (461-0002-00), please refer to the documentation provided with your original Spartan lawn mower or contact an authorized Spartan dealer. For technical support or further assistance, please reach out to your product supplier or an authorized Spartan service center.
