Amico MIG130-050 MIG Welder Consumables Instruction Manual

1. Introducere

This manual provides essential instructions for the proper use, installation, and maintenance of the Amico MIG130-050 MIG Welder Consumables. These components are designed for use with the Amico MIG-130A welding machine and similar Binzel 15AK Torch systems. Adhering to these guidelines will ensure optimal performance and extend the lifespan of your welding consumables.

2. Produs terminatview

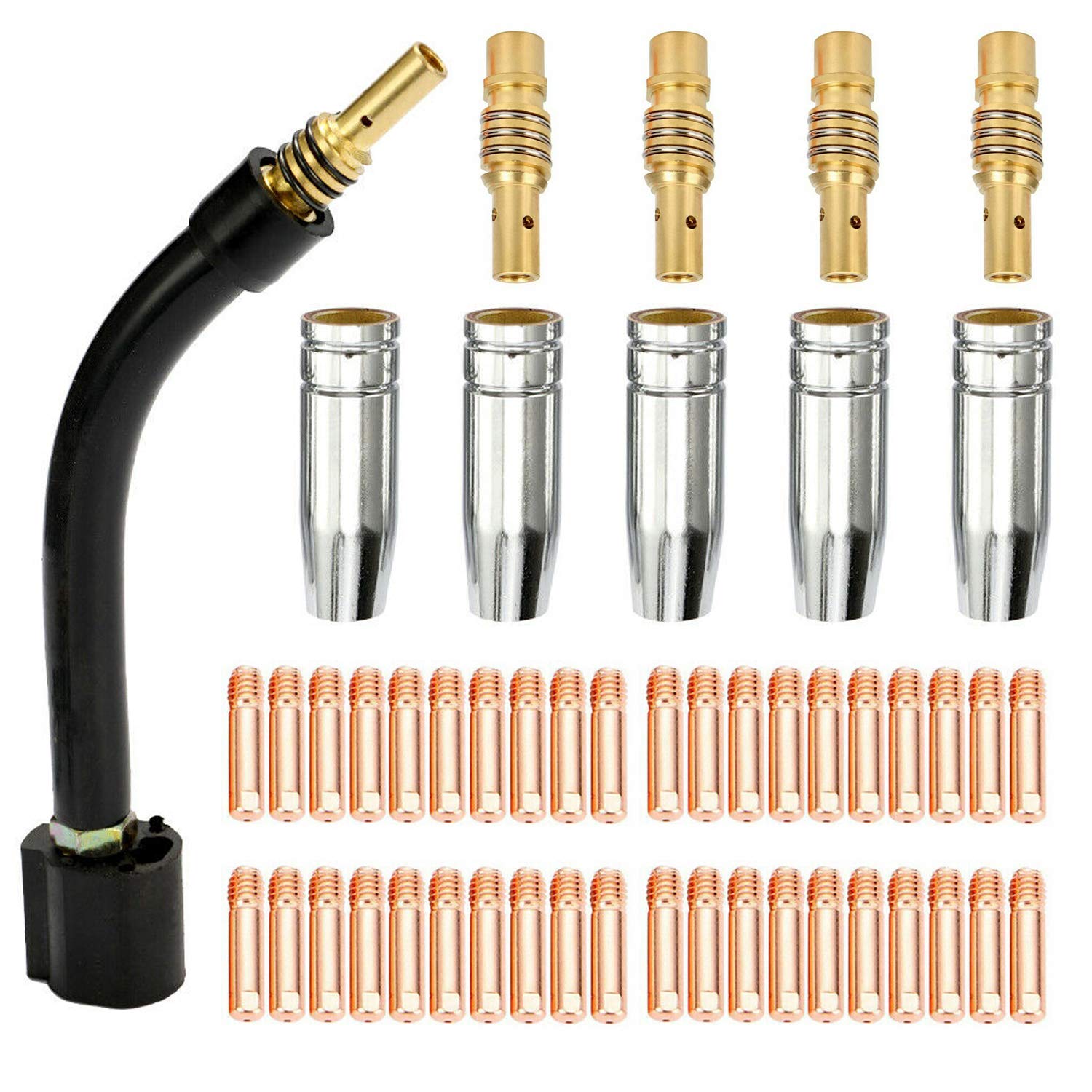

The Amico MIG130-050 consumable set includes a comprehensive selection of high-quality copper components crucial for MIG welding operations. These parts are engineered for durability and high-temperature resistance.

Continutul pachetului:

• 20 x 0.030" (0.8mm) Contact Tips
• 20 x 0.035" (0.9mm) Contact Tips
• 5 x Gas Nozzles
• 5 x Tip Holders (Contact Tip Diffusers)
• 1 x Swan Neck (MIG Torch Neck)

3. Configurare și instalare

Proper installation of consumables is vital for consistent weld quality and safety. Ensure your welding machine is powered off and disconnected from the power source before handling any components.

Pașii de instalare:

1. Prepare the Torch: Ensure the MIG torch is clean and free from spatter. If replacing old consumables, remove them carefully.
2. Install the Swan Neck: If replacing the swan neck, securely attach it to the MIG torch handle according to your welder's specific instructions.
3. Attach the Tip Holder: Screw the appropriate tip holder (also known as a contact tip diffuser) onto the threaded end of the swan neck. Tighten it firmly but do not overtighten.
4. Insert the Contact Tip: Select the correct contact tip size (0.030" or 0.035") for your welding wire. Screw the contact tip into the front of the tip holder. Ensure it is snug to provide good electrical contact.
5. Install the Gas Nozzle: Slide the gas nozzle over the contact tip and tip holder. It should fit securely, typically with a slight push and twist, ensuring the gas ports align correctly for shielding gas flow.

Figura 1: A explodat view of MIG torch consumables. This image illustrates the individual components: the swan neck, tip holder, contact tip, and gas nozzle, showing their assembly order on a MIG welding torch.

4. Instrucțiuni de utilizare

Once the consumables are correctly installed, ensure your MIG welder is set up according to its specific manual. The choice of contact tip size must match the diameter of your welding wire. The gas nozzle directs shielding gas to the weld pool, protecting it from atmospheric contamination.

Considerații cheie:

• Viteza de alimentare a firului: Adjust the wire feed speed on your MIG welder to match the material thickness and desired weld.
• Voltage Setări: Setați volumultage appropriate for your wire type and material.
• Shielding Gas: Ensure a consistent flow of appropriate shielding gas (e.g., Argon/CO2 mix) for your application.
• Contact Tip Recess: For most applications, the contact tip should be recessed slightly inside the gas nozzle to protect it from spatter and ensure proper gas coverage.

5. Întreținere

Regular maintenance of your MIG consumables is crucial for optimal performance, preventing issues, and extending their lifespan. Neglecting maintenance can lead to poor weld quality and increased consumable replacement frequency.

Proceduri de întreținere:

1. Clean the Gas Nozzle: Frequently remove spatter from inside and outside the gas nozzle using welding pliers or a nozzle reamer. Excessive spatter can obstruct gas flow and cause porosity in welds.
2. Inspect the Contact Tip: Check the contact tip for wear, enlargement of the wire hole, or excessive spatter buildup. A worn tip can cause erratic wire feeding and poor arc stability. Replace if necessary.
3. Check the Tip Holder: Ensure the tip holder is clean and free of spatter. The gas passages must be clear to allow proper shielding gas delivery.
4. Apply Anti-Spatter: Use anti-spatter spray or dip gel on the nozzle and contact tip to reduce spatter adhesion and simplify cleaning.
5. Înlocuire regulată: Consumables are designed to wear out. Replace contact tips, nozzles, and tip holders as they show signs of wear or damage to maintain weld quality.

6. Depanarea problemelor comune

7. Specificații

• Model: MIG130-050
• Compatibilitate: Amico MIG-130A, Binzel 15AK Torch
• Material: High-quality Copper
• Contact Tip Sizes: 0.030" (0.8mm), 0.035" (0.9mm)
• Durabilitate: Enhanced for extended lifespan and high-temperature resistance
• Greutatea articolului: Aproximativ 3 kg (pachetul total)
• Dimensiuni pachet: Aproximativ 9 x 7 x 3 inci
