Manual de instrucțiuni pentru sistemul de microfon wireless Kingdom Professional SYSV54

1. Introducere

Thank you for choosing the Kingdom Professional Wireless Microphone System SYSV54. This system is designed to provide clear and reliable audio for various applications, including speech, singing, presentations, and events. It features a 1000-channel UHF design, ensuring stable signal transmission and minimizing interference. This manual provides detailed instructions for setting up, operating, and maintaining your wireless microphone system.

The system includes a metal UHF receiver, two handheld microphones, two bodypack transmitters, and two lavalier/lapel microphones, offering versatile audio capture options.

2. Informații de siguranță

Vă rugăm să citiți și să înțelegeți toate instrucțiunile de siguranță înainte de a utiliza acest dispozitiv. Păstrați acest manual pentru referințe ulterioare.

• Siguranta electrica: Use only the provided power adapter. Ensure the power source matches the voltage cerințe.
• Risc de electrocutare: Nu deschideți dispozitivul casing. Opening the device may result in serious injury and voids the warranty. Refer all servicing to qualified personnel.
• Apă și umiditate: Do not expose the system to water, rain, or excessive moisture. Avoid using the system in high-humidity environments.
• Surse de caldura: Keep the system away from heat sources such as radiators, heat registers, stoves, or other heat-producing appliances.
• Ventilare: Ensure proper ventilation around the receiver. Do not block any ventilation openings.
• Baterii: Use the correct type and size of batteries for the handheld microphones and bodypack transmitters. Do not mix old and new batteries, or different types of batteries. Dispose of used batteries responsibly.
• curatenie: Disconnect the power before cleaning. Use a dry cloth for cleaning. Do not use liquid cleaners or aerosol cleaners.

3. Conținutul pachetului

Verificați dacă toate articolele sunt prezente în colet:

• 1 × 1000-channel UHF Metal Receiver
• 2 × Handheld Microphones
• 2 × Bodypack Transmitters
• 2 × Lavalier/Lapel Microphones
• 2 × Antene
• 1 × Manual de utilizare (acest document)
• 1 × cablu audio
• 1 × External Wall Wart Power Supply

4. Instrucțiuni de configurare

4.1 Configurarea receptorului

1. Plasare: Place the receiver on a stable, flat surface, ensuring adequate ventilation. Position it within the desired operating range of the microphones, ideally with a clear line of sight.
2. Conectați antenele: Screw the two included antennas onto the ANT A-B and ANT C-D connectors on the rear panel of the receiver. Ensure they are securely tightened and positioned vertically for optimal signal reception.
3. Conectare alimentare: Connect the external wall wart power supply to the DC INPUT port on the rear of the receiver, then plug the power supply into a suitable electrical outlet.
4. Conexiune ieșire audio: Conectați receptorul la mixerul audio, amplifier, or sound system using the provided audio cable. You can use the MIX OUT (1/4" unbalanced) for a combined output, or the individual BALANCED A, B, C, D (XLR) outputs for separate channel control.

4.2 Microphone Setup (Handheld & Bodypack)

1. Instalați bateriile: Open the battery compartment of each handheld microphone and bodypack transmitter. Insert two AA batteries (not included), ensuring correct polarity.
2. Attach Lapel Microphones: For bodypack transmitters, plug the lavalier/lapel microphone into the input jack on the bodypack. Secure the lapel microphone to clothing, approximately 6-8 inches from the speaker's mouth.
3. Pornire: Press and hold the power button on each handheld microphone and bodypack transmitter to turn them on. The display will illuminate.

4.3 Frequency Synchronization (IR Sync)

To establish a wireless connection, the microphones/bodypacks must be synchronized with the receiver.

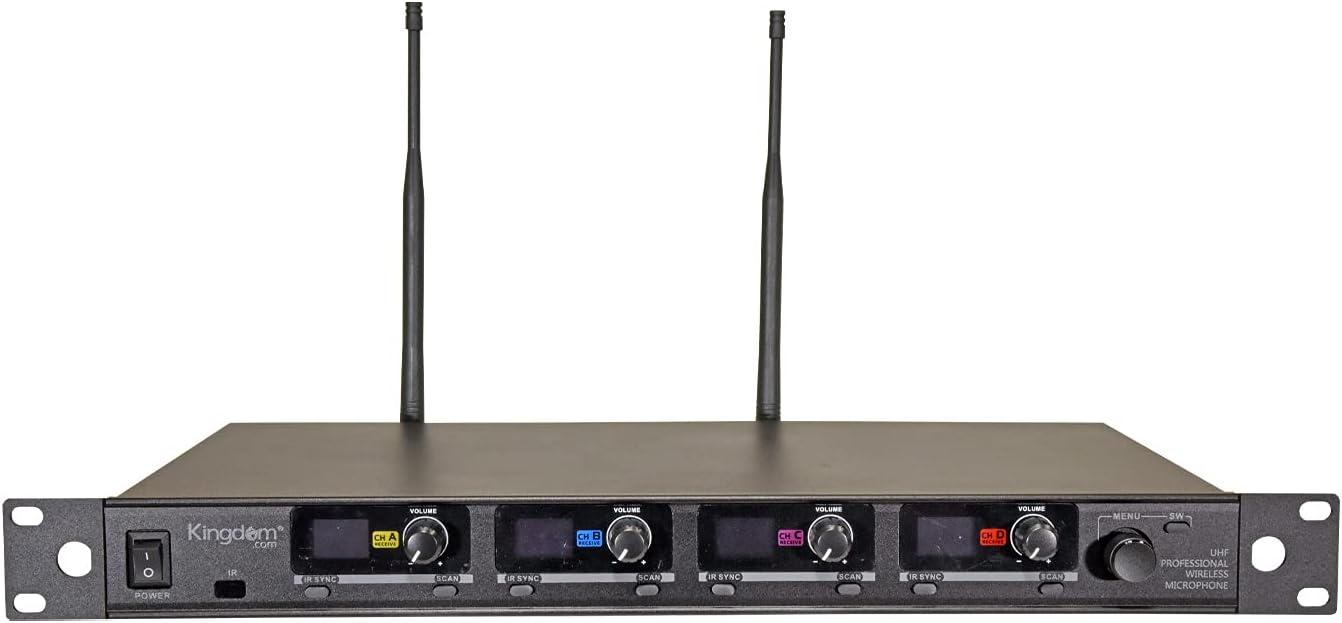

1. Pornirea receptorului: Turn on the receiver using the POWER button on the front panel.
2. Selectați canalul: On the receiver, select the desired channel (CH A, CH B, CH C, or CH D) for the microphone you wish to sync.
3. Initiate Scan (Optional but Recommended): Press the 'SCAN' button on the receiver for the selected channel. The receiver will automatically search for an available, clear frequency.
4. Activate IR Sync on Receiver: Press the 'IR SYNC' button on the receiver for the selected channel. The IR indicator on the receiver will flash.
5. Align Transmitters: Hold the handheld microphone or bodypack transmitter with its IR window facing the IR window on the receiver, typically within a few inches.
6. Confirm Sync: The display on the microphone/bodypack will show the synchronized frequency, and the RF indicator on the receiver will illuminate steadily, indicating a successful connection.
7. Repeat this process for each microphone/bodypack.

5. Instrucțiuni de utilizare

5.1 Pornire/Oprire

• Receptor: Apăsați butonul „POWER” de pe panoul frontal.
• Handheld Microphones/Bodypacks: Press and hold the 'POWER' button on the device until the display illuminates (for ON) or turns off (for OFF).

5.2 Controlul volumului

Each channel on the receiver has an independent volume control knob. Adjust these knobs to achieve the desired audio level for each microphone. Start with the volume low and gradually increase it to avoid sudden loud sounds.

5.3 Funcția Mute

Both handheld microphones and bodypack transmitters feature a MUTE function. Press the 'MUTE' button on the microphone/bodypack to temporarily silence the audio transmission without turning off the device. Press it again to unmute.

5.4 Channel Selection and Auto Scan

The system offers 1000 channels. If you experience interference, you can change the operating frequency:

1. On the receiver, press the 'SCAN' button for the desired channel. The receiver will automatically find and select a clear frequency.
2. Once a new frequency is displayed, perform an IR Sync (as described in Section 4.3) to synchronize the corresponding microphone/bodypack to the new frequency.

5.5 Sfaturi de utilizare

• Distanta de operare: Maintain a line of sight between the microphones/bodypacks and the receiver for optimal performance. The system has a working distance of up to approximately 200 feet.
• Evitați obstacolele: Walls, metal objects, and large crowds can reduce the effective range and cause signal drops.
• Durata de viață a bateriei: Monitor the battery indicators on the microphones/bodypacks. Replace batteries promptly when they are low to avoid interruptions during use.
• Prevenirea feedback-ului: Position microphones away from speakers to prevent audio feedback. Adjust microphone gain and speaker volume carefully.

6. Întreținere

• curatenie: Use a soft, dry cloth to clean the exterior of the receiver and microphones. Do not use abrasive cleaners or solvents.
• Înlocuire baterie: Replace AA batteries in handheld microphones and bodypacks as needed. Always use fresh batteries for best performance.
• Depozitare: When not in use for extended periods, remove batteries from microphones/bodypacks and store the system in a cool, dry place, away from direct sunlight and extreme temperatures.
• antene: Ensure antennas are not bent or damaged. Handle them carefully.

7. Depanare

If you encounter issues with your wireless microphone system, refer to the following common problems and solutions:

8. Specificații

Key technical specifications for the Kingdom Professional Wireless Microphone System SYSV54:

• Nume model: SYSV54
• Gama de frecvență a undei purtătoare: UHF 516.0 - 541.0 MHz
• Număr de canale: 1000 (per mic)
• Distanta de lucru: Up to ~200 feet (line of sight)
• Puterea transmițătorului: Up to ~50mW
• Frequency Response (Handheld): 50Hz ~ 18KHz
• Afişa: LCD (IR sync capable)
• Sursa de alimentare: Corded Electric (Receiver), Battery Powered (Transmitters - AA batteries required, not included)
• Iesiri audio: 1/4" Mix Out, 4x XLR Balanced Outputs
• Greutatea articolului: Aproximativ 10.08 lire sterline
• Dimensiuni pachet: 22.2 x 12.6 x 7.25 inci
• UPC: 617407927696

9. Informații despre garanție

The Kingdom Professional Wireless Microphone System SYSV54 is warranted to be free of manufacturing defects for 1 year from the date of purchase. Additionally, a 30-day return policy is offered. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper installation.

10. Asistență pentru clienți

If you have any questions, require assistance with setup, operation, or troubleshooting, or need to make a warranty claim, please contact Kingdom customer support. We are dedicated to ensuring your satisfaction and are always available to help.

Please refer to your purchase documentation or the official Kingdom website pentru cele mai recente informații de contact.
