1. Introducere
The Laserliner DigiLevel Laser G80 is a digital electronic spirit level designed for precise horizontal and vertical alignment, as well as accurate angle transfer. This device features an integrated green laser line for extending the measuring surface, a magnetic base for hands-free operation on metallic structures, and acoustic guidance for convenient use. Its 80 cm length makes it suitable for a wide range of applications in various trades.
2. Instrucțiuni de siguranță
Please read these safety instructions carefully before using the device. Failure to follow these instructions may result in injury or damage to the device.
- Radiația laser: This device uses a Class 2 laser. Do not look directly into the laser beam or direct it towards other people. Eye protection is recommended when working with lasers.
- Baterii: Ensure correct battery polarity when inserting. Do not mix old and new batteries or different types of batteries. Remove batteries if the device will not be used for an extended period.
- Întreţinere: Nu încercați să deschideți sau să modificați dispozitivul. Reparațiile trebuie efectuate numai de către personal autorizat.
- Mediu: Use the device within the specified operating temperature range (0°C to 40°C). Avoid exposure to extreme temperatures, moisture, or strong vibrations.
3. Produs terminatview
3.1 Componente
The DigiLevel Laser G80 consists of the following main components:
- Afișaj digital
- Control Buttons (UNIT, REF, CAL, HOLD, Power/Backlight)
- Horizontal and Vertical Vials
- Green Laser Output
- Baza magnetică
- Compartiment baterie
Figura 1: Pesteview of the Laserliner DigiLevel Laser G80.
Figure 2: The DigiLevel Laser G80, its protective carrying bag, and AAA batteries.
3.2 Afișaj și butoane
The digital display provides clear readings and indicators. The buttons allow for various functions and settings.
Figure 3: Close-up of the backlit digital display, showing angle measurement and battery status.
Figure 4: The automatic 180° flip display feature for convenient overhead measurements.
- Butonul UNIT: Press to cycle through measurement units (degrees, %, mm/m).
- REF Button: Press to set the current angle as a reference (0°) for relative measurements.
- Buton CAL: Press and hold to enter calibration mode for maintaining accuracy.
- Țineți butonul apasat: Press to freeze the current measurement on the display.
- Buton de pornire (⑂): Press to turn the device on/off. Short press to activate/deactivate backlight.
4. Configurare
4.1 Instalarea bateriei
- Localizați capacul compartimentului bateriei de pe dispozitiv.
- Deschide capacul.
- Insert two (2) 1.5V LR03 (AAA) batteries, ensuring correct polarity (+/-).
- Închideți bine capacul compartimentului bateriei.
5. Instrucțiuni de utilizare
5.1 Pornire/Oprire
Press the Power button (⑂) to turn the device on. Press and hold the Power button to turn it off.
5.2 Măsurare de bază
Place the DigiLevel Laser G80 on the surface to be measured. The digital display will show the angle of inclination. The display automatically rotates 180° for overhead measurements.
5.3 Selectarea unității
Apăsați tasta UNITATE button to switch between different measurement units: degrees (°), percentage (%), and mm/m.
5.4 Reference Function (REF)
To measure relative angles, place the device on a surface and press the REF button. The display will show 0.0°, and subsequent measurements will be relative to this set reference angle. Press REF again to return to absolute measurement.
5.5 Calibration (CAL)
For sustained accuracy, periodic calibration is recommended. Refer to the full user manual for detailed calibration steps. Generally, this involves placing the device on a level surface, initiating calibration, rotating 180°, and confirming.
5.6 Funcția laserului
The integrated green laser line extends the measuring surface, allowing for precise alignment over longer distances. Activate the laser by pressing the dedicated laser button (often integrated with the power button or a separate button). The laser module is located at one end of the level.
Figure 5: The green laser module projecting a line for extended measurement.
Figure 6: The DigiLevel Laser G80 in use, projecting a green laser line onto a wall for alignment.
5.7 Acoustic Guidance
The device provides acoustic signals to assist with alignment at specific angles (0°, 45°, 90°). Three different tones indicate these angles, allowing for hands-free alignment without constantly watching the display.

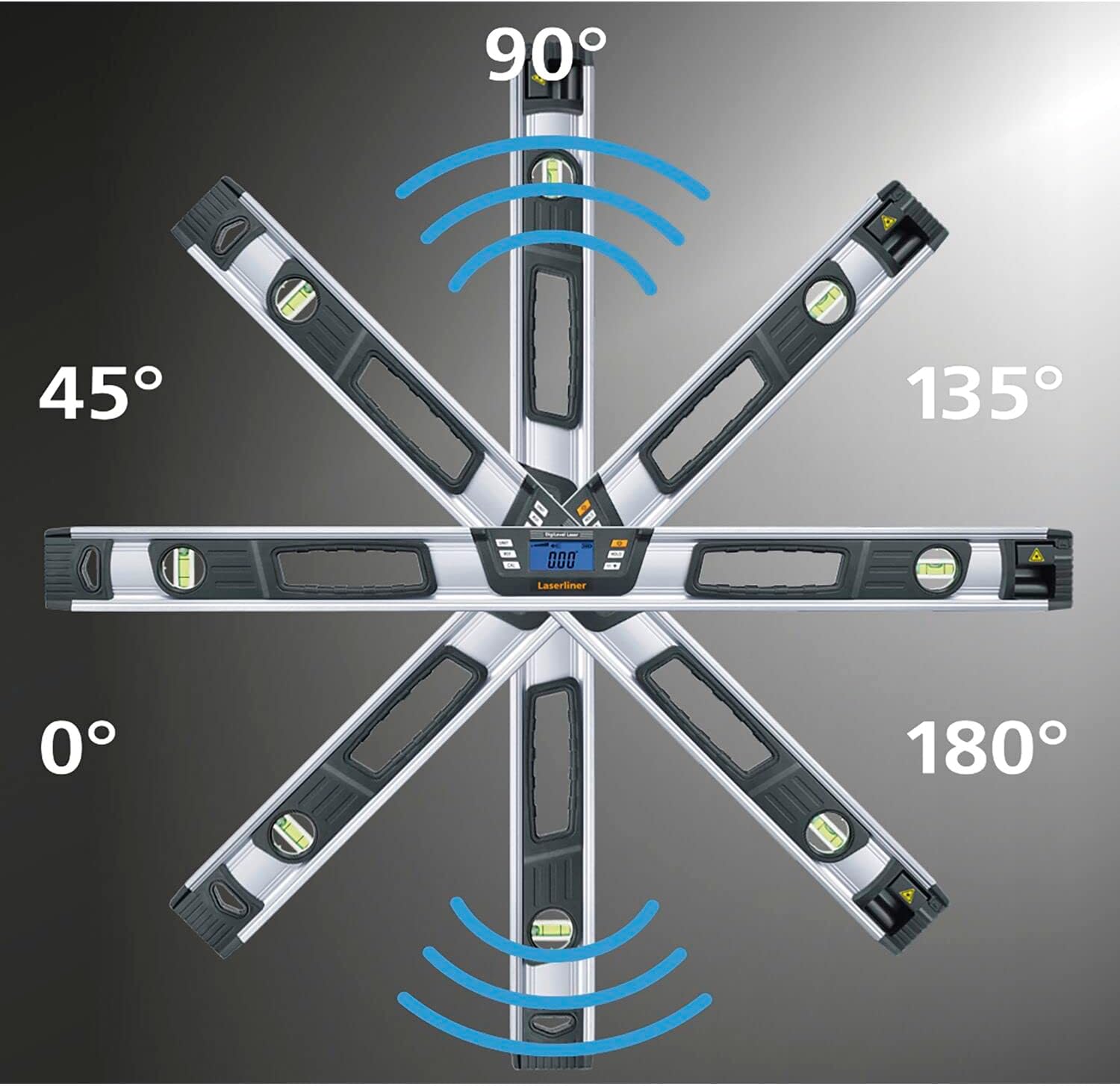

Figure 7: Illustration of 360° angle measurement and acoustic signals at key angles (0°, 45°, 90°, 135°, 180°).
5.8 Funcția Hold
Apăsați tasta ȚINE button to freeze the current measurement on the display. This is useful for taking readings in difficult-to-view poziții. Apăsați ȚINE again to release the measurement.
Figure 8: The 'Hold Angle' function, allowing the current measurement to be frozen on the display.
5.9 Baza magnetica
The integrated magnetic base allows the device to be securely attached to metallic surfaces, enabling hands-free operation for increased convenience and precision.
Figure 9: The magnetic base provides secure attachment to metal surfaces.
6. Aplicații
The Laserliner DigiLevel Laser G80 is suitable for a variety of professional and DIY applications, including:
- Carpentry and Joinery: Precise alignment of wooden structures, frames, and furniture.
- Instalare gips-carton: Ensuring level and plumb surfaces for wall and ceiling panels.
- Acoperișuri: Measuring and transferring roof pitches and angles.
- Pictura: Establishing level lines for decorative elements or wall preparation.
- Construcție generală: Any task requiring accurate horizontal, vertical, or angle measurements.
Figure 10: Using the laser line to align multiple picture frames on a wall.

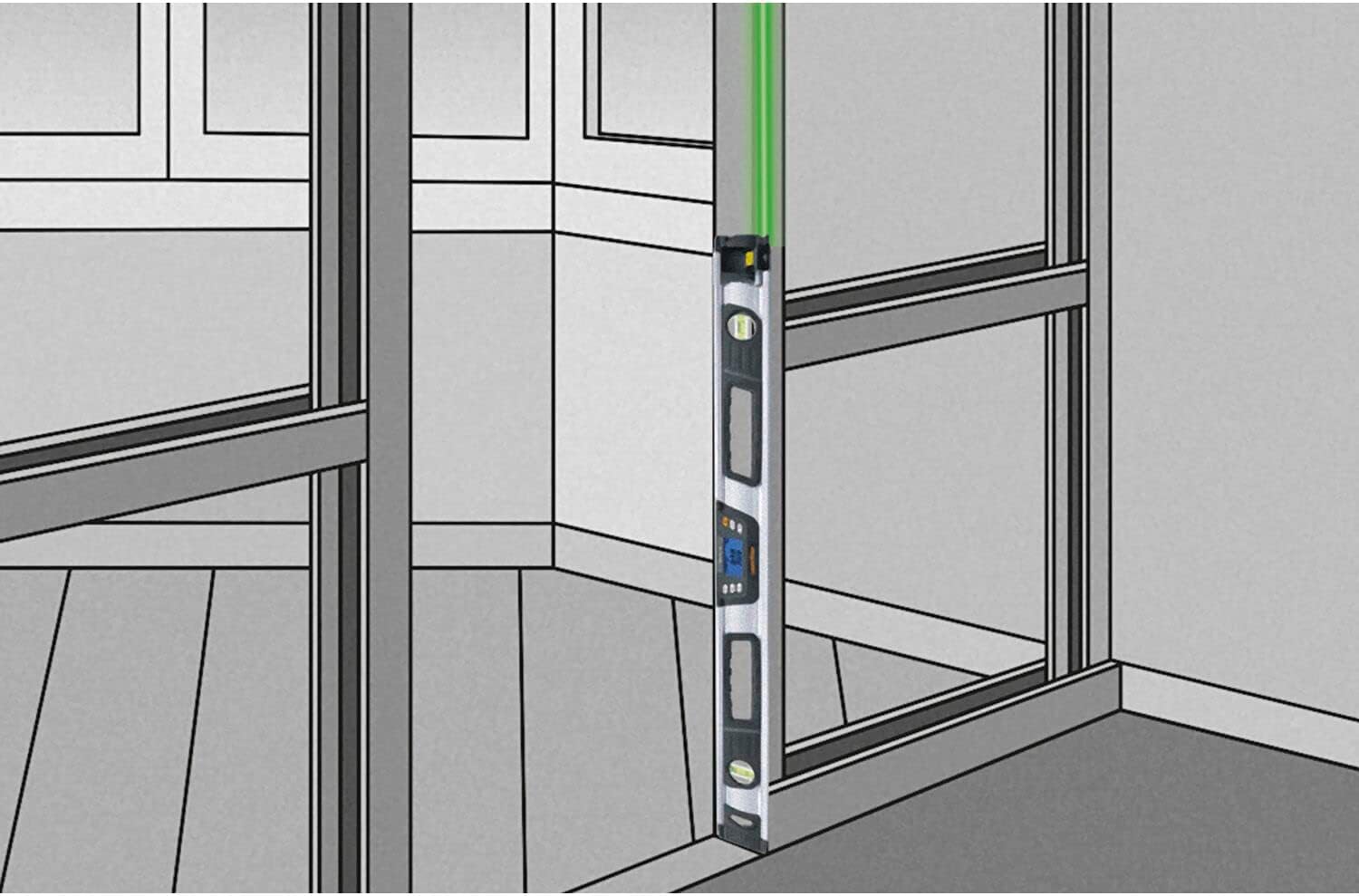

Figure 11: The spirit level used for vertical alignment, ensuring plumb surfaces.
Figure 12: Measuring and aligning on an angled ceiling or sloped surface.
Figure 13: Acoustic guidance assists in leveling shelves, indicated by sound waves.
Figure 14: Acoustic feedback helps in precisely aligning cabinets during installation.
7. Întreținere
- curatenie: Ștergeți dispozitivul cu un material moale, damp pânză. Nu utilizați agenți de curățare abrazivi sau solvenți.
- Depozitare: Store the device in its carrying bag in a dry, dust-free environment when not in use. Remove batteries if storing for extended periods.
- Inspecţie: Verificați în mod regulat dispozitivul pentru orice semne de deteriorare.
8. Depanare
- Dispozitivul nu pornește: Verificați instalarea bateriilor și asigurați-vă că bateriile nu sunt descărcate. Înlocuiți-le dacă este necesar.
- Citiri inexacte: Perform a calibration as described in the full user manual. Ensure the device is placed on a stable surface.
- Laserul nu este vizibil: Check battery level. Ensure the laser output is not obstructed.
9. Specificații
| Numărul de model | 081.257A |
| Lungime | 80 cm |
| Tip laser | Green Line Laser, Class 2, <1 mW |
| Lungimea de undă laser | 515 nm |
| Electronic Measurement Accuracy | ± 0.1° at 0°…1° and 89°…90°, ± 0.2° at 1°…89° |
| Vial Accuracy | ± 0.5 mm/m |
| Precizia afișajului | 1 zecimală |
| Alimentare electrică | 2 x 1.5V LR03 (AAA) batteries |
| Temperatura de operare | 0°C până la 40°C |
| Material | Aluminiu |
| Greutate | 966 de grame |
10. Conținutul pachetului
The Laserliner DigiLevel Laser G80 package includes:
- DigiLevel Laser G80 Digital Electronic Spirit Level
- 2 baterii LR03 (AAA) de 1.5 V
- Geanta de transport
11. Garanție și asistență
Warranty information for the Laserliner DigiLevel Laser G80 is typically provided with the product at the time of purchase or can be obtained directly from the manufacturer, Laserliner. For technical support, please refer to the contact information provided in your product packaging or visit the official Laserliner website-ul.
