1. Introducere
This manual provides detailed instructions for the installation, operation, and maintenance of your visiPower 7 Inch TFT/LCD Video Intercom Door Phone System. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Figure 1: visiPower 7 Inch Video Intercom Door Phone System components.
2. Produs terminatview
2.1 Caracteristici cheie
- Monitor interior: Features a 7-inch TFT/LCD screen for clear video display and a modern design.
- Outdoor Camera: Constructed from durable aluminum alloy, offering resistance to rain and oxidation. Equipped with a 1/4" CMOS 700TVL camera.
- Vedere îmbunătățită: Includes an IR-Cut filter for improved picture and color quality, especially in varying light conditions.
- Controlul ușii: Supports electric lock control for convenient access management.
- Funcție de monitorizare: Allows real-time monitoring of the area outside the door.
- Customizable Ringtones: Offers 25 selectable doorbell ringtones.
- Instalare ușoară: Designed for straightforward installation with included adapter and cables.
2.2 Conținutul pachetului
Verificați dacă toate articolele enumerate mai jos sunt incluse în pachetul dumneavoastră:
- 1 x Outdoor Unit (Camera)
- 2 x Indoor Unit (Monitor)
- 1 x Adaptor de alimentare DC15V
- 1 x 5-meter 4-core Connection Cable
- 1 x 2-core Connection Cable
- 2 x Additional 4-core Connection Cables
- 1 x Package of Screws for mounting
Figura 2: Conținutul pachetului.
3. Identificarea componentelor
3.1 Outdoor Unit (Camera)

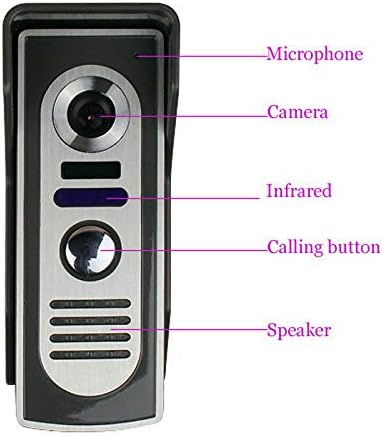

Figure 3: Outdoor Unit Components.
The outdoor unit includes:
- Microfon: Pentru comunicare audio bidirecțională.
- Camera: Capturează fluxul video.
- Senzori cu infrarosu: Pentru capacitățile de vedere nocturnă.
- Buton de apelare: Initiates a call to the indoor monitor(s).
- Vorbitor: Pentru ieșire audio.
3.2 Indoor Unit (Monitor)
Figure 4: Indoor Monitor Back Panel and Controls.
The indoor monitor features:
- Ecran TFT de 7 inci: Displays video from the outdoor camera.
- Lumina de putere: Indică starea de alimentare.
- Microfon: Pentru comunicare audio bidirecțională.
- Butoane de control: Including Monitor, Interior Intercom, Volume, Unlock, and Intercom Button.
- Difuzoare: Pentru ieșire audio.
- Porturi de conexiune: For power input, outdoor unit connection, and additional indoor units.
- Placă de suspendare: Pentru montare pe perete.
4. Configurare și instalare
4.1 Test de preinstalare
Before permanent installation, it is recommended to test the door phone kit using the provided original cables. Connect all components temporarily and ensure they function correctly. During this test, keep the outdoor unit and indoor monitor(s) at a reasonable distance from each other to avoid audio feedback or noise interference.
4.2 Montarea unităților
- Unitate exterioară: Choose a suitable location near your door, ensuring it is at an appropriate height for visitors and protected from direct heavy rain if possible. Use the provided screws to securely mount the outdoor unit to the wall.
- Indoor Monitor(s): Select a convenient indoor location, such as a hallway or living area. Mount the hanging plate to the wall using screws, then attach the indoor monitor to the plate.
Figure 5: Outdoor Unit Dimensions.
4.3 Schema electrică
Follow the wiring diagrams carefully. The system uses 4-core cables for connection between the outdoor unit and indoor monitor(s), and between multiple indoor monitors. A 2-core cable is typically used for electric lock connection.
Figure 6: System Wiring Diagram (Two Monitors and Electric Lock).
Figura 7: Example Installation and Electric Lock Wiring.
Important: Ensure all power is disconnected before performing any wiring to prevent electrical shock or damage to the system.
5. Instrucțiuni de utilizare
5.1 Răspunsul la un apel
When a visitor presses the calling button on the outdoor unit, the indoor monitor(s) will ring. Press the 'Intercom Button' on the indoor monitor to establish two-way audio communication with the visitor.
5.2 Monitoring the Outdoor Area
La view the outdoor area without a visitor call, press the 'Monitor' button on the indoor unit. The screen will display the live video feed from the outdoor camera.
5.3 Deblocarea ușii
If an electric lock is connected to the system, you can unlock the door by pressing the 'Unlock' button on the indoor monitor during a call or while monitoring.
5.4 Ajustarea setărilor
Use the 'Volume' button to adjust the audio level of the indoor monitor. Other settings, such as ringtone selection, may be accessible through the monitor's interface (refer to specific model features if applicable).
6. Întreținere
- curatenie: Use a soft, dry cloth to clean the screens and surfaces of both indoor and outdoor units. Avoid abrasive cleaners or solvents.
- Conexiuni: Verificați periodic toate conexiunile cablurilor pentru a vă asigura că sunt sigure și fără coroziune.
- Unitate exterioară: Ensure the camera lens and infrared sensors on the outdoor unit are clear of dirt, dust, or spiderwebs pentru performanță optimă.
7. Depanare
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| No image on indoor monitor | Loose connection between outdoor unit and monitor; Power issue; Damaged cable. | Check all wiring connections. Ensure power adapter is correctly plugged in. Inspect cables for damage. |
| Fără sunet sau calitate audio slabă | Volume too low; Loose audio connection; Microphone/speaker obstruction. | Adjust volume on indoor monitor. Check audio wiring. Ensure microphone and speaker are not blocked. |
| Soneria nu sună | Outdoor unit button not working; Wiring issue; Ringer volume off. | Test the outdoor unit button. Check wiring to the indoor monitor. Ensure ringer volume is not muted. |
| Electric lock not opening | Incorrect wiring to lock; Lock power issue; Faulty lock. | Verify electric lock wiring according to the diagram. Check power supply to the lock. Test the lock independently if possible. |
8. Specificații
8.1 Outdoor Camera Unit
- Senzor de cameră: 1/4" CMOS 700TV Lines
- Iluminare minima: 0.5 lux
- Ieșire video: 1Vp-p/75Ω
- Intrare adaptor: AC100 ~ 240V, 50 / 60Hz
- Ieșire adaptor: DC15V/1.2A
- Temperatura de lucru: -20℃ până la 50℃
- Instalare: Montat pe perete
- Material: ABS plastic & aluminum alloy
- Dimensiuni: 120mm × 50mm × 43mm (Height × Width × Depth)
8.2 Indoor Monitor Unit
- Ecran: 7" TFT/LCD
- Sursa de alimentare: AC100V-240V / 50-60Hz
- Pixeli efectivi: 480 * 234 * 30
- Consum de energie: ≤14W (operation), ≤2W (standby)
- Cablaj: 4 fire
- Dimensiuni: 195mm × 132mm × 20mm (Width × Height × Depth)
8.3 Generalități
- Număr de model: SY818M12
- Producător: visiPower
9. Garanție și asistență
For warranty information and technical support, please refer to the documentation provided with your purchase or contact visiPower customer service. Keep your purchase receipt as proof of purchase.
