Introducere
This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Dell P2719H 27-inch FHD LED-Lit Monitor. Please read this manual thoroughly before using your monitor to ensure proper functionality and to prevent damage.
Ce este în cutie
The Dell P2719H monitor package typically includes the following components:
- Dell P2719H Monitor Panel
- Suport monitor (bază și suport vertical)
- Cablu de alimentare
- Cablu DisplayPort
- Cablu USB 3.0 Upstream
- Documentation (Quick Setup Guide, Safety Information)
Înființat
1. Asamblare fizică
To assemble the monitor, attach the stand riser to the monitor panel, then secure the base to the riser. Ensure all connections are firm.

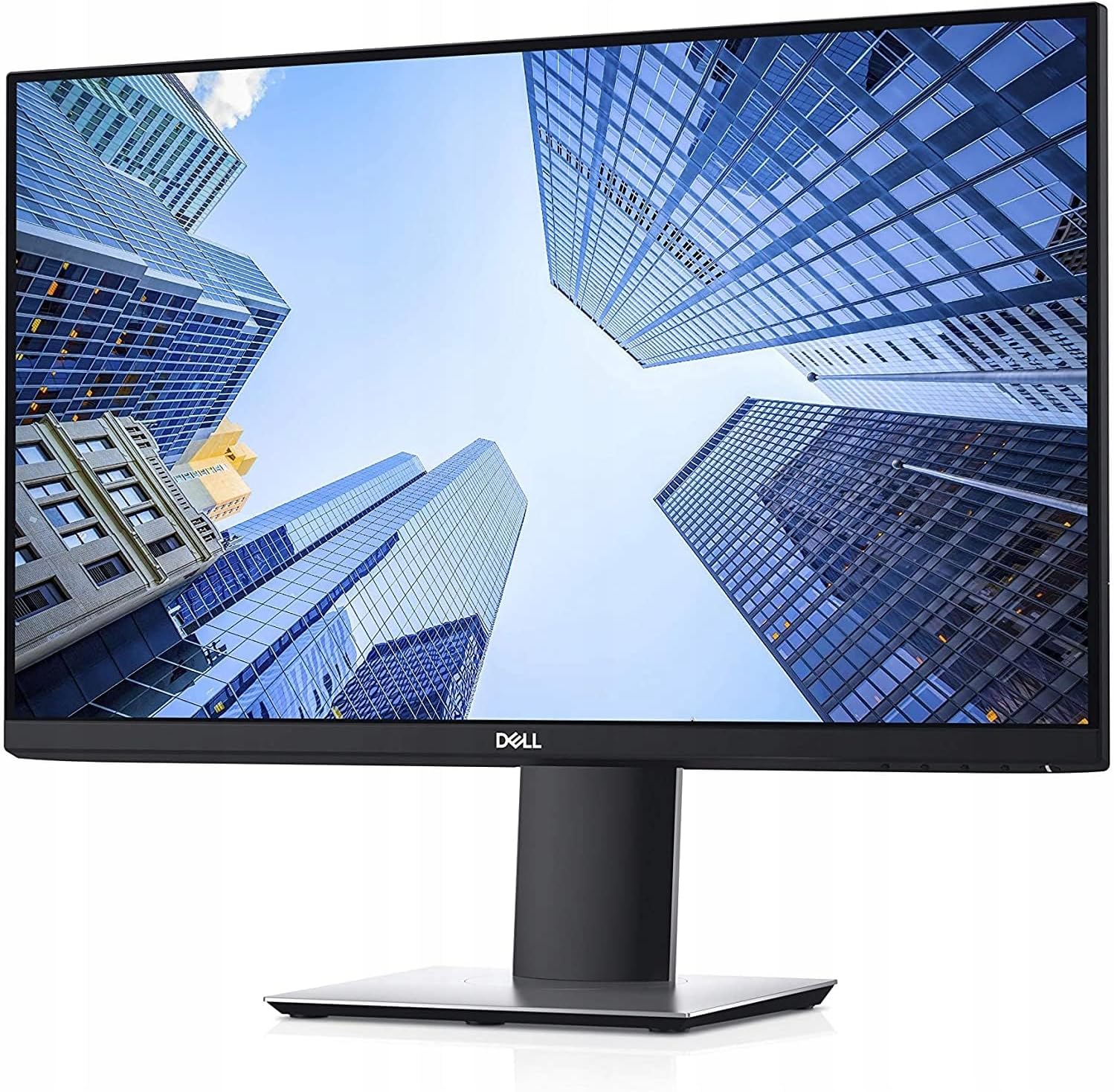

Faţă view of the Dell P2719H 27-inch monitor, showcasinafișajul și suportul său.
2. Cabluri de conectare
Connect the necessary cables to the monitor and your computer. The Dell P2719H offers multiple connectivity options:
- Cablu de alimentare: Connect one end to the monitor's power port and the other to a power outlet.
- Cablu video: Use either the DisplayPort or HDMI cable to connect the monitor to your computer's video output port.
- USB Upstream Cable: Connect the USB 3.0 upstream cable from the monitor to a USB port on your computer to enable the monitor's USB downstream ports.
Latura view of the Dell P2719H monitor, illustrating the various connectivity ports available for connection to a computer and other peripherals.
This video demonstrates the key features of the Dell P Series monitor, including its ultrathin bezel, adjustable stand, cable management, and multi-monitor capabilities. It highlights how the monitor can optimize workspace efficiency.
Instrucțiuni de operare
1. Pornire/Oprire
Press the power button located on the bottom right side of the monitor to turn it on or off. The power LED will indicate the monitor's status.
2. Meniul de afișare pe ecran (OSD).
Access the OSD menu by pressing any of the control buttons on the bottom right of the monitor (excluding the power button). Use the buttons to navigate through the menu options and adjust settings such as brightness, contrast, color, and input source.
Close-up of the Dell P2719H monitor's bottom edge, revealing the control buttons for navigating the On-Screen Display (OSD) menu.
3. Ajustări ergonomice
The Dell P2719H monitor features a fully adjustable stand to enhance viewconfort:
- Reglarea înălțimii: Ridicați sau coborâți monitorul la înălțimea dorită.
- Înclinare: Adjust the screen's vertical angle forward or backward.
- pivotare: Rotiți monitorul pe orizontală la stânga sau la dreapta.
- Pivot: Rotiți ecranul cu 90 de grade pentru a comuta între orientarea peisaj și portret.

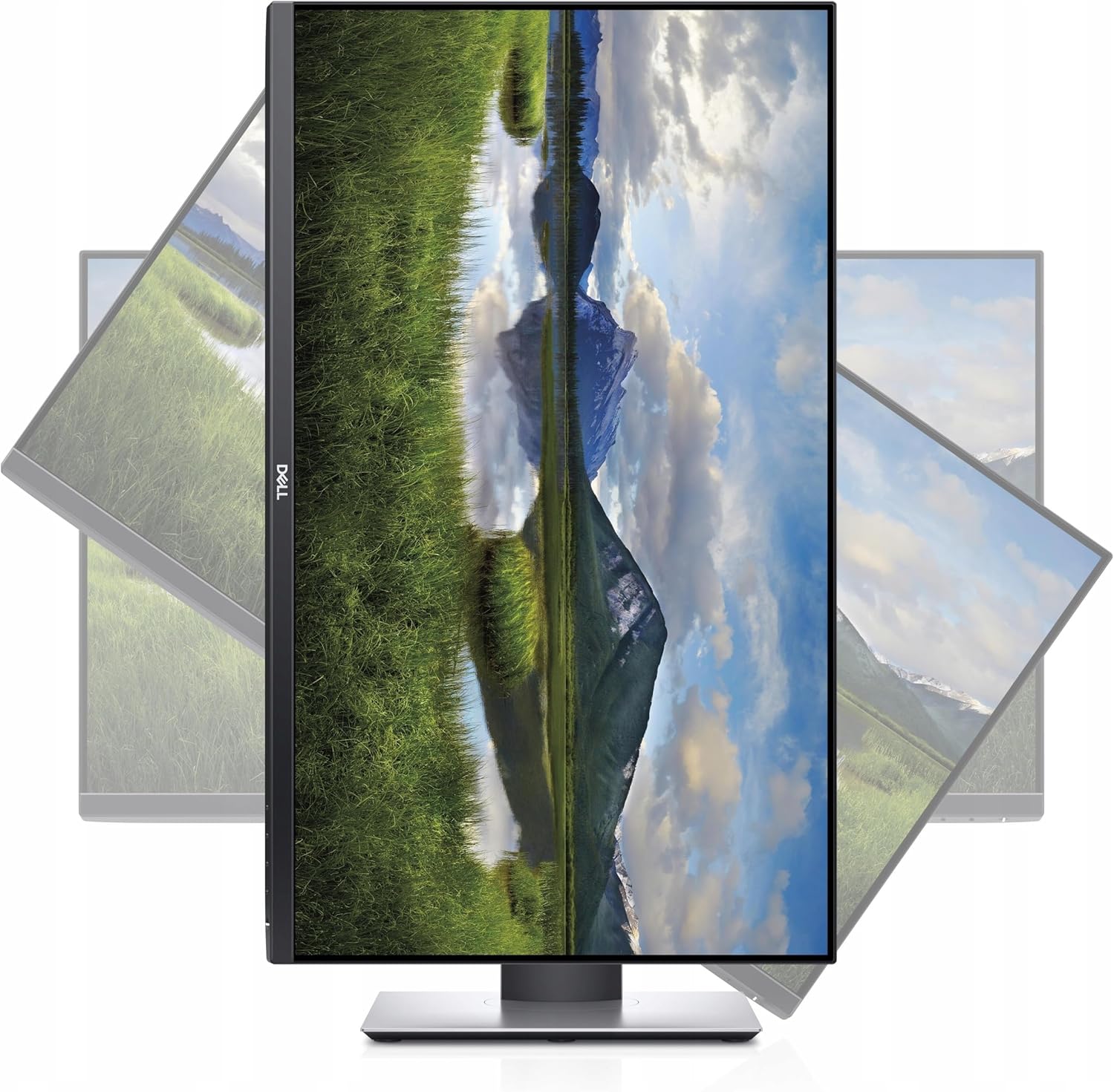

The Dell P2719H monitor is shown pivoted to a vertical (portrait) orientation, demonstrating its flexible ergonomic design.
Suntețiview spectacolasing the Dell P-Series 27-inch monitor, focusing on its USB-C connectivity, display quality, and ergonomic adjustments. It illustrates how the monitor integrates with various devices and its suitability for different tasks.
Caracteristici
The Dell P2719H monitor is designed with several features to enhance your viewing and working experience:
- Ultrathin Bezel: The three-sided ultrathin bezel design provides an expansive viewing area, ideal for multi-monitor setups.
- ConfortView: This TUV-certified feature reduces harmful blue light emissions, optimizing eye comfort during extended use.
- Improved Cable Management: The monitor stand includes a design for routing cables, helping to keep your workspace organized.
- Conectivitate USB-C: A single USB-C cable can deliver power, data, video, and audio, simplifying connections to compatible devices.

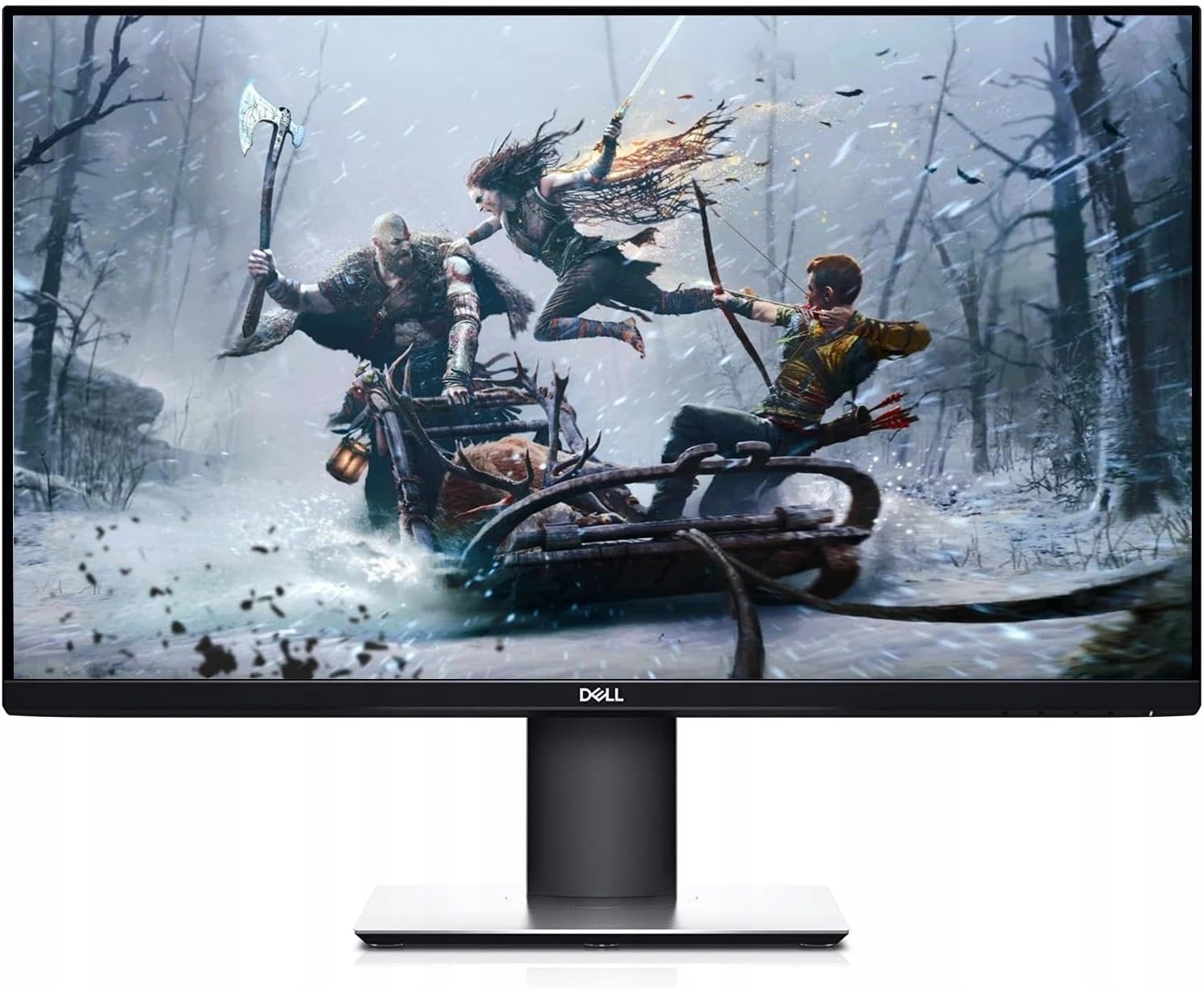

The Dell P2719H monitor displays a vibrant image within its ultrathin bezels, highlighting its modern design and suitability for immersive viewing.
A view of the rear of the Dell P2719H monitor, showing the stand with integrated cable management to maintain a tidy workspace.
Specificații
| Caracteristică | Caietul de sarcini |
|---|---|
| Dimensiunea ecranului permanent | 27 inchi |
| Rezoluția ecranului | 1920x1080 (FHD 1080p) |
| Rezoluția maximă a ecranului | 1920 x 1080 pixeli |
| Marca | Dell |
| Numărul modelului articolului | P2719H |
| Greutatea articolului | 9.6 lire sterline |
| Dimensiunile produsului | 7.28 x 24.01 x 20.64 inci |
| Culoare | Negru |
| Producător | Dell Marketing USA, LP |
| Raportul de aspect | 16:9 |
| Descrierea suprafeței ecranului | Antireflexie, Strat dur (3H) |
| Rata de reîmprospătare | 60 hertzi |
Depanare
If you encounter issues with your Dell P2719H monitor, consider the following common solutions:
- Fără putere: Ensure the power cable is securely connected to both the monitor and a working power outlet. Check if the power LED is illuminated.
- Nicio imagine: Verify that the video cable (DisplayPort or HDMI) is correctly connected to both the monitor and your computer. Ensure the correct input source is selected via the OSD menu.
- Imagine neclară sau neclară: Adjust the display resolution on your computer to match the monitor's native resolution (1920x1080). Check the video cable for damage or loose connections.
- Probleme de culoare: Reset the color settings to factory defaults through the OSD menu. Ensure your graphics card drivers are up to date.
- Porturile USB nu funcționează: Confirm the USB 3.0 upstream cable is connected from the monitor to your computer.
For more detailed troubleshooting, refer to the official Dell support website-ul.
Întreţinere
To ensure the longevity and optimal performance of your Dell P2719H monitor, follow these maintenance guidelines:
- Curățarea ecranului: Gently wipe the screen with a soft, lint-free cloth. For stubborn marks, use a screen-cleaning solution specifically designed for monitors, applied to the cloth, not directly to the screen.
- Curățarea C-uluiasing: Folosiți o cârpă moale și uscată pentru a curăța monitorul.asing. Evitați utilizarea de produse de curățare abrazive sau solvenți.
- Ventilare: Asigurați-vă că orificiile de ventilație ale monitorului nu sunt blocate pentru a preveni supraîncălzirea.
- Depozitare: Când nu este utilizat pentru perioade lungi de timp, depozitați monitorul într-un loc răcoros și uscat, de preferință în ambalajul original.
Garanție și suport
Dell provides comprehensive support for its products. The Dell P2719H monitor typically comes with a standard warranty that may include:
- Premium Panel Exchange: Ensures zero bright pixel defects on UltraSharp, Professional, and Alienware monitors during the warranty period.
- Advanced Exchange Service: If needed, a replacement part/unit is dispatched following completion of phone/online diagnosis. Fees may apply for failure to return defective units. Availability varies by region.
- Optional ProSupport: Additional support options may be available for purchase, offering enhanced service and technical assistance.
For specific warranty details, service requests, or technical support, please visit the official Dell support website or contact Dell customer service with your monitor's service tag.
O re detaliatăview of the Dell P-Series 27-inch monitor, highlighting its physical adjustability, port selection, and overall build quality. The video demonstrates the monitor's features from a user's perspective.
