Manual de utilizare pentru panoul solar Lorex pentru camerele U471AA 2K fără fir

Introducere

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Lorex Solar Panel, designed exclusively for U471AA 2K Wire-Free cameras. This solar panel offers an environmentally-friendly solution to continuously power your camera, extending battery life and ensuring uninterrupted surveillance.

Informații de siguranță

• Ensure all connections are secure and waterproof to prevent damage from moisture.
• Do not attempt to disassemble or modify the solar panel. This may void the warranty and cause damage.
• Install the solar panel in a location where it is not easily accessible to unauthorized individuals.
• Avoid placing the solar panel near flammable materials or in areas with extreme temperatures outside its operating range.
• Use only the provided mounting hardware to ensure secure installation.

Conținutul pachetului

Verificați dacă toate articolele sunt prezente în colet:

• Lorex Solar Panel (Model: ACSOL2B)
• Suport de fixare
• Șuruburi de montare și dibluri de perete
• USB Charging Cable (integrated with solar panel)

Produs terminatview

The Lorex Solar Panel is designed to provide continuous power to your compatible Lorex U471AA 2K Wire-Free cameras. It features a durable, weather-resistant design suitable for outdoor use.

Figura 1: Faţă view of the Lorex Solar Panel, showing the photovoltaic cells and the integrated mounting base.

Figura 2: Înclinat view of the Lorex Solar Panel, highlighting the adjustable mounting bracket for versatile positioning.

• Photovoltaic Cells: Convert sunlight into electrical energy.
• Suport de fixare: Permite poziționarea flexibilă și reglarea unghiului.
• Cablu de încărcare USB: Connects the solar panel to the camera.
• Indicator LED: Provides status information (e.g., charging status).
• Evaluare IP66: Ensures the panel is weather-resistant against dust and powerful water jets.

Înființat

1. Alegerea unei locații de instalare

Optimal performance of the solar panel depends on its placement. Select a location that receives direct sunlight for the majority of the day, ideally 4-6 hours of direct sunlight. Avoid areas with significant shade from trees, buildings, or other obstructions.

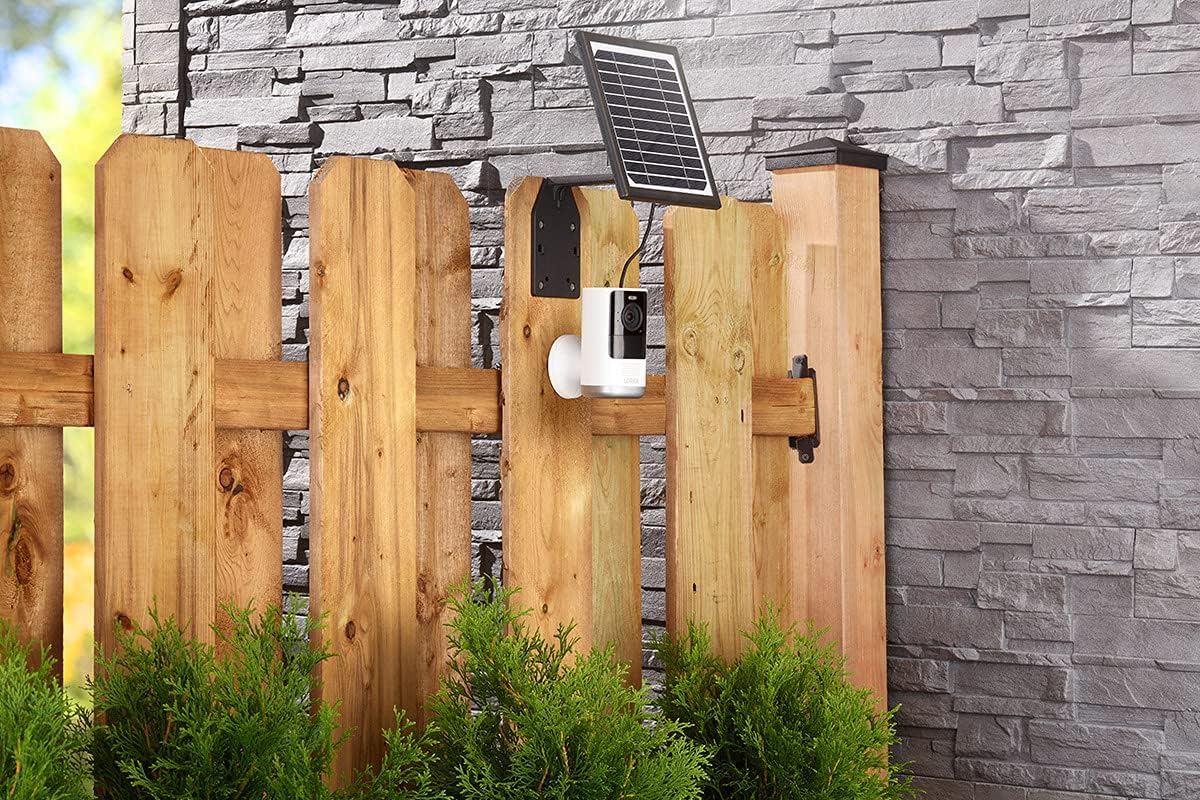

Figura 3: Example installation on a wooden fence, demonstrating outdoor placement.

Figura 4: Example installation on a stone wall, showing a common mounting surface.

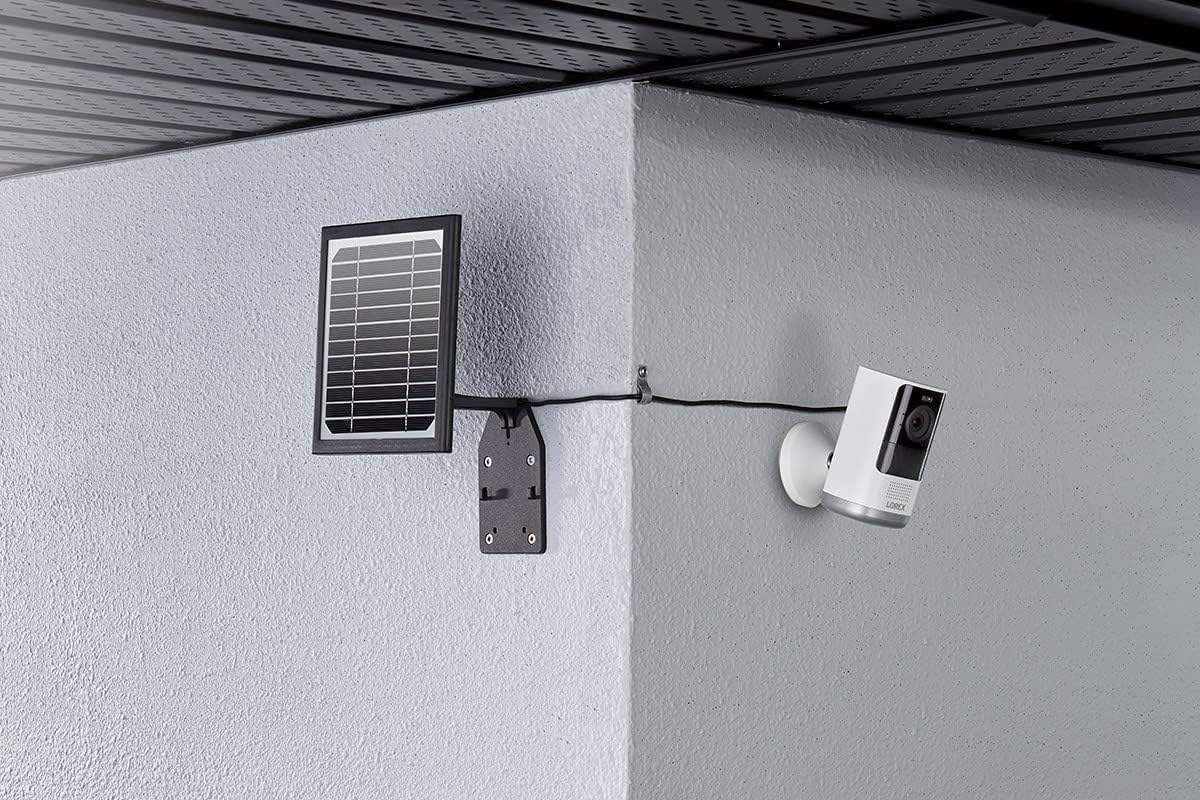

Figura 5: Example installation in a corner, illustrating flexible mounting options.

2. Mounting the Solar Panel

1. Position the mounting bracket against the chosen surface. Use a pencil to mark the drill holes.
2. Drill pilot holes at the marked locations. If mounting on masonry or stucco, insert the wall plugs.
3. Fixați suportul de montare pe suprafață folosind șuruburile furnizate.
4. Attach the solar panel to the mounting bracket. Adjust the angle of the solar panel to maximize sun exposure. The panel should face the direction that receives the most direct sunlight throughout the day.

3. Conectarea la cameră

The solar panel comes with an integrated USB charging cable. Connect this cable to the charging port on your Lorex U471AA 2K Wire-Free camera.

Figura 6: Latura view illustrating the connection of the solar panel to the camera via the charging cable.

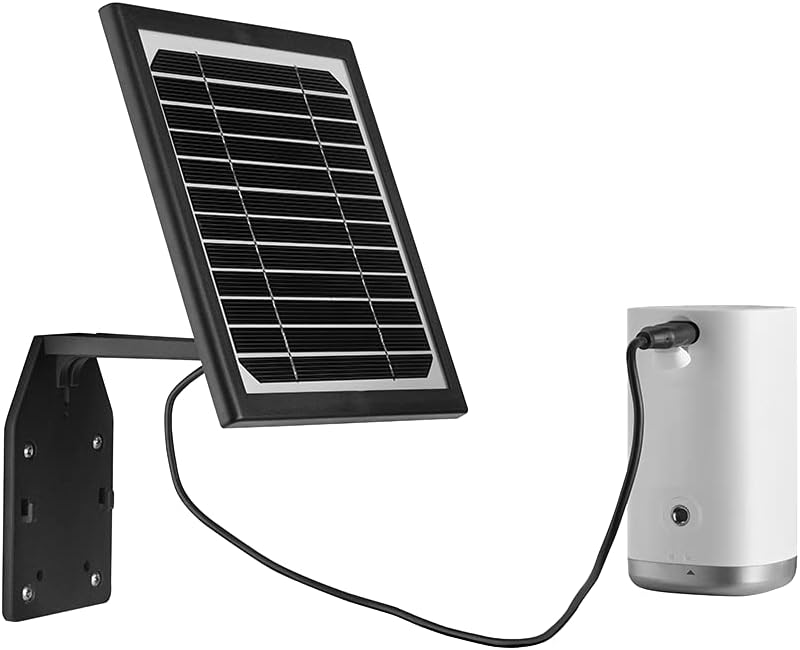

Figura 7: Faţă view of the solar panel connected to the camera, showing the cable routing.

Ensure the connection is snug to maintain weather resistance. Once connected, the solar panel will begin charging the camera's battery when exposed to sufficient sunlight. The LED indicator on the solar panel will illuminate to confirm charging status.

Funcționează

The Lorex Solar Panel operates automatically. When exposed to sunlight, it converts solar energy into electrical energy, which is then used to charge the connected U471AA 2K Wire-Free camera's internal battery. The panel is designed to provide a trickle charge, maintaining the camera's battery level and reducing the need for manual recharging.

• Indicator de încărcare: Refer to your camera's user manual for specific battery status indicators. The solar panel itself may have an LED that indicates charging activity.
• Eficiență energetică: The panel is designed for high efficiency, even in less than ideal sunlight conditions, though direct sunlight is always preferred for optimal performance.

Întreţinere

Regular maintenance ensures the longevity and efficiency of your solar panel.

• curatenie: Curățați periodic suprafața panoului solar cu o lavetă moale șiamp cloth to remove dust, dirt, or debris that may accumulate and reduce efficiency. Do not use abrasive cleaners or harsh chemicals.
• Verificarea obstrucției: Regularly check for any new obstructions (e.g., growing tree branches, new constructions) that might cast shadows on the panel and reduce its sun exposure.
• Verificarea cablului: Inspect the charging cable and connections for any signs of wear, damage, or corrosion. Ensure the connection to the camera remains secure and waterproof.
• Securitatea montajului: Periodically check that the mounting screws and bracket are still securely fastened, especially after strong winds or storms.

Depanare

Specificații

• Marca: lorex
• Număr de model: ACSOL2B
• Material: Siliciu
• Eficienţă: Eficiență ridicată
• Tip conector: USB
• Putere maxima: 3 wați
• Greutatea articolului: 1.45 lire sterline
• Dimensiuni pachet: 8.78 x 7.32 x 3.82 inci
• Evaluare IP: IP66 (Weather-resistant)
• Compatibilitate: Lorex U471AA 2K Wire-Free Cameras

Garanție și suport

Pentru informații despre garanție și asistență tehnică, vă rugăm să consultați site-ul oficial Lorex. website-ul web sau contactați direct serviciul clienți Lorex. Păstrați bonul fiscal ca dovadă a achiziției pentru reclamațiile în garanție.

Lorex Support: www.lorex.com/support
