1. Introducere
This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your Progress Lighting Beam LED Bath Vanity Light. Please read all instructions carefully before beginning installation and retain this manual for future reference.

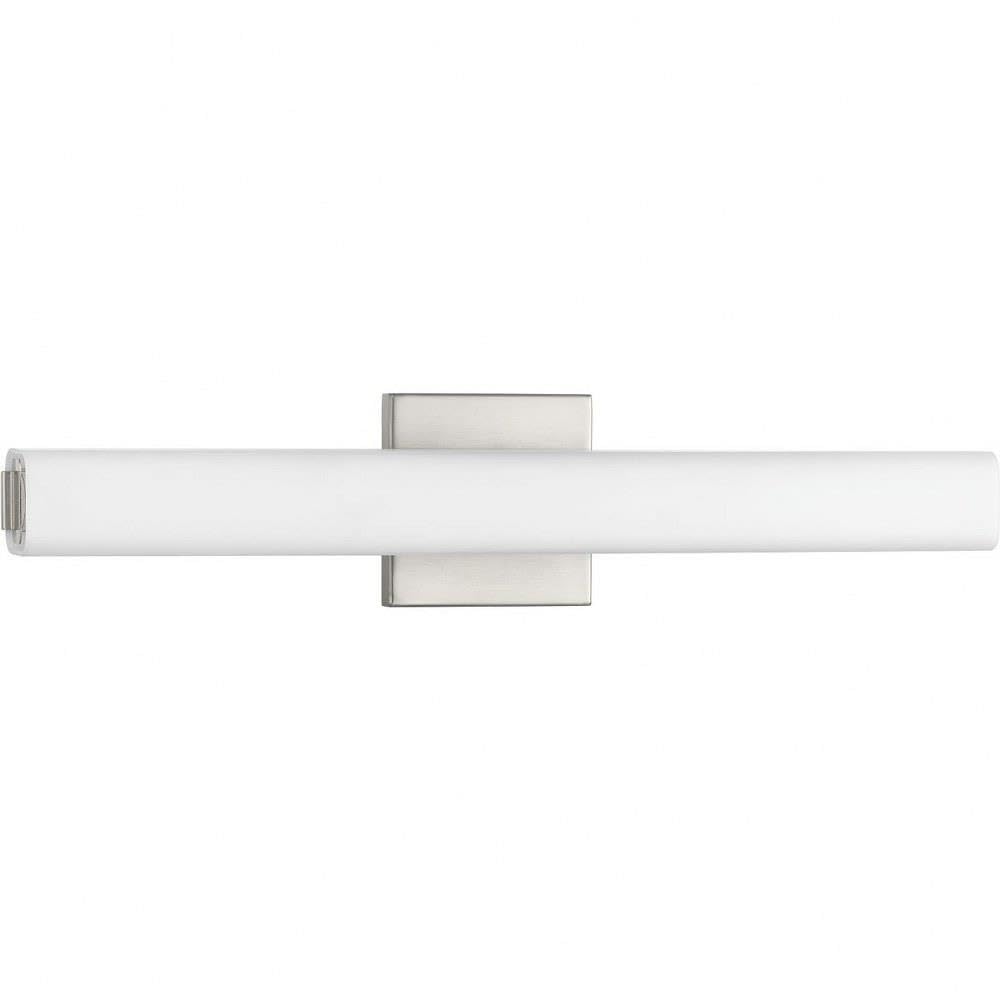

Image 1.1: The Beam LED Bath Vanity Light, featuring a brushed nickel finish and etched opal glass diffuser.
The Beam LED Bath Vanity Light features a squared, tubular opal glass diffuser paired with a modern metal canopy. It incorporates an integrated LED light source designed for energy efficiency and long-lasting performance. This fixture is suitable for both residential and commercial applications and can be installed horizontally or vertically.
2. Configurare și instalare
2.1 Informații de siguranță
- Always turn off the main power supply at the circuit breaker before installing or servicing the fixture.
- Consult a qualified electrician if you are not familiar with electrical installations.
- Asigurați-vă că toate conexiunile electrice respectă codurile și ordonanțele locale.
- This fixture is designed for indoor, wall-mount installation.
- Vă rugăm să verificați legile locale înainte de a cumpăraasing și instalarea acestui produs.
2.2 Componente incluse
Your package should contain the Beam LED Vanity Light fixture and a detailed installation sheet. Please verify all parts are present before proceeding.
2.3 Pași de instalare (generali)
- Pregătiți zona de instalare: Turn off power at the circuit breaker. Remove any existing fixture.
- Montați placa de montare: Secure the mounting plate to the junction box in the wall using the provided screws.
- Faceți conexiuni electrice: Connect the fixture's wires to the household electrical wires according to the installation sheet. Typically, black to black (live), white to white (neutral), and green/bare copper to green/bare copper (ground).
- Asigurați dispozitivul: Attach the fixture body to the mounting plate, ensuring all wires are tucked safely inside the junction box.
- Install Glass Diffuser: Carefully place the etched opal glass diffuser onto the fixture.
- Restabiliți puterea: Turn on the power at the circuit breaker and test the light.
2.4 Sizing and Placement Guidelines
For optimal lighting, consider the following guidelines for vanity light placement:
Image 2.1: Dimensional drawing of the Beam LED Vanity Light, showing its length of 22.25 inches, width of 3 inches, and height of 4.75 inches.
- The vanity light should be approximately 3/4 the width of your mirror, and never longer than the mirror itself.
- For double sinks or wider countertops, consider a larger fixture or multiple fixtures for adequate illumination.
- Mount the fixture above the bathroom mirror, ideally between 75 to 80 inches from the floor.
- If using wall sconces on either side of the mirror, place them at eye level (about 65 inches from the floor) and 2-3 inches from the mirror's edge, approximately 28-30 inches apart.
Video 2.2: Official video from Progress Lighting providing sizing and placement guidelines for bathroom lighting, including vanity lights and wall sconces.
3. Instrucțiuni de utilizare
The Beam LED Vanity Light is designed for simple operation. Once properly installed and connected to a power source, it can be controlled via a standard wall switch or a compatible remote control system, as indicated by its 'Dimmable' and 'Remote Control' features.
- Pornire/Oprire: Folosește întrerupătorul de perete conectat la dispozitivul de iluminat pentru a aprinde sau stinge lumina.
- Funcția de reglare a luminii: This fixture is dimmable. If connected to a compatible dimmer switch, you can adjust the light intensity to your preference. Ensure your dimmer switch is rated for LED lighting.
- Telecomanda: If a remote control system is installed and paired with the fixture, use the remote to control power and dimming functions.
4. Întreținere
Regular maintenance will help preserve the appearance and functionality of your Beam LED Vanity Light.
- curatenie: To clean the fixture, ensure the power is off. Wipe the metal surfaces with a soft, dry cloth. For the glass diffuser, use a soft cloth dampened with a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials that could damage the finish or glass.
- Sursa de lumină LED: The integrated LED light source is designed for long life and is not user-replaceable. Do not attempt to disassemble the LED module.
- Inspecţie: Periodically check for any loose connections or signs of wear. If any issues are found, turn off power and consult a qualified electrician.
5. Depanare
If your Beam LED Vanity Light is not functioning correctly, refer to the following common issues and solutions:
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Lumina nu se aprinde | Fără curent la dispozitiv Conexiunea cablajului slab Comutator defect | Verificați întrerupătorul de circuit și întrerupătorul de perete. Asigurați-vă că există curent electric. Turn off power and check all wiring connections. Test the switch with another device or replace if faulty. |
| Lumina pâlpâie sau se diminuează inconsistent | Dimmer incompatibil Conexiunea cablajului slab | Ensure the dimmer switch is LED compatible. Replace if necessary. Turn off power and check all wiring connections. |
| Lumina nu este atât de strălucitoare cum era de așteptat | Setarea dimmerului este prea scăzută Dust or debris on diffuser | Reglați variatorul la luminozitatea maximă. Clean the glass diffuser as per maintenance instructions. |
Dacă acești pași nu rezolvă problema, vă rugăm să contactați serviciul de asistență pentru clienți.
6. Specificații
| Caracteristică | Detaliu |
|---|---|
| Marca | Iluminare progres |
| Numele modelului | LED fascicul |
| Numărul piesei | P300182-009-30 |
| Culoare | Nickel (Brushed Finish) |
| Culoare umbră | Etched Opal |
| Material | Oțel aliat, Sticlă |
| Stil | Modern |
| Forma de iluminat | vanitate |
| Dimensiunile produsului | 22.25 cm L x 3 cm l x 4.75 cm Î |
| Tip de instalare | Montare pe perete |
| Caracteristica specială | Reglabil |
| Metoda de control | Telecomanda |
| Tip sursă de lumină | LED integrat |
| Numărul de surse de lumină | 1 |
| Voltage | 120 volți |
| Culoare deschisă | Alb cald |
| Temperatura de culoare | 3000 Kelvin |
| Greutatea articolului | 2.19 lire sterline |
| Wattage | 35 wați |
| Luminozitate | 2223 lumeni |
| Eficienţă | 62.1 Lum/Watt |
| Asamblare necesară | Da |
| Nivel de rezistență la apă | Rezistent la apă |
7. Informații despre garanție
Progress Lighting offers a Garanție limitată de 5 an on this product. This warranty guarantees your complete satisfaction with your purchase and includes professional after-sales customer service support. For detailed terms and conditions, please refer to the warranty documentation included with your product or contact customer support.
8. Asistență pentru clienți
For further assistance, technical support, or warranty claims, please visit the official Progress Lighting store or contact their customer service.
Video 8.1: A collective video from Progress Lighting showcasing their commitment to quality, design, and ease of installation for their lighting fixtures.
