Lenovo M83 SFF Desktop PC User Manual

1. Produs terminatview

The Lenovo M83 Small Form Factor (SFF) Desktop PC is a high-performance computer designed for business and general productivity tasks. It features an Intel Quad Core i5-4570 processor, 16GB of DDR3 RAM, and a fast 240GB Solid State Drive (SSD) for quick boot times and application loading. This renewed unit comes with Windows 10 Pro pre-installed, offering a robust and secure operating environment.

Its compact design makes it suitable for various office and home setups, providing ample connectivity options for peripherals and external displays.

2. Conținutul pachetului

Înainte de a începe, asigurați-vă că toate articolele sunt prezente în pachet:

• Lenovo M83 SFF Desktop PC
• Cablu de alimentare
• Tastatura
• Documentație (acest manual)

Note: Additional peripherals such as a monitor, mouse, and speakers are typically sold separately.

3. Ghid de instalare

3.1 Connecting Your PC

1. Plasați PC-ul: Position your Lenovo M83 SFF PC on a stable, flat surface with adequate ventilation.
2. Conectați monitorul: Connect your monitor to one of the available video output ports (VGA, DisplayPort, or HDMI) on the rear of the PC using an appropriate cable.
3. Conectați periferice: Plug in your keyboard and mouse to the available USB ports on the front or rear of the PC.
4. Conectare la rețea (opțional): For a wired connection, plug an Ethernet cable into the RJ-45 port on the rear. For wireless, the PC includes built-in WiFi.
5. Conectare alimentare: Plug the power cable into the PC's power input and then into a grounded electrical outlet.

3.2 Pornirea inițială

1. Apăsați butonul de alimentare din partea frontală a PC-ului.
2. The system will boot into Windows 10 Pro. Follow any on-screen prompts for initial setup, such as language selection and user account creation.

3.3 Front and Rear Panel Overview

Figura 1: Faţă view of the Lenovo M83 SFF Desktop PC, showing USB ports, optical drive, and power button.

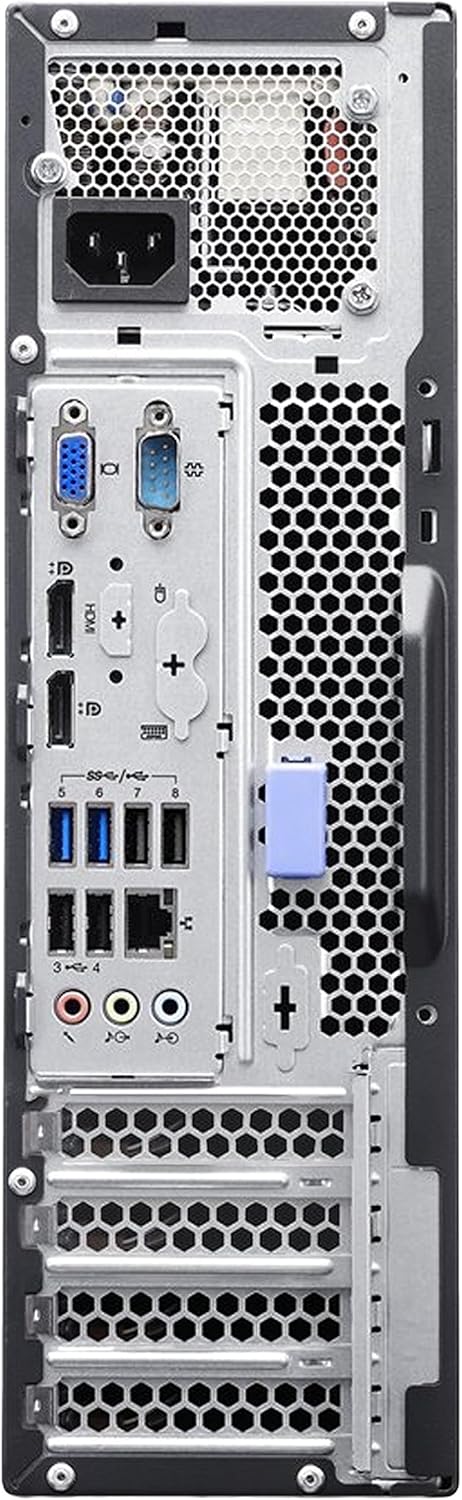

Figura 2: Spate view of the Lenovo M83 SFF Desktop PC, illustrating various connectivity ports including video outputs, USB, and Ethernet.

4. Instrucțiuni de utilizare

4.1 Utilizarea Windows 10 Pro

Your Lenovo M83 SFF PC comes with Windows 10 Pro, offering a familiar and efficient user experience. You can access pre-installed applications, browse the internet, manage files, and customize your desktop environment.

4.2 Conectivitate

• Porturi USB: Use the multiple USB ports (including USB 3.0 for faster data transfer) to connect external devices like flash drives, external hard drives, printers, and other peripherals.
• Ieșiri video: Connect up to two monitors simultaneously using the DisplayPort, VGA, or HDMI ports for extended desktop functionality.
• Porturi audio: Front and rear audio jacks allow for connecting headphones, microphones, and external speakers.
• Unitate optică: The integrated DVD drive supports reading and writing CDs and DVDs.
• WiFi și Bluetooth: Connect to wireless networks and Bluetooth devices (e.g., headphones, speakers) for enhanced flexibility.

5. Întreținere și upgrade

5.1 Întreținere generală

• Păstrați-l curat: Regularly clean the exterior of the PC with a soft, dry cloth. Ensure ventilation grilles are free from dust to prevent overheating.
• Actualizări de software: Keep your Windows operating system and drivers updated to ensure optimal performance and security.
• Date de rezervă: Faceți periodic copii de rezervă ale datelor importante pe o unitate externă sau într-un spațiu de stocare în cloud pentru a preveni pierderea datelor.

5.2 Potential Upgrades

The Lenovo M83 SFF is designed for easy maintenance and potential upgrades:

• RAM: The system supports DDR3 RAM. You can upgrade the existing 16GB to a higher capacity if needed for more demanding applications.
• Depozitare: The 240GB SSD provides fast performance. Additional storage can be added via an internal hard drive (HDD) or external USB drives.
• Placa grafica: For enhanced graphics performance, a low-profile PCI-e graphics card can be installed, provided it fits the SFF chassis and power supply limitations.

6. Depanare

If you encounter issues with your Lenovo M83 SFF PC, try the following steps:

• Fără putere: Ensure the power cable is securely connected to both the PC and the electrical outlet. Check if the outlet is functional.
• Fără afișare: Verify that the monitor is powered on and correctly connected to the PC's video output. Try a different video cable or port if available.
• Încetinire a sistemului: Close unnecessary applications. Check for background processes consuming high resources (Task Manager in Windows). Ensure sufficient free space on the SSD.
• Perifericul nu funcționează: Disconnect and reconnect the peripheral. Try a different USB port. Check device drivers in Windows Device Manager.
• Probleme cu Bluetooth: Ensure Bluetooth is enabled in Windows settings. Check for updated Bluetooth drivers.
• Operating System Errors: Restart the PC. If issues persist, consider using Windows troubleshooting tools or performing a system restore.

For persistent problems, consult the Lenovo support website or a qualified technician.

7. Specificații

8. Garanție și asistență

This Lenovo M83 SFF Desktop PC is a renewed product and typically comes with a 90-day refund/replacement policy. Please refer to your purchase documentation for specific warranty details and terms provided by the seller.

For technical support or service inquiries, please contact the vendor from whom you purchased this renewed product. They can provide assistance with troubleshooting, warranty claims, and general product support.
