1. Introducere
This manual provides detailed instructions for the installation, operation, and maintenance of your Novita BD-N443 Toilet Bidet. Please read this manual thoroughly before using the product to ensure correct usage and to prevent damage or injury. Keep this manual for future reference.
Image 1: Novita BD-N443 Toilet Bidet with its remote control unit. The bidet seat is white and features the Novita logo. The remote control is also white with various function icons.
2. Caracteristici cheie
The Novita BD-N443 Toilet Bidet is designed with a range of features to enhance hygiene and comfort. Key functionalities include:
- Sanitary Functions: Toilet seat temperature control, hot water temperature control, drying function, hydraulic control, stainless steel nozzle, deodorization, automatic nozzle cleaning and adjustment, and easy removal of the main body for cleaning.
- Funcții de curățare: Air bubble cleaning, washing/bidet with movement, child function, and easy function with movement.
- Funcții de siguranță: Soft opening and closing lid, seat sensor, short circuit protection, and sleep mode.
- Alte caracteristici: Convenient remote control and battery operation.
Imaginea 2: Pesteview of the Novita BD-N443 bidet's dimensions and functional icons. It highlights sanitary, cleaning, safety, and other features.
3. Panoul de control pesteview
The Novita BD-N443 features an intuitive control panel for easy operation of all functions. The remote control provides access to various settings and cleaning modes.

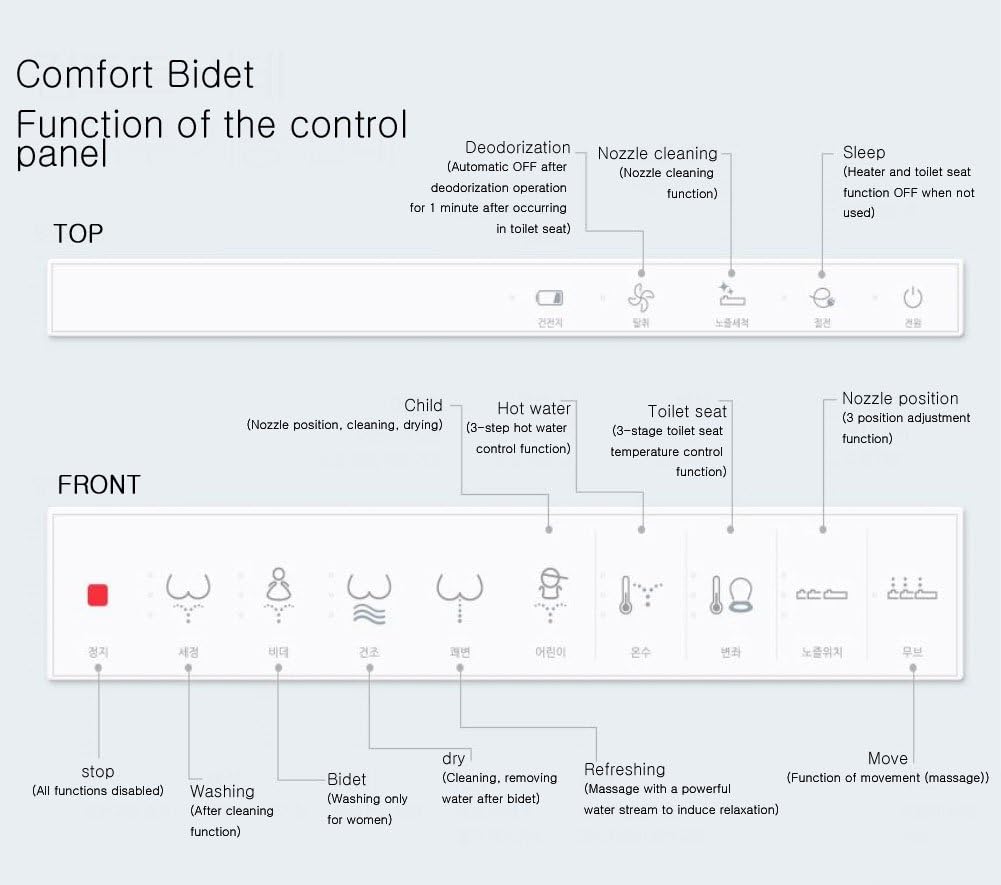

Image 3: Detailed diagram of the bidet's control panel, illustrating the functions of both top and front buttons, including deodorization, nozzle cleaning, sleep, stop, washing, bidet, dry, refreshing, child function, hot water, toilet seat temperature, and nozzle position adjustment.
3.1 Top Panel Functions
- Dezodorizare: Automatic OFF after 1 minute of operation in the toilet seat.
- Curățarea duzei: Initiates the nozzle cleaning function.
- Dormi: Turns OFF heater and toilet seat functions when not in use.
3.2 Front Panel Functions
- Oprire: Disables all active functions.
- Spălat: Activates the washing function after cleaning.
- Bidet: Activates the bidet function, primarily for women.
- Uscat: Dries the area by removing water after bidet use.
- Refreshing: Provides a massage with a powerful water stream for relaxation.
- Child Function: Adjusts nozzle position, cleaning, and drying for children.
- Apa calda: Controls 3-step hot water temperature.
- Scaun de toaleta: Controls 3-stage toilet seat temperature.
- Poziția duzei: Adjusts nozzle position with 3 settings.
- Mişcare: Activates the movement function for massage.
4. Instrucțiuni de instalare
Follow these steps carefully to install your Novita BD-N443 Toilet Bidet. Ensure the water supply is turned off before beginning installation.
Image 4: Visual guide for installing the Novita bidet, showing 8 sequential steps from removing the old seat to connecting the power.
- Scoateți scaunul de toaletă existent.
- Insert bolts into the retaining plate.
- Push the retaining plate completely into the body in the direction of the arrow.
- Remove the water tank hose. (Please lock the water line first.)
- Connect the T valve (be careful not to lose rubber packing).
- Connect water tank hose connection and water filter.
- Align the body with the fixing hole of the toilet and fasten the nut to the fixing bolt so that the body does not move.
- Connect the ion water filter and body to the bidet hose. Plug in the power plug and press the cleaning button.
5. Întreținere
5.1 Înlocuirea filtrului
It is recommended to replace the bidet filter every 6 months for a household of 4 persons. If using underground water, a filter connection is required.
Image 5: Instructions for replacing the bidet filter, showing three steps and also providing critical installation dimensions for the toilet.
- Please lock the water line. Unscrew the hose connected to the filter.
- After turning the filter off, rotate the new filter and attach it.
- Turn the T valve hose on the filter and open the water line.
6. Specificații
| Model | BD-N443 |
| Marca | Novita |
| Dimensiuni (L x A x H) | 417 mm x 535 mm x 173 mm |
| Presiunea apei de alimentare | 0.07 ~ 0.735 MPa |
| Consumul nominal de energie | Până la 1,450 W |
| UPC | 685984697776 |
| ASIN | B075NN3GKC |
| Mounting Hole Distance (Interval) | 140 ~ 200 mm |
| Pottery Length (from front of pottery to end of pottery) | 520 mm or more (product 535 mm) |
| Hall Hook | 140 ~ 200 mm |
| Power Outlet Requirement | 1m power outlet required (Electric facility must be fully equipped and confirmed) |
7. Depanare
If you encounter any issues with your Novita BD-N443 Toilet Bidet, please refer to the following common troubleshooting steps:
- Fără putere: Ensure the power cord is securely plugged into a functional outlet. Check the circuit breaker.
- Fără flux de apă: Verify that the water supply valve is fully open and that the water line is not kinked. Check if the filter needs replacement.
- Presiune slabă a apei: Clean the nozzle. Ensure the water supply pressure meets the specified requirements (0.07 ~ 0.735 MPa).
- Scaunul nu se încălzește: Check if the seat heating function is enabled on the control panel and if the sleep mode is active.
- Deodorizer Not Working: Ensure the deodorization function is activated.
For problems not listed here, or if the issue persists, please contact customer support.
8. Garanție și asistență pentru clienți
For information regarding product warranty, please refer to the warranty card included with your purchase or visit the official Novita website. For technical assistance, spare parts, or any other inquiries, please contact Novita customer support through the contact information provided on the product packaging or the official website-ul.
Please have your model number (BD-N443) and purchase date ready when contacting support.
