1. Introducere
This manual provides detailed instructions for the installation, operation, and maintenance of your Lorex LNB8005 4K UHD IP Bullet Security Camera. This camera is designed for both indoor and outdoor surveillance, offering high-resolution video and advanced features to enhance your security system.
Caracteristici cheie:
- Rezoluție 4K Ultra HD: Captures video at 8 Megapixel (3840x2160) resolution for superior clarity.
- Alimentare prin Ethernet (PoE): Simplifies installation by providing power and video transmission through a single Ethernet cable.
- Color Night Vision (CNV): Provides full-color video in low-light conditions for improved object recognition.
- Viziune de noapte IR: Extends visibility up to 130ft (40m) in complete darkness using infrared illumination.
- True High Dynamic Range (HDR): Balances light and dark areas in the video for optimal image quality.
- Design rezistent la intemperii: IP66 rated for reliable performance in various weather conditions.
2. Ce se află în cutie
Vă rugăm să verificați dacă toate componentele sunt prezente înainte de a începe instalarea:
- 1 × Lorex LNB8005 Ultra HD 8MP Security Camera
- 1 × 18m (60ft) Camera Cable
- 1 × Mounting Kit (screws and wall plugs)
- Ghid de instalare rapidă
3. Produs terminatview
Familiarize yourself with the components of your Lorex LNB8005 camera.
Figura 3.1: Faţă view of the Lorex LNB8005 camera, showing the lens, IR LEDs, and light sensor.
Figura 3.2: Înclinat view of the Lorex LNB8005 camera, highlighting the bullet design and Lorex branding on the side.
Figura 3.3: A slightly different angled perspective of the Lorex LNB8005 camera, showcasing its robust housing and mounting bracket.

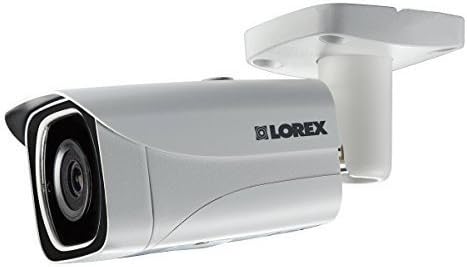

Figura 3.4: Latura view of the Lorex LNB8005 camera, illustrating its compact profile and the adjustable mounting arm.
4. Configurare
4.1. Locația de instalare
The Lorex LNB8005 camera is IP66 rated, making it suitable for both indoor and outdoor use. Choose a location that provides the desired field of view and is within reach of your network cable. Consider mounting the camera high enough to prevent tampering but low enough for easy access during installation.
4.2. Montarea camerei
- Pregătiți suprafața: Ensure the mounting surface (wall or ceiling) is clean and sturdy enough to support the camera's weight.
- Marcați găurile de foraj: Use the included mounting template or the camera base to mark the positions for drilling.
- Găuri: Drill pilot holes at the marked positions. Insert the provided wall plugs if mounting on drywall or masonry.
- Securizați camera: Aliniați baza camerei cu găurile perforate și fixați-o folosind șuruburile furnizate.
- Reglarea unghiului: Loosen the adjustment screw on the camera's bracket to set the desired viewing angle. Tighten the screw once the angle is set.
4.3. Conectarea camerei
The LNB8005 camera supports Power over Ethernet (PoE), allowing both power and data to be transmitted over a single Ethernet cable. Alternatively, it can be powered via a 12V DC power barrel (adapter sold separately).
- Conexiune Ethernet: Connect one end of the included 18m (60ft) camera cable to the RJ45 Ethernet port on the camera. Connect the other end to a PoE-enabled NVR (Network Video Recorder) or a PoE switch.
- (Optional) DC Power Connection: If not using PoE, connect a compatible 12V DC power adapter (not included) to the camera's DC power barrel.
- Configurarea Rețelei: Once connected to your NVR or network, the camera will typically obtain an IP address automatically. Refer to your NVR's manual for specific steps on adding and configuring IP cameras.
5. Operare
5.1. Video Monitoring
Accesați imaginile live ale camerei view și mâncare înregistratătage through your Lorex NVR or compatible viewing software/app. The camera provides 4K (3840x2160) resolution at 15 frames per second, ensuring clear and detailed video.
5.2. Moduri de vedere nocturnă
The LNB8005 camera features two primary night vision modes:
- Color Night Vision (CNV): In low-light conditions, the camera can maintain a full-color image, providing more detail than traditional black and white infrared. This feature requires a minimum ambient light level.
- Viziune de noapte IR: When light levels are too low for CNV, the camera automatically switches to infrared (IR) mode, providing clear black and white video up to 130ft (40m) using its built-in 850nm IR LEDs.
5.3. Detectarea mișcării
The camera supports motion-only alerts. Configure motion detection zones and sensitivity settings via your NVR or camera interface to receive notifications and trigger recordings when activity is detected in specified areas.
5.4. Caracteristici avansate
- True High Dynamic Range (HDR): This feature automatically adjusts the image to ensure optimal exposure in scenes with both very bright and very dark areas, preventing overexposure or underexposure.
- Compresie video: Supports H.265 and H.264 video compression, which efficiently reduces file sizes while maintaining video quality, saving storage space and bandwidth.
6. Întreținere
Regular maintenance helps ensure optimal performance and longevity of your security camera.
- Curățarea lentilei și a carcasei: Curățați periodic obiectivul și carcasa camerei cu o lavetă moale șiamp Evitați utilizarea substanțelor chimice dure sau a materialelor abrazive care ar putea zgâria obiectivul sau deteriora finisajul.
- Verificarea conexiunilor: Ensure all cable connections (Ethernet, power) are secure and free from corrosion or damage.
- Actualizări firmware: Verifică Lorex-ul website or your NVR's settings for available firmware updates. Keeping your camera's firmware updated can improve performance, add new features, and enhance security.
- Verificări de mediu: While the camera is designed for outdoor use, periodically inspect it for any signs of wear or damage due to extreme weather conditions. Ensure no obstructions are blocking the camera's view.
7. Depanare
If you encounter issues with your Lorex LNB8005 camera, refer to the following common problems and solutions:
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| No video feed from camera | No power; Loose cable connection; Network issue; Incorrect IP address. | Check PoE connection or 12V DC power supply. Ensure Ethernet cable is securely connected. Verify network connectivity to the NVR/switch. Confirm camera's IP address is correct and accessible. |
| Poor image quality / blurry video | Dirty lens; Condensation; Incorrect focus (less common for fixed lens); Low light conditions. | Clean the camera lens. Allow time for condensation to clear. Ensure adequate lighting for optimal image quality, especially for Color Night Vision. |
| Vederea de noapte nu funcționează | IR LEDs obstructed; Insufficient power; IR cut filter stuck. | Ensure nothing is blocking the IR LEDs. Verify stable power supply. If the issue persists, a factory reset or contacting support may be necessary. |
| Detecția de mișcare nu se declanșează | Incorrect sensitivity settings; Motion detection zone not configured; Obstructions in view. | Adjust motion detection sensitivity and reconfigure detection zones in your NVR settings. Clear any physical obstructions from the camera's field of view. |
For more complex issues or if the problem persists, please refer to the Lorex support website-ul sau contactați echipa de asistență tehnică.
8. Specificații
Detailed technical specifications for the Lorex LNB8005 4K UHD IP Bullet Security Camera:
| Caracteristică | Caietul de sarcini |
|---|---|
| Numărul de model | LNB8005 |
| Senzor de imagine | 1/2.5" 8MP |
| Rezoluție video | 8MP/4K (3840x2160) @ 15fps |
| Compresie video | H.265/H.264 |
| Tip de lentile | 4mm F1.6 Fixed Lens |
| Câmpul de View (Orizontală) | 88° |
| Tip de vedere nocturnă | Color Night Vision (CNV), IR Night Vision (850nm) |
| Gama de vedere pe timp de noapte IR | 130ft (40m) / 90ft (27m) |
| Iluminare minima | 0.5 lux (without IR), 0.3 lux (with IR) |
| Cerința de putere | PoE (Power over Ethernet) Class 0 / 12V DC (optional) |
| Consumul de energie | Max. 330mA / 4W |
| Temperatura de operare | -22 ° ~ 140 ° F / -30 ° ~ 60 ° C |
| Umiditatea de funcționare | <95% RH |
| Evaluare de mediu | IP66 (Interior / Exterior) |
| Dimensiuni (L x l x H) | 6 x 8 x 2 inci |
| Greutate | 1lb / 0.5kg (camera only); 2.89 pounds (shipping) |
| Material | Aluminiu |
| Protocol de conectivitate | Ethernet, Wi-Fi (for certain configurations) |
| Tip de montare | Montare pe perete |
| Tip de alertă | Doar mișcare |
9. Garanție și asistență
9.1. Garanția produsului
For detailed information regarding the warranty coverage for your Lorex LNB8005 camera, please refer to the official Lorex website or the warranty card included with your product. Warranty terms and conditions may vary by region and purchase date.
9.2. Suport tehnic
If you require technical assistance, have questions about your product, or need to troubleshoot an issue not covered in this manual, please contact Lorex customer support. You can typically find support contact information, FAQs, and additional resources on the official Lorex website:
- Lorex Oficial Website: www.lorex.com
- Secțiunea de asistență: Look for a 'Support' or 'Contact Us' link on their website for phone numbers, live chat, or email options.
Please have your product model number (LNB8005) and purchase information ready when contacting support.
