Whynter UIM-502SS Built-in Ice Maker Machine

Introducere

This manual provides essential information for the safe and efficient operation of your Whynter UIM-502SS Built-in Ice Maker Machine. Please read all instructions carefully before installation and use to ensure proper function and longevity of the appliance. Keep this manual for future reference.

Image: Whynter UIM-502SS Ice Maker with an ice scoop, water hoses, and an inline water filter.

Informații de siguranță

Pentru a reduce riscul de incendiu, șoc electric sau rănire atunci când utilizați aparatul, urmați aceste măsuri de precauție de bază:

• Citiți toate instrucțiunile înainte de a utiliza aparatul.
• Nu atingeți suprafețele reci cu mâinile ude sau uscate.amp hands. Skin may stick to these extremely cold surfaces.
• Nu curățați niciodată piesele aparatului cu fluide inflamabile. Fumul poate crea pericol de incendiu sau explozie.
• Nu depozitați și nu folosiți benzină sau alți vapori și lichide inflamabile în apropierea acestui aparat sau a oricărui alt aparat.
• Before performing any maintenance or cleaning, ensure the appliance is unplugged from the power outlet.
• Acest aparat nu este destinat utilizării de către persoane (inclusiv copii) cu capacități fizice, senzoriale sau mentale reduse sau cu lipsă de experiență și cunoștințe, cu excepția cazului în care acestea au fost supravegheate sau instruite cu privire la utilizarea aparatului de către o persoană responsabilă pentru siguranța lor.
• Copiii trebuie supravegheați pentru a se asigura că nu se joacă cu aparatul.

Înființat

Despachetarea

Carefully remove all packaging materials. Retain the packaging for potential future transport of the appliance. Ensure all components listed in the 'What's in the Box' section are present.

Plasarea

The Whynter UIM-502SS is designed for both freestanding and built-in installation. Ensure adequate ventilation around the unit, especially for the front-venting design. Maintain proper clearances as specified in the dimensions below.

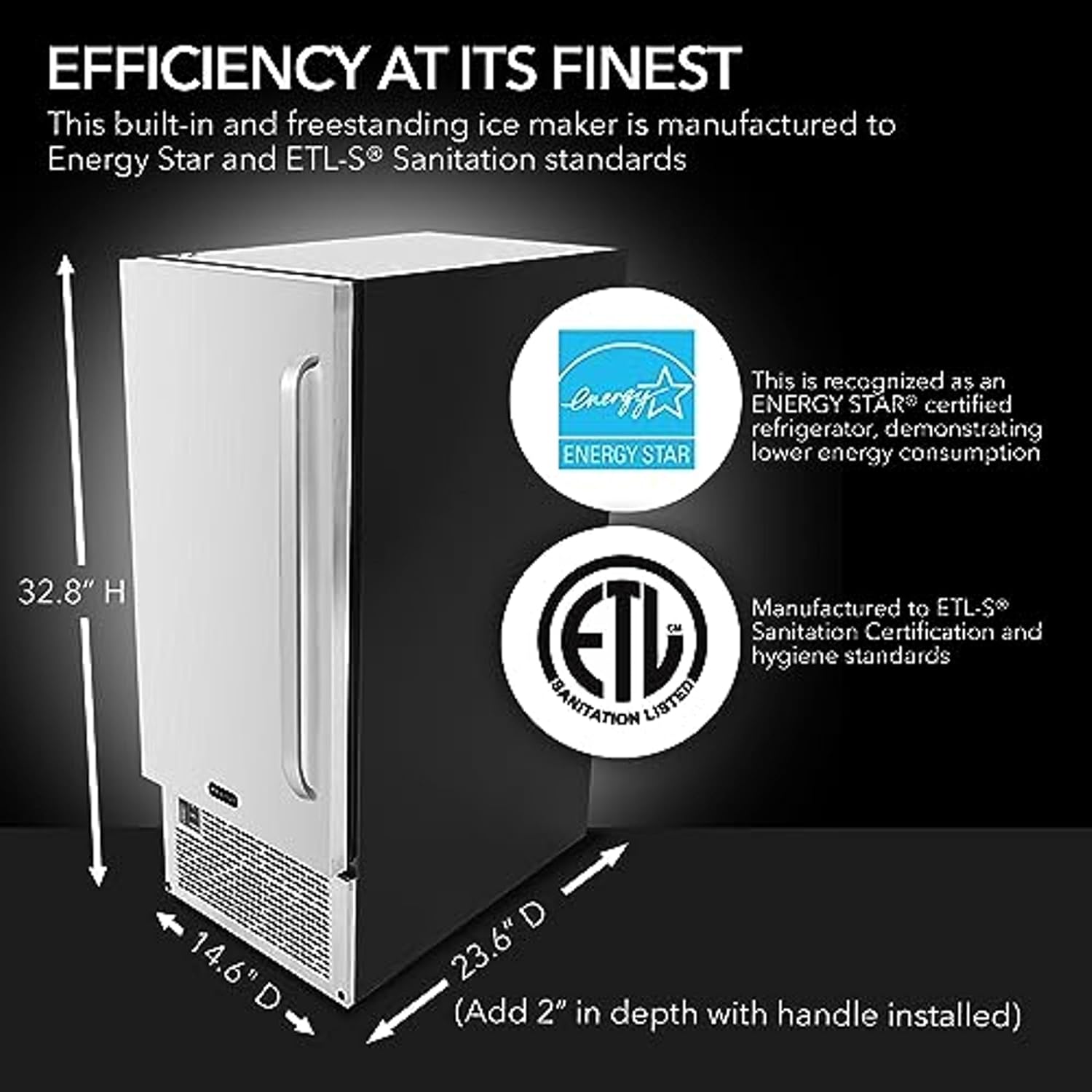

Image: The Whynter UIM-502SS ice maker showing its dimensions: 32.8" H, 14.6" W, 23.6" D (add 2" for handle).

The unit should be placed on a level, stable surface capable of supporting its weight when full of ice and water. Avoid direct sunlight or heat sources.

Conexiune la apă

This ice maker requires a direct water connection. It is strongly recommended that a licensed plumber perform the water supply connection to prevent leaks or damage. The unit includes an NSF-certified inline water filter to ensure clean water for ice production. Install the filter according to the separate filter instructions.

Drenaj

The unit features a built-in gravity drain system to effectively remove melted ice and excess water. Ensure the drain hose is properly connected and routed to a suitable drain point, following local plumbing codes.

Imagine: Spate view of the ice maker, highlighting the water inlet and drain hose connections.

Conexiune electrica

Connect the appliance to a dedicated, grounded 120V/60Hz electrical outlet. Do not use extension cords or adapter plugs.

Curățare inițială

Before first use, clean the interior of the ice maker and the ice bin with a mild detergent and warm water. Rinse thoroughly and dry.

Instrucțiuni de operare

Panoul de control

The control panel is located on the front of the unit, featuring a simple one-switch operation for ICE, OFF, and WASH modes.

Imagine: Un prim-plan view of the ice maker's control panel, showing the 'ICE', 'OFF', and 'WASH' switch.

Făcând gheață

To begin ice production, set the switch to 'ICE'. The unit will automatically start the ice-making cycle. Water is recirculated, and minerals are removed as clean water freezes to the ice grid, producing clear ice cubes. The unit can produce up to 80 lbs of ice in 24 hours.

Depozitare gheață

The ice maker has a storage capacity of up to 25 lbs. The ice bin is designed to hold the produced ice. Use the provided ice scoop to retrieve ice.

Image: The ice maker with its door open, revealing the internal ice storage bin.

Întreţinere

Curatenie

Regular cleaning is crucial for optimal performance and hygiene. The unit features a 'WASH' mode for automated cleaning. Refer to the detailed cleaning instructions in the full manual for specific steps on descaling and sanitizing the unit. Always unplug the unit before manual cleaning.

Înlocuirea filtrului de apă

The inline water filter should be replaced periodically, typically every 6 months or as indicated by water quality and usage, to maintain optimal ice quality and prevent mineral buildup. Consult the filter's specific instructions for replacement procedures.

Depanare

If the ice maker is not functioning correctly, review the following common issues before contacting support:

• Fără producție de gheață: Check power connection, water supply, and ensure the unit is in 'ICE' mode.
• Calitate slabă a gheții: Ensure the water filter is not clogged and is replaced regularly. Perform a cleaning cycle.
• Scurgeri de apă: Verify all water connections and drain hose are securely fastened.
• Zgomot neobișnuit: Some operational noise is normal. Excessive or new noises may indicate an issue; consult the full manual or support.

For more detailed troubleshooting steps, refer to the comprehensive troubleshooting guide in the complete product manual.

Specificații

Informații despre garanție

This Whynter appliance is warranted against defects in materials and workmanship for a period of one year from the date of original purchase. For full warranty terms and conditions, please refer to the warranty card included with your product or visit the official Whynter website-ul.

Asistență pentru clienți

For technical assistance, troubleshooting, or to order replacement parts, please contact Whynter Customer Support. Contact information can be found on the official Whynter website-ul sau pe cardul de garanție al produsului dumneavoastră.
