1. Introducere
This manual provides detailed instructions for the installation, operation, and maintenance of your Zmodo Outdoor Security Camera System, Model ZM-W0002-4. This system offers 1080p Full HD surveillance for your property, featuring night vision, motion detection, and weatherproof construction.
2. Conținutul pachetului
Verificați dacă toate articolele sunt prezente în colet:
- 4 x Zmodo Outdoor Security Cameras
- 4 x surse de alimentare
- 1 x Ghid rapid
3. Configurare și instalare
Follow these steps to set up your Zmodo security cameras:
3.1. Amplasarea camerei
Select optimal locations for your cameras. Consider areas that provide a clear view of entry points or critical zones. Ensure the chosen location is within range of your Wi-Fi network and has access to a power outlet.
Image: Zmodo outdoor security camera mounted on a wall, illustrating its weatherproof design and typical installation scenario.
3.2. Conexiune la alimentare
Connect each camera to its respective power supply and plug it into a standard electrical outlet. The camera will power on automatically.

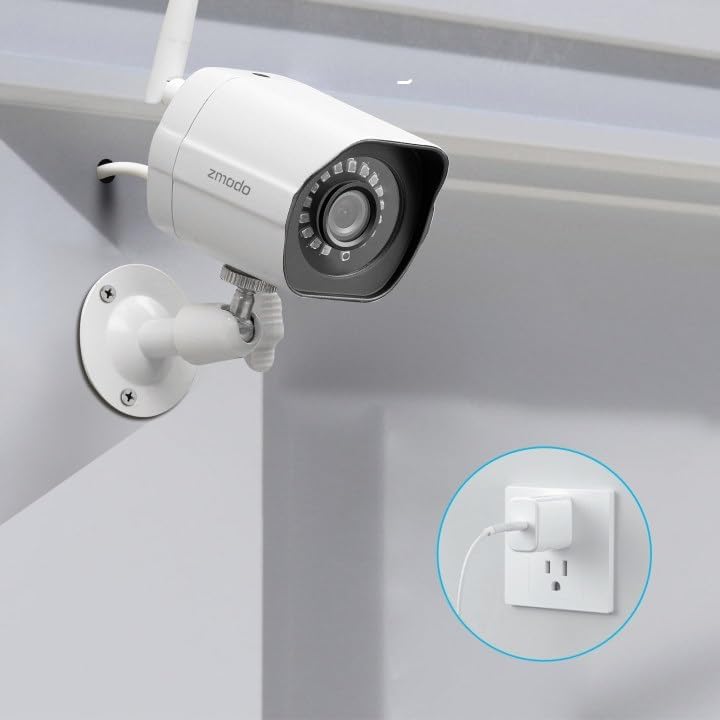

Image: A Zmodo outdoor security camera with its power cable plugged into a wall outlet, demonstrating the power connection process.
3.3. Descărcarea aplicației și crearea contului
Download the Zmodo app from your smartphone's app store (iOS or Android). Create a new account or log in if you already have one.
3.4. Împerecherea camerei
Follow the in-app instructions to add your cameras. Zmodo cameras typically use QR code pairing technology for straightforward setup. Ensure your smartphone is connected to the 2.4GHz Wi-Fi network that the cameras will use.
Image: A set of four Zmodo outdoor security cameras, illustrating the product's appearance and external antenna design for enhanced Wi-Fi signal.
4. Funcționare
Once your cameras are set up, you can access and manage them through the Zmodo app.
4.1. în direct View
Open the Zmodo app to view live 1080p Full HD video streams from your cameras. You can monitor up to four camera feeds simultaneously on one screen.
Image: A smartphone screen showing a four-panel live video feed from multiple Zmodo cameras, demonstrating the multi-camera viewcaracteristica de ing.
4.2. Detectarea mișcării și alertele
The cameras are equipped with motion detection. When motion is detected, you will receive instant alerts on your smartphone. Review recorded clips via the app.
Image: A smartphone displaying a push notification for motion detected by a Zmodo camera, indicating the alert system.
Image: A Zmodo camera with an illustration of AI-powered motion detection, highlighting its ability to accurately detect and identify humans, pets, and vehicles.
4.3. Vedere de noapte
The cameras feature adjustable night vision with built-in IR lights, providing clear images up to 65 feet in low-light conditions.
Image: A Zmodo camera mounted outdoors at night, with its red IR lights active, demonstrating its night vision capability.
4.4. Stocare în cloud
Zmodo offers a cloud service for secure storage of your video footage. A subscription plan is required for this feature. This ensures continuous recording and access to past events.
Image: An abstract graphic depicting a secure cloud with a padlock icon, symbolizing the bank-level encryption used for Zmodo's cloud storage service.
4.5. Integrare Alexa
The cameras are compatible with Amazon Alexa. Use voice commands like "Alexa, show me the front door" to view live streams on compatible Alexa-enabled devices.
Image: An Amazon Echo Show device displaying a live feed from a Zmodo camera, illustrating the Alexa integration feature.
5. Întreținere
Regular maintenance helps ensure optimal performance and longevity of your cameras.
- Curățarea lentilelor: Curățați periodic obiectivul camerei cu o lavetă moale,amp cloth to remove dust, dirt, or water spots that may affect image clarity. Avoid abrasive cleaners.
- Verificarea conexiunii la alimentare: Ensure power cables are securely connected and free from damage.
- Stabilitatea montajului: Verify that the cameras remain securely mounted to prevent accidental dislodgement.
- Actualizări de software: Keep the Zmodo app updated to the latest version for new features and security enhancements.
6. Depanare
If you encounter issues with your Zmodo cameras, refer to the following common solutions:
- Aparat foto offline:
- Verificați conexiunea de alimentare pentru a vă asigura că aparatul foto primește energie.
- Verify your Wi-Fi network is operational and the camera is within range.
- Restart the camera by unplugging and replugging its power supply.
- Ensure your router's 2.4GHz Wi-Fi band is enabled and the camera is connected to it.
- Calitate slabă a imaginii:
- Curățați obiectivul camerei.
- Asigurați-vă că nu există obstrucții în câmpul de acțiune al camerei view.
- Check your Wi-Fi signal strength; a weak signal can affect video streaming quality.
- Detectarea mișcării nu funcționează:
- Verify motion detection settings are enabled in the Zmodo app.
- Adjust motion sensitivity settings if necessary.
- Asigurați-vă că aparatul foto view nu este obstrucționată.
- Nicio alertă primită:
- Check your smartphone's notification settings for the Zmodo app.
- Asigurați-vă că telefonul are o conexiune activă la internet.
7. Specificații
Key technical specifications for the Zmodo Outdoor Security Camera System (Model ZM-W0002-4):
| Caracteristică | Detaliu |
|---|---|
| Numele modelului | ZM-W0002-4 |
| Rezoluție captură video | Full HD 1080p |
| Utilizare în interior/exterior | În aer liber |
| Tehnologia de conectivitate | Wi-Fi (2.4 GHz) |
| Gama de vedere nocturnă | Până la 65 de picioare |
| Rezistență la intemperii | IP66 (rezistent la intemperii) |
| Detectarea mișcării | Yes (Motion Only, AI-powered) |
| Dispozitive compatibile | Smartphone, Amazon Alexa, Asistent Google |
| Sursa de alimentare | Electric cu fir (12 volți, 5 wați) |
| Dimensiuni (L x l x H) | 2.2 x 2.1 x 3.4 inci |
| Greutatea articolului | 3.04 pounds (per camera) |
| Frame Rate | 25 fps |
| Material | Plastic |
8. Informații despre garanție
For specific warranty details regarding your Zmodo Outdoor Security Camera System, please refer to the warranty card included in your product packaging or visit the official Zmodo website. De asemenea, pot fi disponibile planuri de protecție pentru acoperire extinsă.
9. Asistență pentru clienți
If you require further assistance or have questions not covered in this manual, please contact Zmodo customer support through their official website or the Zmodo app. Support resources, including FAQs and troubleshooting guides, are often available online.
Zmodo Official Website: www.zmodo.com
