Futaba 2HR 2.4Ghz FHSS Transmitter with R202GF Receiver User Manual

1. Introducere

Mulțumesc pentru achizițieasing the Futaba 2HR 2.4Ghz FHSS Transmitter and R202GF Receiver. This system is designed for reliable and precise control of your remote-controlled models. This manual provides essential information for the safe and effective operation, setup, and maintenance of your new radio system. Please read this manual thoroughly before use to ensure proper functionality and to prevent damage.

2. Măsuri de siguranță

Always observe the following safety precautions to prevent injury to yourself or others, and to prevent damage to your equipment.

• Siguranța bateriei: Use only the specified battery type (AA batteries for the transmitter). Do not mix old and new batteries, or different types of batteries. Remove batteries if the system will not be used for an extended period.
• Mediu de operare: Do not operate your RC model in crowded areas, near power lines, or in adverse weather conditions. Ensure a clear line of sight to your model at all times.
• Verificare pre-operare: Always perform a range check and verify all control surfaces and functions are operating correctly before each use.
• Interferență: The 2.4Ghz FHSS system is designed to minimize interference, but always be aware of potential sources of radio interference.
• Copii: This product is not a toy. Adult supervision is required when children are operating RC models.

3. Conținutul pachetului

Verificați dacă toate articolele enumerate mai jos sunt incluse în pachetul dumneavoastră:

• Futaba 2HR 2.4Ghz FHSS Transmitter
• Futaba R202GF 2-Channel Receiver
• Manual de instrucțiuni (acest document)

4. Produs terminatview

4.1 Futaba 2HR Transmitter

Imagine: față view of the Futaba 2HR Transmitter, highlighting the main controls and the 2.4Ghz FHSS branding.

Image: The Futaba 2HR Transmitter shown with its accompanying R202GF Receiver, providing a size comparison.

Imagine: View of the Futaba 2HR Transmitter with the battery cover removed, revealing the battery slots for four AA batteries.

Imagine: Detaliată view of the battery compartment, indicating the correct polarity for AA battery installation.

4.2 Futaba R202GF Receiver

Image: Close-up of the Futaba R202GF 2-channel receiver, displaying its model number, 2.4Ghz S-FHSS designation, LED, and servo connection ports.

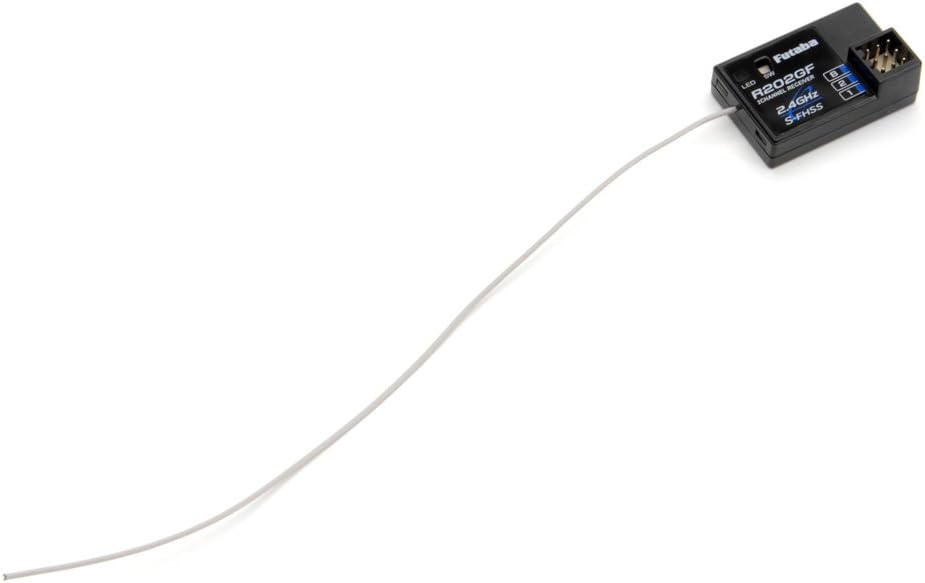

Image: The Futaba R202GF receiver with its full-length antenna wire, crucial for optimal signal reception.

5. Configurare

5.1 Instalarea bateriei emițătorului

1. Locate the battery compartment on the back of the 2HR transmitter.
2. Deschideți capacul bateriei.
3. Insert four (4) AA batteries, observing the correct polarity (+/-) as indicated inside the compartment.
4. Închideți bine capacul bateriei.

Notă: Bateriile nu sunt incluse în produs.

5.2 Conexiunea receptorului

Connect the R202GF receiver to your model's electronic speed controller (ESC) and steering servo. The R202GF is a 2-channel receiver.

• Canalul 1 (CH1): Connect the steering servo.
• Canalul 2 (CH2): Connect the ESC (throttle).
• Asigurați-vă că toate conexiunile sunt ferme și orientate corect.

5.3 Conectarea emițătorului și receptorului

The transmitter and receiver are typically pre-bound from the factory. If re-binding is necessary, follow these steps:

1. Porniți transmițătorul.
2. With the receiver powered on (via ESC or separate battery), press and hold the bind button (SW) on the R202GF receiver. The LED on the receiver will change its indication.
3. Release the bind button. The LED should indicate a successful bind (e.g., solid green).
4. Turn off both the transmitter and receiver, then turn them back on to confirm the bind.

Refer to your model's specific instructions for receiver placement and antenna routing for optimal performance.

6. Instrucțiuni de utilizare

6.1 Pornire/Oprire

1. Pentru a porni: First, turn on the transmitter. Then, turn on the receiver (via your model's power switch).
2. Pentru a opri: First, turn off the receiver (via your model's power switch). Then, turn off the transmitter.

Always follow this sequence to prevent loss of control or damage to your model.

6.2 Controale de bază

• Volan: Rotate left or right to control the steering of your model.
• Declanșator de accelerație: Pull the trigger towards you for forward movement. Push the trigger away from you for brake/reverse.

6.3 Trim Adjustments

Trim levers are used to make fine adjustments to the steering and throttle neutral positions.

• Trim de direcție (ST.TRIM): Adjusts the steering neutral point. If your model pulls to one side when the steering wheel is centered, use this trim to correct it.
• Trim accelerație (TH.TRIM): Adjusts the throttle neutral point. If your model creeps forward or backward when the throttle trigger is at neutral, use this trim to correct it.

6.4 Servo Reversing

The 2HR transmitter includes switches to reverse the direction of the steering and throttle servos if needed.

• Steering Reverse (ST.REV): Flips the steering direction.
• Throttle Reverse (TH.REV): Flips the throttle direction.

Always test servo directions after making any changes to ensure correct operation.

7. Întreținere

• curatenie: Use a soft, dry cloth to clean the transmitter and receiver. Do not use solvents or abrasive cleaners.
• Îngrijirea bateriei: Remove batteries from the transmitter if it will not be used for more than a week to prevent leakage and damage.
• Depozitare: Store the radio system in a cool, dry place, away from direct sunlight and extreme temperatures.
• Inspecţie: Periodically check all wires and connections for signs of wear or damage.

8. Depanare

9. Specificații

10. Informații despre garanție

Specific warranty details for the Futaba 2HR Transmitter and R202GF Receiver are typically provided with the product packaging or available on the official Futaba website. Please retain your proof of purchase for warranty claims. For the most current and detailed warranty information, please visit the official Futaba website-ul sau contactați distribuitorul local.

11. Asistență pentru clienți

For technical assistance, spare parts, or further inquiries regarding your Futaba 2HR system, please refer to the official Futaba website or contact their authorized customer support channels. Contact information can usually be found on the manufacturer's website-ul sau în ambalajul produsului.
