1. Introducere

This manual provides detailed instructions for the installation, operation, and maintenance of your Zmodo ZM-KW1001-O4-1TB HD Camera System. Please read this manual thoroughly before using the product to ensure proper setup and functionality. Keep this manual for future reference.

2. Produs terminatview

2.1 Caracteristici cheie

• 720p HD video for clear and sharp images.
• Smartlink wireless configuration for quick setup.
• Motion detection alerts to notify you of activity.
• IP66 rated outdoor cameras for weather resistance.
• Infrared night vision for surveillance in low-light conditions.
• Integrated 1TB hard drive for local video storage.

2.2 Componentele sistemului

The Zmodo ZM-KW1001-O4-1TB system typically includes the following components:

• Wireless Network Video Recorder (NVR) with 1TB HDD
• HD Wireless Cameras (quantity may vary, typically 4)
• Adaptoare de alimentare pentru NVR și camere
• Cablu Ethernet
• Șuruburi și ancore de montare

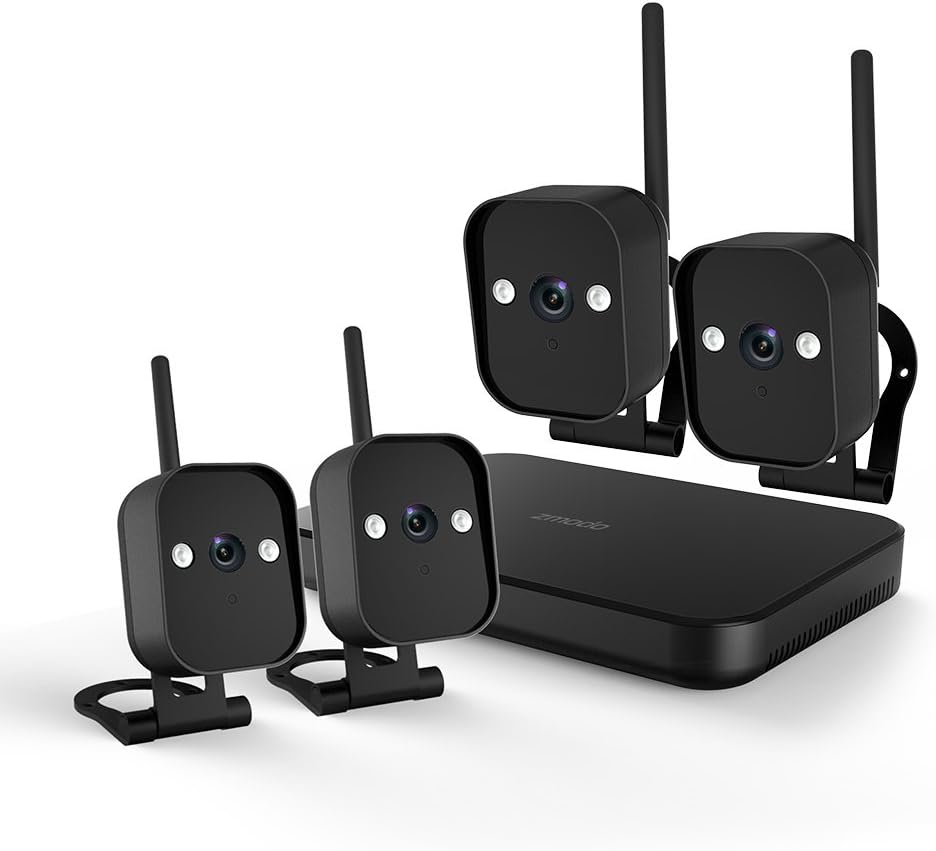

Figura 1: Pesteview of the Zmodo ZM-KW1001-O4-1TB HD Camera System, showing the NVR unit and four wireless cameras.

3. Instrucțiuni de configurare

3.1 Despachetare și inspecție inițială

Carefully unpack all components and verify that all items listed in Section 2.2 are present and undamaged. If any items are missing or damaged, contact customer support.

3.2 Conectarea NVR-ului

1. Conectați NVR-ul la o priză de alimentare folosind adaptorul de alimentare furnizat.
2. For initial setup and optimal performance, connect the NVR to your router using the supplied Ethernet cable.
3. Connect the NVR to a monitor via HDMI or VGA cable (not included) if local vieweste de dorit.

Figura 2: The Zmodo Network Video Recorder (NVR) unit, which stores recordings and manages camera connections.

3.3 Instalarea și asocierea camerei

The cameras are designed for both indoor and outdoor use with an IP66 weather-resistant rating. Ensure cameras are placed within range of the NVR's wireless signal.

1. Pornirea camerelor: Connect each camera to its respective power adapter and plug into a power outlet.
2. Smartlink Pairing: The cameras should automatically attempt to pair with the NVR. Follow the on-screen prompts on the connected monitor or use the Zmodo app for Smartlink setup. If pairing fails, refer to the troubleshooting section.
3. Montare: Choose suitable locations for your cameras. Use the provided screws and anchors to securely mount the cameras. Ensure a clear line of sight and optimal viewunghiul de ing.

Figura 3: A Zmodo wireless camera shown with its wall-mounting bracket, suitable for outdoor installation.

Figura 4: A Zmodo wireless camera shown with its stand mount, ideal for indoor placement on flat surfaces.

3.4 Mobile App Configuration

1. Download the Zmodo app from the App Store (iOS) or Google Play Store (Android).
2. Creați un cont nou sau conectați-vă la unul existent.
3. Follow the in-app instructions to add your Zmodo NVR system. This typically involves scanning a QR code on the NVR or manually entering device details.
4. Once added, you should be able to view live feeds from your cameras.

4. Instrucțiuni de utilizare

4.1 În direct View

Access the Zmodo app or the NVR's local interface to view live video streams from your cameras. You can typically select individual cameras or view multiple feeds simultaneously.

4.2 Detectarea mișcării și alertele

The system is equipped with motion detection capabilities. When motion is detected, the system can record footage and send alerts to your mobile device.

• Configurare: In the Zmodo app or NVR settings, navigate to the motion detection section. You can customize detection zones, sensitivity levels, and alert schedules.
• Alerte: Ensure push notifications are enabled for the Zmodo app on your mobile device to receive timely alerts.

4.3 Înregistrare și redare

The NVR includes a 1TB hard drive for continuous or motion-activated recording.

• Setări de înregistrare: Configure recording modes (continuous, scheduled, motion-activated) via the NVR's local interface or the Zmodo app.
• Redare: Pentru a review inregistrat footage, access the playback feature in the Zmodo app or directly on the NVR. Select the desired date and time to view evenimentelor.

4.4 Vedere nocturnă

The cameras feature infrared night vision, allowing them to capture clear video in low-light or complete darkness. The system automatically switches to night vision mode when ambient light levels are insufficient.

5. Întreținere

• Curățarea camerei: Curățați periodic lentilele camerei cu o lavetă moale,amp o lavetă pentru a asigura o calitate clară a imaginii. Evitați substanțele de curățare abrazive.
• Actualizări firmware: Check the Zmodo app or website regularly for firmware updates. Keeping your system updated ensures optimal performance and security.
• Gestionarea hard disk-ului: Hard disk-ul de 1 TB va suprascrie automat cele mai vechi fișiere.tage when full. If you need to preserve specific recordings, back them up to an external device before they are overwritten.
• Alimentare electrică: Ensure all power adapters are securely connected and free from damage.

6. Depanare

• Fără flux video:
  • Check if the NVR and cameras are powered on.
  • Verify network connectivity for the NVR.
  • Ensure cameras are within wireless range of the NVR.
  • Re-pair cameras if they have lost connection.
• Alerte de mișcare nerecepționate:
  • Confirm motion detection is enabled in the app settings.
  • Verificați zonele de detectare a mișcării și sensibilitatea.
  • Ensure push notifications are enabled for the Zmodo app on your mobile device.
• Calitate slabă a imaginii:
  • Curățați obiectivul camerei.
  • Asigurați-vă că nu există obstrucții în câmpul de acțiune al camerei view.
  • Check for strong interference if using wireless connection.
• Cameras Not Connecting to Wi-Fi:
  • Ensure the NVR's Wi-Fi is enabled and functioning.
  • Move cameras closer to the NVR to improve signal strength.
  • Reset cameras and attempt Smartlink pairing again.

7. Specificații

8. Garanție și asistență

For warranty information and technical support, please refer to the official Zmodo website or contact Zmodo customer service directly. Details regarding warranty periods and service procedures are typically available on the manufacturer's support pages.

Suport online: Visit the Zmodo official website pentru întrebări frecvente, ghiduri de depanare și informații de contact.

Contactați asistența: If you require further assistance, please have your product model number (ZM-KW1001-O4-1TB) and purchase details ready when contacting support.
