1. Introducere
The Pyle PPHP152BMU is a versatile, high-powered portable PA loudspeaker system designed for a wide range of audio applications. This unit features a 15-inch subwoofer and a 5-inch tweeter, delivering full-range sound with impressive bass response. Its integrated Bluetooth connectivity allows for wireless audio streaming from compatible devices. The system is equipped with a built-in rechargeable battery, making it suitable for both indoor and outdoor use. Additional features include MP3 playback via USB and SD card readers, FM radio, and multiple input options for microphones and guitars.

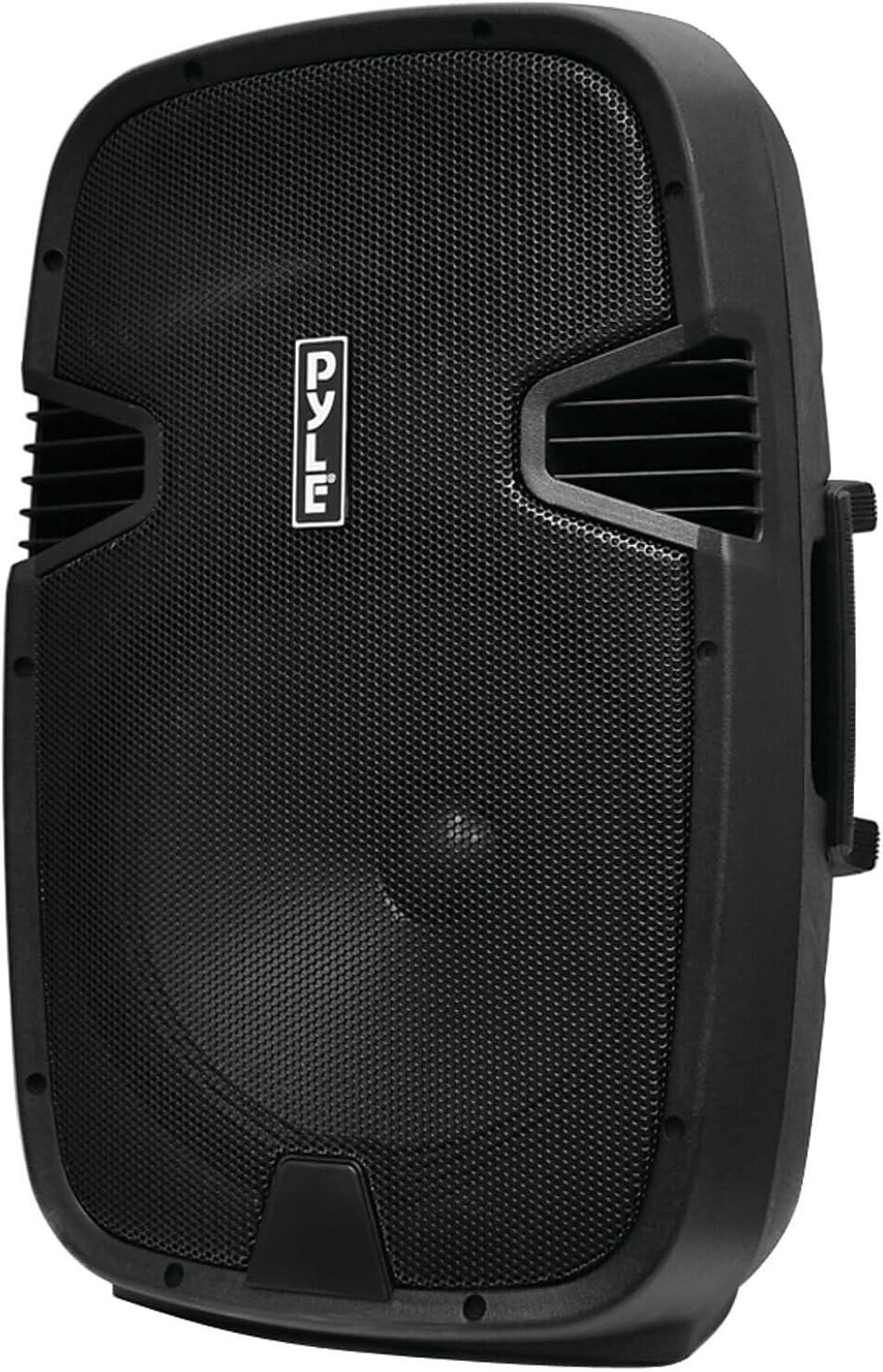

Figure 1: Pyle PPHP152BMU Portable Bluetooth PA Speaker System
Caracteristici cheie:
- Putere maximă de 1000 wați: Provides powerful sound output for various events.
- Conectivitate Bluetooth: Streaming audio wireless fără întreruperi de pe smartphone-uri, tablete și alte dispozitive compatibile Bluetooth.
- Intrări audio multiple: Includes USB flash drive, SD card reader, 3.5mm AUX input, RCA (L/R) input, and 1/4-inch microphone/guitar input.
- Baterie reîncărcabilă încorporată: Offers extended playtime for portable use.
- Radio FM integrat: For listening to local radio stations.
- Panou de control din spate: Features controls for microphone volume, echo, master volume, and a 5-band music channel EQ.
- Portabilitate: Equipped with retractable handles and caster wheels for easy transport.
2. Configurare
2.1 Despachetarea
Carefully remove the speaker system and all accessories from the packaging. Ensure all components listed in the 'What's in the Box' section are present.
2.2 Încărcarea bateriei
Before initial use, fully charge the built-in rechargeable battery. Connect the power cable to the speaker's power input and then to a standard AC outlet (110/220V selector available). The 'CHAR/FULL' indicator light will show charging status. A full charge typically takes approximately 8 hours. The battery provides up to 3 hours of non-stop play.
2.3 Pornire/Oprire
Locate the 'POWER' switch on the rear control panel. Flip the switch to the 'ON' position to power on the unit. Flip it to 'OFF' to power down.
2.4 Positioning the Speaker
The speaker can be placed on a flat surface or mounted on a compatible 35mm pole stand (not included) for optimal sound dispersion. Utilize the retractable handles and caster wheels for easy movement and positioning.
3. Instrucțiuni de utilizare
3.1 Streaming wireless Bluetooth
- Asigurați-vă că difuzorul este pornit.
- Activați Bluetooth pe dispozitivul dvs. (smartphone, tabletă etc.).
- Caută available Bluetooth devices and select 'PYLE SPEAKER' from the list.
- Once paired, the speaker will confirm the connection, and you can begin streaming audio wirelessly.
3.2 USB Flash & SD Memory Card Readers
- Insert a USB flash drive or SD memory card (up to 32GB) containing MP3 audio files into the respective slot on the rear control panel.
- Sistemul va detecta automat fișierul media și va începe redarea.
- Use the digital display screen and touch button audio controls (Play/Pause, Skip, Repeat) to manage playback. The display shows song number and play time.
Intrare microfon și chitară 3.3
- Connect a microphone or guitar to the 1/4-inch input jack.
- Reglați butonul „MIC VOL” pentru a controla volumul microfonului.
- Use the 'ECHO' knob to add an echo effect to the microphone input.
- The 'GUITAR VOLUME' control (if applicable, or use Master Volume) adjusts the guitar input level.
3.4 Funcționarea radioului FM
- Switch the input mode to FM radio using the mode button on the control panel.
- Use the 'Auto Scan' function to automatically search and store available radio stations.
- Navigate through stored stations using the track skip buttons.
3.5 Comenzi audio
- Volumul principal: Controlează volumul general de ieșire al difuzorului.
- VOL MIC: Reglează nivelul volumului microfonului conectat.
- ECOU: Controls the intensity of the echo effect for the microphone.
- 5 Band Music Channel EQ: Allows for fine-tuning of the audio frequency response (bass, mid-range, treble) to suit your preferences.
- RCA (L/R) Input/Output: For connecting external audio sources or linking to other audio equipment.
4. Întreținere
4.1 Curățare
Wipe the speaker's exterior with a soft, dry cloth. Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the finish. Do not allow liquids to enter the speaker's openings.
4.2 Îngrijirea bateriei
To prolong battery life, fully charge the unit before storing it for extended periods. If the unit is not used regularly, charge it every 3-6 months to maintain battery health. Avoid completely draining the battery frequently.
4.3 Depozitare
Store the speaker in a cool, dry place away from direct sunlight, extreme temperatures, and excessive humidity. Keep it covered to protect against dust.
5. Depanare
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Fără putere | Battery is drained; Power switch is off; Power cable not connected. | Charge the battery; Turn the power switch ON; Ensure power cable is securely connected. |
| Fără ieșire de sunet | Volume is too low; Incorrect input source selected; Cables not connected properly; Bluetooth not paired. | Increase master volume; Select correct input mode; Check all cable connections; Re-pair Bluetooth device. |
| Bluetooth nu se conectează | Speaker not in Bluetooth mode; Device too far; Interference; Device already paired to another speaker. | Ensure speaker is in Bluetooth mode; Move device closer; Avoid obstacles; Disconnect from other devices and try again. |
| Microfonul nu funcționează | Microphone volume too low; Microphone not connected; Microphone faulty. | Increase MIC VOL; Ensure microphone is securely plugged in; Test with another microphone if available. |
| Probleme de redare pe USB/SD | Neacceptat file format; corupt files; Card not inserted correctly. | Asigura files are MP3 format; Check card for errors; Re-insert USB/SD card. |
6. Specificații
- Putere de ieșire: 1000 Watts (Peak) / 500 Watts RMS @ 4 Ohm
- Tip difuzor: 15'' Subwoofer and 5'' Tweeter
- Impedanta: 4 ohmi
- Sensibilitate: 90 dB
- Raspuns in frecventa: 20-20kHz
- Frecvența de încrucișare: 3.5 kHz
- Interval wireless Bluetooth: Peste 65 de picioare
- Baterie: 7.5 Amp (Sealed Lead Acid)
- Average Charge Time: 8 de ore
- Max. Dimensiune card USB/SD: 32 GB
- MP3 File Compatibilitate: Da
- Material dulap difuzor turnat: ABS proiectat
- Intrare DC: 12V
- Putere: 110/220 Voltage Selector
- Greutatea articolului: 44.2 lire sterline
- Dimensiuni produs (L x l x H): 17.5 x 19.5 x 30 inci
7. Garanție și asistență
For warranty information, technical support, or service inquiries, please refer to the documentation included with your product or visit the official Pyle webPăstrați bonul fiscal ca dovadă a achiziției pentru orice reclamații în garanție.
