1. Introducere
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Axis Communications 5900-334 T8134 Midspan PoE Injector. This device is designed to provide high power over Ethernet, offering an efficient and cost-effective solution for powering network video products, particularly PTZ (pan/tilt/zoom) and PTZ dome network cameras, without the necessity of installing additional power outlets or electrical cabling.
Caracteristicile cheie includ:
- Compatibility with Axis network video products.
- Outdoor-ready operation, supporting temperatures from -40 °C to 65 °C.
- Capable of supplying up to 60 watts of power.
2. Informații de siguranță
Please read all safety instructions carefully before installing or operating the device. Failure to follow these instructions may result in injury or damage to the product.
- Asigurați-vă că sursa de alimentare se potrivește cu volumultage requirements specified on the device label.
- Nu expuneți dispozitivul la apă sau umiditate excesivă.
- Evitați amplasarea dispozitivului în apropierea surselor de căldură sau în lumina directă a soarelui pentru perioade lungi de timp.
- Folosiți doar accesoriile și atașamentele specificate de producător.
- Pentru toate lucrările de întreținere, adresați personalului de service calificat.
3. Conținutul pachetului
Verificați dacă toate articolele sunt prezente în colet:
- Axis Communications T8134 Midspan PoE Injector (External)
Dacă lipsesc sau sunt deteriorate articolele, vă rugăm să contactați imediat furnizorul.
4. Configurare
Follow these steps to set up your PoE Injector:
- Identificați porturile: Locate the "DATA IN" and "DATA PWR OUT" Ethernet ports on the front of the PoE injector. The "DATA IN" port connects to your network switch/router, and the "DATA PWR OUT" port connects to your PoE-compatible device (e.g., network camera).
Figura 4.1: Față view of the PoE Injector, highlighting the DATA IN and DATA PWR OUT ports for network and device connections.
- Conectați cablul de rețea: Connect an Ethernet cable from your network switch or router to the "DATA IN" port on the PoE injector.
- Connect Device Cable: Connect another Ethernet cable from the "DATA PWR OUT" port on the PoE injector to the network port of your PoE-compatible device (e.g., Axis PTZ camera).
- Conectați cablul de alimentare: Connect the AC power cable to the power input on the rear of the PoE injector and then plug it into a suitable power outlet.

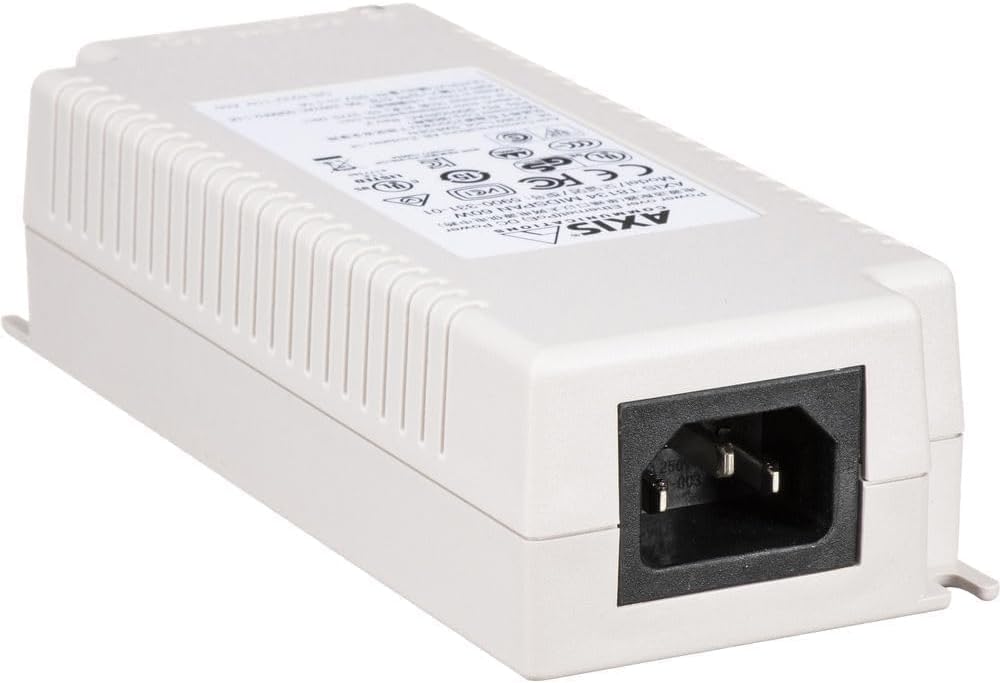

Figura 4.2: Spate view of the PoE Injector, showing the AC power input socket.
- Verificați indicatorii: Once powered, check the LED indicators on the injector. The "ON" indicator should illuminate, and the "DATA PWR OUT" indicator should show activity when a device is connected and receiving power.
5. Operare
The Axis T8134 Midspan PoE Injector operates automatically once connected. It provides power and data connectivity to your PoE-enabled devices over a single Ethernet cable.
- Livrare de energie: The injector delivers up to 60W of power, suitable for high-power PoE devices such as PTZ cameras.
- Transmiterea datelor: It supports standard Ethernet data rates, ensuring seamless communication with your network devices.
- Environmental Adaptability: Designed for robust performance, it functions reliably in a wide range of outdoor temperatures.
No user configuration is typically required for basic operation. The device is plug-and-play for compatible PoE devices.
6. Întreținere
The Axis T8134 Midspan PoE Injector requires minimal maintenance. Follow these guidelines to ensure optimal performance and longevity:
- curatenie: Periodically clean the exterior of the device with a soft, dry cloth. Do not use liquid cleaners or aerosol sprays.
- Ventilare: Asigurați-vă că orificiile de ventilație nu sunt blocate pentru a preveni supraîncălzirea.
- Integritatea cablului: Regularly inspect all connected cables for any signs of damage or wear. Replace damaged cables immediately.
- Actualizări firmware: While the injector itself typically does not have user-updatable firmware, ensure that connected Axis network devices have their firmware kept up-to-date for best compatibility and security.
7. Depanare
If you encounter issues with your PoE Injector, refer to the following common problems and solutions:
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| No power to connected device. |
|
|
| Nicio conexiune de date. |
|
|
| Device intermittently loses connection. |
|
|
If the problem persists after trying these solutions, please contact Axis Communications support.
8. Specificații
| Atribut | Detaliu |
|---|---|
| Marca | Axis Communications |
| Numărul de model | 5900-334 |
| Serie | FBA_5900-334 |
| Tip de produs | PoE Injector (Midspan) |
| Putere de ieșire | 60W |
| Interfață hardware | Ethernet |
| Rata de transfer de date | 480 de megabiți pe secundă |
| Culoare | Alb |
| Greutatea articolului | 0.32 uncii (aprox. 9.07 g) |
| Dimensiunile produsului (Lxlxh) | 2.4 x 5.9 x 1.5 inci (aprox. 6.1 x 15 x 3.8 cm) |
| Temperatura de operare | -40 °C până la 65 °C |
| Dispozitive compatibile | Desktop (and PoE-compatible network devices) |
| Data primului disponibil | 4 martie 2015 |
9. Informații despre garanție
Specific warranty details for the Axis Communications 5900-334 T8134 Midspan PoE Injector were not available in the provided product data. Please refer to the official Axis Communications website or contact your point of purchase for current warranty terms and conditions.
10. Suport
For technical support, product inquiries, or further assistance, please visit the official Axis Communications support website-ul web sau contactați departamentul de asistență pentru clienți. Informațiile de contact pot fi găsite de obicei pe site-ul producătorului. website-ul sau pe ambalajul produsului.
Nu au fost disponibile videoclipuri oficiale ale produsului în datele furnizate pentru includerea în acest manual.
