Novita Remote Control Elongated Bidet Seat User Manual

1. Configurare și instalare

This section guides you through the initial setup and installation of your Novita BH90 bidet seat. Ensure all components are present before beginning.

1.1 Conținutul pachetului

• Novita BH90 Bidet Seat
• Telecomanda
• Hardware de montare
• Water Supply Hose and T-Valve
• Ion Water Filter
• AA Batteries (4 included for remote)

1.2 Lista de verificare înainte de instalare

• Toilet Compatibility: The BH90 is designed for elongated toilets, compatible with most 2-piece and 1-piece toilets featuring flat tanks.
• Priză de putere: A grounded 110V AC electrical outlet is required within reach of the bidet seat's power cord.
• Aprovizionare cu apă: Ensure access to the toilet's cold water supply line.

1.3 Etapele de instalare

1. Remove Existing Seat: Detach your current toilet seat and lid.
2. Instalați placa de montare: Secure the provided mounting plate onto the toilet bowl using the included hardware.
3. Conectați alimentarea cu apă: Turn off the water supply to your toilet. Disconnect the existing water supply hose. Install the T-valve at the toilet's fill valve. Connect the bidet's water supply hose to the T-valve and the bidet seat. Ensure all connections are tight to prevent leaks.
4. Atașați scaunul pentru bideu: Slide the Novita BH90 bidet seat onto the mounting plate until it clicks into place. The quick-release bracket allows for easy attachment and removal.
5. Conectare alimentare: Plug the bidet seat's power cord into the grounded 110V AC outlet.
6. Instalați bateriile de la distanță: Open the remote control battery compartment and insert the 4 AA batteries.
7. Restabilirea alimentării cu apă: Slowly turn on the water supply to the toilet and check for any leaks.

2. Instrucțiuni de utilizare

Your Novita BH90 bidet seat is operated primarily via the wireless remote control. Familiarize yourself with the remote's functions for optimal use.

2.1 Control de la distanțăview

The backlit easy-touch remote control provides access to all bidet functions. Ensure the batteries are properly installed.

2.2 Funcții de bază

• Putere: Apăsați butonul de pornire pentru a porni sau opri unitatea.
• Senzor scaun: The infrared (IR) occupied seat sensor detects when a user is seated, enabling wash functions.

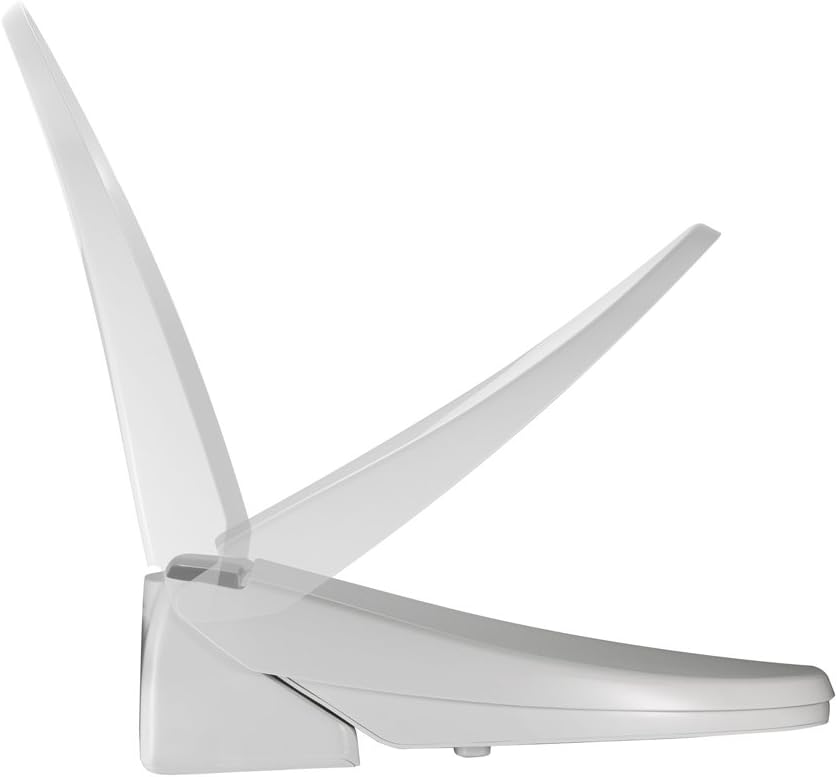

• Automatic Seat and Lid: The seat and lid can be set for one-touch or automatic lifting and closing.

2.3 Funcții de curățare

The BH90 features twin nozzles with stainless steel bodies for hygiene and durability. Nozzles are self-cleaning before and after each use.

• Rear Wash (Cleansing): Activates the posterior wash.
• Feminine Wash (Bidet): Activates the anterior wash.
• Spălare oscilantă: Moves the nozzle back and forth for a wider cleansing area.
• Funcție de masaj: Provides a pulsating water stream for a gentle massage.
• Presiunea apei: Adjust water pressure using the designated buttons on the remote. There are 4 levels for each cleansing type.
• Poziția duzei: Adjust the nozzle's position (6 positions) forward or backward for personalized cleansing.
• Temperatura apei: Select from 4 temperature levels for warm water, or turn the heater off. The TFR Hybrid heating system provides unlimited warm water.
• Spălare cu bule de aer: Incorporates air bubbles into the water stream for a softer, more effective cleanse.
• Ciclu automat: Initiates a pre-programmed wash and dry cycle.
• Caracteristica de siguranță a copiilor: Activează un ciclu de spălare delicat, potrivit pentru copii.

2.4 Drying and Deodorization

• Uscător cu aer cald: Activates the warm air dryer. Adjust the air temperature (4 levels) using the remote.
• Powerful Deodorizer: Automatically activates to neutralize odors during use.

2.5 Energy Saving Modes

The BH90 includes two-stage energy-saving features to reduce power consumption.

• Lo Eco Mode: Reduces seat and water heating temperatures during periods of inactivity.
• Hi Eco Mode: Further reduces energy consumption by turning off the seat heater and lowering water heating temperatures significantly during extended periods of inactivity.

3. Întreținere și curățare

Regular maintenance ensures the longevity and hygienic operation of your Novita BH90 bidet seat.

3.1 Curățarea duzei

The twin nozzles are self-cleaning. For manual cleaning or replacement of nozzle tips:

1. Ensure the bidet is off.
2. Gently pull out the nozzle tips. They are designed to be easily removable.
3. Clean with a soft brush and mild, non-abrasive soap.
4. Rinse thoroughly and reinsert the nozzle tips.

3.2 Ion Water Filter Replacement

The included ion water filter helps maintain water quality. It is recommended to replace the filter every six months, or more frequently in areas with hard water.

1. Opriți alimentarea cu apă a toaletei.
2. Locate the existing water filter and carefully unscrew it.
3. Install the new ion water filter, ensuring a tight seal.
4. Turn the water supply back on and check for leaks.

3.3 Curățare generală

• Wipe the exterior of the bidet seat with a soft, damp cârpă și un detergent ușor, neabraziv.
• Avoid using harsh chemicals, abrasive pads, or solvents, as these can damage the surface.
• For thorough cleaning, the quick-release bracket allows for easy removal of the entire seat.

4. Depanare

This section addresses common issues you might encounter with your Novita BH90 bidet seat.

4.1 Probleme comune și soluții

• No Power / Unit Not Responding:
  • Check if the power cord is securely plugged into a live electrical outlet.
  • Verificați dacă întrerupătorul de circuit al prizei nu s-a declanșat.
  • Ensure the remote control batteries are fresh and correctly installed. Replace if necessary (4 AA batteries).
• No Water Spray / Weak Water Pressure:
  • Confirm the water supply valve to the toilet is fully open.
  • Check if the bidet's water supply hose is kinked or obstructed.
  • Ensure the ion water filter is not clogged. Replace if it has been in use for over six months.
  • Verify that you are properly seated on the bidet seat to activate the seat sensor.
• Water Temperature Not Warm:
  • Check the water temperature setting on the remote control.
  • Ensure the bidet is not in an energy-saving mode (Lo Eco or Hi Eco) that might reduce heating.
• Scaunul nu se încălzește:
  • Check the seat temperature setting on the remote control.
  • Ensure the bidet is not in an energy-saving mode that might turn off the seat heater.
  • Verify the seat sensor is detecting your presence.
• Lid/Seat Not Lifting/Closing Automatically:
  • Check the automatic lift settings on the remote control.
  • Asigurați-vă că nu există obstacole care să împiedice mișcarea.

If you experience issues not covered here, or if troubleshooting steps do not resolve the problem, please contact Novita customer support.

5. Specificațiile produsului

Detailed technical specifications for the Novita BH90 Bidet Seat.

6. Garanție și asistență

6.1 Garanția producătorului

The Novita BH90 Bidet Seat comes with a Garanție de 3 an de la producător. This warranty provides 100% coverage of all parts and labor for the entire bidet for three years from the original date of purchase. Please retain your proof of purchase for warranty claims.

6.2 Asistență pentru clienți

For technical assistance, troubleshooting, or warranty inquiries, please contact Novita customer support. Refer to the contact information provided with your product packaging or visit the official Novita website-ul pentru cele mai recente detalii de asistență.
