Manual de utilizare pentru cântarul de baie cu analiză corporală din sticlă Escali BF180

Informații importante privind siguranța

AVERTIZARE: Do not use this scale if you have a pacemaker or use any other electronic personal medical device. The Bioelectrical Impedance Analysis (BIA) technology sends a small, unperceivable electrical signal through your body, which could interfere with such devices.

• Always place the scale on a hard, flat surface for accurate measurements. Carpets or uneven floors can affect readings.
• Platforma de sticlă poate fi alunecoasă atunci când este udă. Asigurați-vă că suprafața este uscată înainte de a călca pe ea.
• Do not jump on the scale or drop heavy objects on it.
• Păstrați cântarul departe de temperaturi extreme și lumina directă a soarelui.
• Acest cântar este destinat exclusiv uzului casnic.

Produs terminatview

The Escali BF180 Glass Body Analyzing Bathroom Scale is designed to provide a comprehensive analysis of your body composition. Utilizing advanced Bioelectrical Impedance Analysis (BIA) technology, it measures not only your body weight but also estimates body fat, body water, lean muscle mass, and bone mass. The scale features an ultra-slim design with a tempered safety glass platform and an easy-to-read LCD display.

Figura 1: Sus view of the Escali BF180 scale, showing the black glass platform, silver electrodes, and digital display.

Figura 2: Înclinat view of the Escali BF180 scale, highlighting its sleek, low-profile proiecta.

Caracteristici cheie:

• Advanced Body Composition Measurements: Measures percentage of body fat, body water, lean muscle, and bone mass.
• Analiza impedanței bioelectrice (BIA): Utilizes a safe, unperceivable electronic signal for detailed body analysis.
• Design ultra subțire: Tempered safety glass platform less than 1 inch thick for stability and modern aesthetics.
• Auto-detect User Profiles: Automatically recognizes up to eight users and calculates body composition based on stored profiles.
• Weight Only Mode: Allows for quick body weight measurement without requiring a personal profile.
• Oprire automată: Conserves battery life by turning off automatically after use.
• Afișaj ușor de citit: Clear LCD display shows measurements in pounds or kilograms.

Figure 3: Diagram illustrating key features of the Escali BF180 scale, including the easy-to-read display, body composition analysis, ultra-slim design, and touch-sensitive controls.

Înființat

Despachetarea

Carefully remove the scale from its packaging. Inspect the scale for any signs of damage. Retain the packaging for future storage or transport.

Instalarea bateriei

The Escali BF180 scale typically comes with batteries included. Locate the battery compartment on the underside of the scale. Open the compartment cover and ensure the batteries are correctly inserted according to the polarity indicators (+/-). If replacing batteries, use the specified type (usually AAA or CR2032, refer to the battery compartment for exact type) and dispose of old batteries responsibly.

Plasamentul inițial

Place the scale on a hard, flat, and stable surface. Avoid placing it on carpets, rugs, or uneven flooring, as this can lead to inaccurate readings. Ensure the scale is not exposed to direct sunlight or extreme temperatures.

Instrucțiuni de operare

Basic Weight Measurement

1. Asigurați-vă că cântarul se află pe o suprafață dură și plană.
2. Atingeți ușor centrul cântarului cu piciorul pentru a-l activa. Afișajul va afișa „0.0” sau „0.00”.
3. Once "0.0" is displayed, step onto the scale with bare feet, standing still and centered on the platform.
4. Greutatea dumneavoastră va fi afișată. Cântarul se va opri automat după câteva secunde.

Figure 4: A person's feet positioned correctly on the scale's electrodes for accurate measurement.

Configurarea User Profiles (for Body Analysis)

The scale can store profiles for up to eight users. Setting up a profile allows the scale to accurately calculate your body composition based on your personal data.

1. With the scale off, press the "SET" button. The display will show a user number (e.g., "P1").
2. Use the "UP" or "DOWN" arrow buttons to select an empty user profile (P1-P8).
3. Press "SET" to confirm the user number.
4. The display will prompt you to enter your gender (male/female icon). Use the arrow buttons to select and "SET" to confirm.
5. Next, enter your height. Use the arrow buttons to adjust the value and "SET" to confirm.
6. Then, enter your age. Use the arrow buttons to adjust the value and "SET" to confirm.
7. The scale will then display "0.0" or "0.00". Step onto the scale with bare feet. The scale will automatically recognize your profile based on your weight and perform the body composition analysis.

Analiza compoziției corporale

Odată profile is set up and you step on the scale with bare feet, the scale will perform a Bioelectrical Impedance Analysis (BIA). Ensure your feet are clean and make good contact with the silver electrodes on the scale's surface. The scale will cycle through and display your body weight, body fat percentage, procent de apă corporalătage, muscle mass, and bone mass.

Figure 5: Visual representation of the various body composition metrics measured by the scale: Body Weight, Body Fat, Muscle Mass, Body Water, and Bone Density.

Schimbarea unităților de măsură

The scale can display weight in pounds (lb), kilograms (kg), or stones (st). To change the unit, locate the unit switch button on the underside of the scale (or sometimes by pressing the 'SET' button repeatedly when the scale is off). Press it to cycle through the available units until your desired unit is displayed.

Figure 6: Diagram illustrating the conversion between different measurement units: pounds (lb), kilograms (kg), and stones (st).

Mod numai greutate

If you or a guest wish to measure only body weight without body composition analysis or profile selection, simply step onto the scale after it displays "0.0" or "0.00". The scale will provide a weight reading without attempting to identify a user profile or perform BIA.

Întreținere și îngrijire

• curatenie: Wipe the scale's surface with a damp cloth and mild detergent if necessary. Do not use abrasive cleaners or immerse the scale in water.
• Depozitare: Store the scale in a dry place at room temperature. Avoid storing it vertically or with heavy objects on top.
• Înlocuire baterie: If the display shows "Lo" or becomes dim, it's time to replace the batteries. Refer to the "Battery Installation" section for instructions.
• Calibrare: If the scale has been moved or stored vertically, it may require re-calibration. Step on the scale briefly, then step off. Wait for it to display "0.0" before taking a measurement.

Depanare

Specificații

Informații despre garanție

The Escali BF180 Glass Body Analyzing Bathroom Scale comes with a manufacturer's warranty. Please refer to the product packaging or the manufacturer's official website for specific warranty terms and conditions. Generally, Escali products are known for their quality and often come with a lifetime warranty against defects in materials and workmanship.

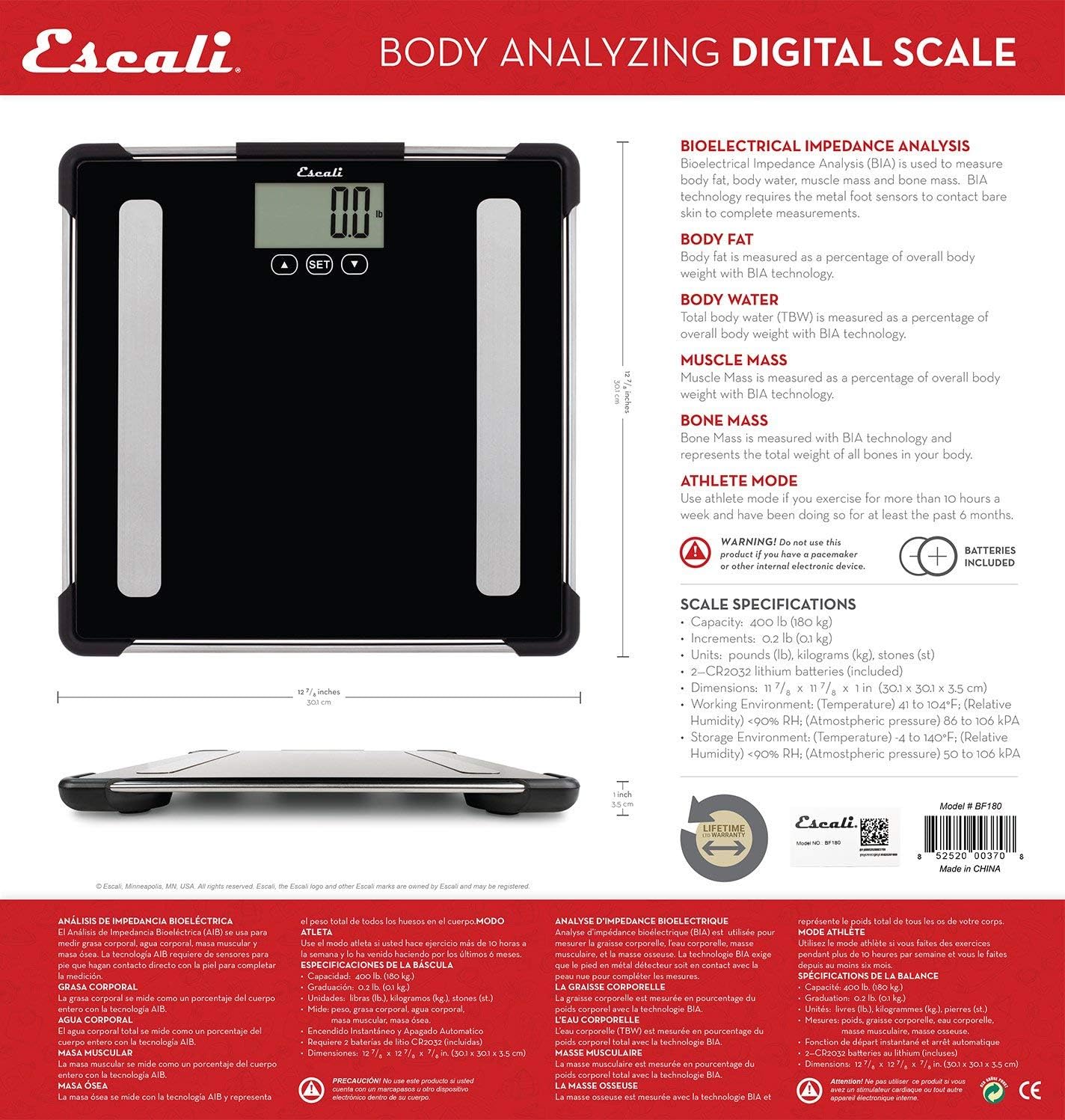

Figure 7: Product packaging detail, indicating specifications and the mention of a lifetime warranty.

Asistență pentru clienți

For further assistance, technical support, or warranty claims, please contact Escali customer service. You can typically find contact information on the product packaging, the official Escali website-ul web sau prin intermediul distribuitorului dumneavoastră.

Website: www.escali.com

Manufacturer: ESCGV

Place of Business: SEATTLE, WA, 98107 US
