Introducere
This manual provides essential instructions for the safe installation, operation, and maintenance of your Schonbek La Scala Chandelier Model 5073-26. Please read all instructions carefully before proceeding with installation or use. Retain this manual for future reference.
Informații de siguranță
AVERTISMENT: Risc de electrocutare. Deconectați alimentarea de la întrerupătorul de circuit înainte de instalare sau service.
- Toate conexiunile electrice trebuie să fie în conformitate cu codurile locale, ordonanțele și Codul Electric Național (NEC).
- Consultați un electrician calificat dacă nu sunteți sigur de procedurile de cablare.
- Asigurați-vă că suprafața de montare poate susține greutatea corpului de iluminat.
- Nu conectați acest dispozitiv la un sistem electric fără împământare.
- Handle crystals with care to prevent damage or injury.
- This fixture is rated for indoor use only.
Conținutul pachetului
Verificați dacă toate componentele sunt prezente înainte de a începe instalarea:
- Lighting Fixture (Chandelier frame)
- Mounting Hardware (Canopy, chain, screws, wire nuts)
- Fișe de instrucțiuni
- Certificat de autenticitate
- Manufacturer Warranty Certificate
- Crystal Components (Drops, rosettes, bobeches)
Configurare și instalare
1. Preinstalare
- Turn off power at the main circuit breaker or fuse box.
- Unpack all components carefully and inspect for any damage.
- Gather necessary tools: screwdriver, wire strippers, pliers, ladder, safety glasses.
2. Montarea dispozitivului de fixare
The chandelier mounts to a standard electrical box. It is suspended from a canopy using 80 inches of included chain in a matching finish. The chain length can be adjusted during installation. The fixture includes 180 inches of total wire for a maximum suspension up to 213 inches with additional chain (sold separately). This fixture can be installed on a sloped ceiling up to a 45-degree angle.
- Secure the mounting bracket to the electrical box.
- Attach the chain to the fixture loop and the canopy loop, adjusting to the desired height.
- Thread the electrical wires through the chain and canopy.
- Connect the fixture's black wire to the supply's black wire, the fixture's white wire to the supply's white wire, and the fixture's ground wire to the supply's ground wire using wire nuts.
- Carefully tuck wires into the electrical box and secure the canopy to the mounting bracket.

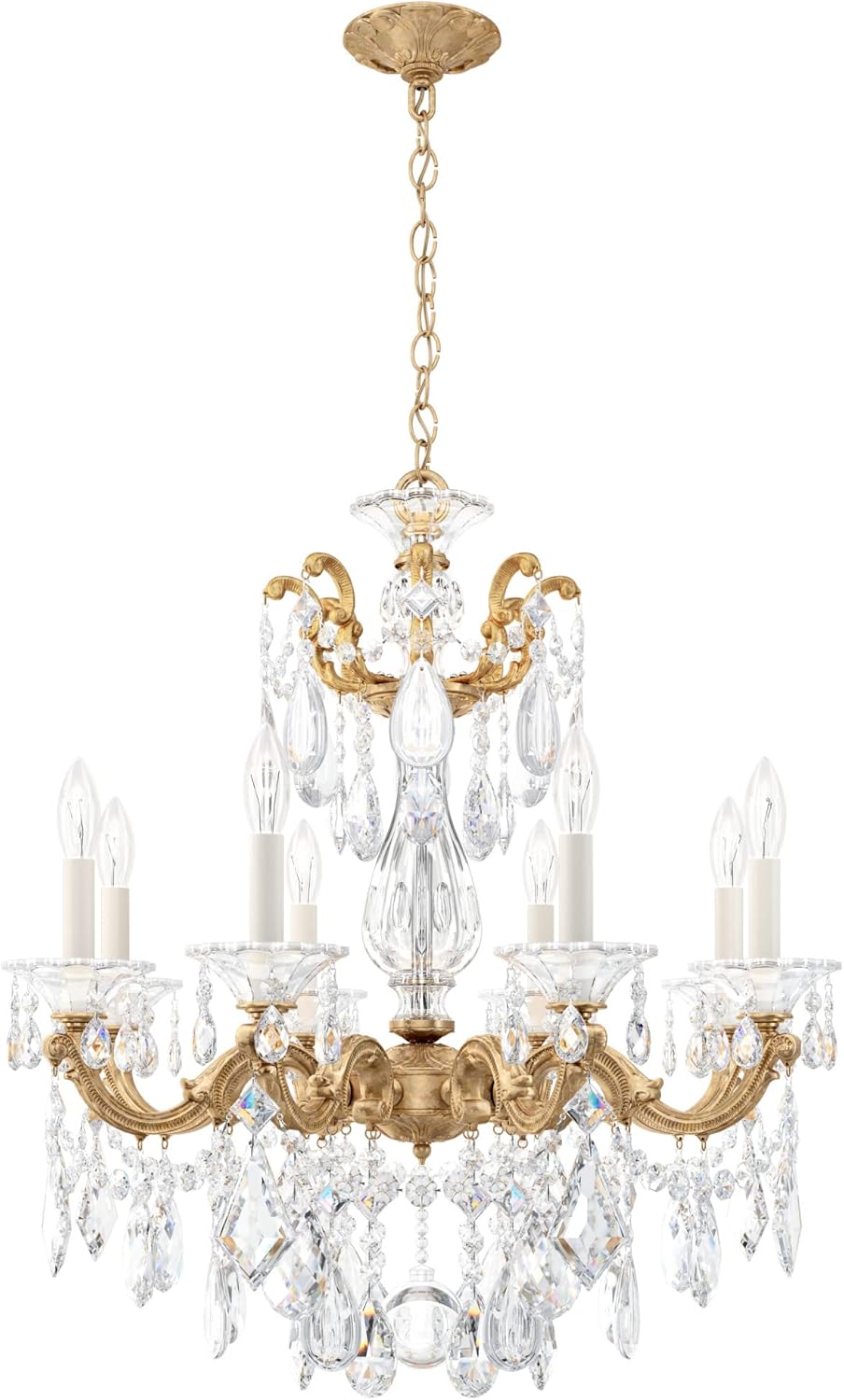

Figura 1: O pesteview of the Schonbek La Scala chandelier, showcasing its French Gold finish and clear Heritage Handcut Crystals.
3. Crystal Assembly
The chandelier is adorned with crystal drops and rosettes. Attach the Heritage Handcut Crystals according to the provided diagram in the separate instruction sheets. Ensure each crystal is securely fastened.
Figura 2: Detaliat view of the precisely cut Heritage crystals, highlighting their facets and clarity.
Figure 3: A closer look at the crystal drops and bobeches, demonstrating the intricate design and quality.
Instrucțiuni de operare
- After installation is complete and verified, restore power at the circuit breaker.
- The chandelier requires 8 x E12 base, B10 shape 120V light bulbs (60W maximum incandescent or LED, sold separately).
- For dimming functionality, use a compatible dimmer switch (sold separately) for smooth and continuous dimming.
Figure 4: The Schonbek La Scala chandelier illuminating a bedroom, demonstrating its scale and aesthetic impact within a living space.
Întreţinere
Cleaning the Fixture
- Opriți întotdeauna alimentarea cu energie a corpului de iluminat înainte de curățare.
- For the metal frame, use a soft, dry cloth to gently wipe away dust. Avoid abrasive cleaners or solvents, as they may damage the finish.
- For the crystals, use a soft, lint-free cloth dampened with distilled water or a specialized crystal cleaner. Gently wipe each crystal to remove dust and fingerprints. Do not spray cleaner directly onto the fixture.
- Regular cleaning will maintain the chandelier's brilliance and appearance.
Depanare
If your chandelier is not functioning as expected, refer to the following common issues:
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Lumina nu se aprinde | Fără curent la dispozitiv Conexiunea cablajului slab Bec defect | Verificați întrerupătorul. Verificați dacă toate conexiunile firelor sunt fixe (cu alimentarea întreruptă). Înlocuiți bec(ele). |
| Luminile pâlpâie | Bec slăbit Dimmer incompatibil Cablaj slăbit | Strângeți becurile. Ensure dimmer is compatible with LED/incandescent bulbs. Verificați conexiunile cablurilor (cu alimentarea întreruptă). |
| Cristalele par plictisitoare | Acumulare de praf sau reziduuri | Clean crystals as per maintenance instructions. |
Specificații
| Caracteristică | Detaliu |
|---|---|
| Numărul de model | 5073-26 |
| Marca | Schonbek |
| Stil | La Scala, Clear Heritage Handcut Crystals |
| Culoare/finisare | French Gold |
| Material | Oțel aliat, Cristal |
| Dimensiunile produsului | 25 cm L x 25 cm l x 28.5 cm Î |
| Greutatea articolului | 27 lire sterline |
| Numărul de lumini | 8 |
| Baza becului | E12 |
| Max Wattage (per bec) | 60W (Incandescent or LED equivalent) |
| Voltage | 120 volți |
| Utilizare în interior/exterior | Numai pentru utilizare în interior |
| Asamblare necesară | Da |
| Tip de montare | Single Circuit, Chain Suspended |
| Slope Ceiling Compatible | Până la 45 de grade |
| Standarde | UL, cUL, CSA rated |
| UPC | 771857211153 |
Garanție și suport
Informații despre garanție
This Schonbek La Scala Chandelier is covered by a 5-year manufacturer's warranty. Please refer to the included Manufacturer Warranty Certificate for specific terms and conditions.
Asistență pentru clienți
For technical assistance, replacement parts, or warranty claims, please contact Schonbek customer service. Contact information can typically be found on the manufacturer's website or on the warranty certificate.
