1. Produs terminatview
The FarmTek Manual Ceiling Fan Controller is designed to provide infinitely variable speed control for various ventilation applications. This robust unit features an on/off line switch, an RFI filter, and a minimum speed trimpot, all housed within a flame-retardant ABS enclosure. It is suitable for controlling range hoods, vibrators, humidifiers, fireplace blowers, fans, laminar flow hoods, heat tunnels, and stirrers.
Caracteristicile cheie includ:
- Amps: 10
- volți: 120
- Number of Fans Per Control: 8
- Tip: Controla

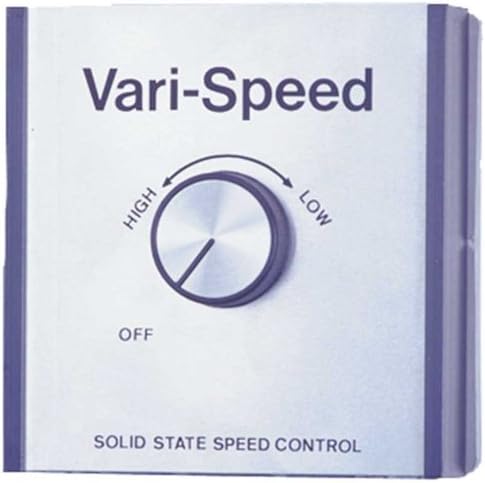

Image of the FarmTek Manual Ceiling Fan Controller, showing the 'Vari-Speed' dial with 'HIGH' and 'LOW' indicators, and an 'OFF' position. The text 'SOLID STATE SPEED CONTROL' is visible at the bottom.
2. Informații de siguranță
Please read and understand all instructions before installing or operating this device. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always disconnect power at the circuit breaker or fuse box before installation or servicing.
- Instalarea trebuie efectuată de către un electrician calificat, în conformitate cu toate codurile electrice locale și naționale.
- Do not exceed the maximum electrical ratings of 10.0 Amps @ 40°C and 115 VAC, 50/60 Hz.
- Acest produs este conceput numai pentru utilizare în interior.
- Asigurați-vă că toate conexiunile firelor sunt sigure și izolate corespunzător.
- Țineți copiii departe de componentele electrice.
Propunerea 65 Avertisment: Acest produs poate conține substanțe chimice cunoscute de statul California pentru a provoca cancer și defecte congenitale sau alte vătămări reproductive.
3. Conținutul pachetului
La deschiderea ambalajului, vă rugăm să verificați dacă toate componentele sunt prezente și nedeteriorate:
- Manual Ceiling Fan Controller Unit
- Placă de cadran
- Buton de control
- Șuruburi de montare
- Conectori de sârmă
- Manual de instrucțiuni (acest document)
4. Configurare și instalare
This controller is designed for installation in a standard 2" x 4" electrical wall box.
- Deconectare de la curent: Before beginning any work, turn off the power to the circuit at the main electrical panel (circuit breaker or fuse box). Verify that the power is off using a voltage tester.
- Prepare Wall Box: Ensure the electrical wall box is clear and ready for installation.
- Cablaj: Connect the controller's wires to the corresponding household wiring using the provided wire connectors. Refer to the wiring diagram typically found on the product packaging or included wiring sheet for specific connections (e.g., Line In, Load Out, Ground). Ensure all connections are tight and secure.
- Montare: Carefully push the wired controller into the wall box. Secure it using the provided mounting screws.
- Install Dial Plate and Knob: Attach the dial plate over the controller, aligning it correctly. Then, firmly push the control knob onto the shaft.
- Restabiliți puterea: După ce instalarea este finalizată și toate conexiunile sunt fixate, restabiliți alimentarea cu energie electrică la panoul electric principal.
5. Instrucțiuni de utilizare
The FarmTek Manual Ceiling Fan Controller provides simple and effective speed adjustment for your connected devices.
- Pornire/Oprire: The controller features an integrated on/off line switch. Rotate the knob fully counter-clockwise to the 'OFF' position to turn off the connected device. Rotate it clockwise from 'OFF' to turn the device on.
- Controlul vitezei: Once the device is on, continue rotating the knob clockwise to increase the speed (towards 'HIGH') or counter-clockwise to decrease the speed (towards 'LOW'). The controller provides infinitely variable speed motor control, allowing for precise adjustment.
- Minimum Speed Trimpot: For advanced users, a minimum speed trimpot may be present on the unit (typically behind the dial plate or inside the enclosure). This allows for setting a minimum operational speed to prevent motor stalling at very low settings. Adjust only if necessary and with power disconnected.
- Rheostat Functionality: This controller can also be used as a rheostat for other compatible resistive loads, providing variable power output.
6. Întreținere
The FarmTek Manual Ceiling Fan Controller requires minimal maintenance.
- curatenie: To clean the surface of the controller, wipe it with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the finish or internal components.
- Inspecţie: Periodically inspect the controller for any signs of damage, loose connections, or unusual operation. If any issues are observed, disconnect power and consult a qualified electrician.
- Fără piese reparabile de utilizator: There are no user-serviceable parts inside the controller. Do not attempt to open or repair the unit yourself.
7. Depanare
If you experience issues with your FarmTek Manual Ceiling Fan Controller, refer to the following common problems and solutions:
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Controller does not turn on or fan does not operate. | Fără alimentare cu energie electrică în circuit. Conexiunea cablajului slab. Controler defect. | Verificați întrerupătorul/siguranța. Verificați dacă toate conexiunile firelor sunt fixe (cu alimentarea întreruptă). If power is present and connections are good, the controller may be faulty and require replacement. |
| Fan operates only at one speed or does not respond to knob adjustment. | Cablare incorectă. Controller incompatible with fan motor type. Internal fault in controller. | Review wiring diagram and re-wire if necessary (with power off). Ensure the fan motor is compatible with solid-state speed control. Replace controller if wiring and compatibility are confirmed. |
| Humming or buzzing noise from fan/controller. | Motor incompatibility. RFI filter issue. | Some motors may produce a slight hum with solid-state controls. If excessive, ensure motor is compatible. The controller includes an RFI filter to minimize interference. |
If troubleshooting steps do not resolve the issue, please contact FarmTek customer support or a qualified electrician.
8. Specificații
| Atribut | Valoare |
|---|---|
| Marca | FarmTek |
| Numele modelului | Manual Speed Controllers |
| Numărul piesei | CF1848 |
| Voltage | 120 volți |
| Ampepoca | 10 Amps (maximum rating @ 40°C) |
| Wattage | 1150 wați |
| Sursa de alimentare | Manual |
| Tip comutator | Flow Switch (On/Off Line Switch) |
| Material carcasă | ABS ignifug |
| Greutatea articolului | 12.48 uncii |
| Utilizare în interior/exterior | De interior |
| Utilizări recomandate | Ventilating (fans, range hoods, etc.) |
| Instalare | Designed for 2" x 4" electrical wall box installation |
9. Garanție și asistență
Specific warranty information for the FarmTek Manual Ceiling Fan Controller is typically provided at the time of purchase or can be found on the official FarmTek website. Vă rugăm să păstrați dovada achiziției pentru reclamații în garanție.
For technical support, replacement parts, or further inquiries, please contact FarmTek customer service through their official channels. Refer to the contact information provided with your product packaging or on the manufacturer's website-ul.
